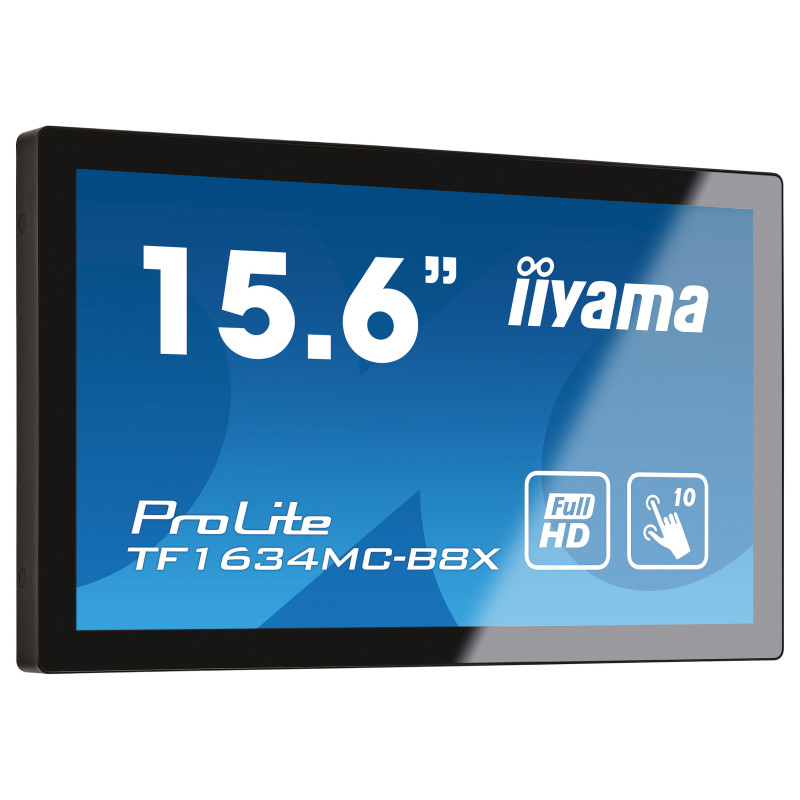

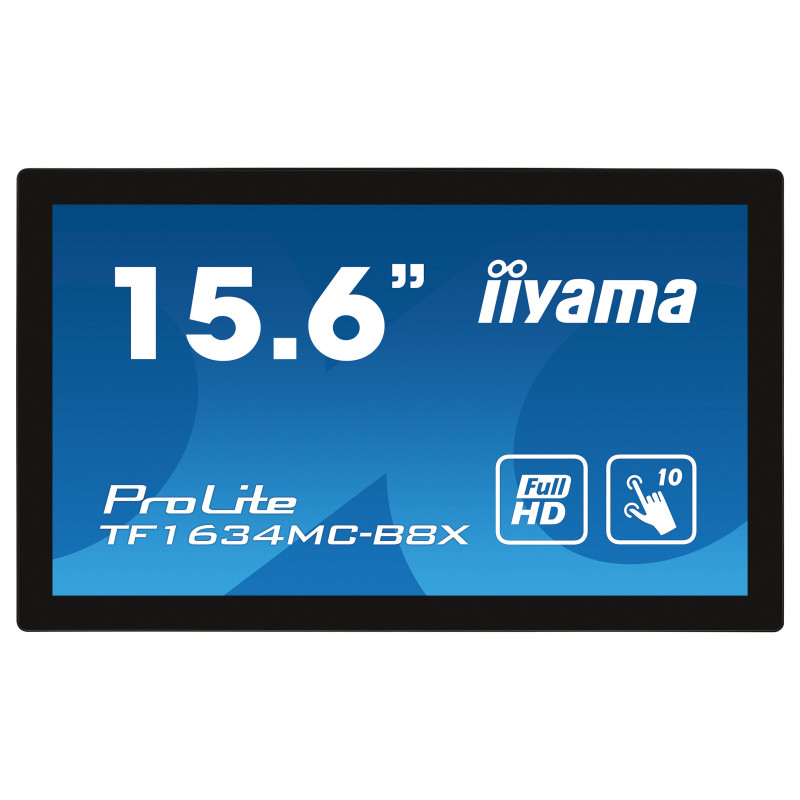

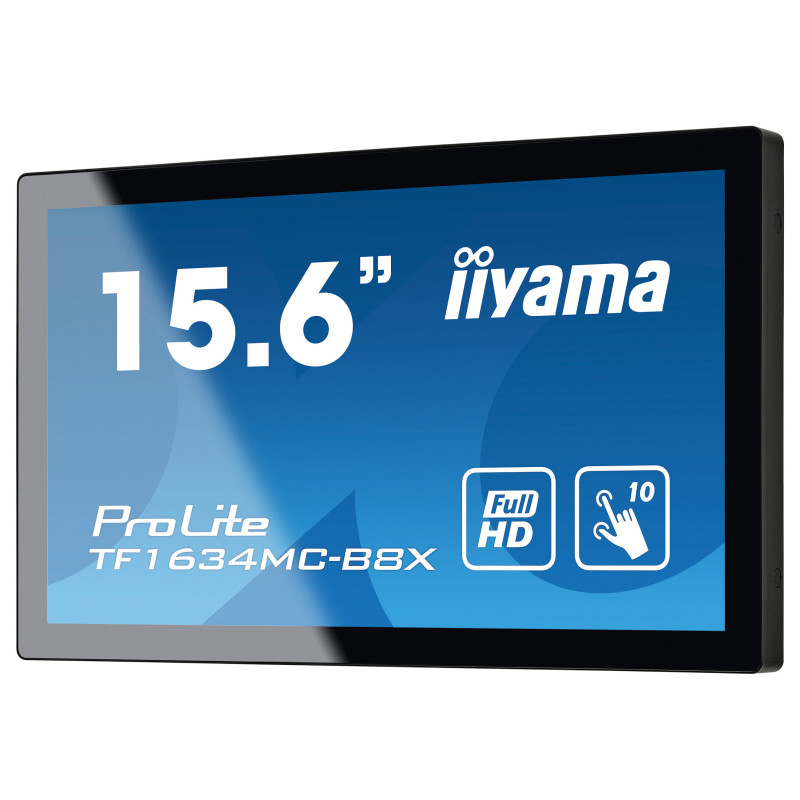

„iiyama ProLite TF1634MC-B8X“ kompiuterio monitorius

iiyama ProLite TF1634MC-B8X. Display diagonal: 39.6 cm (15.6"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 25 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black

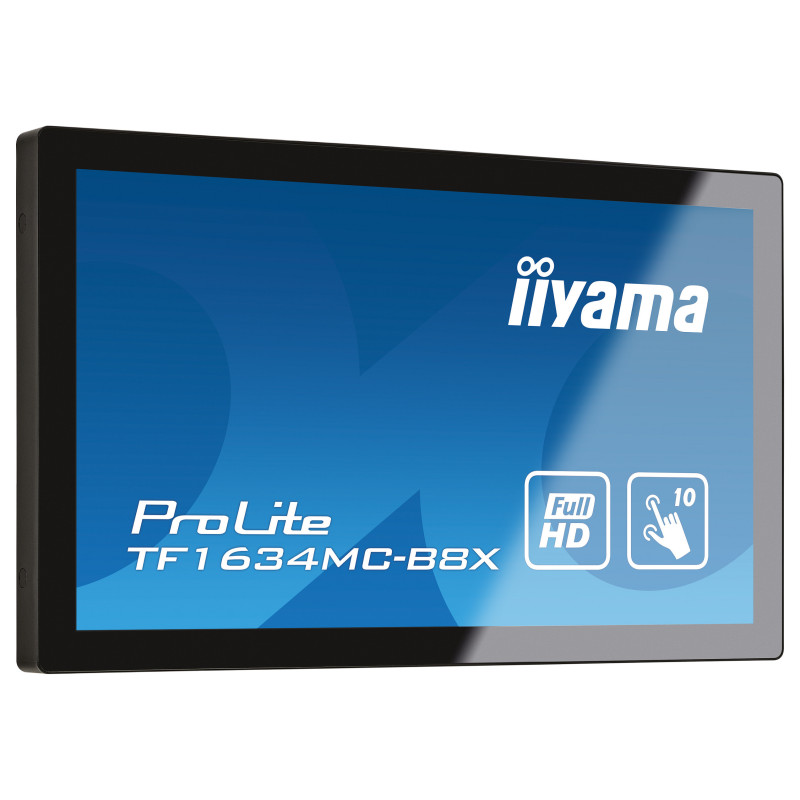

The ProLite TF1634MC-B8X uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The Touch-Through-Glass function guarantees a seamless and accurate touch response for interactive behind-glass-retail applications. In addition to the superb image quality, the screen comes with an IP65 rating, which means the screen and bezel is totally dust and water resistant, making it a perfect solution for demanding kiosk installations. For ease of integration, the TF1634MC-B8X can be equipped with optional external mounting brackets ( OMK1-1 ) making it an ideal solution for kiosk integrators and Instore Retail.

Display

Display diagonal: 39.6 cm (15.6")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LED
Panel type: IPS
Feature: Touchscreen
Touchscreen type: Multi-user
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (typical): 450 cd/m²
Display brightness: 405 cd/m²
Response time: 25 ms
Response time measurement type: GTG (Gray to Gray)
Screen shape: Flat
Contrast ratio (typical): 700:1
Maximum refresh rate: 60 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.2 million colours
Pixel pitch: 0.179 x 0.179 mm
Horizontal scan range: 30 - 84 kHz
Viewable size, horizontal: 34.4 cm
Viewable size, vertical: 19.4 cm
Display diagonal (metric): 39.5 cm
Surface hardness: 7H

Performance

Feature: Palm rejection

Design

Product colour: Black
Front bezel colour: Black
Glass thickness: 2.4 mm

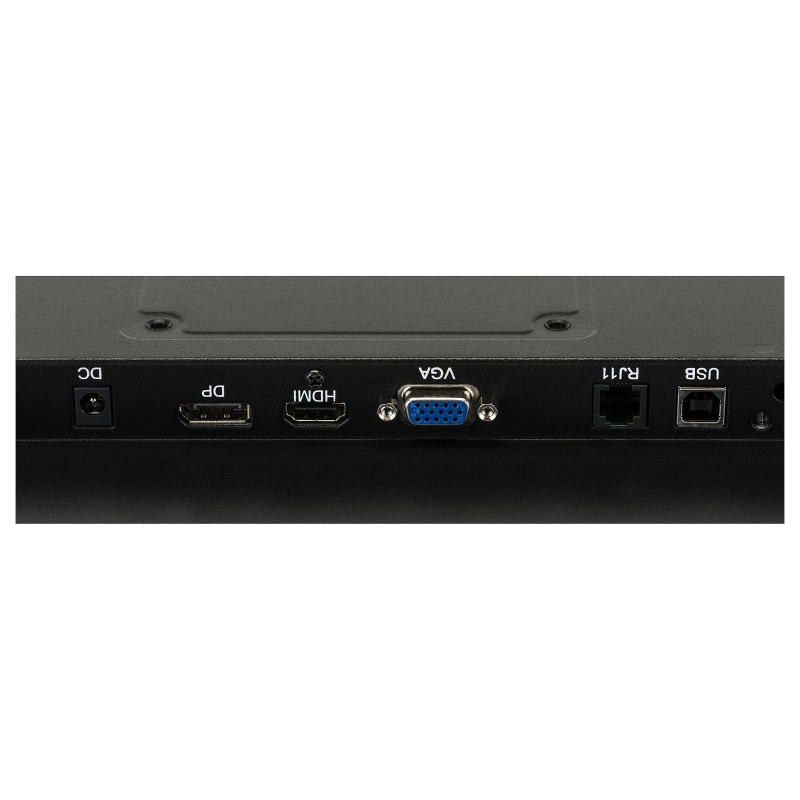

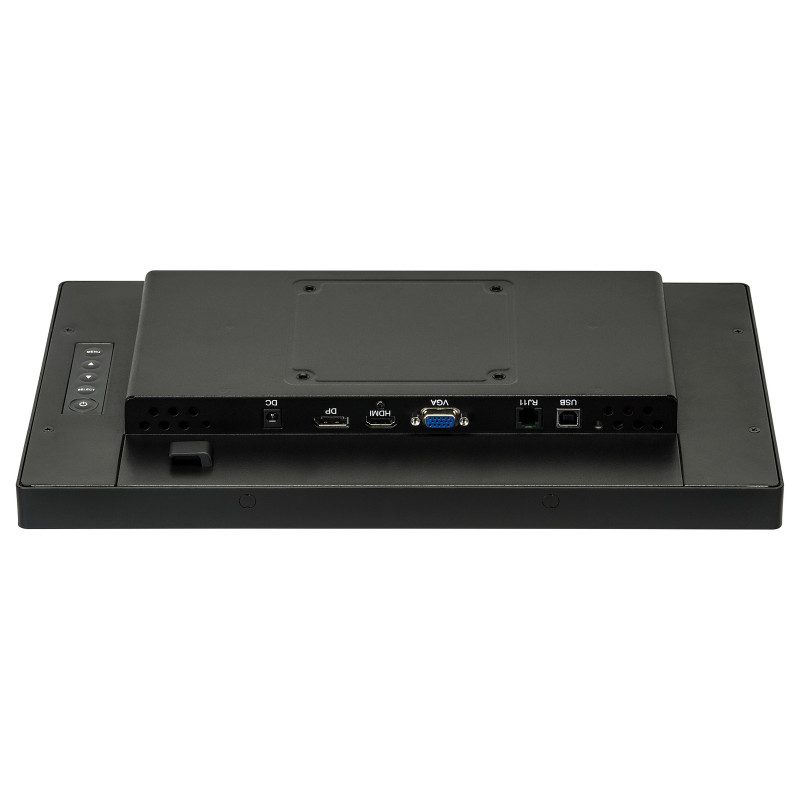

Ports & interfaces

Feature: USB Touch port
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
DisplayPorts quantity: 1
Feature: HDCP

Ergonomics

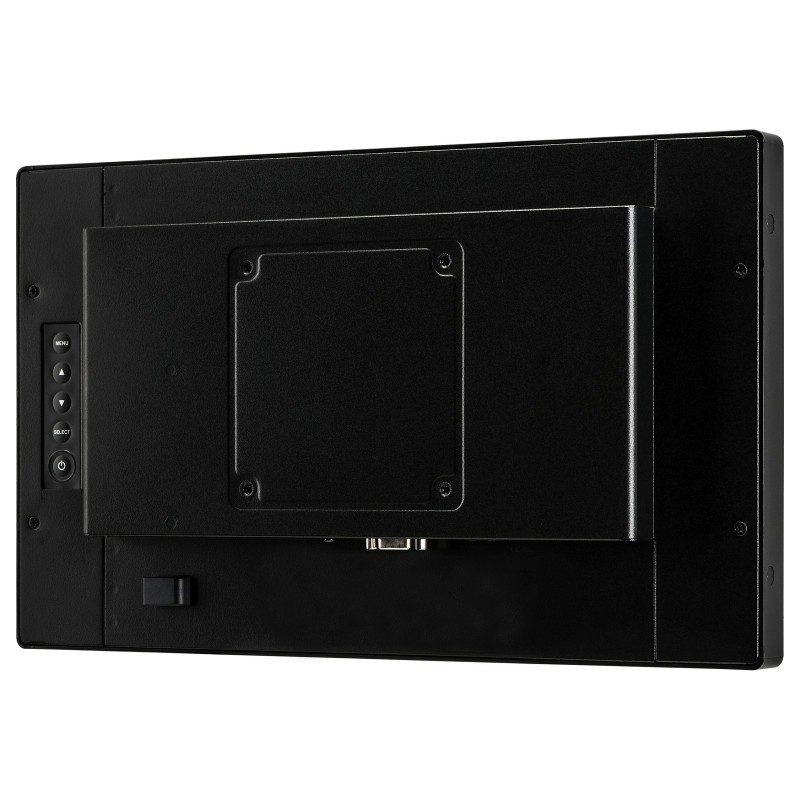

Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Wall mountable
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages: 7

Power

Energy efficiency class (SDR): F
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 12.4 kWh
Power consumption (typical): 18 W
Power consumption (standby): 1.5 W
Power consumption (off): 0.3 W
AC adapter output voltage: 12 V
Power supply type: External

Weight & dimensions

Width (with stand): 381 mm

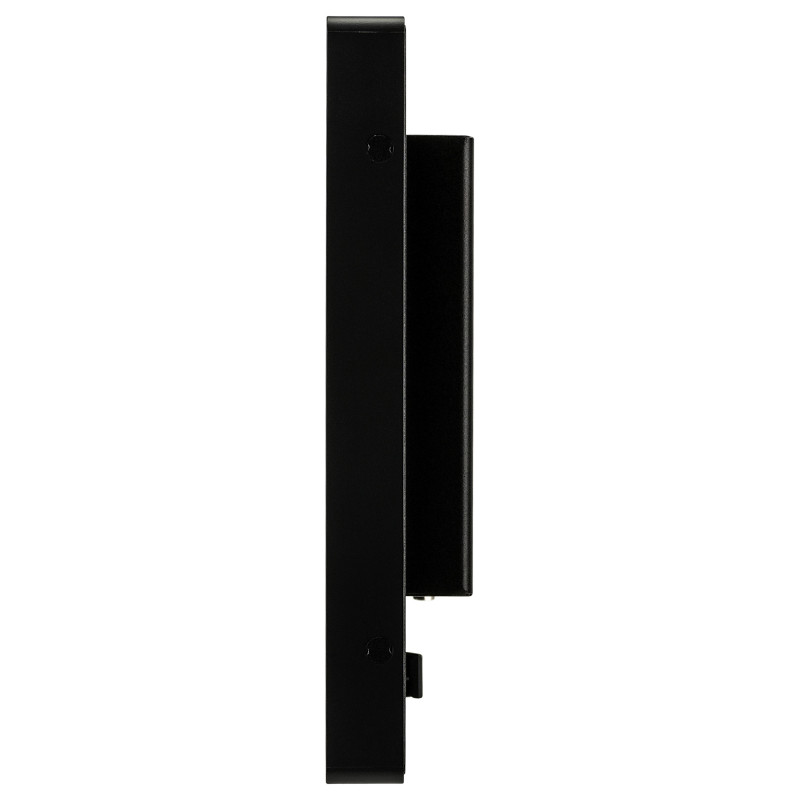

Depth (with stand): 46 mm
Height (with stand): 230.5 mm
Weight (with stand): 2 kg
Width (without stand): 381 mm
Depth (without stand): 46 mm
Height (without stand): 230.5 mm
Weight (without stand): 2 kg

Packaging data

Package width: 455 mm
Package depth: 290 mm
Package height: 365 mm
Package weight: 3.9 kg

Packaging content

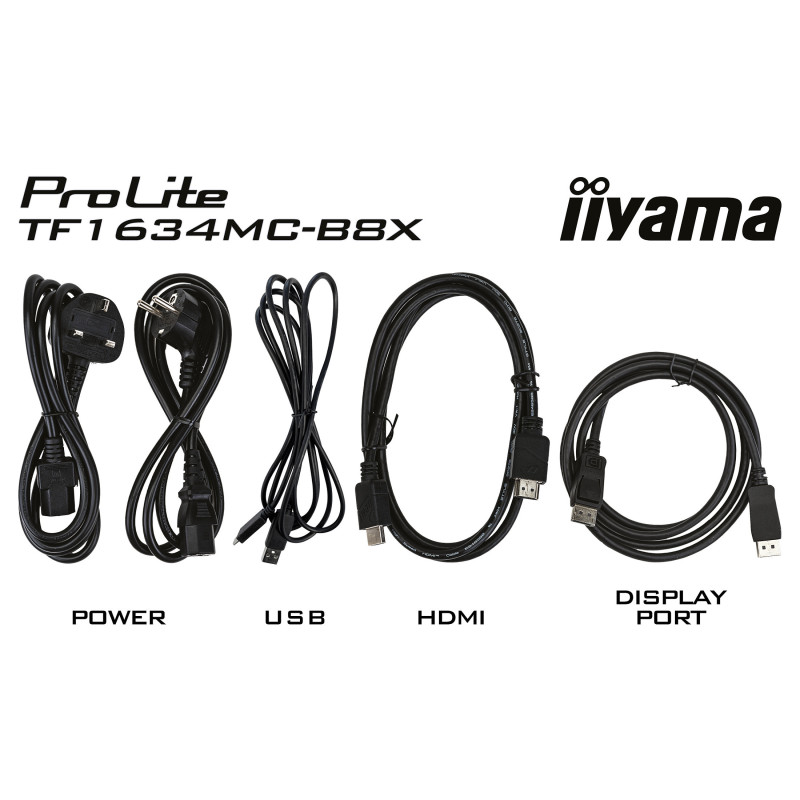

Cables included: AC, USB, HDMI, DisplayPort
Feature: Quick start guide

Sustainability

Sustainability certificates: ErP

Other features

International Protection (IP) code: IP65
Feature: AC adapter included
Display viewable area (HxV): 344.2 x 193.5 mm
Placement supported: Horizontal/Vertical
Brightness: 405 cd/m²
Packaging content: AC adapter
Active display area (W x H): 344.2 x 193.6 mm
Touch method: stylus, finger, glove (latex)
Weight: 2 kg
Height: 230.5 mm
Width: 381 mm
Depth: 46 mm

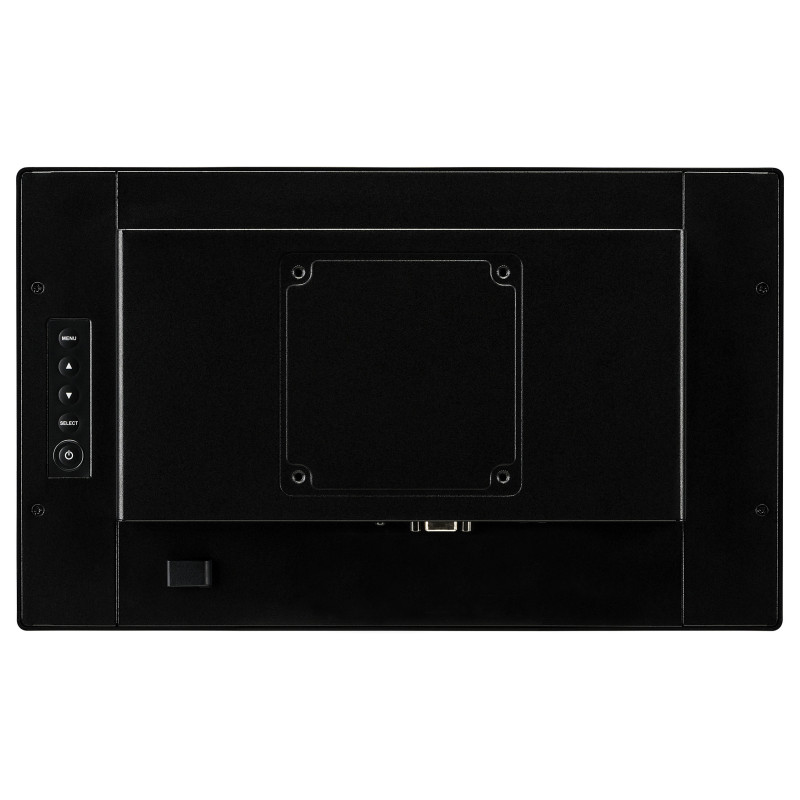

Control panel: Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
Compliance certificates: CE, cULus, EAC, REACH, RoHS, WEEE

Logistics data

Products per pallet: 78 pc(s)
Pallet net width: 11.5 cm
Pallet net length: 20.4 cm
Pallet net height: 9.7 cm
Harmonized System (HS) code: 85285210
