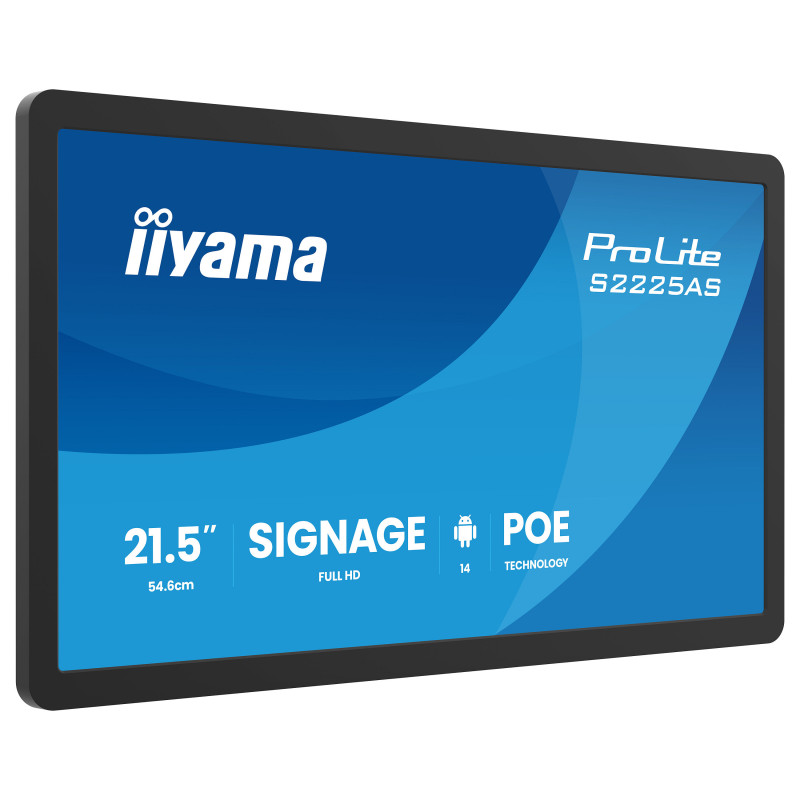

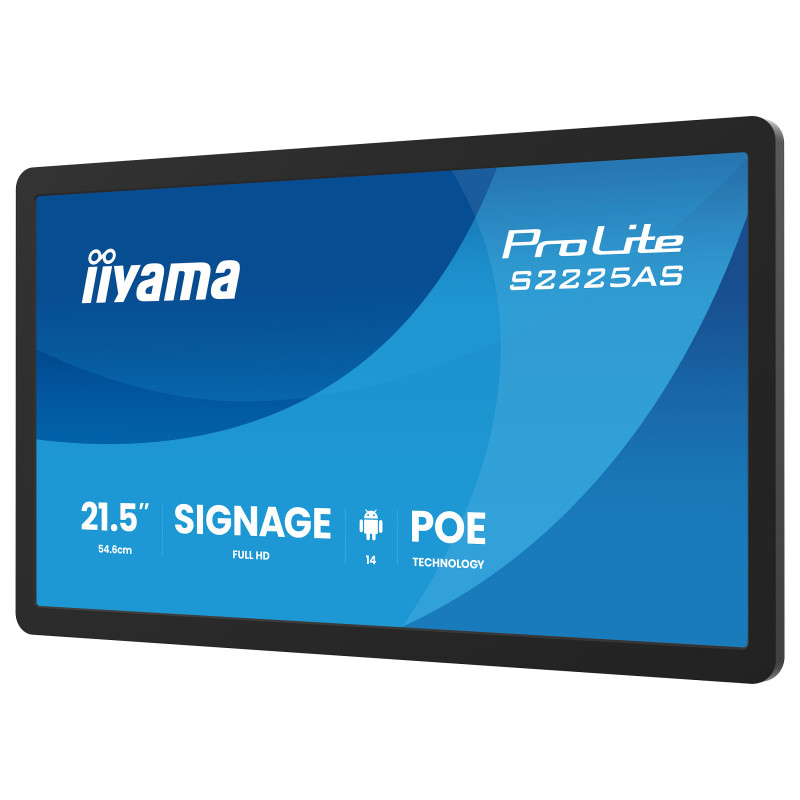

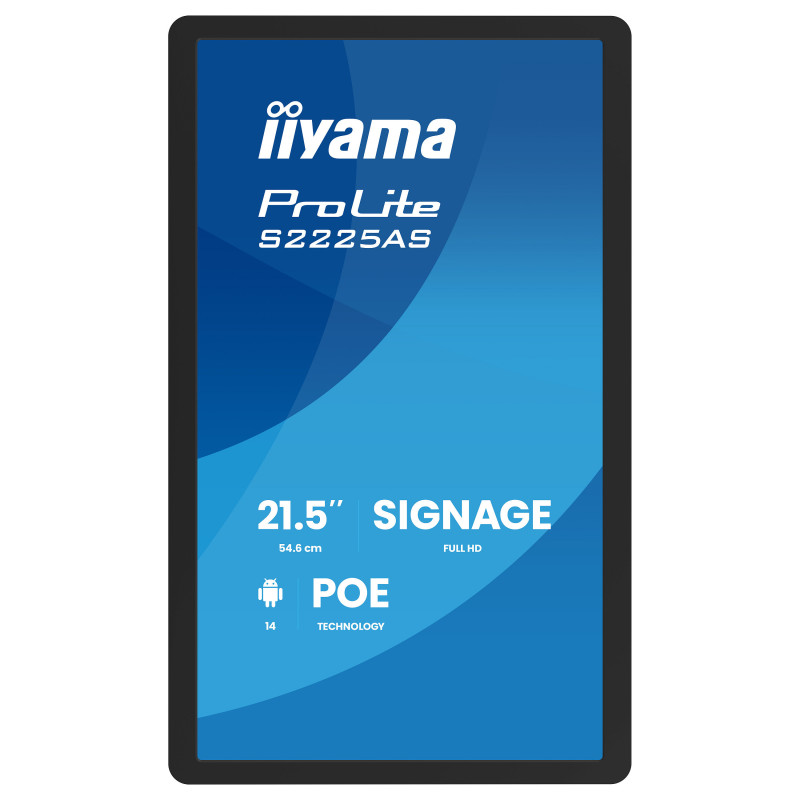

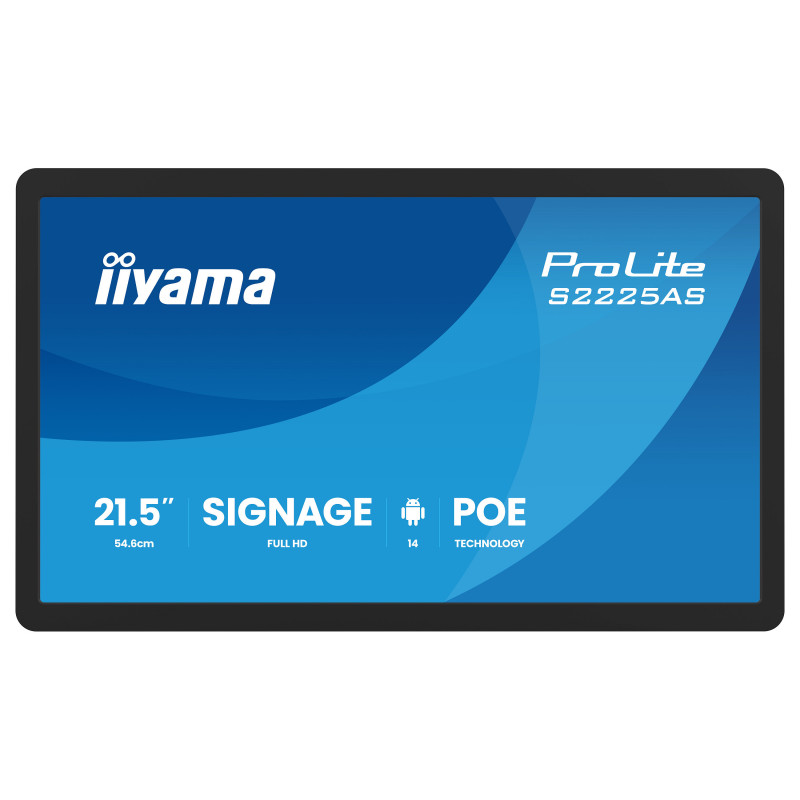

„iiyama ProLite S2225AS-B1P“

iiyama ProLite S2225AS-B1P. Product design: Digital signage flat panel. Display diagonal: 54.6 cm (21.5"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 500 cd/m², HD type: Full HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black

The ProLite S2225AS-B1P is a 21.5" Android-based display created specifically for reliable content playback in professional environments. This specialist signage display is ideal for supermarkets, retail stores and public spaces where clear, continuous visual communication is required. The Full HD IPS panel with 500cd/m2 brightness ensures excellent visibility, while Power over Ethernet (PoE) allows for a simple and efficient installation using a single cable for power and data. iiyama guarantees compatibility with this platform for a minimum of 5 years, ensuring long-term reliability and peace of mind for professional installations.

Display

Panel type: IPS
Display diagonal: 54.6 cm (21.5")
Display technology: LCD
Display resolution: 1920 x 1080 pixels
Display brightness: 500 cd/m²
HD type: Full HD
Native aspect ratio: 16:9
Response time: 14 ms
Contrast ratio (typical): 1500:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.284 x 0.284 mm
Active display area (W x H): 476.1 x 267.8 mm
Display diagonal (metric): 54.6 cm
Horizontal scan range: 31 - 83 kHz
Haze rate: 25%
Surface hardness: 3H

Ports & interfaces

HDMI ports quantity: 1
Feature: USB port
USB ports quantity: 2
USB version: 2.0/3.2 Gen 1 (3.1 Gen 1)
USB connector type: USB Type-A, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Feature: Microphone in

Audio

Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 10 W

Design

Product design: Digital signage flat panel
Placement supported: Indoor
Orientation: Horizontal/Vertical
Product colour: Black
Screen shape: Flat
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Bezel colour: Black
Feature: Anti-glare screen

Performance

Purpose: Universal
Operating hours (hours/days): 24/7
Number of microphones: 2
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 17.5 W
Power consumption (standby): 14 W
Power consumption (off): 3.5 W

Computer system

Feature: Computer system
Computer system type: System on Chip (SoC)
Feature: Built-in processor
Processor manufacturer: Rockchip
Processor family: ARM Rockchip
Processor model: Rockchip RK3576
Processor cores: 8
Internal memory: 4 GB
On-board graphics card model: ARM Mali-G52
Internal storage capacity: 32 GB
Operating system installed: Android
Operating system version: 14

Weight & dimensions

Display width: 510.5 mm
Display depth: 33.5 mm
Display height: 308.5 mm
Display weight: 2.8 kg
Width: 510.5 mm
Depth: 33.5 mm
Height: 308.5 mm
Weight: 2.8 kg

Packaging data

Package width: 578 mm
Package depth: 123 mm
Package height: 374 mm

Packaging content

Feature: Power adapter included
Cables included: AC

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 1000 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b

Technical details

User controls: Power switch, Volume
Sustainability certificates: ErP
Compliance certificates: CE, EAC, REACH, RoHS, UKCA, WEEE

Other features

Feature: Bluetooth
Bluetooth version: 5.3
Feature: Built-in microphone
USB 2.0 ports quantity: 2
Power supply type: External
