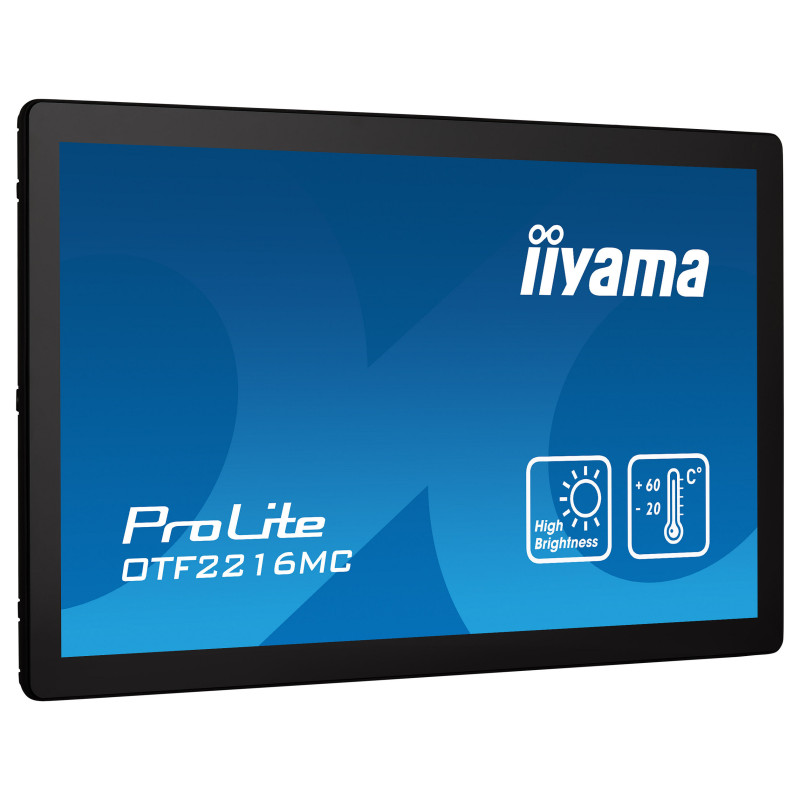

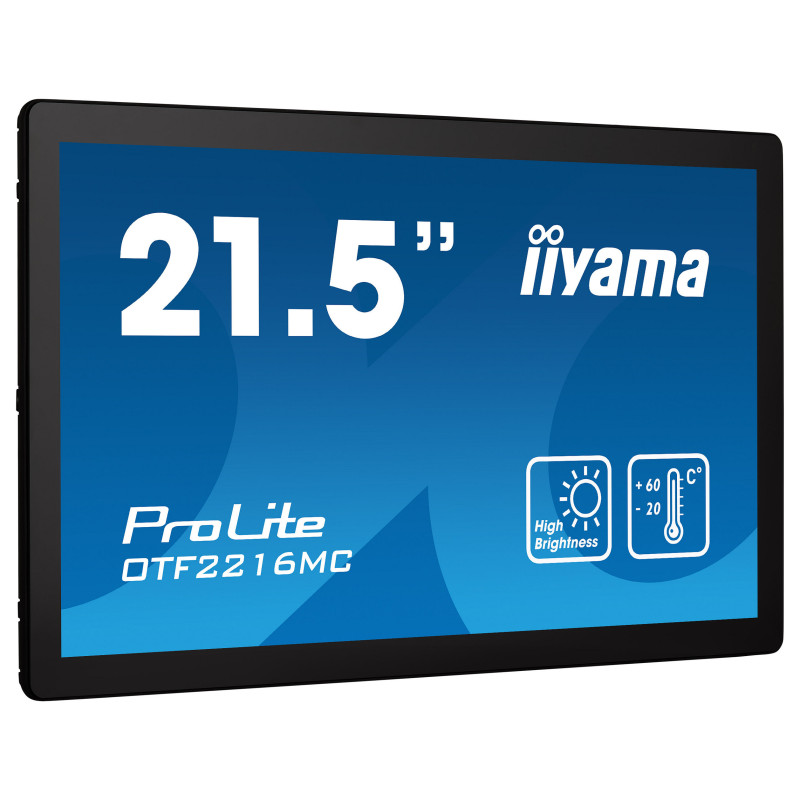

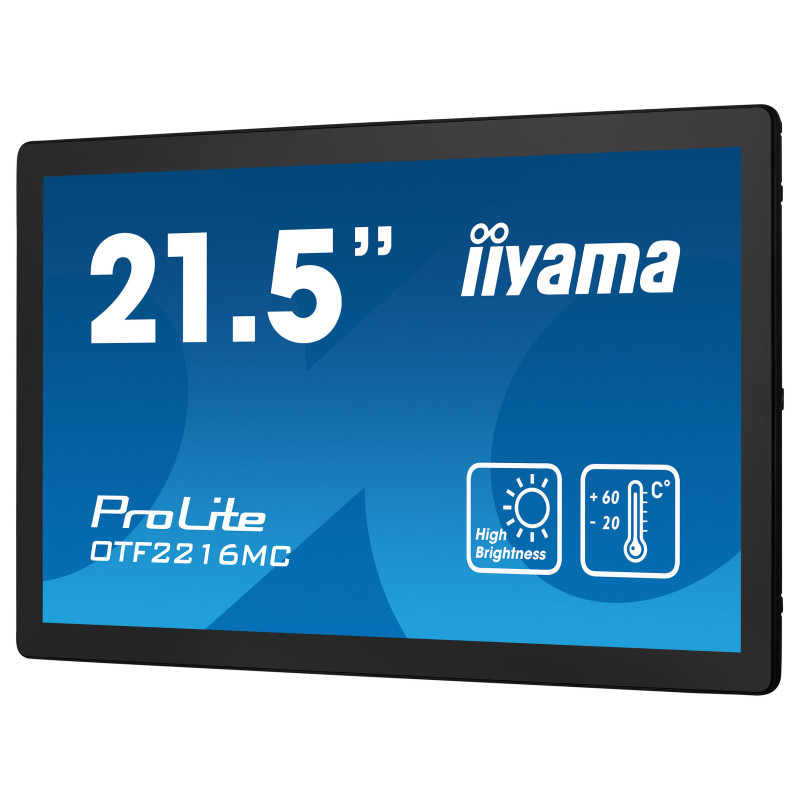

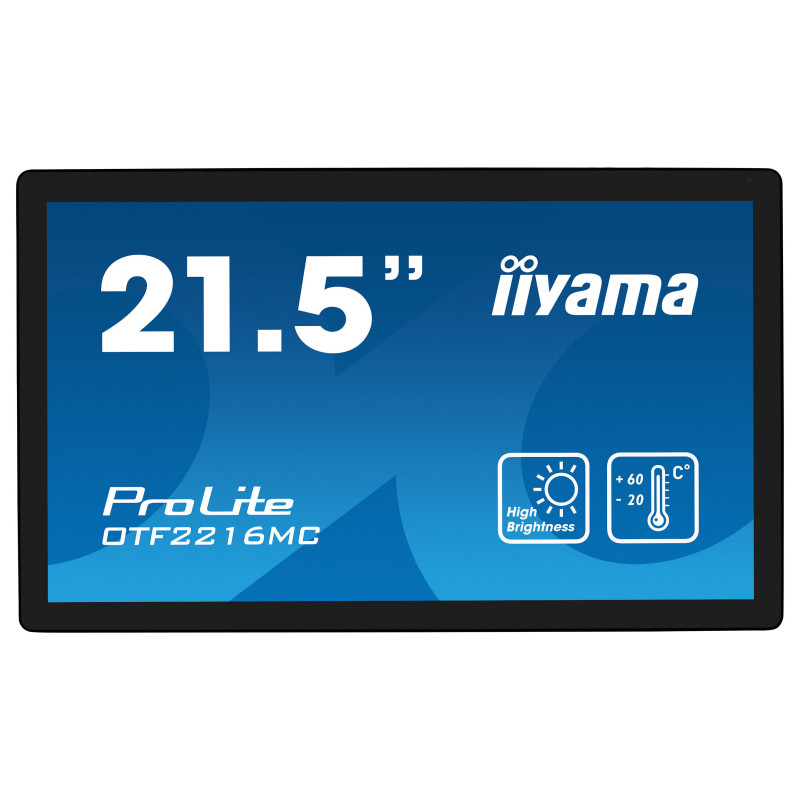

„iiyama OTF2216MC-B1“ kompiuterio monitorius

iiyama OTF2216MC-B1. Display diagonal: 54.6 cm (21.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 25 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black

Built into a rugged, edge-to-edge glass bezel the ProLite OTF2216MC-B1 guarantees high durability and scratch-resistance, making it perfect for high use public facing applications. Landscape, portrait and face-up orientation ensure flexibility in any type of installation. It offers a brightness of up to 935 cd/m², the content displayed will be visible even in very bright environments. The anti-glare display is UV resistant and IP65 protected, ensuring durability against sunlight, dust and water resistance from the front, additionally it can operate in temperatures ranging from -20˚C up to +60˚C. The anti-fingerprint coating ensures a smoother touch. A reliable solution for pick-up points and kiosks. A proximity sensor turns off the screen when no one is present, an ambient light sensor adjusts screen brightness, and a temperature sensor controls fan speed for cooling, resulting in energy savings and extended product durability. For ease of integration, the ProLite OTF2216MC-B1 can be equipped with optional external mounting brackets ( OMK3-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

Display

Display diagonal: 54.6 cm (21.5")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LCD
Panel type: VA
Touchscreen: Yes
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (peak): 1100 cd/m²
Display brightness (typical): 1100 cd/m²
Display brightness: 935 cd/m²
Response time: 25 ms
Screen shape: Flat
Contrast ratio (typical): 5000:1
Maximum refresh rate: 60 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.248 x 0.248 mm
Horizontal scan range: 31.4 - 82 kHz
Viewable size, horizontal: 47.7 cm
Viewable size, vertical: 26.9 cm
Digital horizontal frequency: 31.8 - 82 kHz
Display diagonal (metric): 54.6 cm
Surface hardness: 7H
Colour depth: 8 bit

Performance

Palm rejection: Yes

Design

Market positioning: Office
Product colour: Black
Front bezel colour: Black
Glass thickness: 3.15 mm

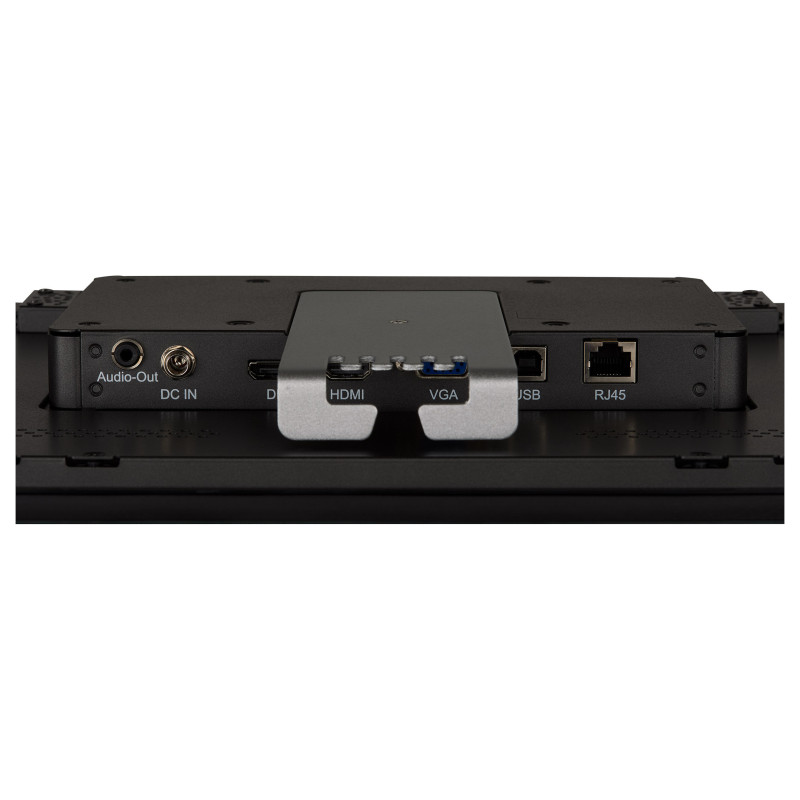

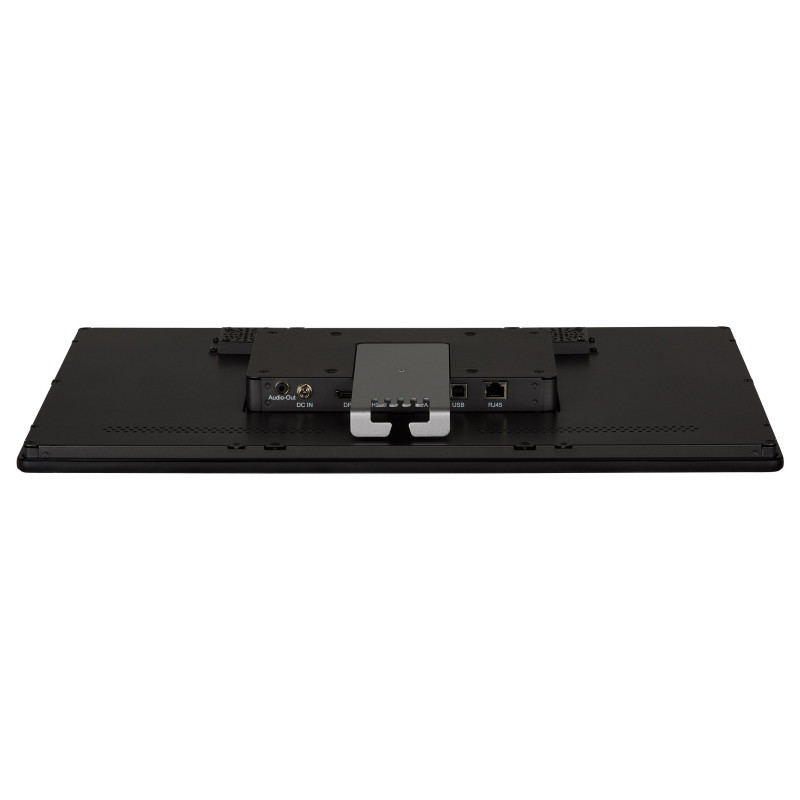

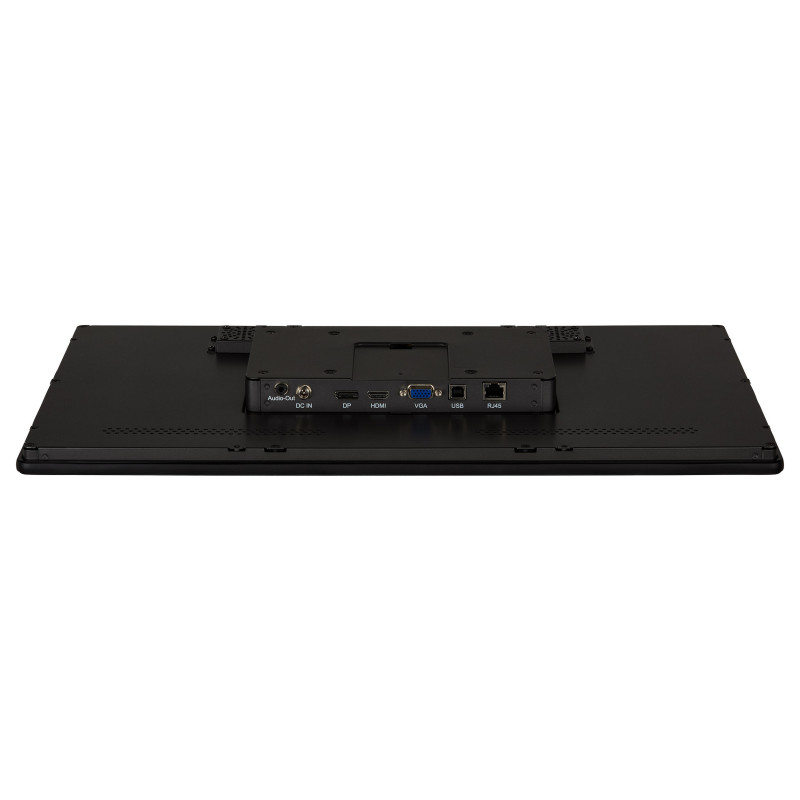

Ports & interfaces

USB Touch port: Yes
VGA (D-Sub) ports quantity: 1
DVI port: No
HDMI: Yes
HDMI ports quantity: 1
DisplayPorts quantity: 1
Headphone out: Yes
HDCP: Yes

Network

Wi-Fi: No
Ethernet LAN: Yes

Ergonomics

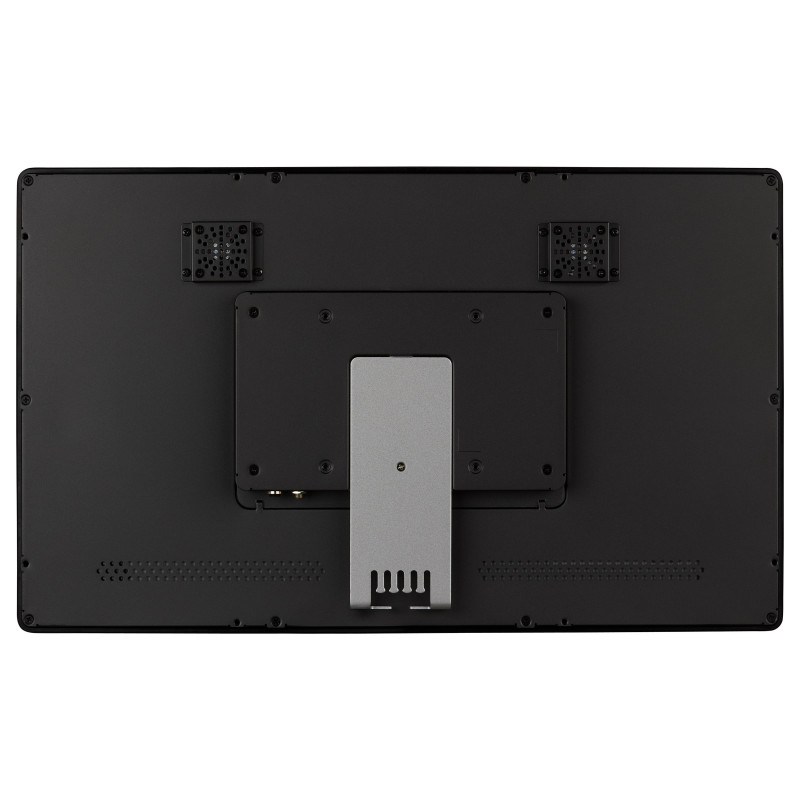

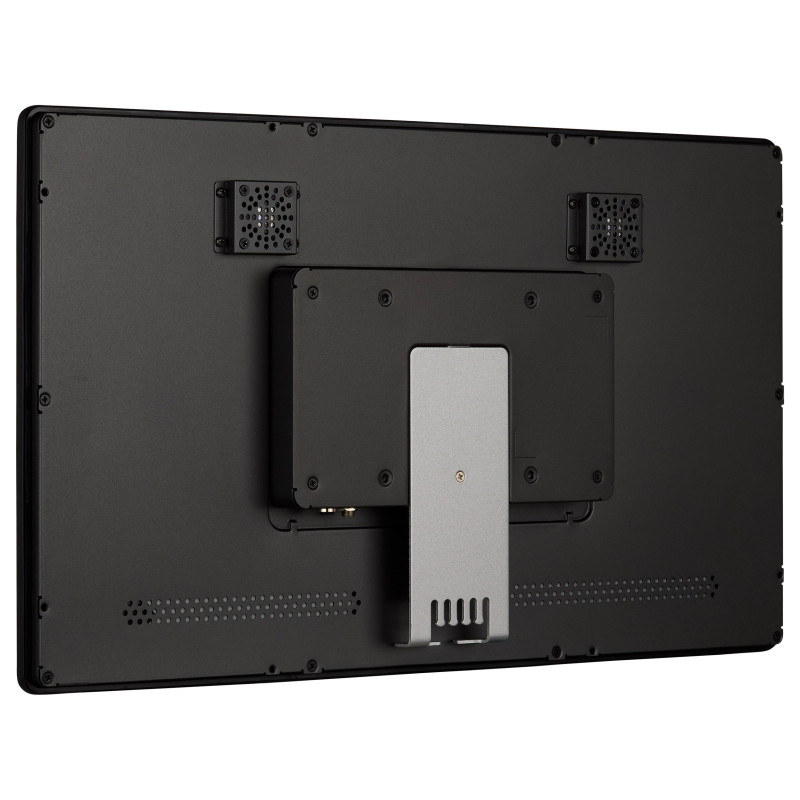

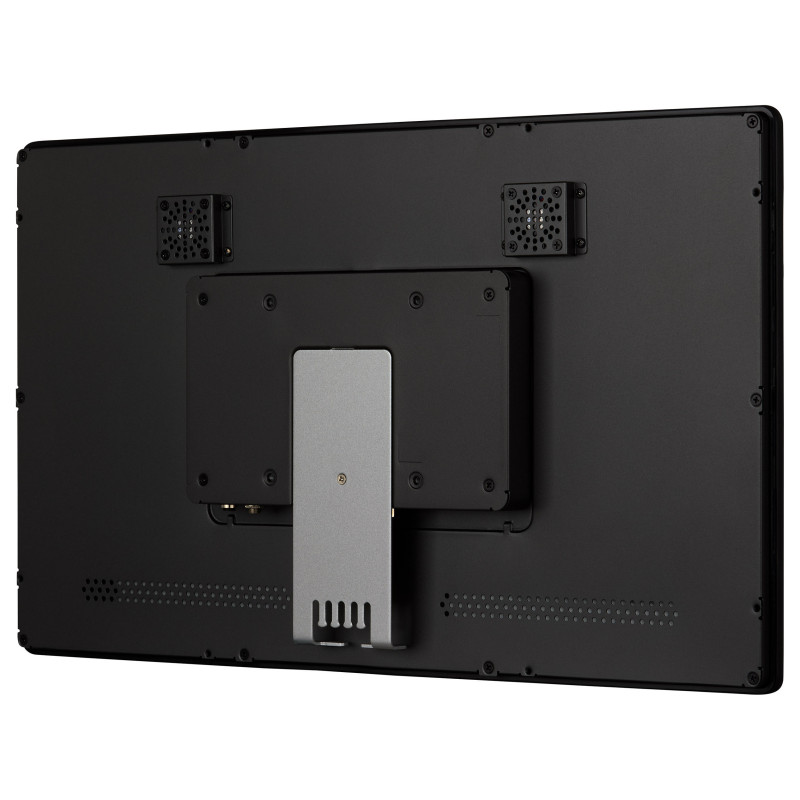

VESA mounting: Yes
Panel mounting interface: 100 x 100 mm
Cable management: Yes
On Screen Display (OSD): Yes
On Screen Display (OSD) languages: Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages: 7

Power

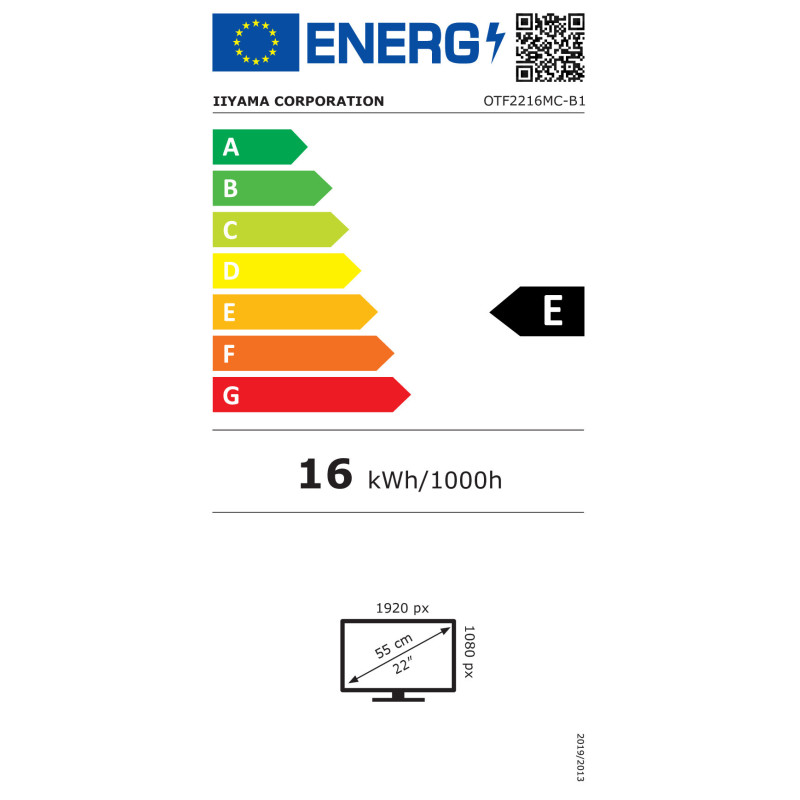

Energy efficiency class (SDR): E
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 15.5 kWh
Power consumption (typical): 43 W
Power consumption (standby): 1.5 W
Power consumption (off): 0.3 W
AC adapter output voltage: 12 V
Power supply type: External
Energy efficiency scale: A to G

Operational conditions

Operating temperature (T-T): -20 - 60 °C

Weight & dimensions

Width (with stand): 520 mm
Depth (with stand): 42.5 mm
Height (with stand): 315 mm
Weight (with stand): 4.6 kg
Width (without stand): 520 mm
Depth (without stand): 42.5 mm
Height (without stand): 315 mm
Weight (without stand): 4.6 kg

Packaging data

Package width: 608 mm
Package depth: 150 mm
Package height: 400 mm
Package weight: 4.5 kg

Packaging content

Cables included: AC, USB, HDMI, DisplayPort
Remote control included: Yes
Quick start guide: Yes

Sustainability

Sustainability certificates: ErP

Other features

International Protection (IP) code: IP65
Compatible operating systems: All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
AC adapter included: Yes
Placement supported: Indoor
Brightness: 935 cd/m²
Packaging content: AC adapter
Active display area (W x H): 477 x 269 mm
Weight: 4.6 kg
Height: 315 mm
Width: 520 mm
User controls: picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H. position, OSD V. position, touch switch, factory), option (reset, language, source select, display mode, fan control, presence sensor, ambient light sensor)
Touch method: finger, glove (latex)
Depth: 42.5 mm

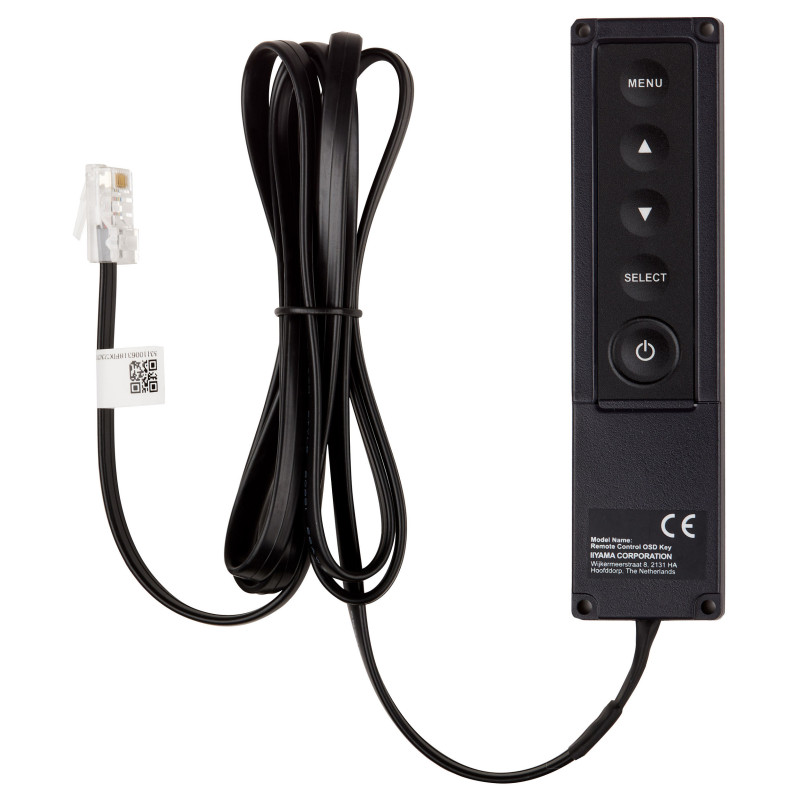

Control panel: Menu, Scroll up / Brightness, Scroll down / Contrast, Select, Power
Compliance certificates: CE, cULus, EAC, REACH, RoHS, UKCA, WEEE
Mean time between failures (MTBF): 60000 h
Ethernet LAN (RJ-45) ports: 1
Certification: CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA

Technical details

Native refresh rate: 60 Hz
