iiyama 92"W LCD 5K UW5K 21:9 VA 500 cd / m²

iiyama 92"W LCD 5K UW5K 21:9 VA 500 cd/m². Product design: Kiosk design. Display diagonal: 2.34 m (92"), Display resolution: 5120 x 2160 pixels, Display brightness: 500 cd/m². Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android

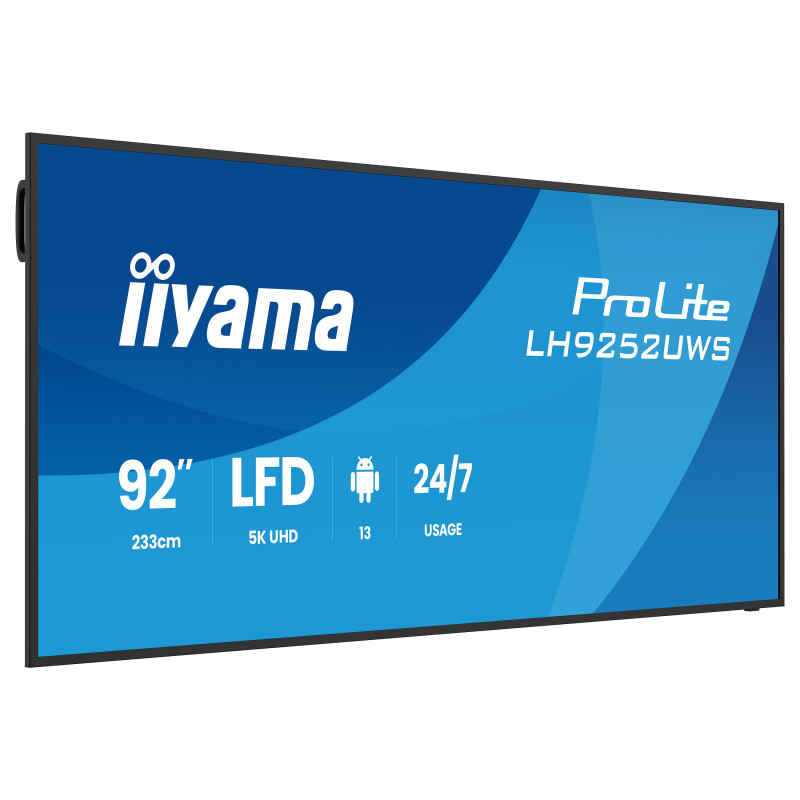

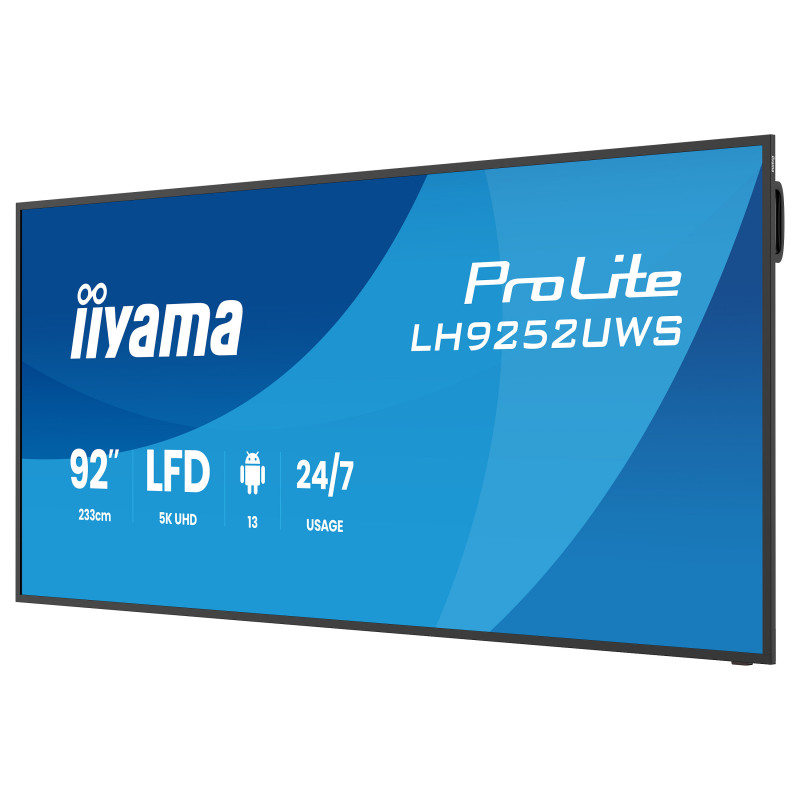

The ProLite LH9252UWS-B1AG features an impressive 92" 5K UltraWide VA panel with USB-C connectivity, Android OS and integrated speakers with subwoofer, making it an ideal solution for collaborative workspaces, digital signage and immersive presentation environments.

Display

Panel type: VA
Display diagonal: 2.34 m (92")
Display resolution: 5120 x 2160 pixels
Display brightness: 500 cd/m²
Native aspect ratio: 21:9
Response time: 6.5 ms
Contrast ratio (typical): 5000:1
Contrast ratio (dynamic): 5000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Active display area (W x H): 2141.952 x 903.636 mm
Display diagonal (metric): 233 cm
Horizontal scan range: 30 - 135 kHz
Native refresh rate: 60 Hz
Haze rate: 25%

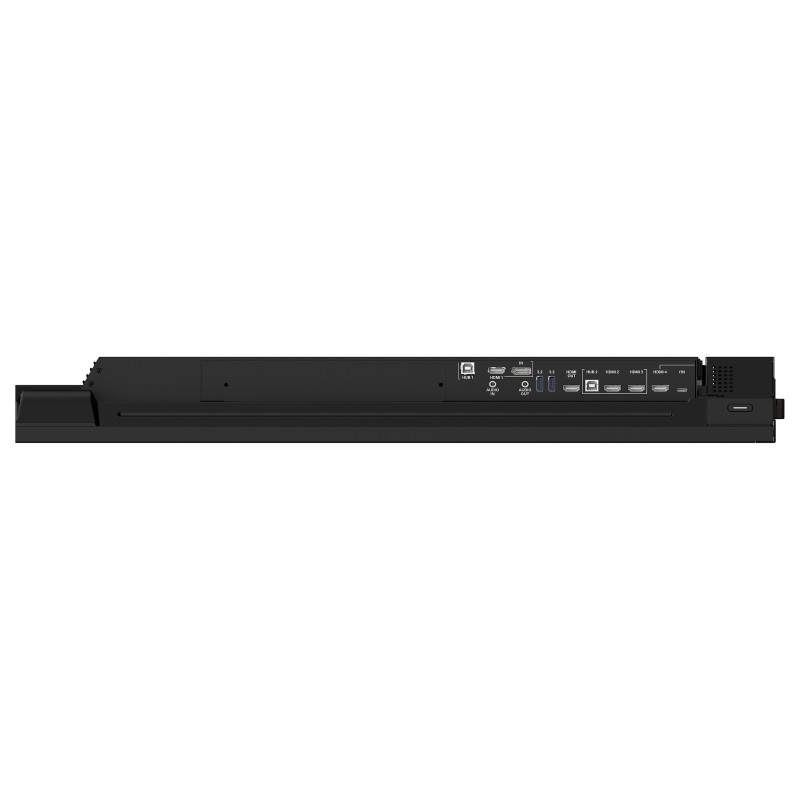

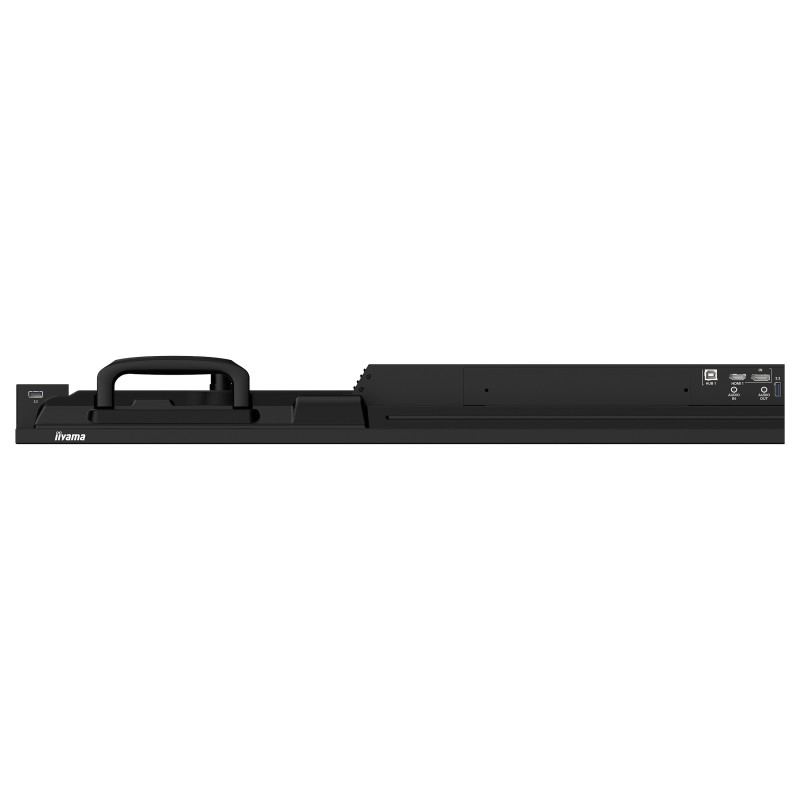

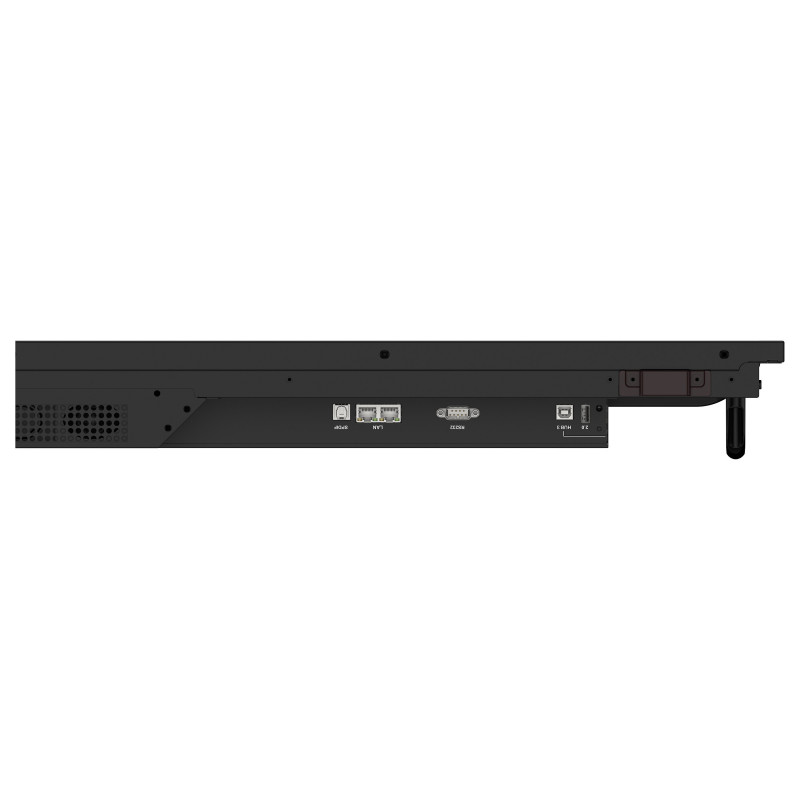

Ports & interfaces

HDMI input ports quantity: 1
DisplayPorts quantity: 1
USB ports quantity: 3
Ethernet LAN (RJ-45) ports: 2
Feature: RS-232C
Feature: OPS module slot

Audio

Feature: Built-in speaker(s)
Number of built-in speakers: 2

Design

Product design: Kiosk design

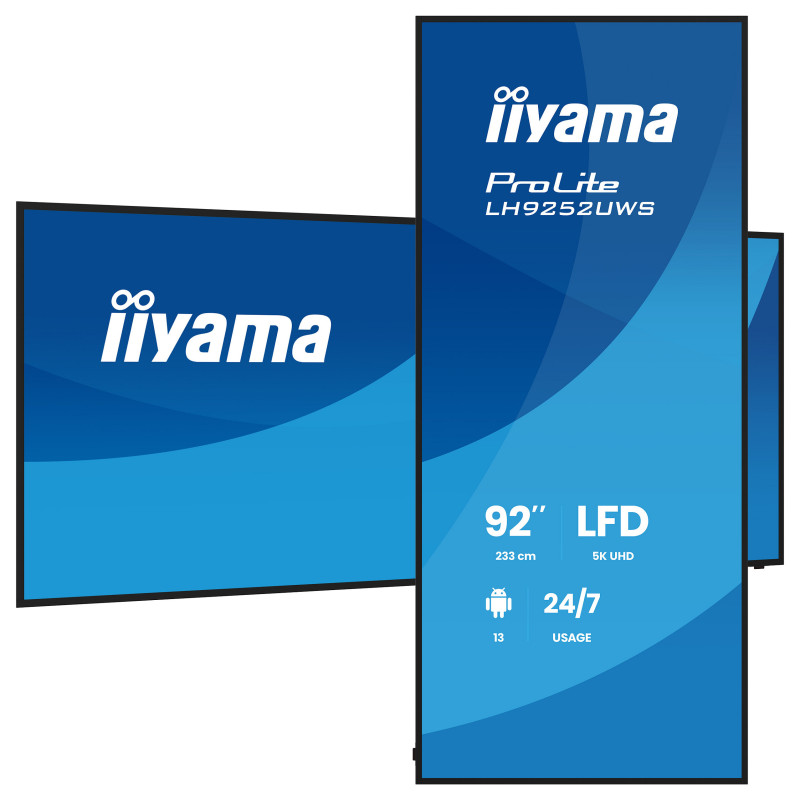

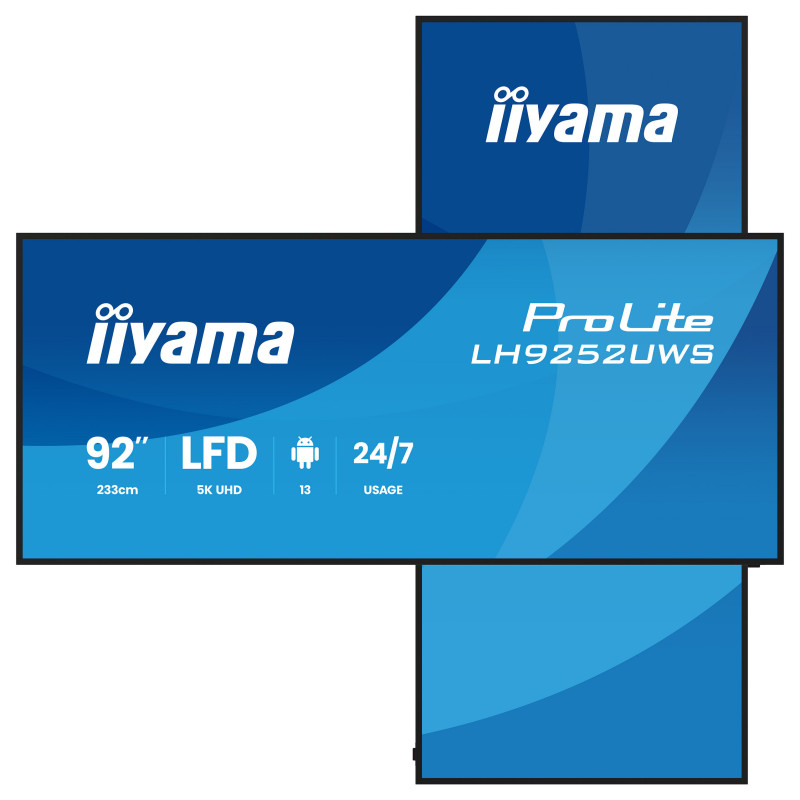

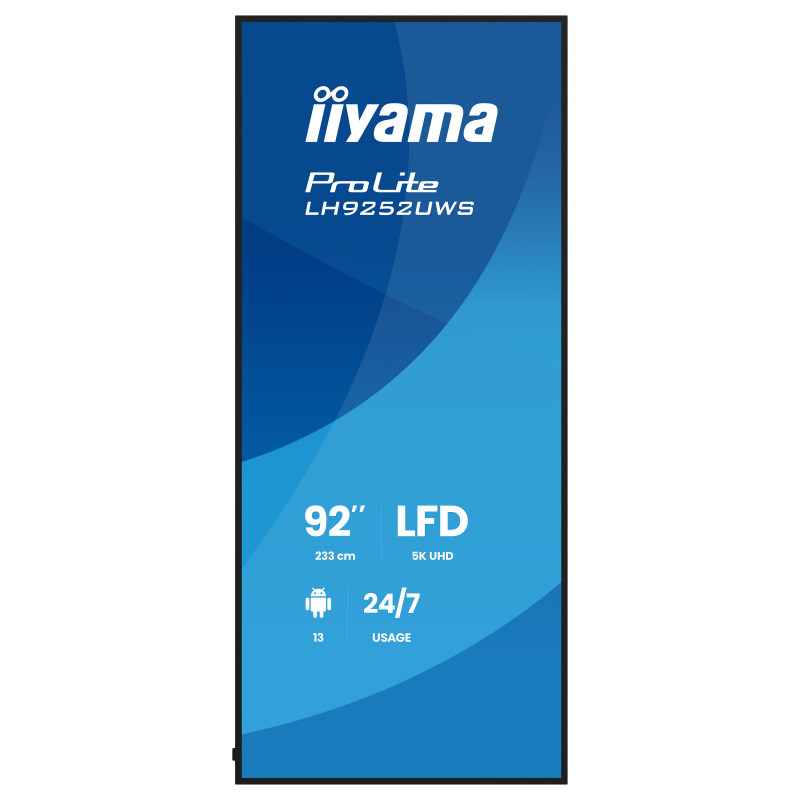

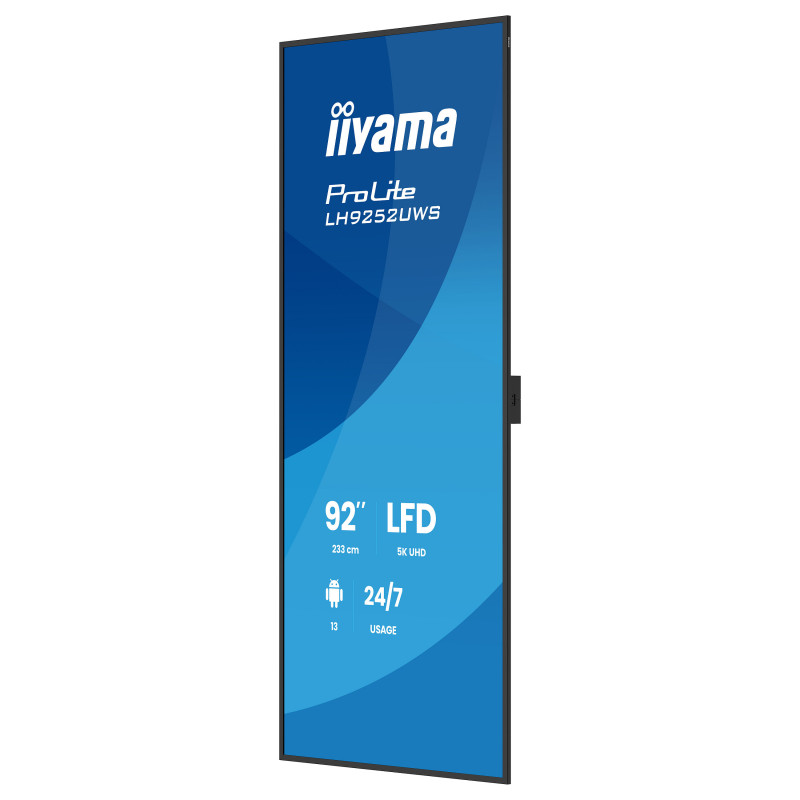

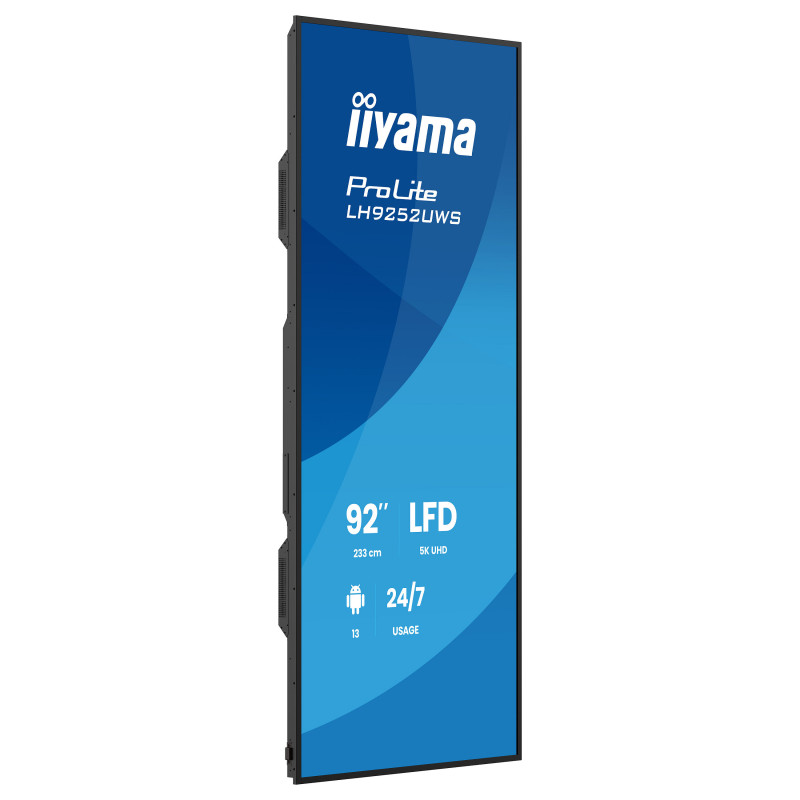

Orientation: Horizontal/Vertical
Panel mounting interface: 800 x 600 mm
Bezel width (bottom): 1.49 cm
Bezel width (side): 1.49 cm
Bezel width (top): 1.49 cm
Feature: Anti-glare screen

Performance

Feature: On Screen Display (OSD)
Operating hours (hours/days): 24/7

Power

Power consumption (typical): 201 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W

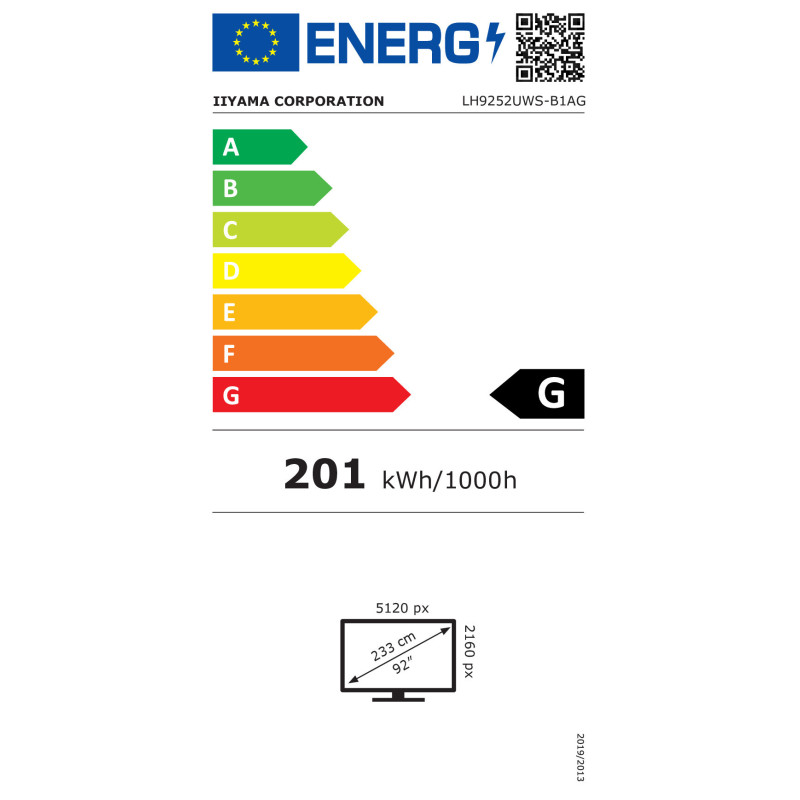

Energy efficiency class (SDR): G
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz

Computer system

Feature: Built-in processor
Internal memory: 8 GB
Internal storage capacity: 128 GB
Operating system installed: Android
Operating system version: 13

Weight & dimensions

Display width: 2182 mm
Display depth: 85.2 mm
Display height: 943.8 mm
Display weight: 44 kg
Width: 2182 mm
Depth: 85.2 mm
Height: 943.8 mm
Weight: 44 kg

Packaging data

Package width: 2360 mm
Package depth: 225 mm
Package height: 1072 mm
Package weight: 63 kg

Packaging content

Feature: Remote control included

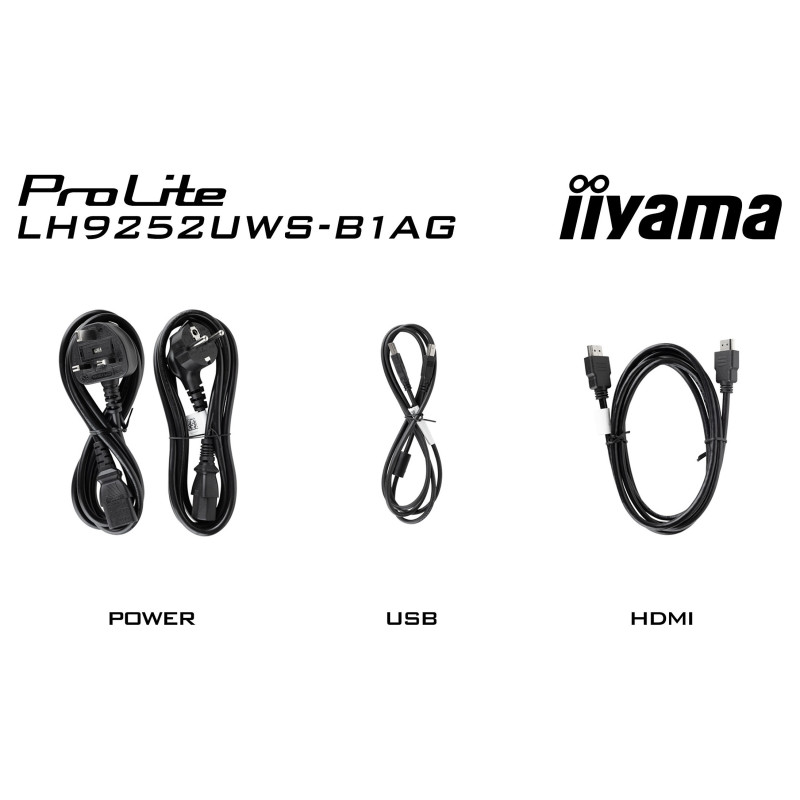

Cables included: AC, HDMI, DisplayPort, RS-232

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C

Logistics data

Products per pallet: 50 pc(s)

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 1000 Mbit/s
Feature: Wi-Fi

Technical details

OPS slot: 1
Feature: Audio in (mini jack)
Sustainability certificates: ErP
Pallet net height: 114 cm
Pallet net length: 12 cm
Pallet net width: 2.38 m
Compliance certificates: CB, CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE

Other features

Feature: Quick start guide
Power supply type: Internal
