Elo Touch Solutions I-Series 5

Elo Touch Solutions I-Series 5. Product design: Digital signage flat panel. Display diagonal: 39.6 cm (15.6"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 300 cd/m², HD type: Full HD, Touchscreen. Wi-Fi. Operating system installed: Android. Product colour: Black

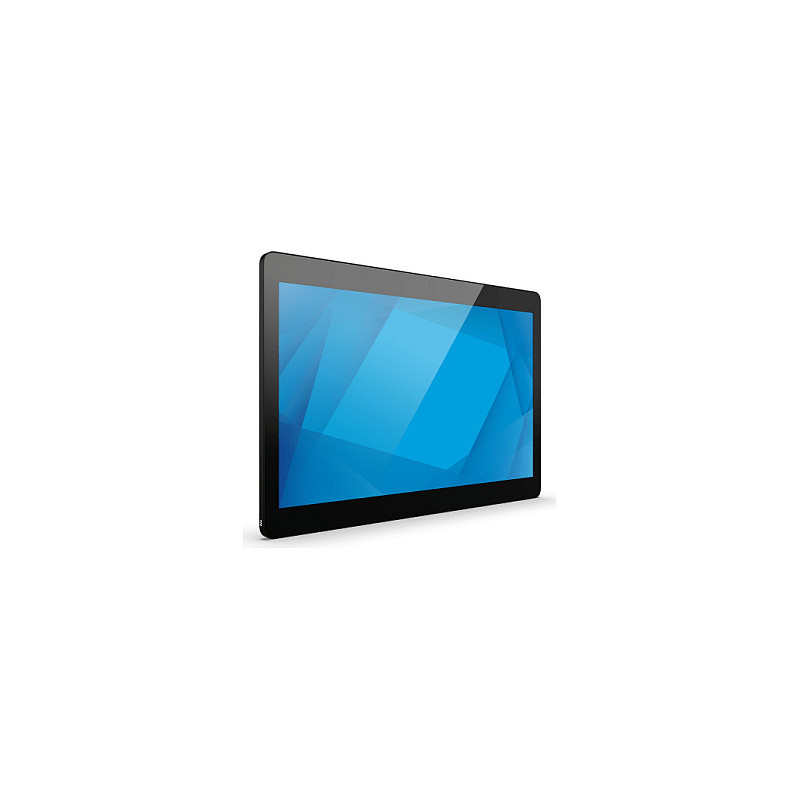

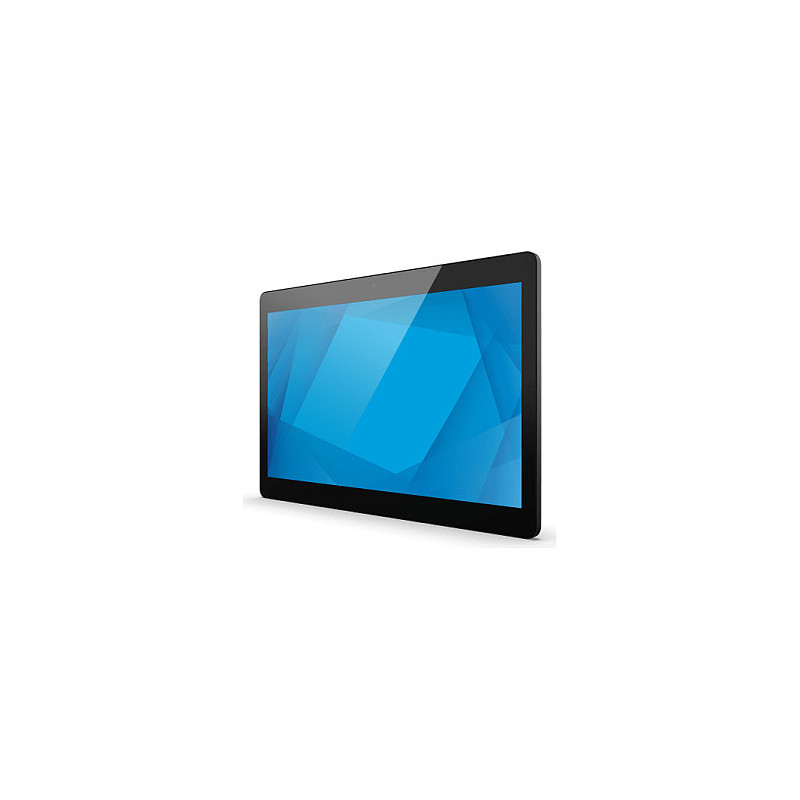

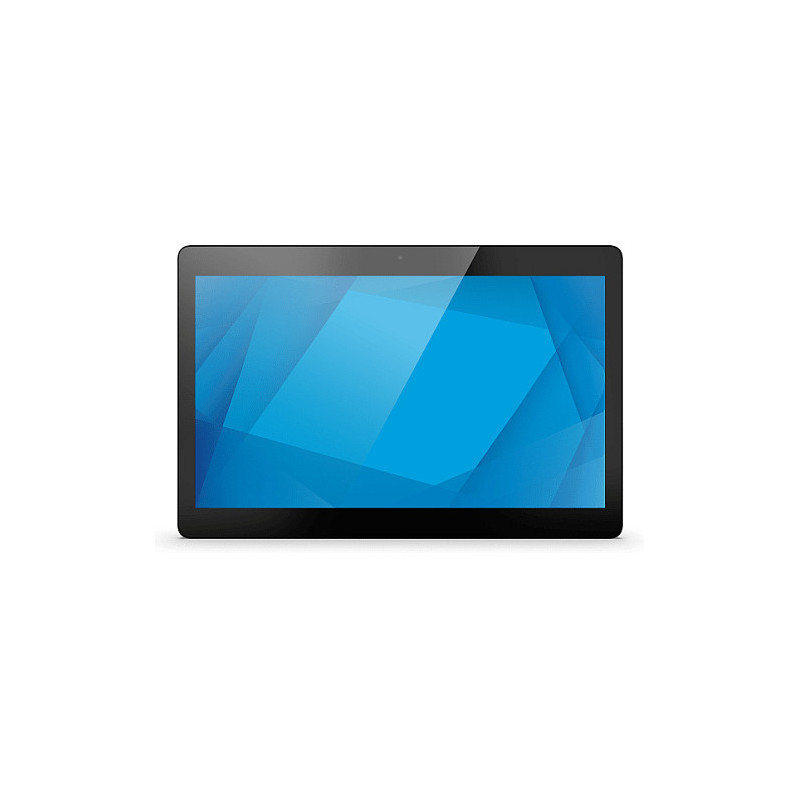

15-inch I-Series 5
Touchcomputer
Elo's I-Series delivers the modularity businesses need into a sleek and durable fixed tablet form factor. Complete with a 15-inch Full HD touch display, flexible Android 14 OS, powerful Qualcomm 6490 processor, WiFi 6E, optional POE and four edge connect ports, the I-Series provides the versatility to fit almost any application.

Modular design.
Endless versatility.
Available in sizes ranging from 10 to 22 inches, easily configure the I‑Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.

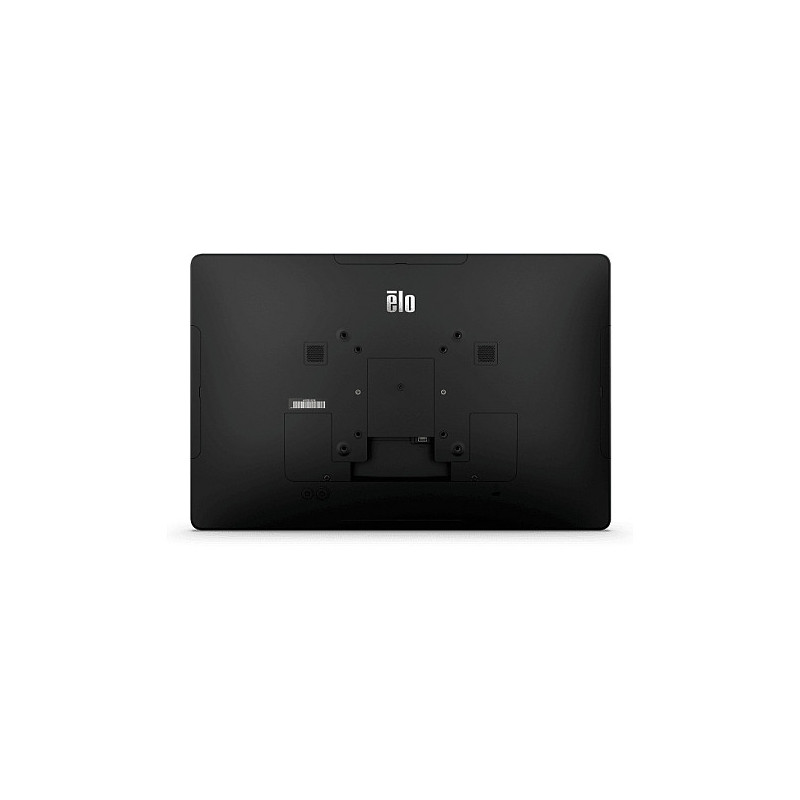

- Universal VESA Mount. Conveniently mount the I-Series with the built-in VESA mount.
- Expand with Edge Connect. Seamlessly attach a variety of peripherals to the edge of the touchscreen.
- Power-Over-Ethernet (POE). Say goodbye to the expense of power drops with the POE adapter with the I-Series and a POE-capable network.
- Camera & Microphone. The I-Series includes a 8MP camera and 2x digital microphones to support select application requirements.

Place it at the point-of-sale.

Create engaging interactive signage.

Drive endless self-service experiences.

Enhanced connectivity for all your accessories.
- USB-C full featured
- 1x LAN (Gigabit)
- GPIO
- USB 3.0
- 4x Micro-USB Edge Connect
- WiFi 6E & Bluetooth 5.2

Get enterprise support with Elo EssentialEdge.
With easy-to-use development kits, robust management tools, world class life cycle management and security, Elo can help you deliver the convenience and familiarity of Android interfaces in a secure, business-friendly way.

OS 360 - Take advantage of monthly security updates to keep your devices secure.

Seamless Provisioning - Leverage EloView or Google Zero Touch to easily set up your device.

Elo OEMConfig - Get Elo's proprietary APIs on your preferred Android MDM platform, saving months of effort as new releases become available.

Commercial-grade performance.
The I-Series is backed by the powerful Qualcomm 6490 octa-core processor to deliver the performance businesses need.

Expand possibilities with Applied AI.
The Qualcomm 6490 chipset offers a fused AI accelerator, enabling astonishing performance at low power. These features and more produce a combined AI performance of up to 12 TOPS.

Manage your devices easily with EloView.
EloView allows you to deploy and securely manage your entire network of Android-powered Elo devices from anywhere in the world.
- Remotely deploy content and manage your devices securely.
- Provision your devices in seconds with a seamless out-of-the-box experience.
- Leverage Elo Home to create a customized interface on your Elo device.

Google Mobile Services Ready.
With Google Mobile Services and EloView, managing Android devices and your apps is simplified. You can remotely deploy and manage your device, adjust detailed settings, and take advantage of the latest Google-powered features. Not only does this make management easier, but it also ensures your Elo devices meet the high standards required for Google CTS verification, giving you peace of mind.

Display

Panel type: TFT-LCD
Display diagonal: 39.6 cm (15.6")
Display technology: LED
Display resolution: 1920 x 1080 pixels
Display brightness: 300 cd/m²
HD type: Full HD
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Feature: Multi-touch
Response time: 30 ms
Contrast ratio (typical): 700:1
Viewing angle, horizontal: 170°
Viewing angle, vertical: 170°
Display number of colours: 16.7 million colours
Active display area (W x H): 344 x 194 mm
Display diagonal (metric): 396.24 cm
Number of displays: 1
Native refresh rate: 60 Hz

Ports & interfaces

Feature: USB port
USB ports quantity: 5
USB connector type: Micro-USB, USB Type-C
Ethernet LAN (RJ-45) ports: 1
Compatible memory cards: MicroSD (TransFlash)

Audio

Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 3 W

Design

Product design: Digital signage flat panel
Placement supported: Indoor
Orientation: Horizontal/Vertical
Product colour: Black
Screen shape: Flat
Feature: VESA mounting
Panel mounting interface: 75 x 100 mm

Performance

Purpose: Commercial
Number of microphones: 2
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 9.2 W
Power consumption (sleep): 2 W
Power consumption (off): 0.2 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Computer system

Feature: Built-in processor
Processor cores: 8
Internal memory: 8 GB
Internal storage capacity: 64 GB
Operating system installed: Android
Operating system version: Android 14

Weight & dimensions

Display width: 389.7 mm
Display depth: 22.3 mm
Display height: 249.7 mm
Display weight: 1.56 kg

Packaging data

Package width: 452 mm
Package depth: 165 mm
Package height: 330 mm
Package weight: 4.8 kg

Packaging content

Cables included: Power

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 80%
Storage temperature (T-T): -20 - 50 °C
Storage relative humidity (H-H): 10 - 90%

Certificates

Certification: UL/cUL (US)FCC (US)IC (Canada)CE (Europe)CB (International)VCCI, MIC (Japan)RCM (Australia)

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 1000 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)

Other features

Aspect ratio: 16:9
Megapixel (approx.): 8 MP
Feature: Built-in camera
