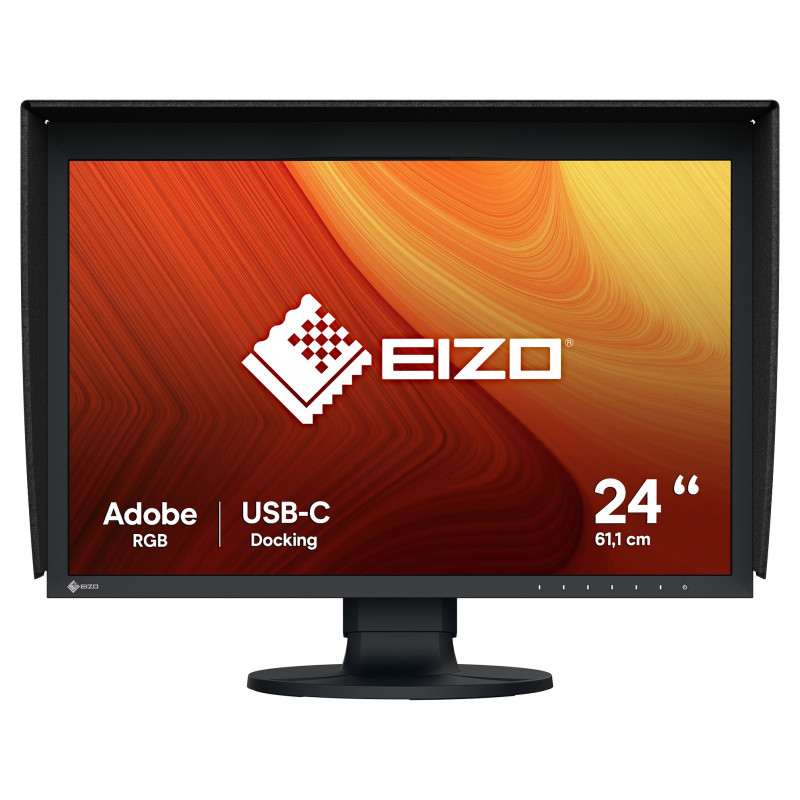

EIZO ColorEdge CG2400S kompiuterio monitorius

EIZO ColorEdge CG2400S. Display diagonal: 61.2 cm (24.1"), Display resolution: 1920 x 1200 pixels, HD type: WUXGA, Display technology: LCD, Response time: 11 ms, Native aspect ratio: 16:10, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub, USB hub version: 2.0 / 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black

With its wide color gamut, enormous 1800:1 contrast ratio, state-of-the-art USB-C connectivity and pre-installed HDR presets, the CG2400S is the ideal tool for professional creatives. The CG2400S with Wide Gamut IPS panel, 10-bit color depth and 16-bit 3D Look-Up-Table (LUT) offers perfect precision, smooth color transitions and nuances. The Adobe RGB color space is covered by 99% and the DCI-P3 color space by 98%. Thanks to the presets for HLG and the PQ gamma curves, even the smallest model in the ColorEdge CG series can be ideally integrated into HDR production workflows. The integrated calibration sensor enables effortless, automatic calibration. Thanks to the universal connectivity via USB-C, a single cable is used to transmit the image signal and power the monitor's USB hub. It can also be used to supply a mobile device with up to 70 watts of charging current. In combination with the integrated USB hub, the CG2400S becomes the central dock for creative workflows in a single operation. Of course, an HDMI and DisplayPort connection are also on board. The supplied light protection screen rounds off the CG2400S's extensive features.

Display

Display diagonal: 61.2 cm (24.1")
Display resolution: 1920 x 1200 pixels
HD type: WUXGA
Native aspect ratio: 16:10
Display technology: LCD
Panel type: IPS
Feature: LED backlight
Backlight type: W-LED
Display brightness (typical): 400 cd/m²
Response time: 11 ms
Response time measurement type: GTG (Gray to Gray)
Feature: Anti-glare screen
Screen shape: Flat
Supported graphics resolutions: 1920 x 1200 (WUXGA)
Supported video modes: 1080p, 1080i, 720p, 576p, 576i, 480i, 480p
Contrast ratio (typical): 1800:1
Maximum refresh rate: 60 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.27 x 0.27 mm
Pixel density: 94 ppi
Viewable size, vertical: 51.8 cm
Viewable size diagonal: 32.4 cm
Digital horizontal frequency: 15 - 76 kHz
Digital vertical frequency: 23 - 61 Hz
Display diagonal (metric): 61 cm
Feature: High Dynamic Range (HDR) supported
High Dynamic Range (HDR) technology: Hybrid Log-Gamma (HLG)
Colour depth: 10 bit
Colour gamut standard: Adobe RGB, DCI-P3, EBU, Rec. 709, sRGB
sRGB coverage (typical): 100%
Adobe RGB coverage: 99%
DCI-P3 coverage: 99%

Performance

Feature: Flicker-free technology

Design

Market positioning: Photo editing
Product colour: Black
Feet colour: Black

Ports & interfaces

Feature: Built-in USB hub
USB hub version: 2.0 / 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type: USB Type-B, USB Type-C
Number of upstream ports: 2
Number of USB Type-B upstream ports quantity: 1
Number of USB Type-C upstream ports quantity: 1
USB Type-A downstream ports quantity: 4
Feature: USB Type-C DisplayPort Alternate Mode
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 70 W
Feature: HDMI
HDMI ports quantity: 1
DisplayPorts quantity: 1
Feature: Built-in KVM switch
Feature: HDCP

Ergonomics

Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Height adjustment
Adjustable height (max): 15.5 cm
Feature: Pivot
Pivot angle: -90 - 90°
Feature: Swivelling
Swivel angle range: 0 - 344°
Feature: Tilt adjustment
Tilt angle range: -5 - 35°
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: German, English, Spanish, French, Italian, Swedish

Power

Energy efficiency class (SDR): E
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 16 kWh
Power consumption (typical): 17 W
Power consumption (standby): 0.5 W
Power consumption (max): 150 W
Power consumption (off): 0.3 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power supply type: Internal
Energy efficiency scale: A to G

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%

Weight & dimensions

Width (with stand): 554.4 mm
Depth (with stand): 245 mm
Height (with stand): 408.1 mm
Weight (with stand): 8.5 kg
Width (without stand): 554.4 mm
Depth (without stand): 70.2 mm
Height (without stand): 374.1 mm
Weight (without stand): 5.5 kg

Packaging content

Feature: Stand included
Cables included: HDMI, USB Type-A to USB Type-B, USB Type-C to USB Type-C, AC
Feature: Sun hood included
Feature: Quick start guide

Other features

Feature: Hardware calibration
Feature: Built-in calibration sensor
Warranty period: 5 year(s)
Look-up table (LUT) bit depth: 16
Compliance certificates: CB, CCC, CE, China RoHS, Federal Communications Commission (FCC), PSE, RCM, RoHS, TÜV mark, UKCA, VCCI, WEEE, cTUVus
Certification: CE, UKCA, CB, TÜV/GS, TÜV/Ergonomics (including ISO 9241-307), RCM, cTÜVus, FCC-B, CAN ICES-3 (B), TÜV/S, PSE, VCCI-B, RoHS, WEEE, China RoHS, CCC

Logistics data

Harmonized System (HS) code: 85285210
