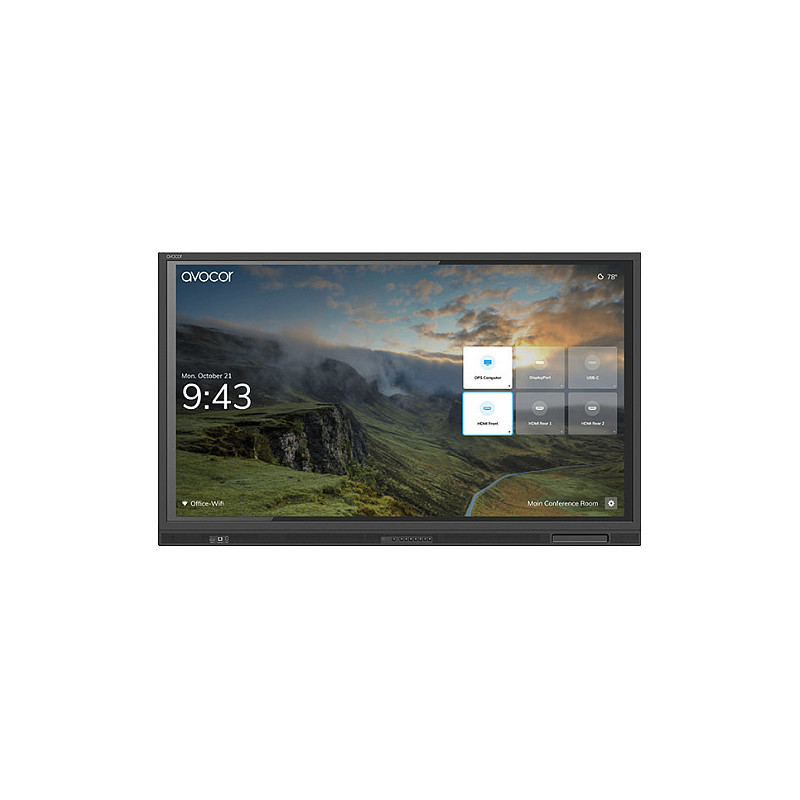

„Avocor E“ serijos E serijos 75 colių 4K IR LED interaktyvi lenta

Avocor E series E-40 Series 75" 4K IR LED Interactive Display. Display diagonal: 190.5 cm (75"), Display brightness: 400 cd/m², Display number of colours: 1.07 billion colours. Speaker power: 60 W. USB connector type: USB Type-A, USB Type-B, USB Type-C, USB Power Delivery up to: 45 W. Panel mounting interface: 800 x 400 mm, Power cable length: 3 m. Power consumption (max): 300 W, Power consumption (standby): 0.5 W, AC input voltage: 100 - 240 V

The new and improved E series displays utilize the very latest optimized touch technology, that supports up to 20 points of touch using Avocor Intelligent Touch, and superior optically bonded glass technology providing a smooth and extremely accurate, low latency writing experience as well as object recognition.

The ability to easily switch between using a pen, finger, and palm creates a fluid collaborative environment for users in real-time, with an array of front-facing guest connectivity options now including a Type-C* connection along the Connect and Control bar, and features Avocor's UiQ touch-enabled interface, enhancing the user experience and FUSE remote management, completely free-of-charge.

Display

Display diagonal: 190.5 cm (75")
Display brightness: 400 cd/m²
Display number of colours: 1.07 billion colours
LED backlighting type: Direct-LED
Native aspect ratio: 16:9
Contrast ratio (typical): 4000:1
Response time: 8 ms
Maximum refresh rate: 60 Hz
Feature: Touchscreen
Touch technology: Multi-touch
Touchscreen type: Infrared
Number of simultaneous touchpoints: 20
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Feature: Pen & touch differentiation
Feature: Palm erase

Audio

Feature: Built-in speaker(s)
Number of built-in speakers: 2
Speaker power: 60 W

Ports & interfaces

Feature: HDCP
HDCP version: 2.2
USB connector type: USB Type-A, USB Type-B, USB Type-C
USB 2.0 Type-A hub ports quantity: 2
USB 2.0 Type-B Touch ports quantity: 2
HDMI ports quantity: 3
USB Type-C ports quantity: 1
Feature: USB Type-C DisplayPort Alternate Mode
HDMI version: 2.0
HDMI output ports quantity: 1
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 45 W
DisplayPort version: 1.2
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 2
Feature: Line-out
OPS slot: 1
Feature: S/PDIF out port
Audio output: 1
RS-232 ports: 1

Ergonomics

Feature: VESA mounting
Panel mounting interface: 800 x 400 mm
Feature: Wall mountable
Feature: Fanless
Power cable length: 3 m

Performance

Feature: Ambient light sensor

Power

Power consumption (max): 300 W
Power consumption (standby): 0.5 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

System requirements

Windows operating systems supported: Windows 10, Windows 8
Feature: Mac compatibility
Mac operating systems supported: Yes
Linux operating systems supported: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 85%
Storage temperature (T-T): -20 - 60 °C

Weight & dimensions

Width: 1771 mm
Depth: 112 mm
Height: 1071 mm
Weight: 48.5 g

Packaging data

Package width: 1920 mm
Package depth: 270 mm
Package height: 1240 mm
Package weight: 62 kg
Quantity per pack: 1 pc(s)

Packaging content

USB cable length: 3 m
Feature: Pen tray included
Cables included: HDMI, Power, USB Type-A to USB Type-B, USB Type-C to USB Type-C
Feature: Remote control included
Feature: Batteries included
Feature: Quick start guide
Feature: Stylus included
Stylus pen type: Passive
Number of stylus pens: 2
Stylus tip diameter: 3 mm

Other features

Warranty period: 3 year(s)
Country of origin: China
