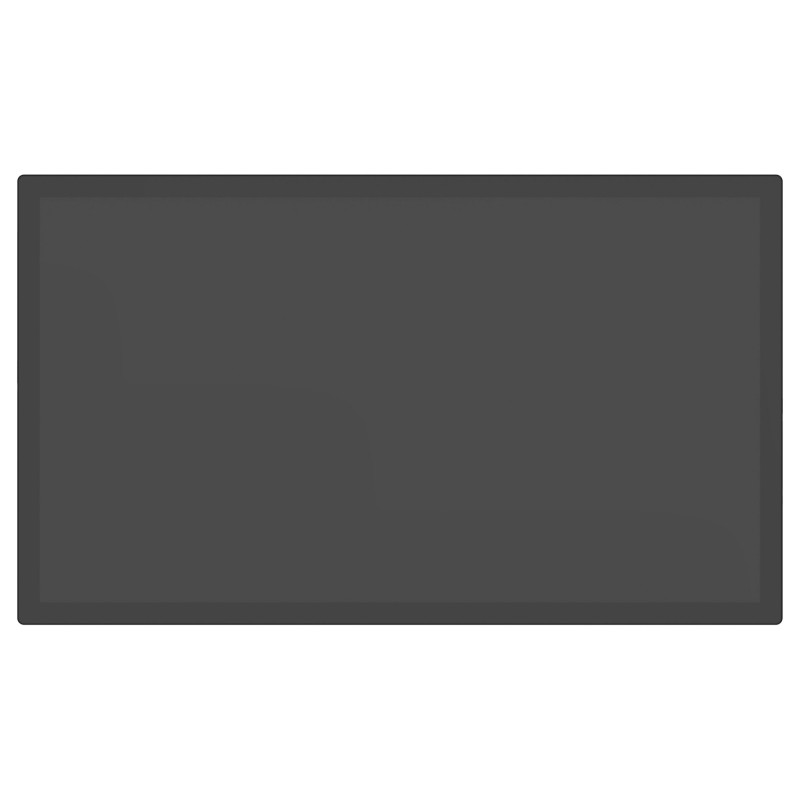

AG Neovo TX-3203 informacinis ekranas

AG Neovo TX-3203. Product design: Interactive flat panel. Display diagonal: 80 cm (31.5"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 500 cd/m², HD type: Full HD, Touchscreen. Product colour: Black

Transforming Business through Touch Interaction

Enhancing Customer Engagement with Finger Tips Forming Interactive Display Solutions
The AG Neovo TX-3203 redefines interactive display technology with its meticulously crafted 32-inch touch screen, offering exceptional solutions for various commercial settings. Featuring 30-point PCAP touch technology, users enjoy precise responses, whether using bare fingers or gloves, enhancing overall user satisfaction. IP65 compliance ensures durability against dust and water, while its metal casing and 7H tempered glass offer long-lasting reliability with minimal maintenance. Additionally, the TX-3203 features LAN connectivity for convenient remote control and management, compatible with multiple operating systems. Ideal for retail stores, corporate offices, hotel lobbies, exhibition centers, and conference rooms, the TX-3203 adapts seamlessly to diverse commercial environments, meeting all your business needs.

Intuitive Interactive Experience

Premium PCAP Multi Touch Screen
With projected capacitive (PCAP) touch screen technology, the TX-3203 multi-touch screen can register up to 30 touchpoints simultaneously. Responses to touch are fast and accurate equalling the sensitivity of a mobile device. Your customers or visitors have the ability to scroll, swipe or zoom on the multi-touch display so they will feel perfectly comfortable using the same gestures they would on their smartphones.

Through-Glass Interactive Touch Screen Technology
For extra security or protection, the TX-3203 touch screen can be mounted behind a glass layer to create a through-glass experience. The through-glass mode can be applied to a store window, tabletop or glass sheet. Visitors can control the screen through up to 6 millimetres of glass on top of the touch screen, giving it the same functionality whether visitors are touching the screen or using it through the glass.

Glove-Friendly Touch Screens
The TX-3203 interactive touch screen can be used with bare fingers or with gloves, including gloves made from cotton, latex or leather. This is especially convenient to customers and visitors who prefer to keep their gloves on because of cold weather or for personal and cleanliness preferences. The interactive screen also works with a stylus pen creating a wide range of options for customer and visitor interaction.

Unmatched Durability and Reliability

IP65 Dust and Water Protection
The TX-3203 IP65 compliant touch screen functions perfectly in high-use and high-traffic public locations, giving complete protection as it resists dust and liquid spills. Its edge-to-edge glass covers the entire display, making it a truly flat surface allowing for a sleek and modern appearance and easy cleaning.

Robust and Scratch Resistant Touch Screen
AG Neovo uses metal housing and 7H tempered glass displays for high durability and scratch resistance levels without compromising touch sensitivity for 24/7 operation in demanding public settings. The touch screen glass passed the UL60950 ball-drop test (IK08 rating) for high impact resistance.

Effortless Installation and Integration
Specially designed holes on all sides of the touch screen display make mounting the screen easy, whether on a wall, tabletop or kiosk in landscape or portrait orientation. For safety and protection while mounting, the outer edge of the touch screen has a plastic resin bezel to protect against collisions during transportation and installation. Whether flush mounted or encased behind glass, our TX-3203 touch screens can seamlessly be integrated into any application.

Superior Connectivity and Management

Seamless Multi-Interface Connectivity
With DisplayPort, HDMI, and VGA connectivity options, the TX-3203 supports multiple device connections, boosting productivity and versatility.

Cross-Platform Compatibility
Compatible with Windows, Linux, macOS, and select Android versions, the TX-3203 ensures convenient operation across different platforms.

Remote Management Functionality
Equipped with LAN connectivity, the TX-3203 enables remote control and management, significantly enhancing operational efficiency and user convenience.

Display

Panel type: VA
Display diagonal: 80 cm (31.5")
Display technology: LCD
Display resolution: 1920 x 1080 pixels
Display brightness: 500 cd/m²
HD type: Full HD
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 30
Feature: Multi-touch
Native aspect ratio: 16:9
Response time: 5 ms
Contrast ratio (typical): 4000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.364 x 0.364 mm
Native refresh rate: 60 Hz
Surface hardness: 7H

Ports & interfaces

HDMI ports quantity: 1
HDMI version: 1.4
VGA (D-Sub) input ports: 1
DisplayPorts quantity: 1

Design

Product design: Interactive flat panel
Placement supported: Indoor
Orientation: Horizontal/Vertical
Product colour: Black

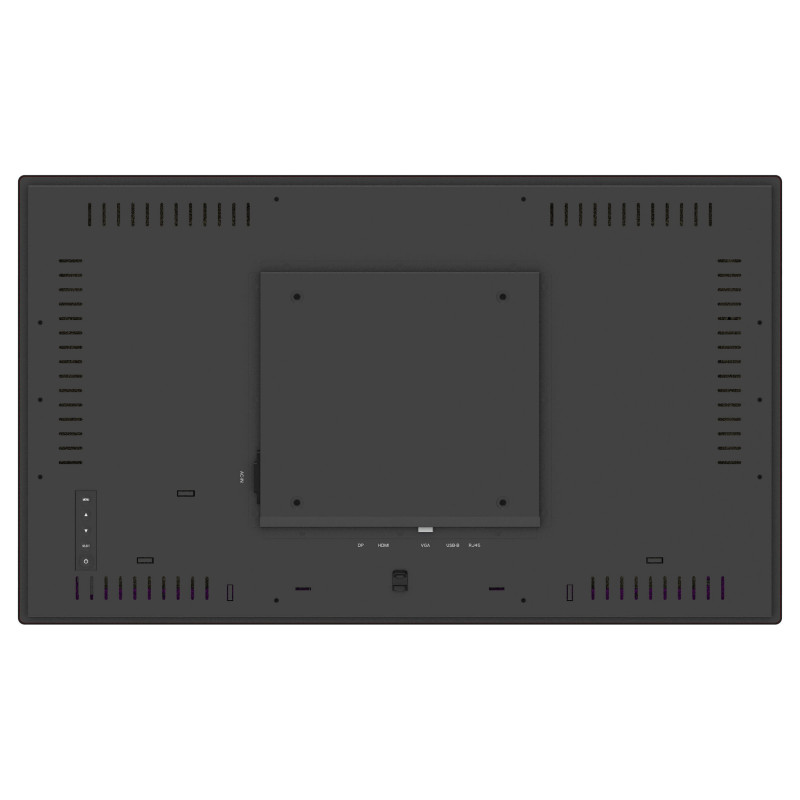

Feature: VESA mounting
Panel mounting interface: 200 x 200 mm
Feature: Anti-glare screen

Performance

Purpose: Universal
International Protection (IP) code: IP65

Power

Power consumption (typical): 26 W
Power consumption (standby): 1 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): E
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 25.9 kWh
AC input voltage: 100-240 V
AC input frequency: 50 - 60 Hz
Energy efficiency scale: A to G

Computer system

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Linux operating systems supported: Yes

Weight & dimensions

Display width: 742.4 mm
Display depth: 61.2 mm
Display height: 436.8 mm
Display weight: 10.4 kg

Packaging data

Package width: 890 mm
Package depth: 155 mm
Package height: 630 mm
Package weight: 12.9 kg

Packaging content

Feature: Stand included

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 80%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 10 - 90%

Other features

Power supply type: Internal
