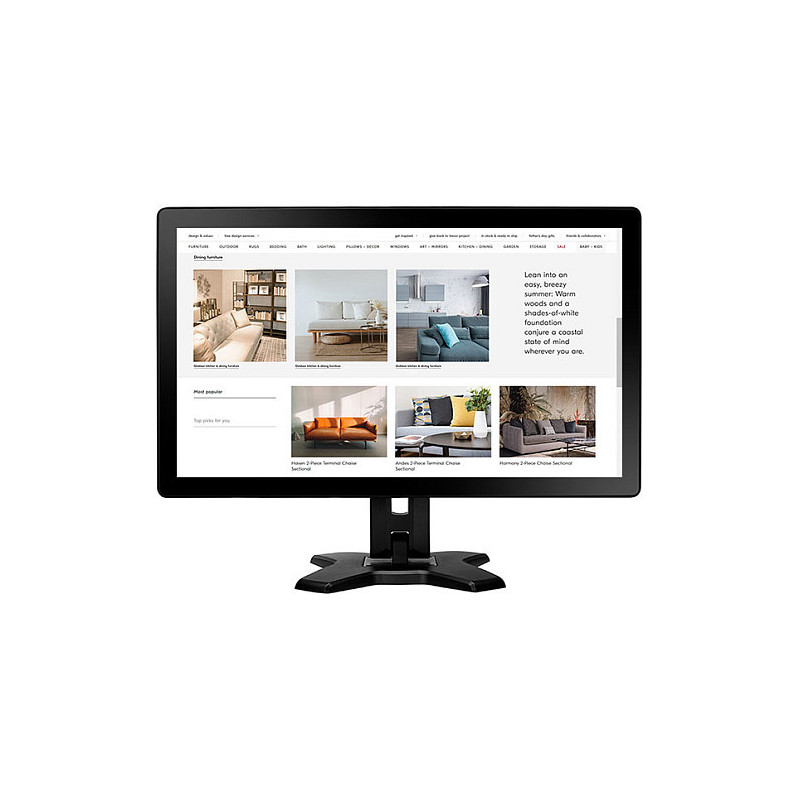

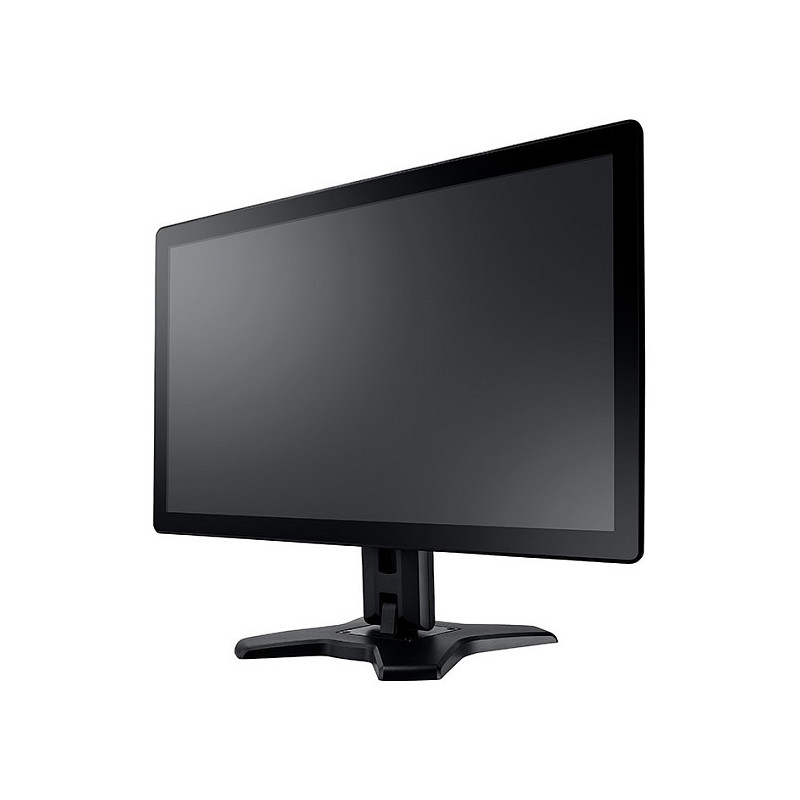

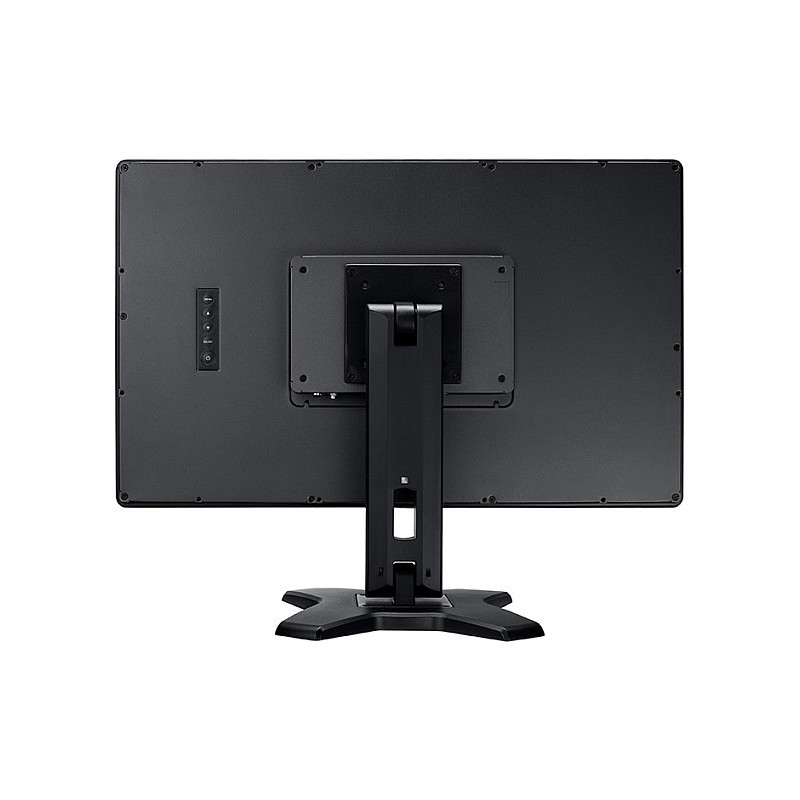

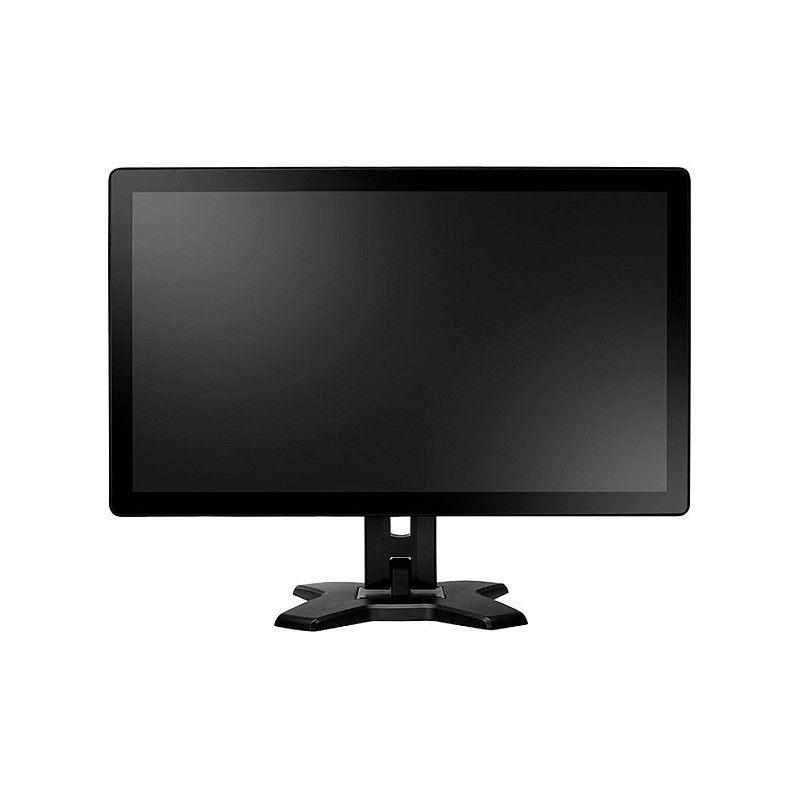

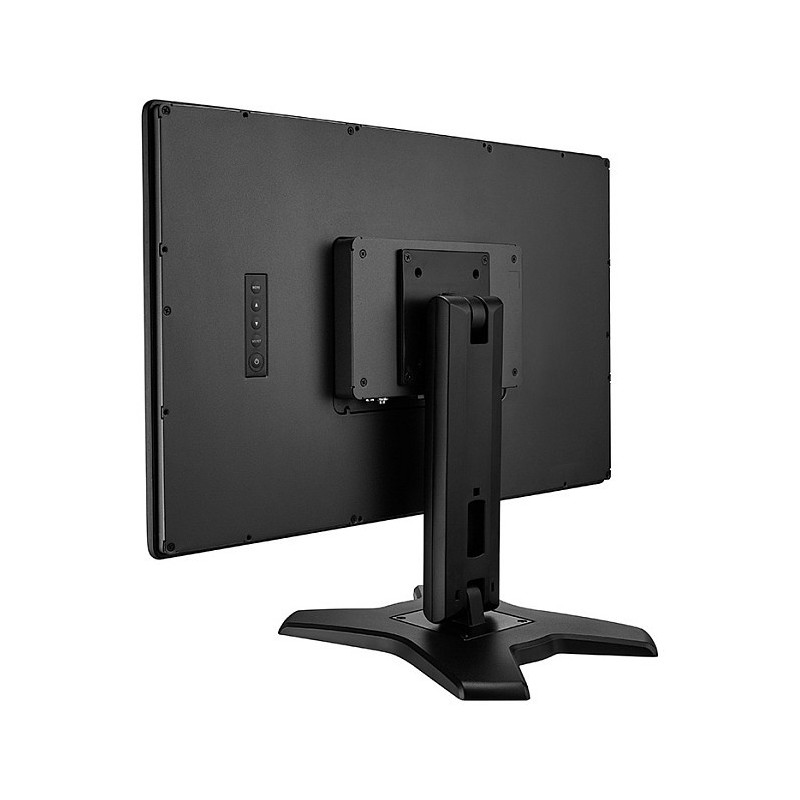

AG Neovo TX-2401 kompiuterio monitorius

AG Neovo TX-2401. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black

The TX-2401 touch screen monitor adopts PCAP multi-touch technology that is relatively unaffected by contamination, offering 10-point multi-touch capability, giving an accurate and responsive touch experience, even responsiveness to latex gloves. Featuring DisplayPort, HDMI and VGA input connectivity, the TX-2401 touch monitor is built for flexible use such as self-check-in, endless aisle, self-ordering and price checking. The screen is complemented by the IP65 and IK08 rating, metal casing, and an edge-to-edge 7H tempered glass design, enhancing durability for continuous operation in public and high-traffic spaces.

10-POINT PCAP TOUCH SCREEN
The TX-2401 touch screen adopts PCAP touch technology with a 10-point multi-touch capability that is unaffected by contamination, giving a fast, accurate, and responsive touch experience. These seamless touch senses are identical to those used in smartphones and tablets, even responsive to latex gloves.

EASY TO MAINTAIN FOR NON-STOP USE
A commercial-grade panel, high-quality components and 7H scratch-resistant tempered glass screen ensure the display can be 24/7 constant used. Additionally, the screen is resistant to chemical disinfectants like alcohol for frequent cleaning.

FRONT IP65 DUST AND WATER PROTECTION
The TX-2401 multi-touch monitor with a front-sided IP65 rating is designed to protect from dust and liquid spills, making it ideal for high-use public locations.

HIGH IMPACT-RESISTANT AGAINST VANDALISM
The touch display with an IK08 rating and metal casing prevents damage from impacts or acts of vandalism in high-traffic areas, ensuring a long service life.

MULTIPLE LAYOUTS FOR PUBLIC ACCESS

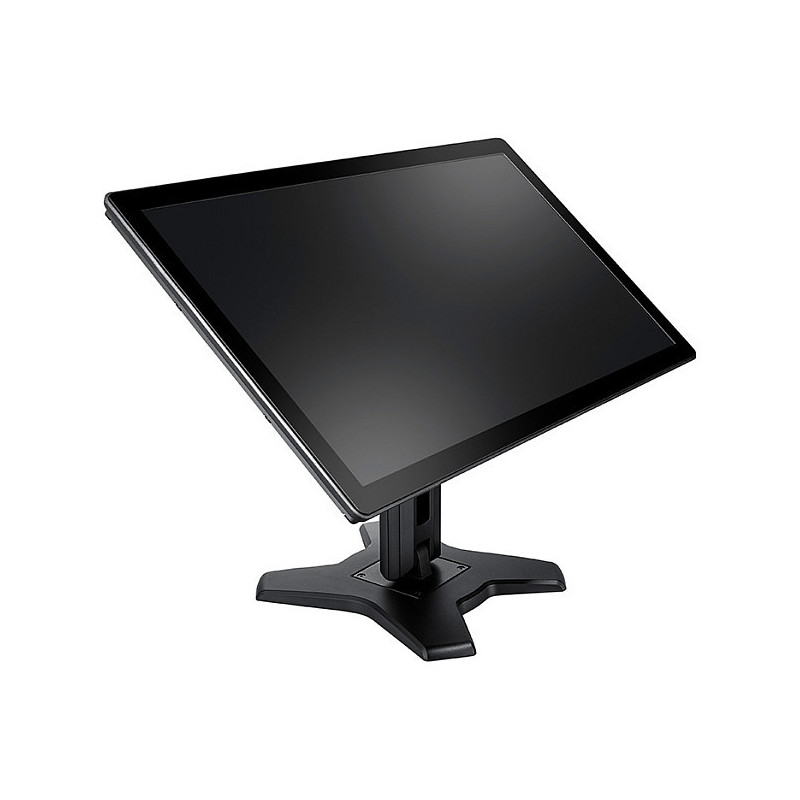

Thanks to VESA compatibility, the TX-2401 offers flexible mounting options, from desk mount to wall mount or attached to a monitor arm. The included ergonomic stand allows a huge -2 to 180 degrees of tilt adjustment, creating extra ergonomics when using. The display is 178-degrees wide viewing angles to provide consistent colour performance for better viewing.

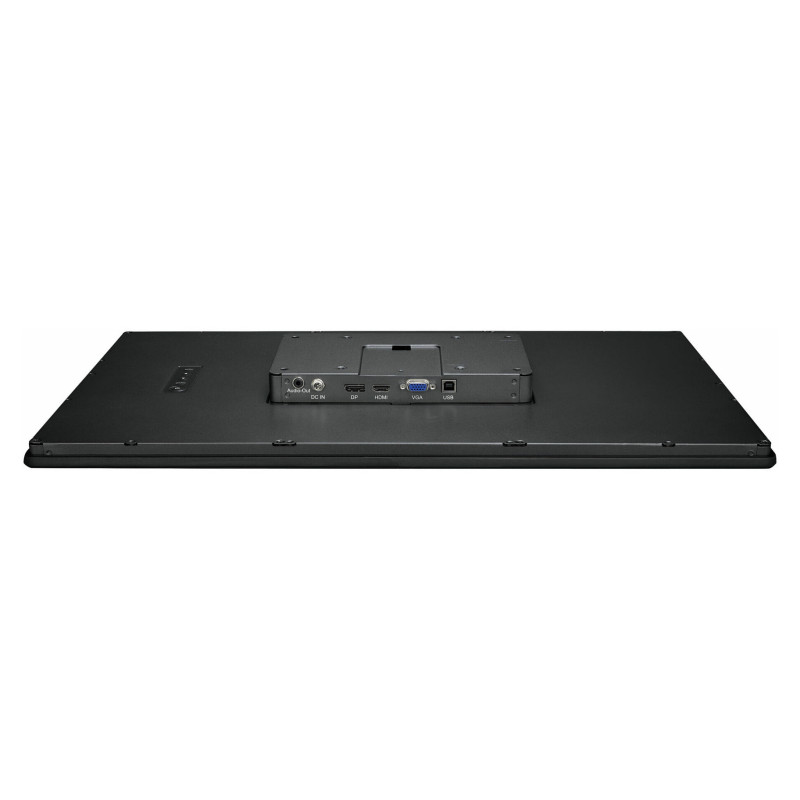

VERSATILE CONNECTIVITY
The TX-2401 provides maximum versatility and facilitates users to connect to their own devices, such as a high-performance PC or a media player, using the DisplayPort, HDMI or VGA inputs.

CABLE MANAGEMENT
A specially designed monitor stand with integrated cable management keeps cables organized, prevents them from interfering when adjusting the screen up or down, and provides a clutter-free space.

SEAMLESS INTEGRATION
Touch support works with various operating systems, compatible with Windows, Linux, macOS, and certain Android versions. This enables more choice of the operating system you use.

Display

Display diagonal: 60.5 cm (23.8")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LED
Panel type: VA
Feature: Touchscreen
Touchscreen type: Tabletop
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (typical): 250 cd/m²
Response time: 5 ms
Screen shape: Flat
Contrast ratio (typical): 3000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.274 x 0.274 mm
Digital horizontal frequency: 30 - 84 kHz
Digital vertical frequency: 56 - 76 Hz
Surface hardness: 7H
Colour gamut standard: NTSC
NTSC coverage (typical): 72%

Design

Market positioning: Business
Product colour: Black
Housing material: Metal
Feature: Detachable stand
Glass thickness: 3.3 mm

Ports & interfaces

Feature: USB Touch port
USB Touch ports quantity: 1
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
HDMI version: 1.3
DisplayPorts quantity: 1
DisplayPort version: 1.2a
Feature: Headphone out
Headphone outputs: 1
Headphone connectivity: 3.5 mm

Ergonomics

Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Cable management
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Tilt adjustment
Tilt angle range: -5 - 180°

Power

Energy efficiency class (SDR): E
Energy consumption (SDR) per 1000 hours: 17 kWh
Power consumption (typical): 17 W
Power consumption (standby): 0.4 W
Power consumption (off): 0.2 W
Energy efficiency scale: A to G
European Product Registry for Energy Labelling (EPREL) code: 1121207

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%

Weight & dimensions

Width (with stand): 575.1 mm
Depth (with stand): 279.7 mm
Height (with stand): 451.3 mm
Weight (with stand): 7.8 kg
Width (without stand): 575.1 mm
Depth (without stand): 42.4 mm
Height (without stand): 347 mm
Weight (without stand): 5.7 kg

Packaging data

Package width: 370 mm
Package depth: 660 mm
Package height: 530 mm
Package weight: 11.4 kg
Package type: Box

Packaging content

Cables included: AC, HDMI, USB, VGA
Feature: Power adapter included
Feature: Quick start guide

Other features

International Protection (IP) code: IP65
Compliance certificates: CE, Low Voltage Directive (LVD), REACH, RoHS, UKCA, WEEE
