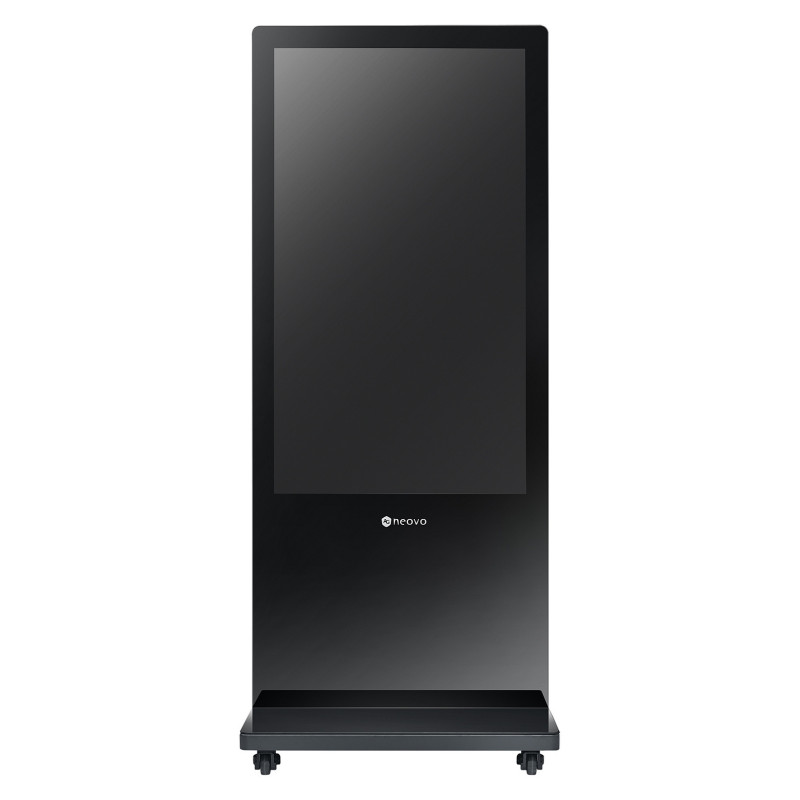

AG Neovo PF-55H

AG Neovo 55-Inch 1080p Freestanding Digital Kiosk Display. Product design: Kiosk design. Display diagonal: 138.7 cm (54.6"), Display technology: VA, Display resolution: 1920 x 1080 pixels, Display brightness: 700 cd/m², HD type: Full HD. Product colour: Black

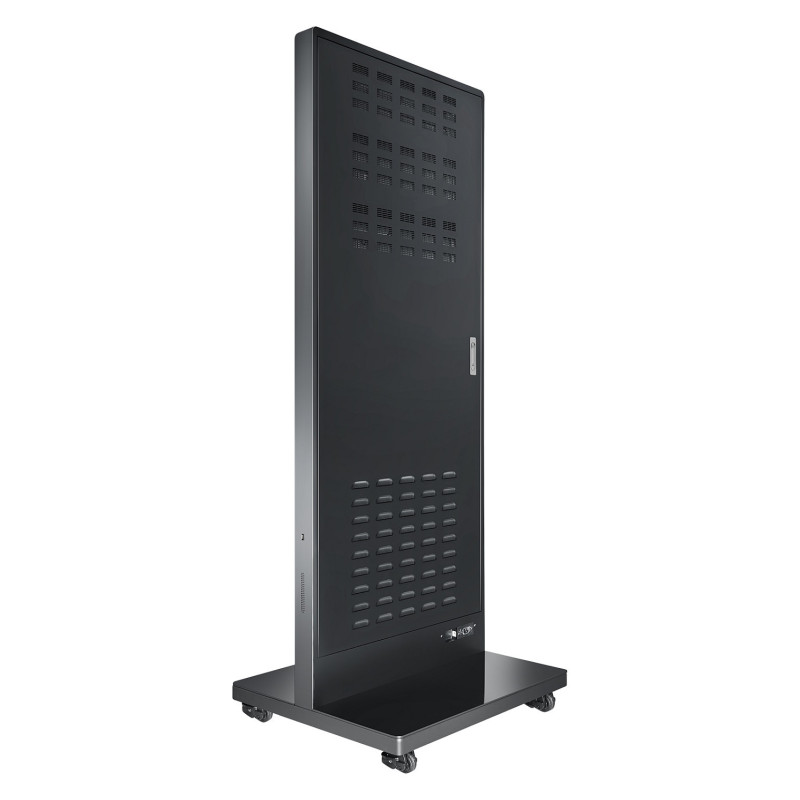

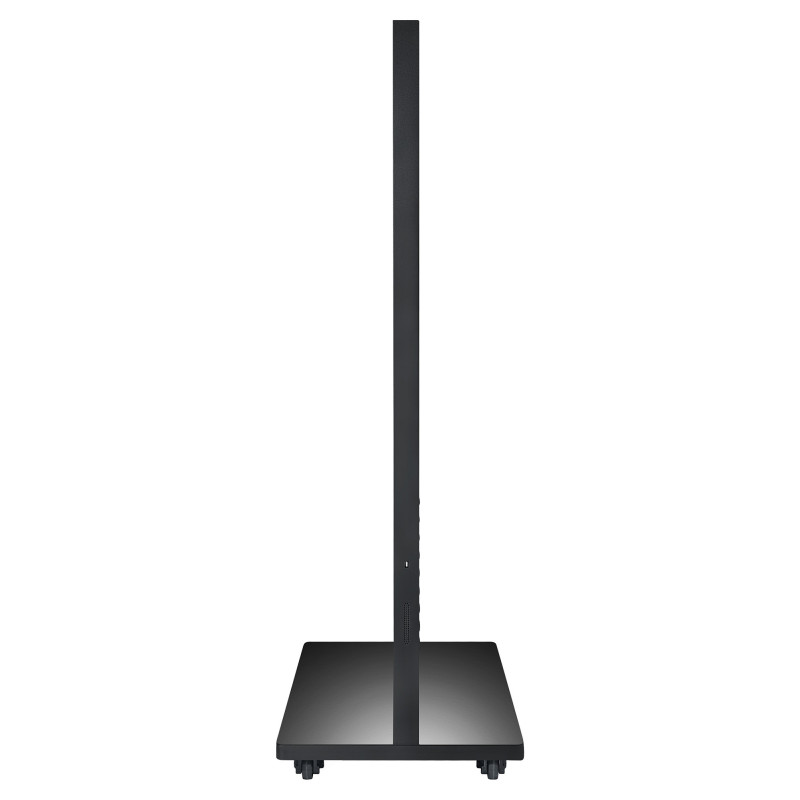

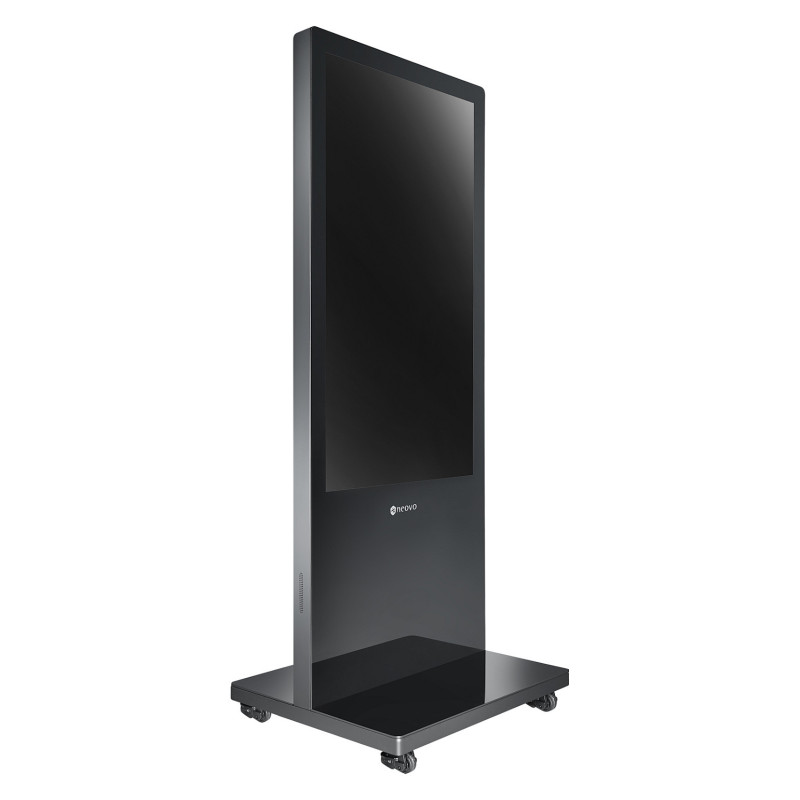

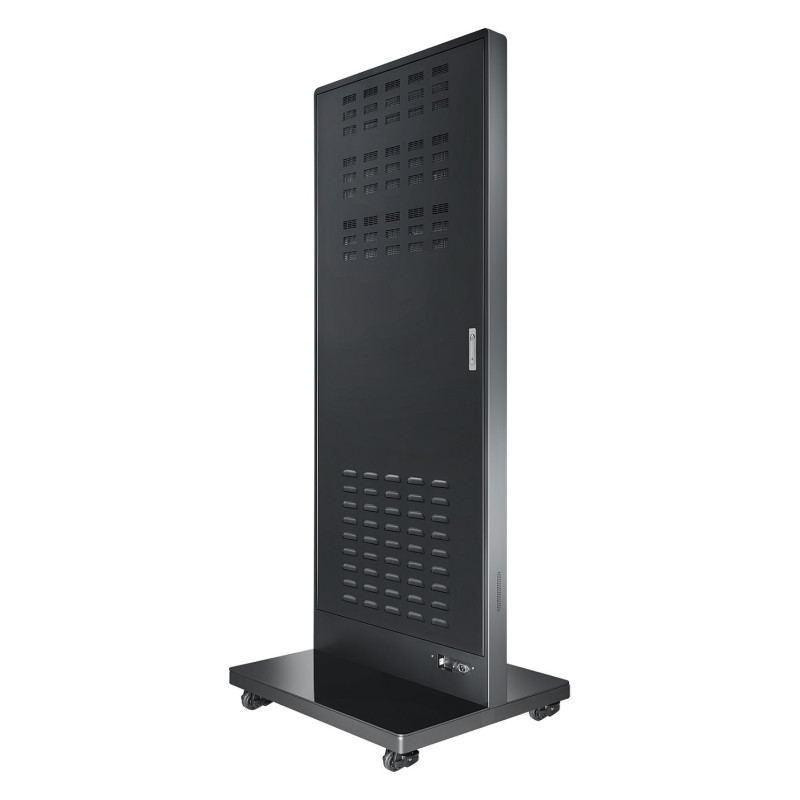

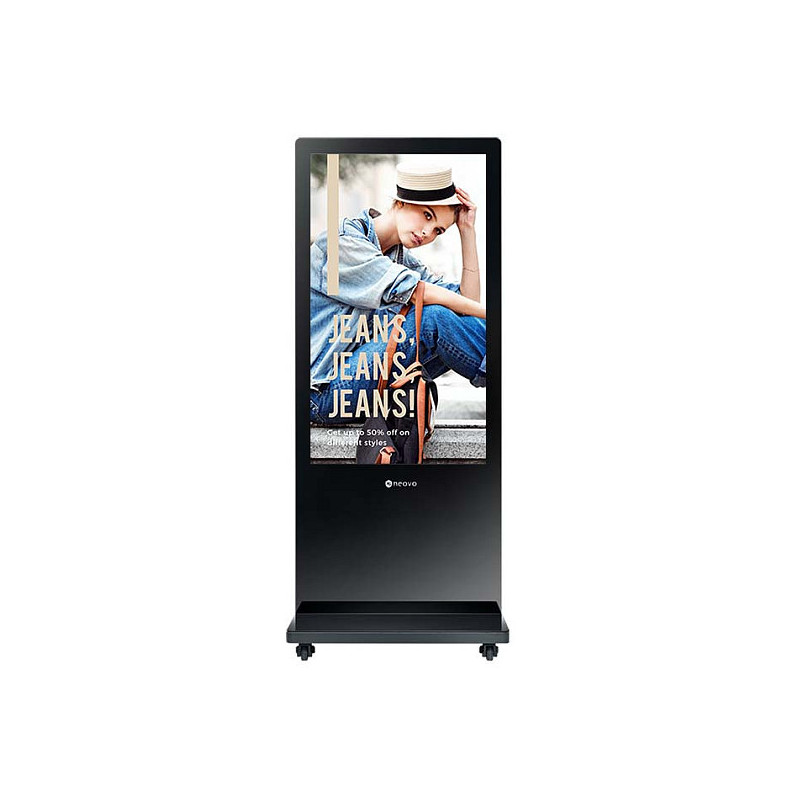

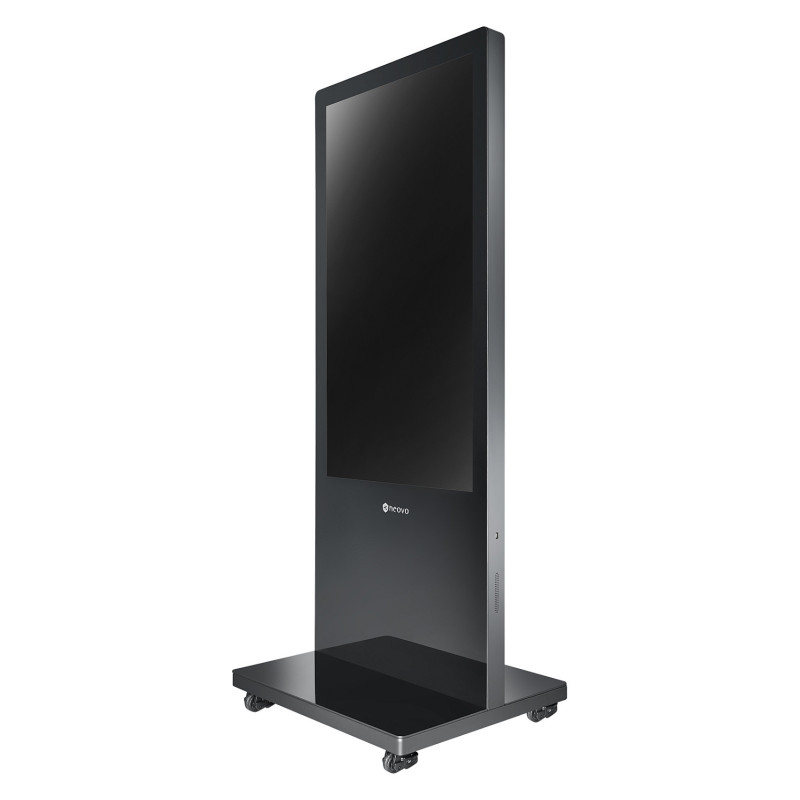

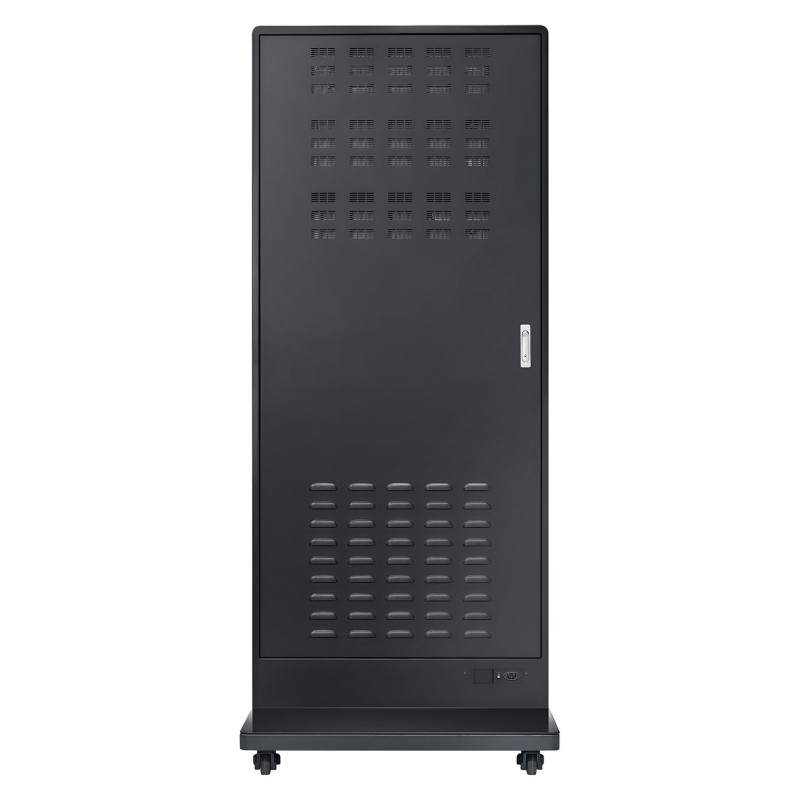

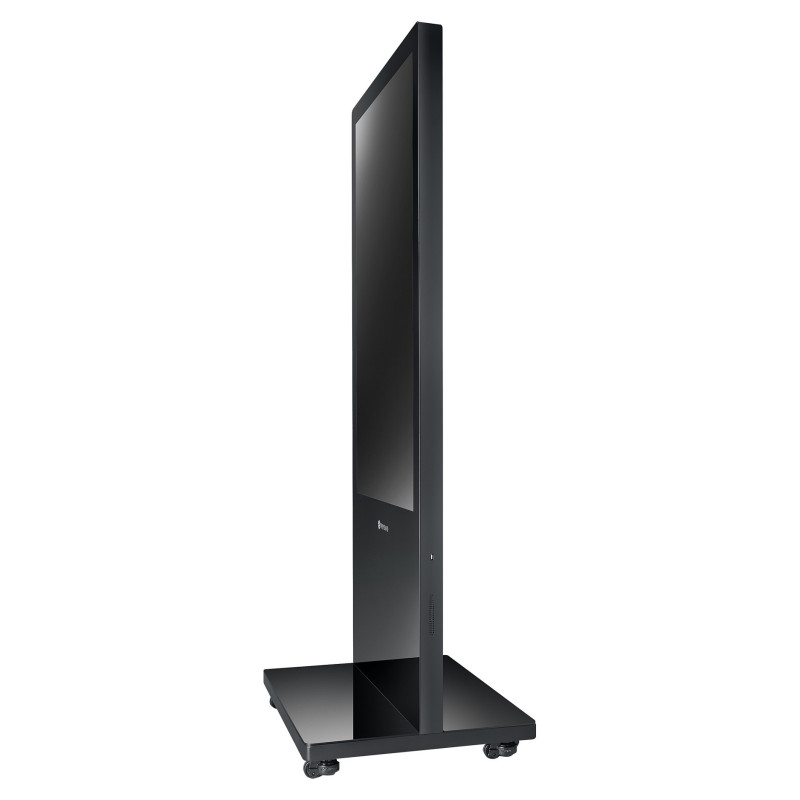

The PF-55H 55-inch digital kiosk display is built on a VA panel with a 700-nit high brightness capability, Full HD 1080p resolution, and a 4000:1 contrast ratio, ensuring lifelike images even in strong ambient lighting settings. The freestanding display is equipped with versatile I/O ports and built-in speakers and can integrate IPC or media player for diverse media playback. With tempered glass on the front-sided, secure locking back cover, and a movable floor stand, the PF-55H is ideal for public environments.

700nits High Visibility

With a brightness level that reaches 700nits and a VA technology panel that provides a 178-degree wide viewing angle, the PF-55 is able to meet the visual requirements for semi-outdoor use.

Excellent Scratch Resistance

Over 9H hardness tempered glass on the front that stretches from top to base with a robust metal casing provides a high level of protection against scratch and strong impact from any outdoor setting.

Versatile Connectivity for Multimedia Playback

The PF-55H provides versatile connectivity, including VGA, HDMI, DVI, and USB ports, easily connected to various external media players or IPCs.

Flexible Mobility

The PF-55H freestanding floor stands with four small casters makes the kiosk display movable and convenient in different locations.

Display

Display diagonal: 138.7 cm (54.6")
Display technology: VA
Display resolution: 1920 x 1080 pixels
Display brightness: 700 cd/m²
HD type: Full HD
Response time: 5 ms
Contrast ratio (typical): 4000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.63 x 0.63 mm
Active display area (W x H): 1209.6 x 680.4 mm
Horizontal scan range: 10 - 88 kHz
Vertical scan range: 10 - 93 Hz
Hardness: 9H
Haze rate: 11%
Surface hardness: 3H
Colour gamut: 72%

Ports & interfaces

HDMI ports quantity: 1
HDMI version: 1.2
HDMI input ports quantity: 1
Feature: DVI port
DVI-D ports quantity: 1
VGA (D-Sub) input ports: 1
Feature: USB port
USB ports quantity: 1

Audio

Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W

Design

Product design: Kiosk design
Placement supported: Indoor
Orientation: Vertical
Product colour: Black
Feature: Anti-glare screen

Performance

Purpose: Commercial

Power

Power consumption (typical): 170 W
Power consumption (standby): 1 W
Power consumption (off): 1 W
Energy efficiency class (SDR): C
Energy consumption (SDR) per 1000 hours: 1241 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Energy efficiency scale: A+ to F

Weight & dimensions

Width: 815 mm
Depth: 651 mm
Height: 1975 mm
Weight: 105 kg

Packaging data

Package width: 2050 mm
Package depth: 770 mm
Package height: 930 mm
Package weight: 115 kg

Packaging content

Cables included: AC, DVI

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 80%
Storage temperature (T-T): -10 - 50 °C
Storage relative humidity (H-H): 20 - 80%

Certificates

Certification: CE, WEEE, REACH, LVD, RoHS

Logistics data

Harmonized System (HS) code: 85285210

Technical details

Compliance certificates: RoHS

Other features

Feature: Manual
Audio input: 1
Audio output: 1
Power supply type: AC
Housing material: Metal
