Epson V12HB09080 dokumentų kamera

Epson ELPDC30. Effective sensor resolution: 13 MP, Optical sensor size: 25.4 / 3.2 mm (1 / 3.2"), Sensor type: CMOS. Optical zoom: 23x, Digital zoom: 10x, Shooting area (WxD): 297 x 420 mm. Interface: USB/HDMI/Wi-Fi, USB connector type: Mini-USB B, USB Type-A, Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac). Power consumption (typical): 9.6 W, Power consumption (standby): 0.5 W. Width: 586 mm, Depth: 159 mm, Height: 554 mm

4K UHD wireless visualiser
The ELPDC30 4K UHD visualiser, with 60fps imaging and 230x zoom ratio, enables teachers to capture and share content in high-definition and in real-time, providing impressive and seamless content. The 13 mega-pixel camera makes learning both collaborative and inspirational, while the wireless connectivity adds real flexibility to where the content can be shared.


The ELPDC30 is perfect for teachers who want to transform digital learning. Thanks to 4K UHD resolution and the 13 mega-pixel camera, image quality is stunning in every learning setting. It has a shooting area up to A3, and when combined with an Epson projector the content can be displayed on a large screen that's accessible to all students. Add in 230x zoom ratio and every detail can be shared and discussed in perfect clarity.

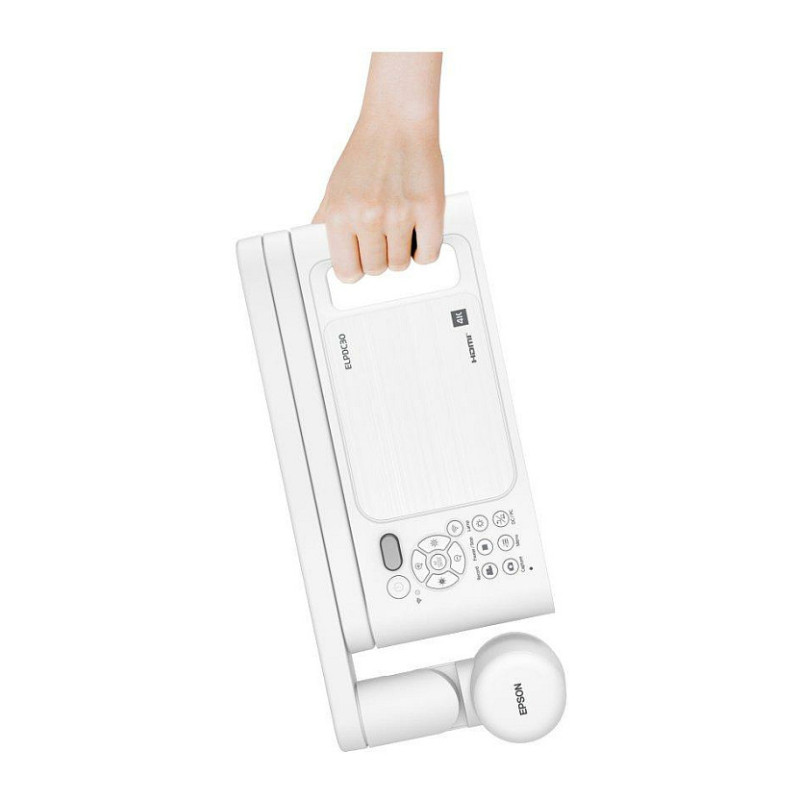

The ELPDC30 can be connected directly to the main display wirelessly or via Miracast at 30fps (60fps max without Miracast), without being limited by HDMI connectivity. Being compact, lightweight and having a built-in carry handle, makes handling safe and easy.


The microscope attachment means the smallest content can be viewed at the largest of scales, while USB memory storage of up to 32GB gives the ELPDC30 the ability to record, capture and store images for future sessions and classes.

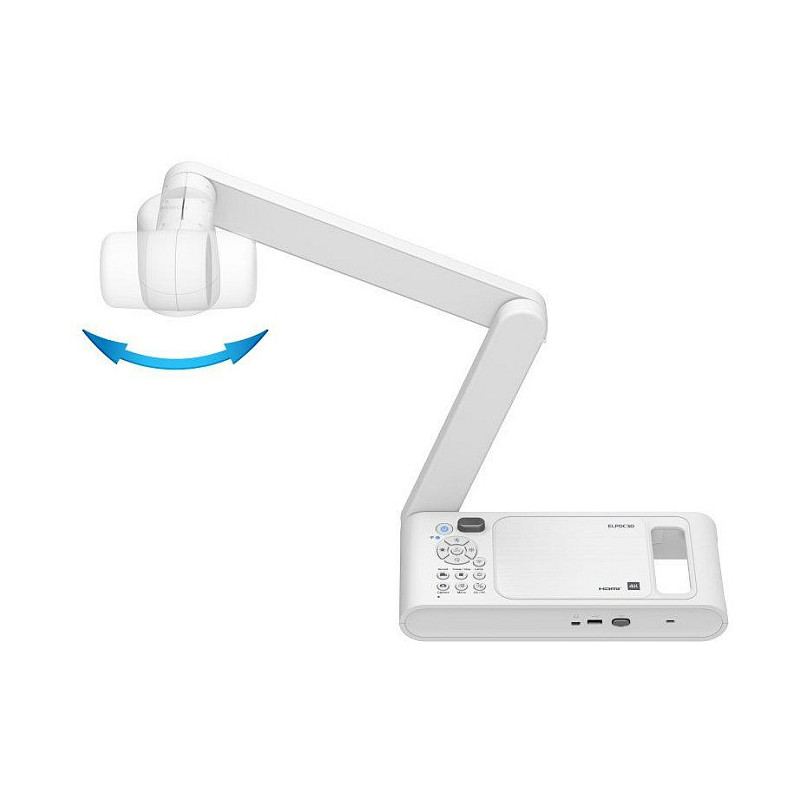

The flicker-reduction feature ensures a comfortable viewing experience, making it a healthy choice for young eyes, and a flexible mechanical head with built-in LED light enhances the content being shown.


An optional carry case provides extra protection when moved between rooms or locations and, if the ELPDC30 needs to be secured, it comes with a Kensington lock.

Camera

Effective sensor resolution: 13 MP
Optical sensor size: 25.4 / 3.2 mm (1 / 3.2")
Sensor type: CMOS
HD type: 4K Ultra HD
Maximum frame rate: 60 fps

Lens system

Feature: Auto focus
Optical zoom: 23x
Digital zoom: 10x
Shooting area (WxD): 297 x 420 mm

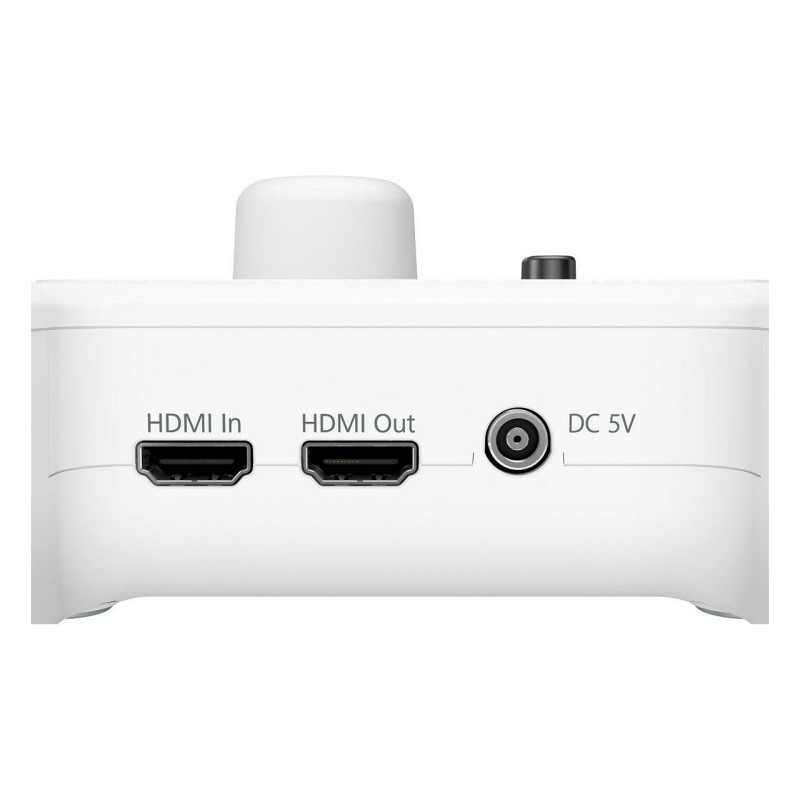

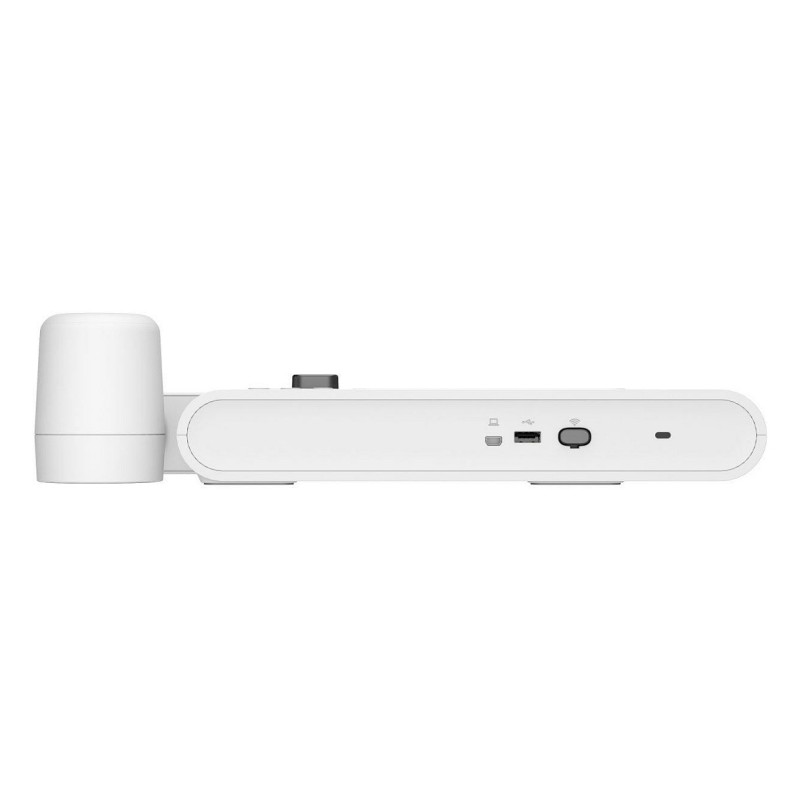

Ports & interfaces

Interface: USB/HDMI/Wi-Fi
HDMI input ports quantity: 1
HDMI output ports quantity: 1
USB connector type: Mini-USB B, USB Type-A
USB 1.1 ports quantity: 1
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Technical details

Product colour: White

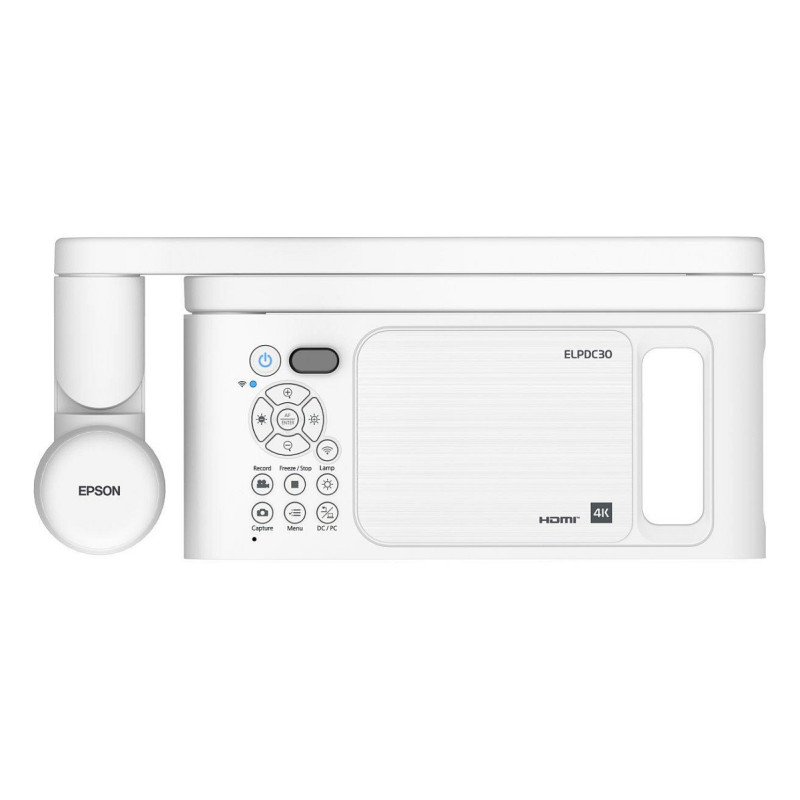

Control type: Buttons
Display modes: Microscope, Motion
Feature: Anti-flicker
LED indicators: Yes
Feature: Cable lock slot
Cable lock slot type: Kensington
Box contents: AC adapter, HDMI Cable 1.8m, Main unit, Microscope Adapter, Power cable, Quick Setup Guide, Remote control incl. batteries, USB cable
Bundled software: Easy Interactive Tools, Epson Connect Tool for Document Camera
Frame rate: 60 fps
Security features: Kensington lock
Special features: Auto focus, Freeze, Parallel video output, Split screen, Video capture and replay, Zoom
Feature: Zoom capability
Warranty period: 5 year(s)

Power

Power consumption (typical): 9.6 W
Power consumption (standby): 0.5 W

Weight & dimensions

Width: 586 mm
Depth: 159 mm
Height: 554 mm
Weight: 2.8 kg

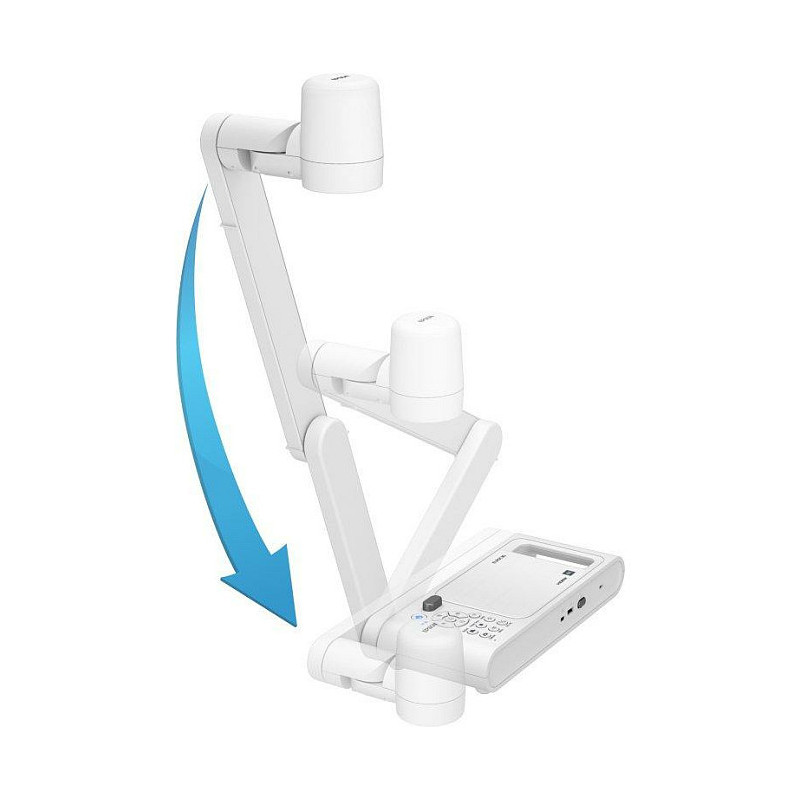

Dimensions folded (WxDxH): 362 x 159 x 85 mm

Packaging data

Quantity per pack: 1 pc(s)
Package width: 280 mm
Package depth: 455 mm
Package height: 185 mm
Package weight: 4.42 kg

Logistics data

Products per pallet: 48 pc(s)
Pallet gross length: 120 cm
Pallet gross width: 80 cm
Pallet gross height: 2.1 m
Products per pallet layer: 8 pc(s)
Products per pallet layer (UK): 12 pc(s)
Products per pallet (UK): 72 pc(s)
Pallet length (UK): 120 cm
Pallet height (UK): 2.1 m
