Przedłużacz / Extender HDMI 4K 60Hz 150m po skrętce Cat.6A / 7 / 8 HDBaseT HDCP2.2 PoC

Description

The HDBaseT HDMI KVM extender kit enables the transmission of uncompressed, high-definition audio/video signals over long distances over a CAT6A network cable (or higher specification network cable). The maximum transmission range is 150 m. Thanks to PoC technology, only one module needs to be connected to the power supply via an external power supply. The receiver module is equipped with two USB ports (1.1) for connecting a mouse and keyboard, which allows convenient control of the signal source on the output screen/display. Bi-directional infrared (IR) signal transmission is also part of the scope of this solution.

• HDBaseT 1.0 support over CAT6A/7/8 cable up to 100m
• Transmission range - Full HD (1080p / 60 Hz): 150 m (max.)
• Transmission range - UHD (4K / 60 Hz): 120 m (max.)
• 4K 2K/60Hz support (4:4:4)
• Video throughput: 18 Gbps
• EDID support (2 modes) - 1: copy - receiver with HDMI output / 2: standard - 1080p, 2 channels
• Two-way infrared (IR) signal transmission

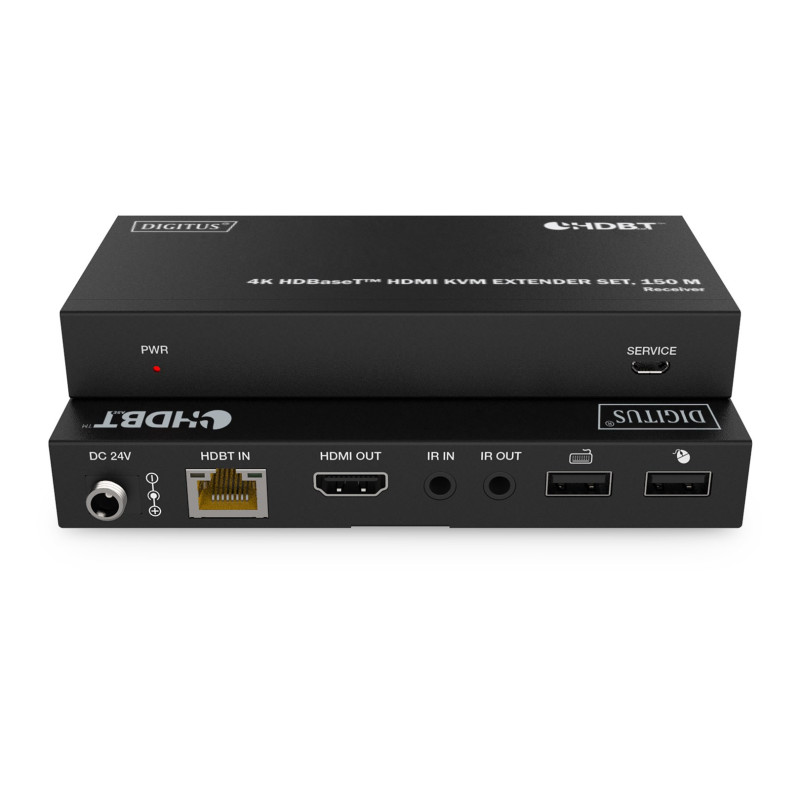

• It is possible to connect a mouse and keyboard to the receiver module (2x USB 1.1) for convenient control of the signal source from the output display
• PoC (Power over Cable) only one module requires an external power supply
• Metal housing
• Suitable for wall mounting
