Siemens 6EP3333-4SB00-3AX0 laboratorinis maitinimo blokas

Siemens SIMATIC PM1207/1AC/24VDC/5A. Power: 120 W. Width: 70 mm, Height: 125 mm

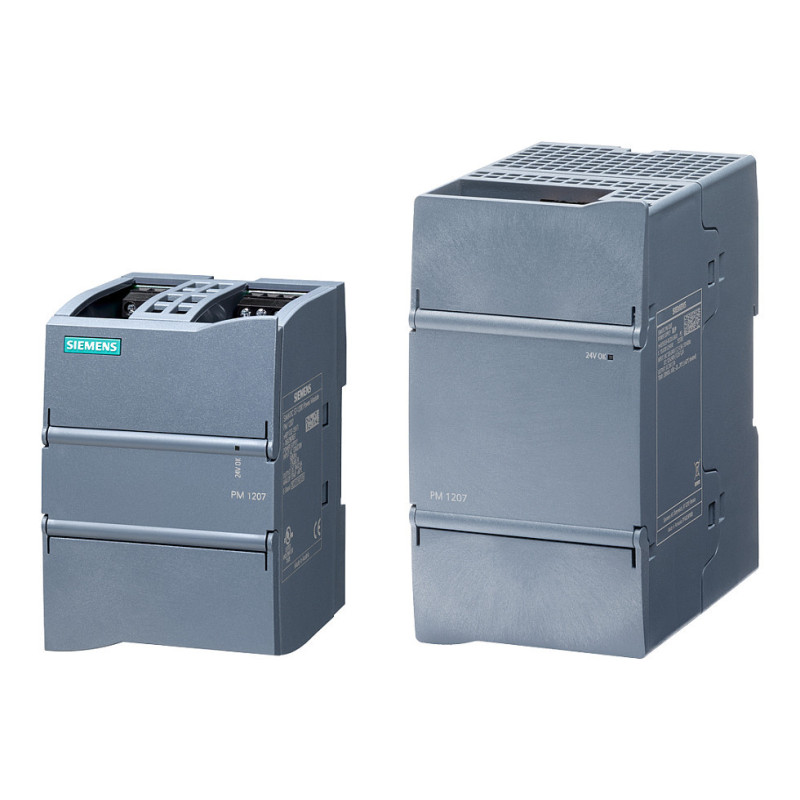

SIMATIC S7-1200 power module PM 1207 24 V/5 A stabilized power supply input: 120 - 240 V AC/DC output: 24 V DC/5 A with diagnostic interface The single-phase SIMATIC PM1207 load current supply (PM = Power Module) in SIMATIC S7-1200 G2 design and a width of 70 mm requires little space in combination with the micro PLC. The 5 A power supply unit provides the supply to CPUs with 24 V input, signal modules, and loads connected to them. The wide-range input ensures problem-free connection to 1-phase AC/DC networks from 120 to 240 V in industrial and residential areas. Installation is on a DIN rail or with screws in the case of wall mounting. Comprehensive certifications such as UL and GL enable universal use. Regardless of the industry or requirement: Siemens offers reliable and efficient power supplies for any plant.

Power

Power: 120 W

Technical details

Compliance certificates: CE, RoHS, REACH
Feature: Wall mountable
Output current (max, 1): 5 A
Output voltage (1st secondary): 24 V
Nominal output current (1): 5 A
Feature: Direct mounting
Feature: Short circuit protection
Nominal output voltage (1): 24 V
Feature: Output voltage stabilized
Feature: Stabilized
Rated supply voltage (AC 50 Hz): 240 V
Rated supply voltage (DC): 120-240 V
Rated supply voltage (AC 60 Hz): 120 V
Feature: Suitable for distribution boards
Feature: Suitable for rail mounting

Weight & dimensions

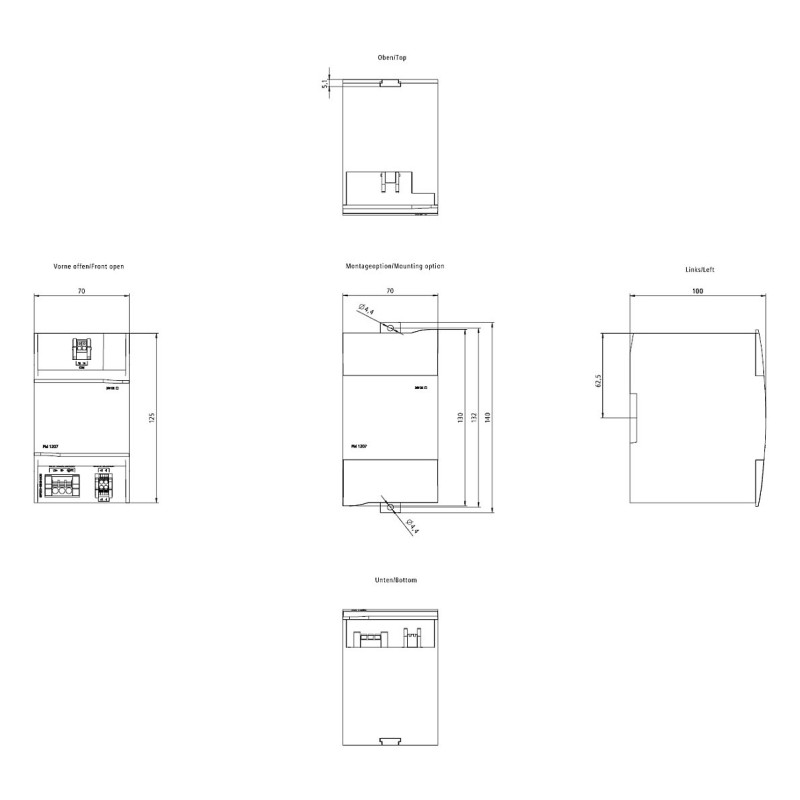

Width: 70 mm
Height: 125 mm
