Siemens 6EP1935-6ME21 UPS baterija

Siemens SITOP Battery module/24V/7AH. Battery capacity: 7 VAh. Compliance certificates: CE, REACH. Height: 168 mm. Package width: 210 mm, Package height: 180 mm, Package depth: 230 mm

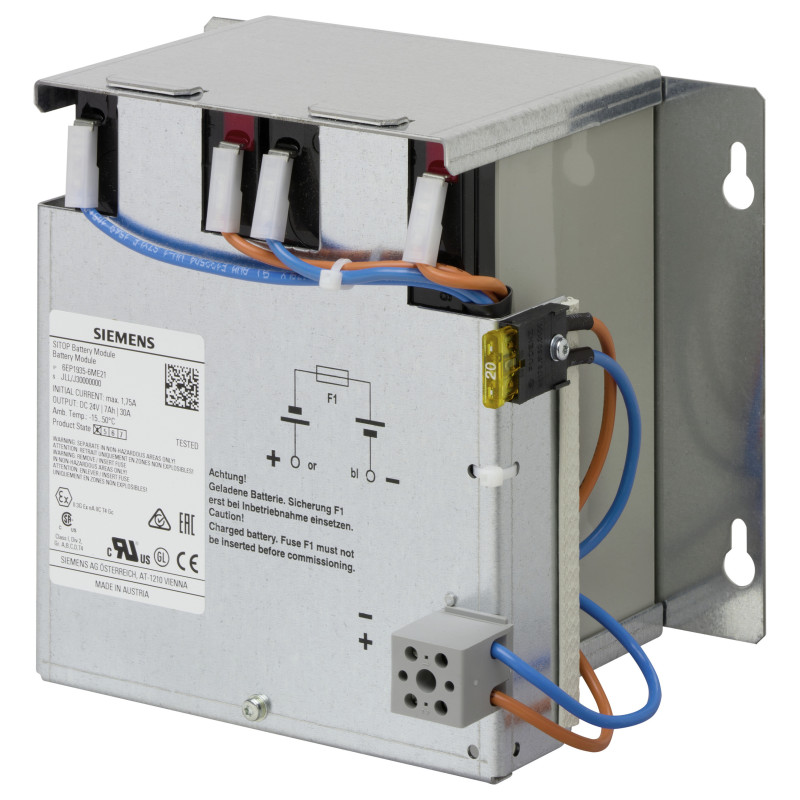

SITOP battery module 24 V/7 Ah with maintenance free sealed lead-acid batteries for SITOP DC UPS module 6 A, 15 A and 40 A The maintenance-free battery modules with lead-acid battery are an important part of the DC UPS systems. In combination with a 24 V power supply and a DC UPS module, you can buffer against power failures lasting up to several hours. For longer buffer times, up to six battery modules can be connected in parallel. The battery modules are completely prewired with battery retainer and terminals. These can be mounted onto a DIN rail or directly on the wall.

Features

Battery capacity: 7 VAh
Number of battery cells: 12

Certificates

Compliance certificates: CE, REACH

Technical details

Nominal voltage: 24 V
Feature: Battery included

Weight & dimensions

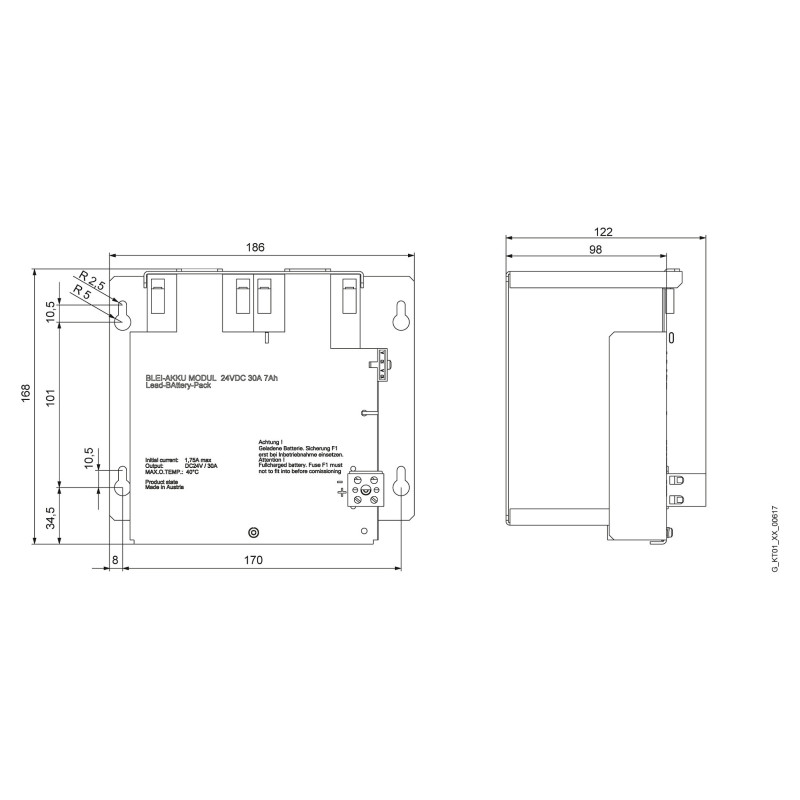

Height: 168 mm

Packaging data

Package width: 210 mm
Package height: 180 mm
Package depth: 230 mm
Package weight: 5.55 kg

Operational conditions

Operating temperature (T-T): -15 - 50 °C
