Siemens 6EP1333-3BA10 maitinimo adapteris / keitiklis

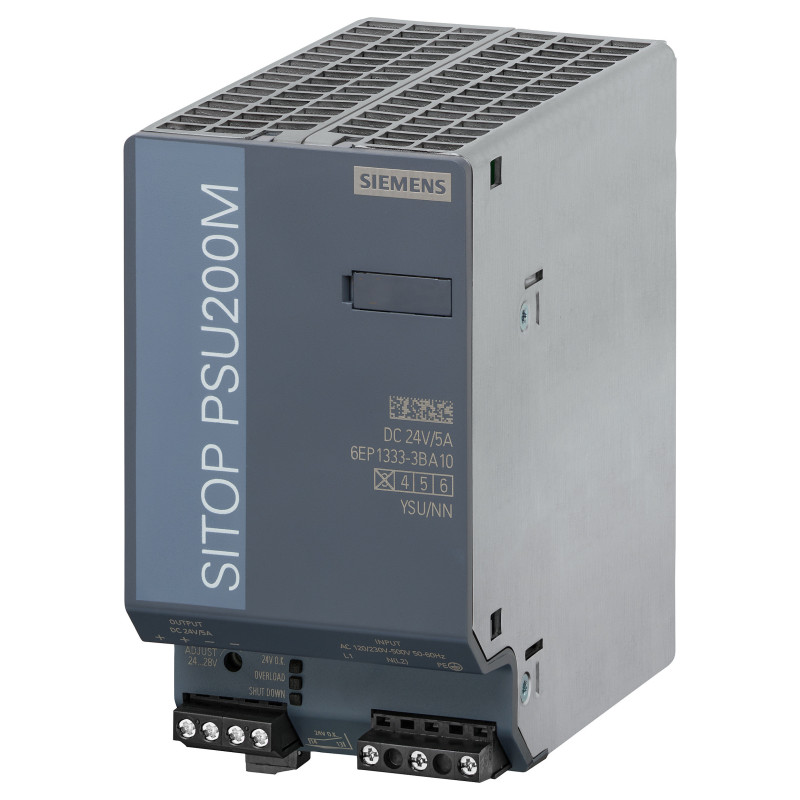

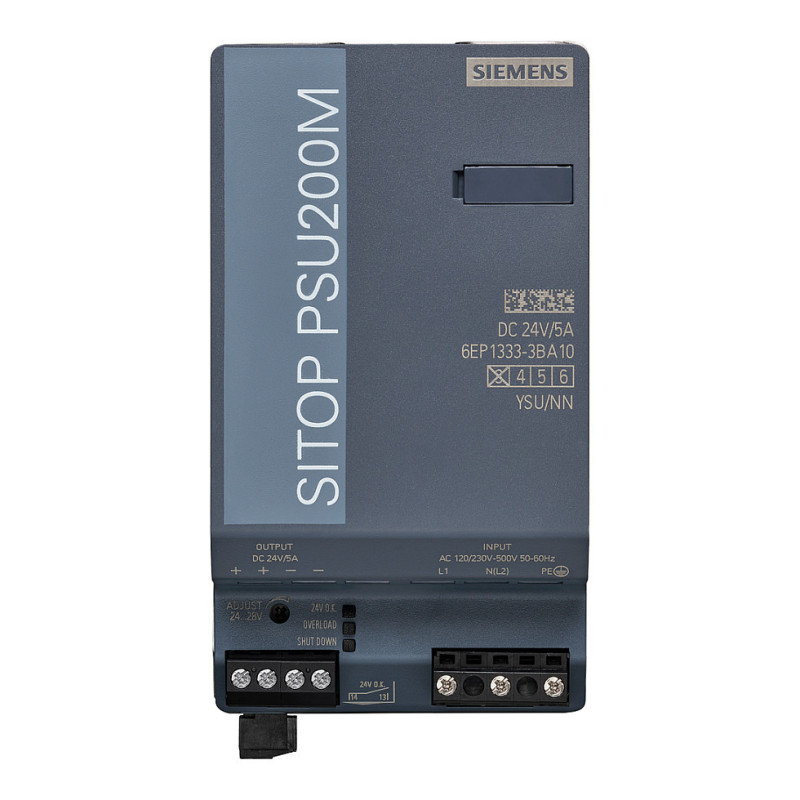

Siemens SITOP PSU200M/1-2AC/24VDC/5A. Power supply type: Indoor. Product colour: Multicolour. Compliance certificates: CE, RoHS, REACH. Width: 70 mm, Height: 125 mm, Weight: 600 g. Package width: 150 mm, Package depth: 90 mm, Package height: 140 mm

SITOP PSU200M 5 A stabilized power supply input: 120/230-500 V AC output: 24 V DC/5 A The 1 and 2-phase SITOP modular are technology power supplies for sophisticated solutions and offer maximum functionality for use in complex plants and machines. The ultra-wide-range input allows connection to 1-phase supply networks or directly between the line conductors of three-phase networks (2-phase) and ensures a high level of safety even in the event of large voltage fluctuations. The Power Boost delivers up to three times the rated current for a short time. In case of overload, you can choose between constant current with automatic restart or latching shutdown. The high degree of efficiency keeps energy consumption and heat buildup in the control cabinet low, and the compact metal enclosure also saves space. To further increase the 24 V availability, the power supply units can be combined with buffer, DC UPS, redundancy and selectivity modules. Regardless of the industry or requirement: Siemens offers reliable and efficient power supplies for any plant.

Features

Power supply type: Indoor

Design

Product colour: Multicolour

Certificates

Compliance certificates: CE, RoHS, REACH

Weight & dimensions

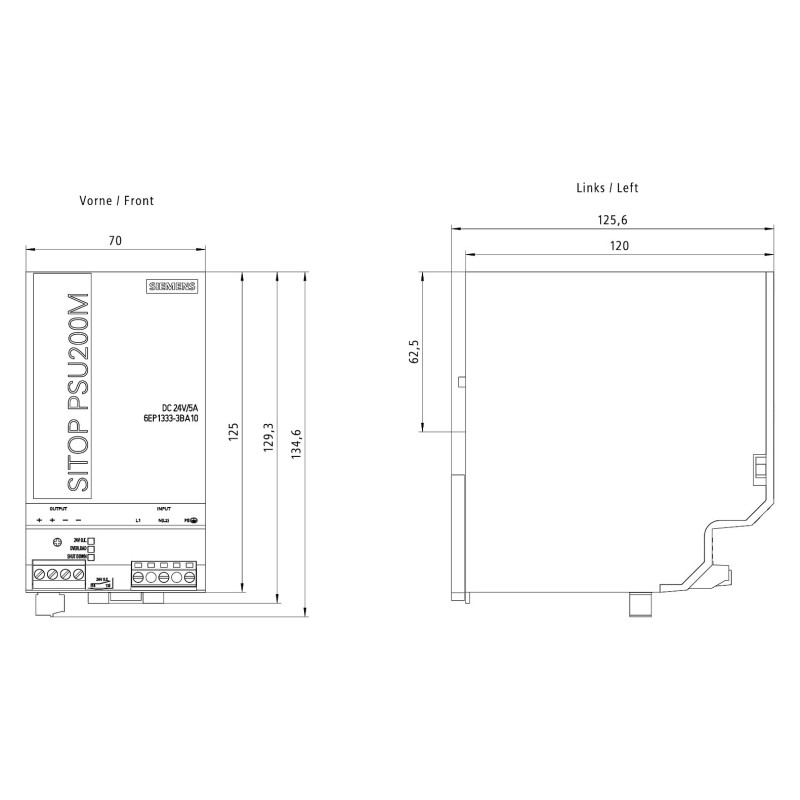

Width: 70 mm
Height: 125 mm
Weight: 600 g

Packaging data

Package width: 150 mm
Package depth: 90 mm
Package height: 140 mm

Packaging content

Feature: Quick installation guide

Technical details

Power: 120 W
Feature: Stabilized

Logistics data

Country of origin: Romania

Other features

Feature: Short circuit protection
