Siemens 5TL1363-0 grandinės pertraukiklis

Siemens ISOLATOR 63A TP. Rated current: 63 A, Rated voltage: 440 V. Breaking capacity: 10 A, Number of poles: 3P, Product colour: Multicolour. Weight: 309 g. Package width: 82 mm, Package depth: 92 mm, Package height: 55 mm. Minimum order quantity: 1 pc(s)

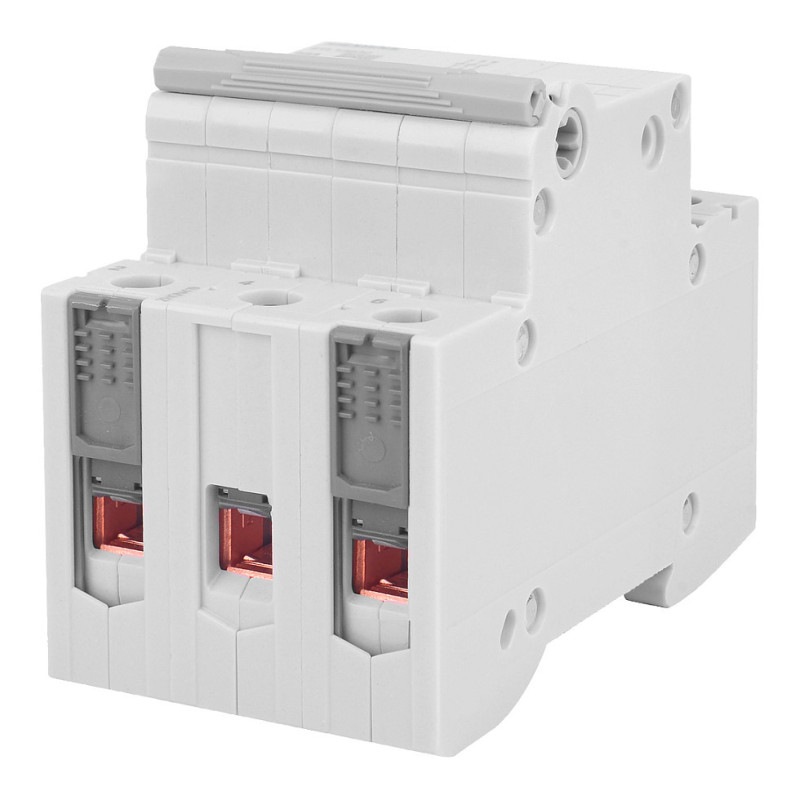

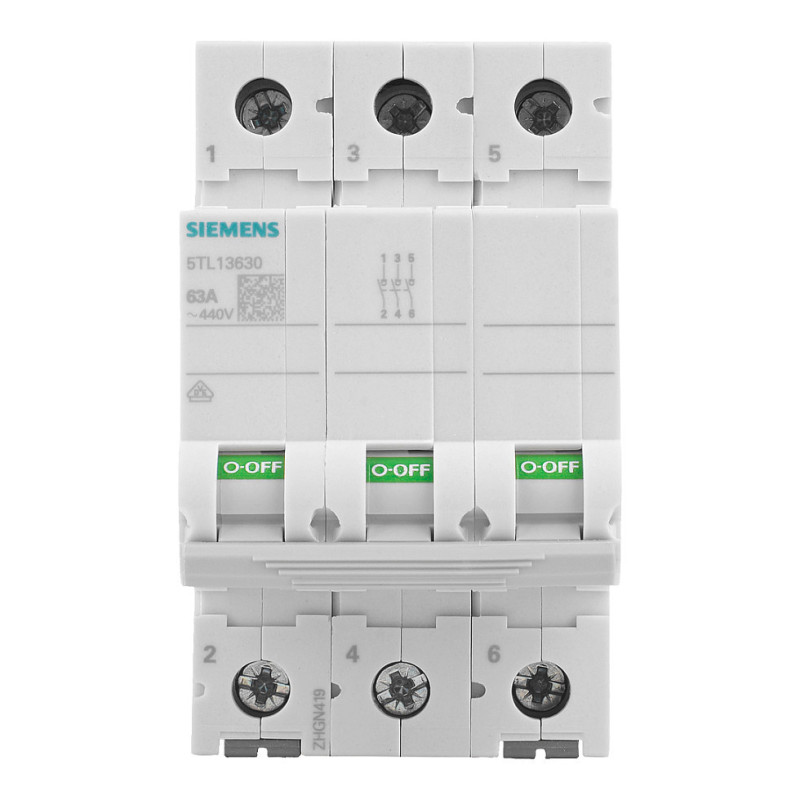

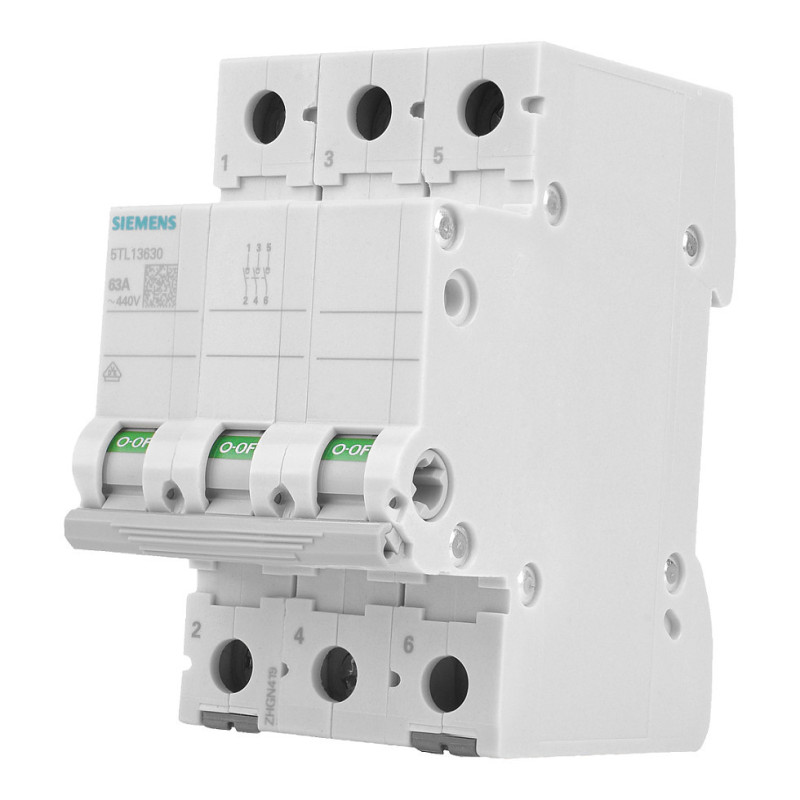

switch disconnector, on-off switch 63 A 3-pole On-off switch SENTRON 5TL1 for switching of lighting, motors and other electrical equipment. Increased operational safety and system availability due to separate closure and opening of the affected circuit with clearly visible switch position indicator. Reliable safety during installation due to standard reach-around and touch protection. Toolless removal from the DIN rail or from the busbar assembly simply by operating a manual slide. Can be used as a switch disconnector according to EN 60947-1 for disconnecting or isolating installations. Thanks to its uniform design, the 5TL1 on-off switch blends perfectly into the range of residual current operated circuit breakers and miniature circuit breakers. Optimized technology for your safety - only from Siemens.

Power

Rated current: 63 A
Rated voltage: 440 V

Features

Breaking capacity: 10 A
Number of poles: 3P
Product colour: Multicolour

Weight & dimensions

Weight: 309 g

Packaging data

Package width: 82 mm
Package depth: 92 mm
Package height: 55 mm
Package weight: 335.5 g

Technical details

Compliance certificates: CE, RoHS, REACH
Rated switching capacity: 0.196 kA
Number of modular spacings: 3
Voltage type: AC
Mounting depth: 7 cm
Number of NO contacts: 3
Switching function: Off switch

Logistics data

Minimum order quantity: 1 pc(s)
