Siemens 5TA4706 elektros jungiklis

Siemens DELTA FL.AP IP44, 2-WAY SWITCH. Housing material: Plastic, Finish type: Gloss, Product colour: Grey. Rated current: 10 A. Width: 66 mm, Depth: 47 mm, Height: 82 mm. Package width: 82 mm, Package depth: 65 mm, Package height: 56 mm

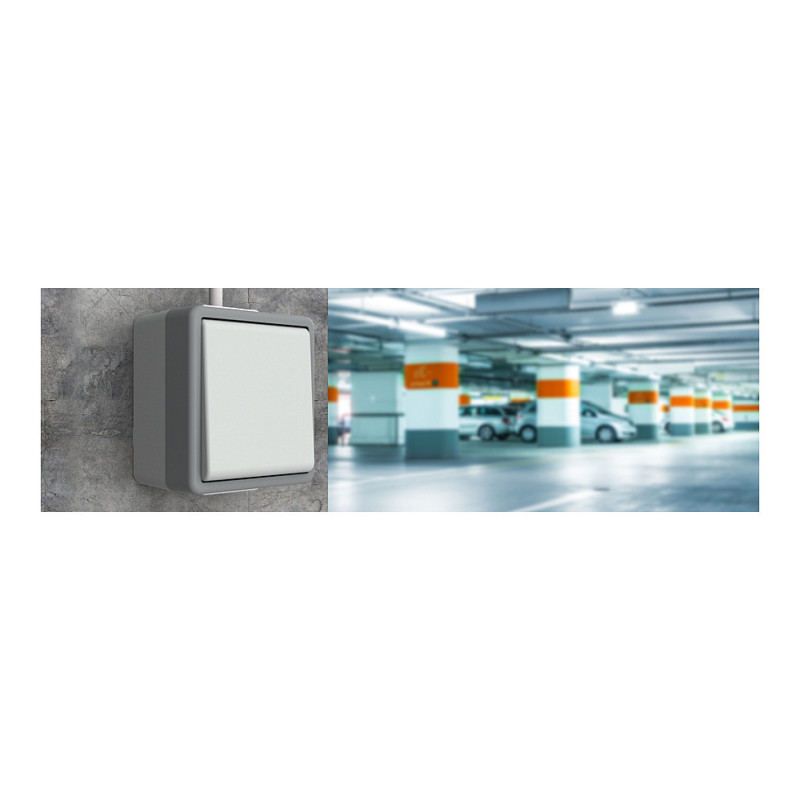

DELTA fläche IP44, AP Dark gray/light gray Universal switch switchover/OFF 10A 250V, 66x 75 mm Our DELTA IP44 surface-mounting range provides you with an attractive design, increased safety and easy operation. The DELTA IP44 surface-mounted range impresses with its breakage and impact-resistant thermoplastic enclosure. All switch and socket outlet inserts have screwless terminals for wiring. Using the insulated release levers, you can detach the conductors without tools and with touch safety. DELTA switch and socket outlets - design and quality to perfection from Siemens.

Features

Housing material: Plastic
Finish type: Gloss
Product colour: Grey
International Protection (IP) code: IP44
Installation type: DIN-rail

Power

Rated current: 10 A

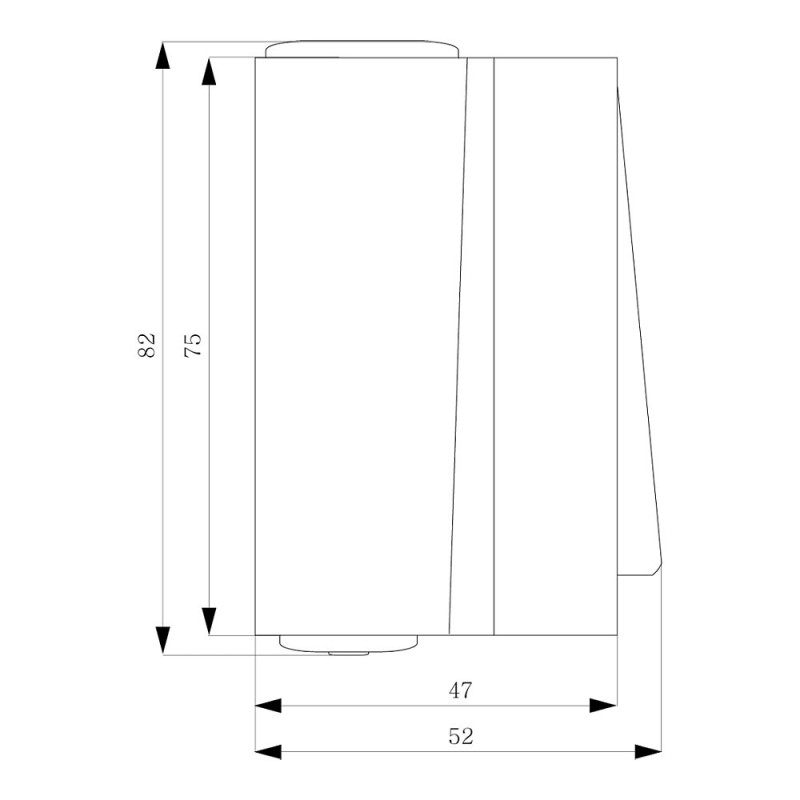

Weight & dimensions

Width: 66 mm
Depth: 47 mm
Height: 82 mm
Mounting depth: 3.2 cm

Packaging data

Package width: 82 mm
Package depth: 65 mm
Package height: 56 mm
Package weight: 106 g

Technical details

Doesn't contain: Halogen
Compliance certificates: CE, RoHS
Nominal voltage: 250 V
Assembly arrangement: Basic element with complete housing
Number of rockers: 1
Mounting method: Surface mounted
