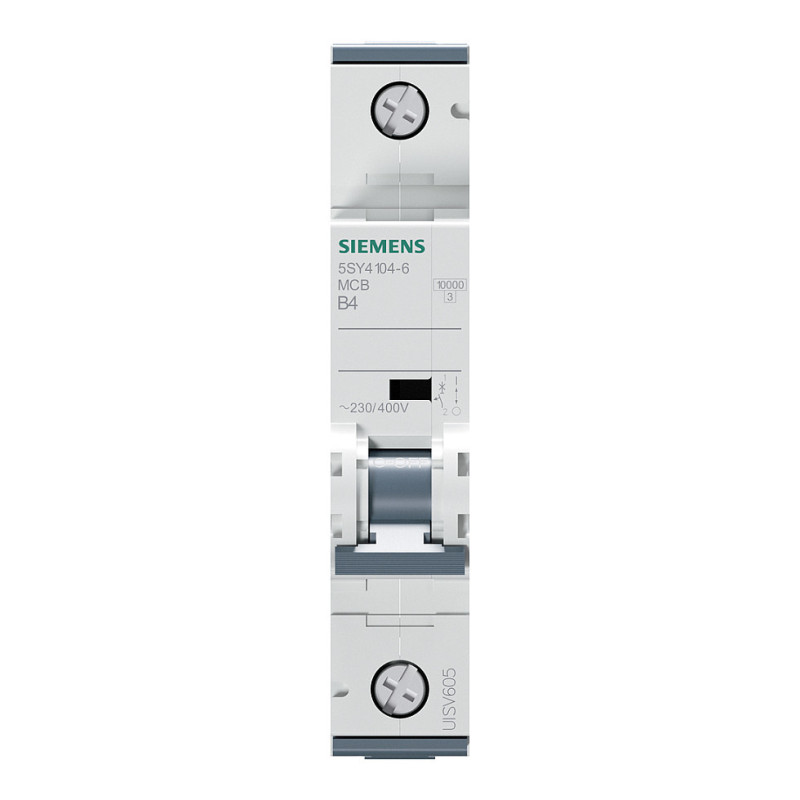

Siemens 5SY41046 5SY4104-6 Leitungsschutzschalter 4 A 230 V, 400 V grandinės pertraukiklis

Siemens 5SY41046 5SY4104-6 Leitungsschutzschalter 4 A 230 V, 400 V. Rated current: 4 A, Input frequency: 50 Hz, Rated voltage: 400 V. International Protection (IP) code: IP20. Package width: 21 mm, Package depth: 93 mm, Package height: 83 mm. Minimum order quantity: 1 pc(s)

Power

Input frequency: 50 Hz
Rated current: 4 A
Rated voltage: 400 V
Total power loss: 1.5 W

Features

Number of poles: 1
International Protection (IP) code: IP20
Pollution degree: 3

Packaging data

Package width: 21 mm
Package depth: 93 mm
Package height: 83 mm
Package weight: 155 g

Technical details

Compliance certificates: CE, RoHS, REACH
Number of modular spacings: 1
Voltage type: AC
Mounting depth: 7 cm
Ambient temperature range: -40 - 70 °C
Release characteristic: B
Connectable solid conductor cross-section: 0.75 - 35 mm²
Connectable stranded conductor cross-section: 0.75 - 35 mm²
Overvoltage category: CAT III
Rated insulation voltage (Ui): 440 V
Rated short-circuit breaking capacity (Icn, EN 60898, 230V): 10 kA
Rated short-circuit breaking capacity (Icn, EN 60898, 400V): 10 kA
Rated short-circuit breaking capacity (Icu, IEC 60947-2, 400V): 35 kA
Rated short-circuit breaking capacity (Icu, IEC 60947-2, 230V): 35 kA
Number of protected poles: 1
Current limiting class: Class 3
Rated impulse withstand voltage (Uimp): 4 kV
Feature: Additional equipment

Logistics data

Minimum order quantity: 1 pc(s)
