Siemens 5SV1316-6KK16 grandinės pertraukiklis

Siemens RCBO compact 6kA Type A 30mA B16. Rated current: 16 A, Rated voltage: 230 V, Total power loss: 3.7 W. Breaking capacity: 6 A, International Protection (IP) code: IP20, Installation type: DIN-rail. Package width: 21 mm, Package depth: 93 mm, Package height: 83 mm. Minimum order quantity: 1 pc(s)

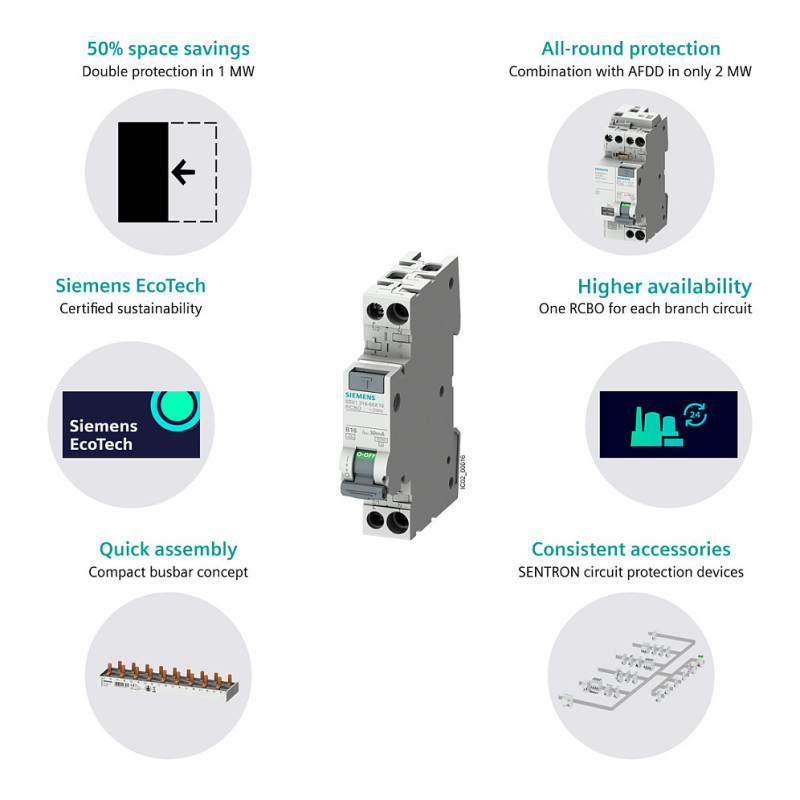

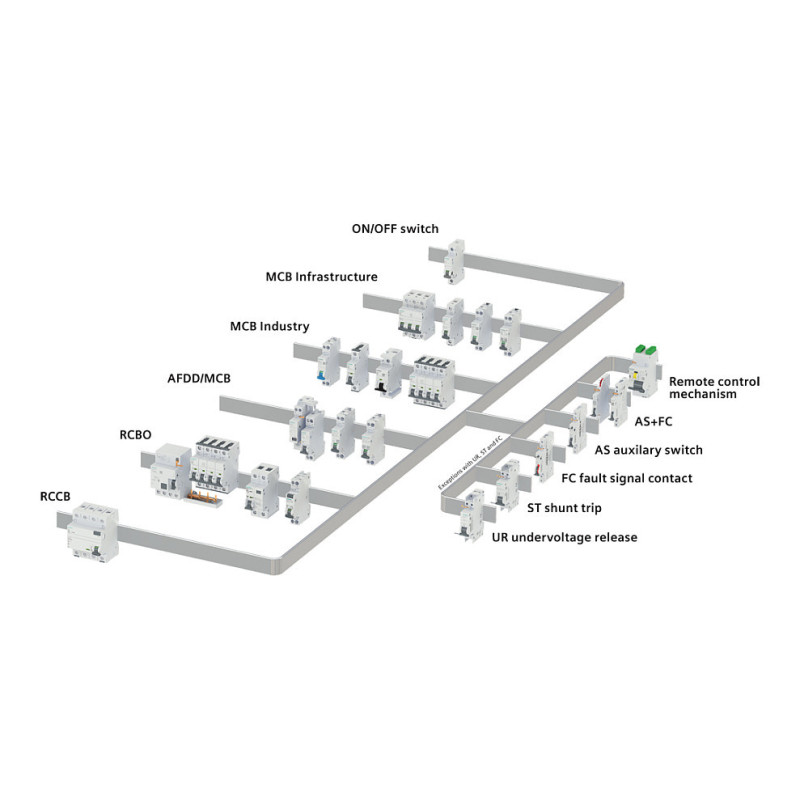

RCBO compact 1 MW 1-pole+N 6 kA type A 30 mA B16 RCBO SENTRON 5SV1 for combined protection against overload, short circuit and fault currents in only 1 MW. Our compact RCBOs are VDE-tested and certified according to EN 61009-1, EN 61009-2-1. With the 5ST compact pin busbar system, you can quickly and easily connect the 1P+N compact devices in only 1 MW without additional space requirement. Via the Data Matrix code on the device, you can gain fast access to all technical data in the Siemens Industry Online Support App. The SENTRON protective switching devices can be expanded by many additional functions with consistent accessories from the modular system. Optimized technology for your safety - only from Siemens.

Power

Rated current: 16 A
Rated voltage: 230 V
Total power loss: 3.7 W

Features

Breaking capacity: 6 A
Number of poles: 2
International Protection (IP) code: IP20
Pollution degree: 2
Installation type: DIN-rail

Packaging data

Package width: 21 mm
Package depth: 93 mm
Package height: 83 mm
Package weight: 129 g

Technical details

Compliance certificates: CE, RoHS, REACH
Number of modular spacings: 1
Voltage type: AC
Mounting depth: 7 cm
Ambient temperature range: -25 - 45 °C
Release characteristic: B
Connectable solid conductor cross-section: 0.75 - 16 mm²
Connectable stranded conductor cross-section: 0.75 - 16 mm²
Feature: Switching neutral conductor
Overvoltage category: CAT III
Rated insulation voltage (Ui): 253 V
Current limiting class: Class 3
Rated fault current: 30 mA
Leakage current type: A
Feature: Interlocking
Surge current capacity: 1 kA
Feature: Anti-nuisance tripping version
Rated short-circuit breaking capacity (IEC 60947-2): 15 kA
Mounting method: DIN rail mounted
Rated impulse withstand voltage (Uimp): 4 kV
Disconnection characteristic: Undelayed
Number of protected poles: 1

Logistics data

Minimum order quantity: 1 pc(s)
