Siemens 3SU1000-0AB70-0AA0 mygtukų skydelis

Siemens Pushbutton, clear. Package weight: 15 g, Package depth: 40 mm, Package width: 30 mm

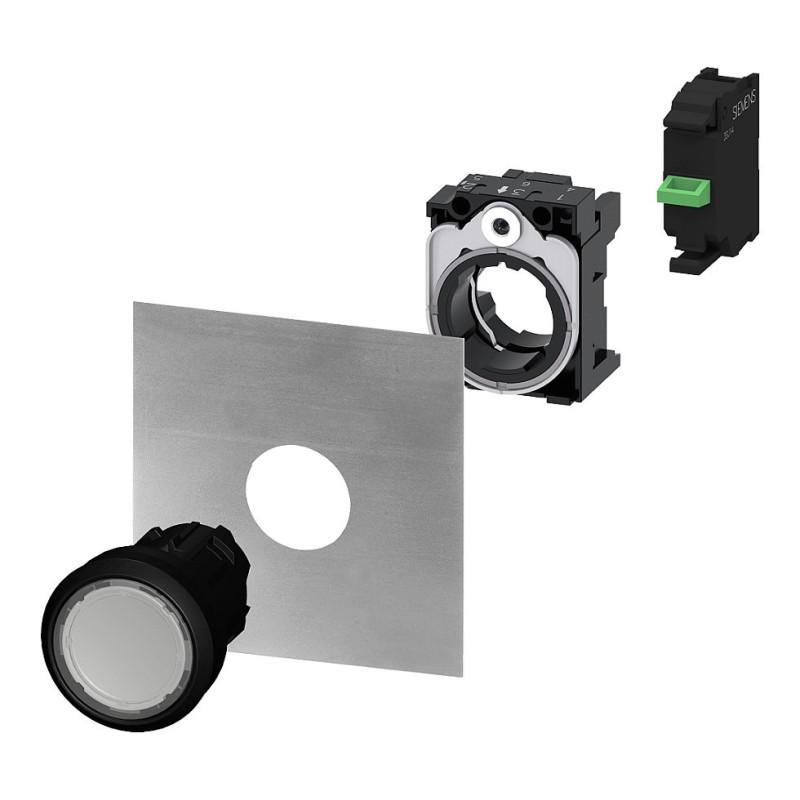

Pushbutton, 22 mm, round, plastic, clear, pushbutton, flat momentary contact type Pushbuttons SIRIUS ACT for switching and controlling electrical loads. Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in three modern design lines of rugged genuine metal and high-grade plastic.An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available. Versions available: Several colors, illuminated/non-illuminated, with/without inscription, latching/momentary contact operation, various button and front ring heights. Note: Single device, please order holders and modules separately. SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.

Technical details

Compliance certificates: CE, RoHS
Lens shape: Round
Number of command positions: 1
Hole diameter: 2.23 cm
Feature: Front ring
Front ring material: Plastic
Button colour: Colourless

Weight & dimensions

Package weight: 15 g
Package depth: 40 mm
Package width: 30 mm
Package height: 30 mm
