Siemens 3RT2015-1AP01 elektros kontaktorius

Siemens CONTACTOR,AC3:3KW 1NO AC230V 50/60HZ. Height: 58 mm. Package width: 50 mm, Package depth: 61.5 mm, Package height: 77.5 mm

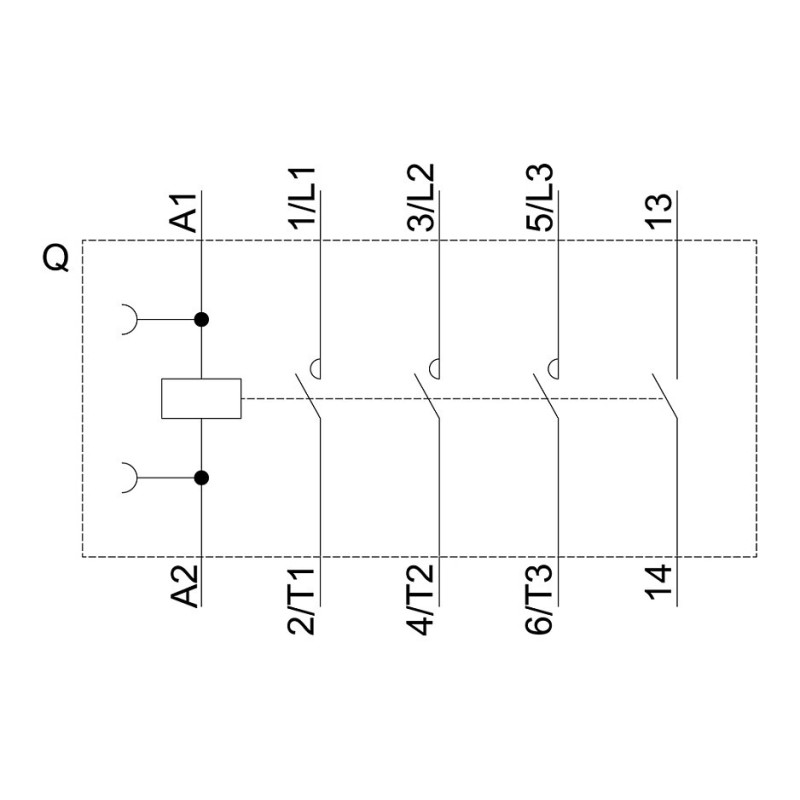

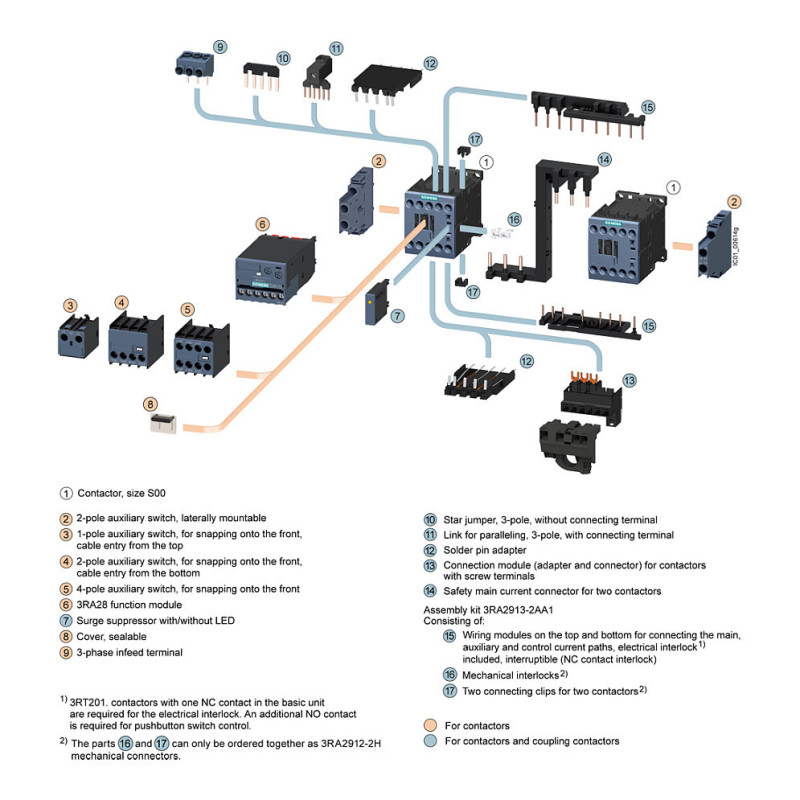

power contactor, AC-3e/AC-3, 7 A, 3 kW / 400 V, 3-pole, 230 V AC, 50/60 Hz, auxiliary contacts: 1 NO, screw terminal, size: S00 Power contactor SIRIUS 3RT2 for switching motors. The 3RT2 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. Many of the device combinations have been factory tested. The contactors offer the best connection to the automation level for every application (parallel, via ASi or IO-Link): Integrated auxiliary switches reduce the complexity of your design. The front-panel terminals simplify the wiring. The 3RT2 contactors are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready. They are available in various sizes and in a wide performance range with AC and DC operation. In addition to screw terminals, all the devices are also available with spring-type terminals for fast, maintenance-free and vibration-proof connection. The comprehensive range of accessories, such as auxiliaryswitches, auxiliary releases etc. is standardized for all sizes. The available link modules, function modules and the SIRIUS 3RV29 infeed system considerably reduce the wiring expense. Simple, efficient and always up to date - SIRIUS modular system.

Technical details

Main circuit connection type: Screw connection
Number of auxiliary NO contacts: 1
Actuating voltage type: AC
Rated operational power (AC-3, 400V): 3 kW
Feature: Suitable for distribution boards
Operating voltage AC (50Hz): 690 V
Operating coltage AC (60Hz): 690 V
Number of NO main contacts: 3
Rated operation current (Ie at AC-3, 400V): 7 A
Rated operation current (Ie at AC-1, 400V): 18 A
Rated operation power (NEMA): 3 hp
Rated operation current (Ie at AC-4, 400V): 6.5 A
Rated operational power (AC-4, 400V): 3 kW

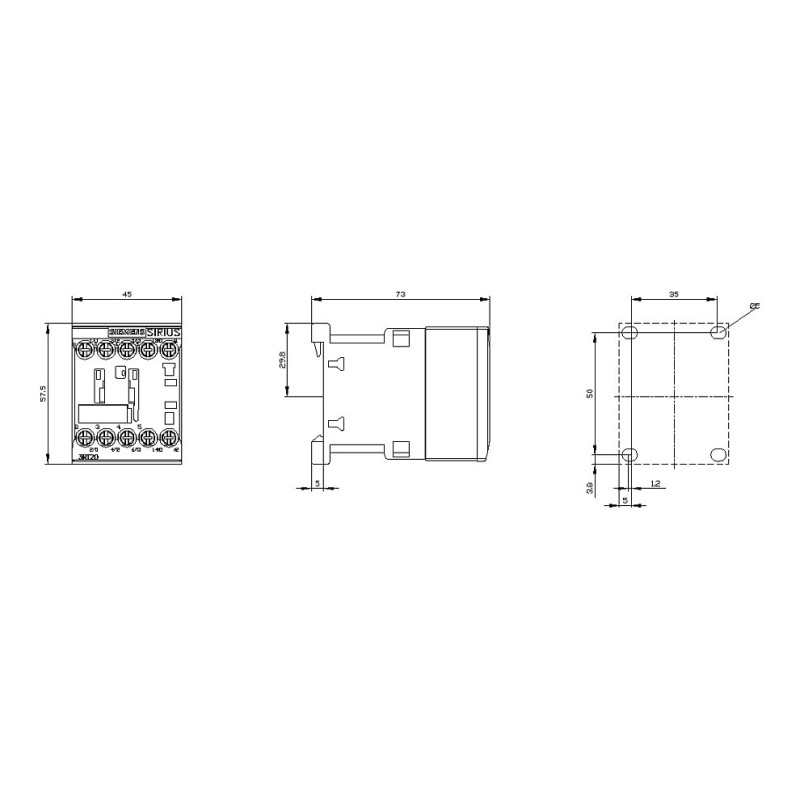

Weight & dimensions

Height: 58 mm

Packaging data

Package width: 50 mm
Package depth: 61.5 mm
Package height: 77.5 mm
Package weight: 231 g
Minimum order quantity: 1 pc(s)
