„Sharkoon Rebel P30 Gold“ maitinimo blokas

Sharkoon Rebel P30 Gold. Total power: 1300 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 62 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: AC

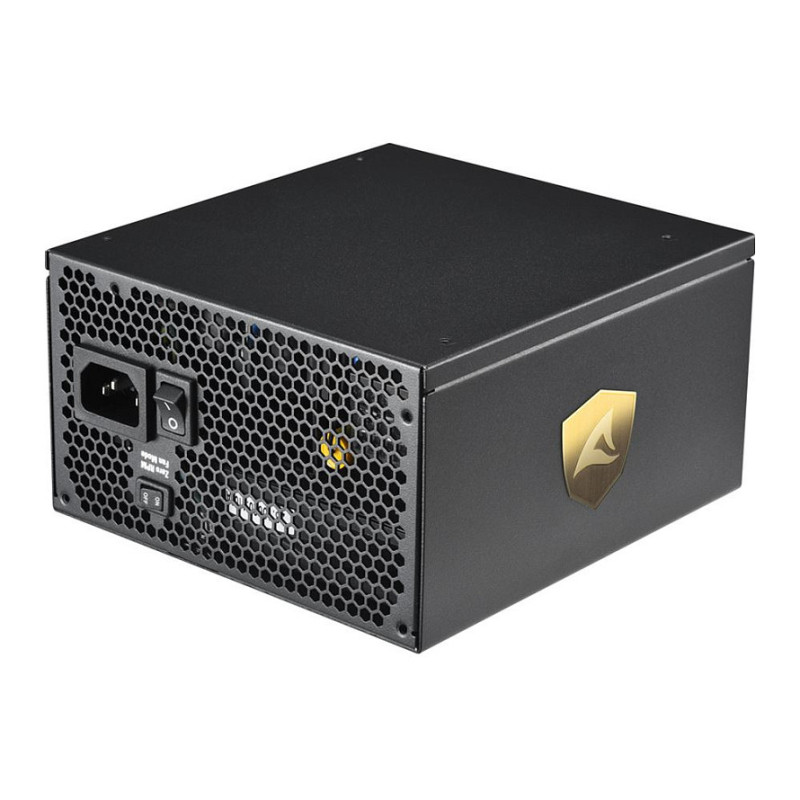

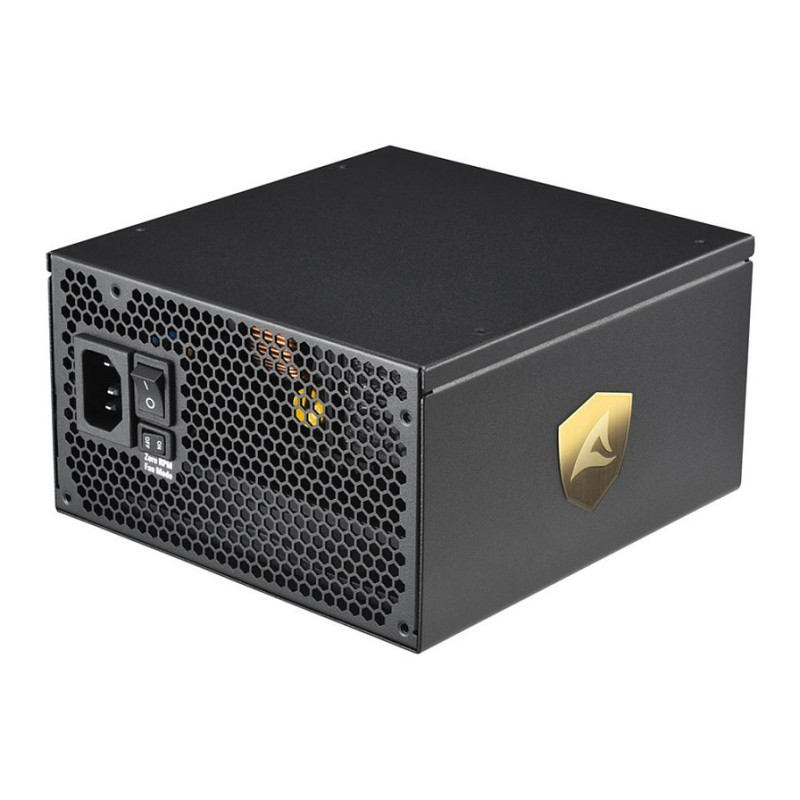

Designed for performance, the Rebel P30 Gold is a power supply unit that is fully modular and certified with 80 PLUS Gold. With the new ATX 3.0 standard and a PCIe Gen5 12VHPWR connection, it offers full compatibility for high-end graphics cards. In addition, the PSU is supplied with LLC resonant-converter and DC/DC technology and is equipped only with high-quality Japanese capacitors. A quiet 135 mm fan with an intelligent Zero RPM mode provides the cooling as well as a low-noise operation.

Full Support for High-End Graphics Cards
The Rebel P30 Gold supports the new ATX 3.0 standard and is equipped with a modern PCIe Gen5 12VHPWR connection that is required for current high-end graphics cards and the highest performance.

Certified Safety and Efficiency
As its name suggests, the Rebel P30 Gold is 80 PLUS Gold certified, providing at least 90 percent efficiency at 20 percent load, 92 percent efficiency at 50 percent load, and an efficiency of 89 percent at 100 percent load. In addition, both the PSU and the user are safeguarded by all the common protective technology. This encompasses over-current protection, over- and under-voltage protection, short-circuit protection, over-temperature protection and over-power protection.

Always Cool and Quiet

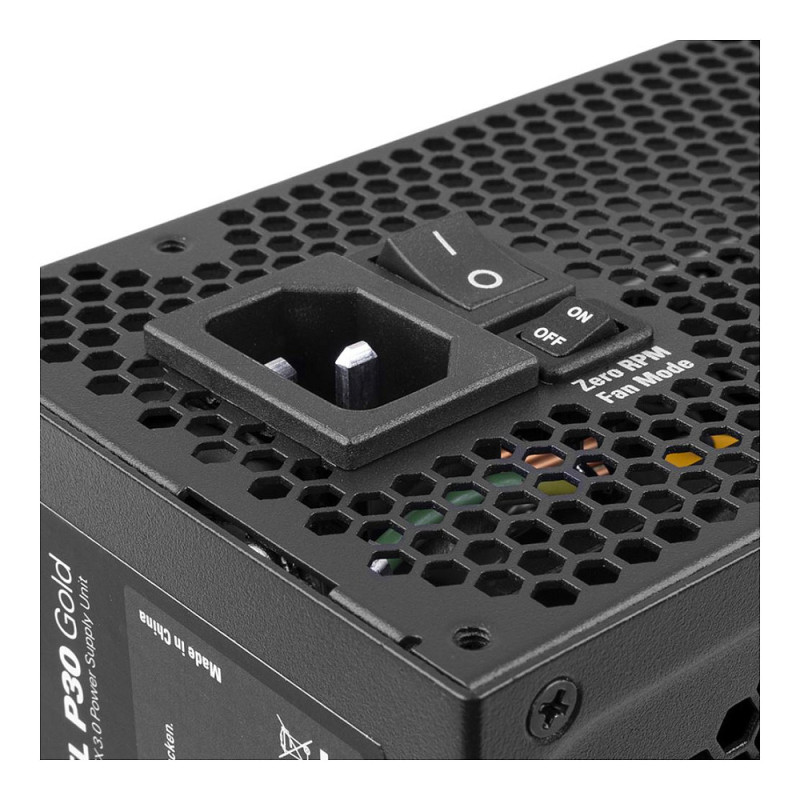

A quiet 135 mm fan with a fluid dynamic bearing is used in the Rebel P30 Gold. For silent operation, the PSU's Zero RPM mode can be selected, allowing the fan rotation to be completely deactivated at moderate loads. To ensure an effective cooling for the hardware, the fan delay mode lets the fan continue to run for up to 60 seconds after the PSU has been shut down.

High Quality in Focus
For high degrees of reliability and performance, quality all-Japanese capacitors, LLC resonant converters and DC/DC technology are used in the Rebel P30 Gold. Thanks to this, the Rebel P30 Gold always delivers a constant and stable voltage with optimized noise and heat levels.

Full-Modular Assembly

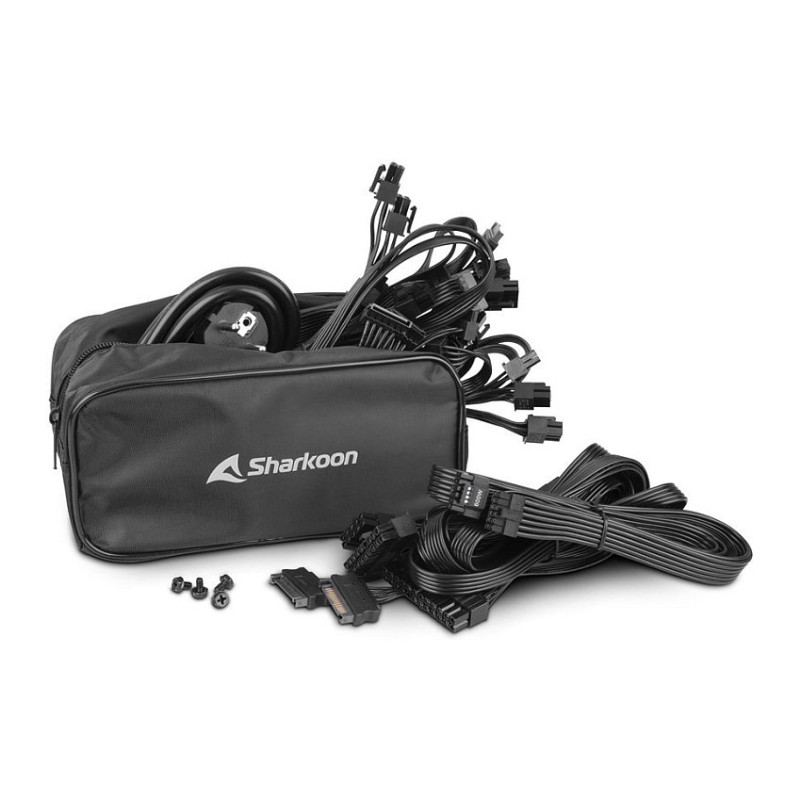

All the Rebel P30's cables are modular and can be used as and when they are needed. Apart from a PCIe Gen5 12VHPWR connector, the PSU comes with a total of twelve SATA connectors and four 6+2-pin PCIe connectors. The 1,300-watt model even has up to eight 6+2-pin PCIe connectors. Two IDE connectors and a floppy connector are also available using the included adapters.

Power

Total power: 1300 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Maximum input current (@110V): 15 A
Maximum input current (@220V): 8 A
Combined power (+3.3V): 120 W
Combined power (+12V): 1300 W
Combined power (+5V): 120 W
Max output current (+3.3V): 24 A
Max output current (+12V): 108.3 A
Max output current (+5V): 24 A
Max output current (-12V): 0.5 A
Max output current (+5Vsb): 3 A
Power protection features: Overheating, Over voltage, Under voltage, Over current, Short circuit

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 62 cm
Number of SATA power connectors: 12
Peripheral (Molex) power connectors (4-pin): 2
Feature: EPS power connector (8-pin)
PCI Express power connectors (6+2 pin): 8
Feature: CPU power connector (4+4 pin)
Feature: ATX power connector (20+4 pin)
Floppy drive power connector: 1
Feature: Floppy disk drive connector
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.0
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 13.5 cm
Number of fans: 1 fan(s)
Fan location: Top
Feature: On/off switch

Operational conditions

Operating temperature (T-T): 0 - 50 °C

Packaging content

Cables included: AC

Certificates

Compliance certificates: Federal Communications Commission (FCC), UKCA, CB, CE

Weight & dimensions

Width: 150 mm
Depth: 160 mm
Height: 86 mm
Weight: 1.75 kg

Technical details

Sustainability certificates: ErP
