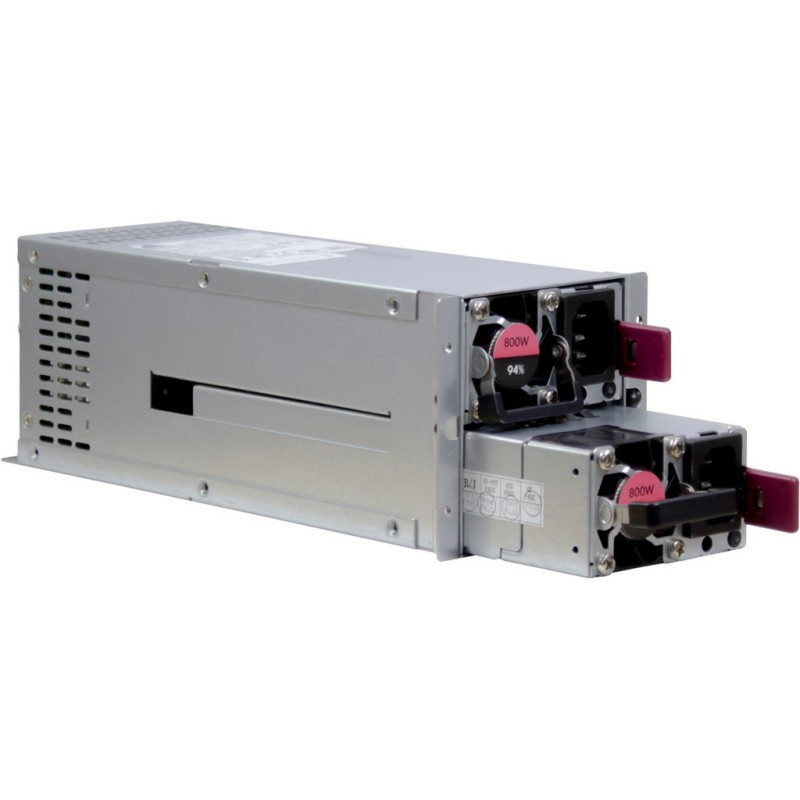

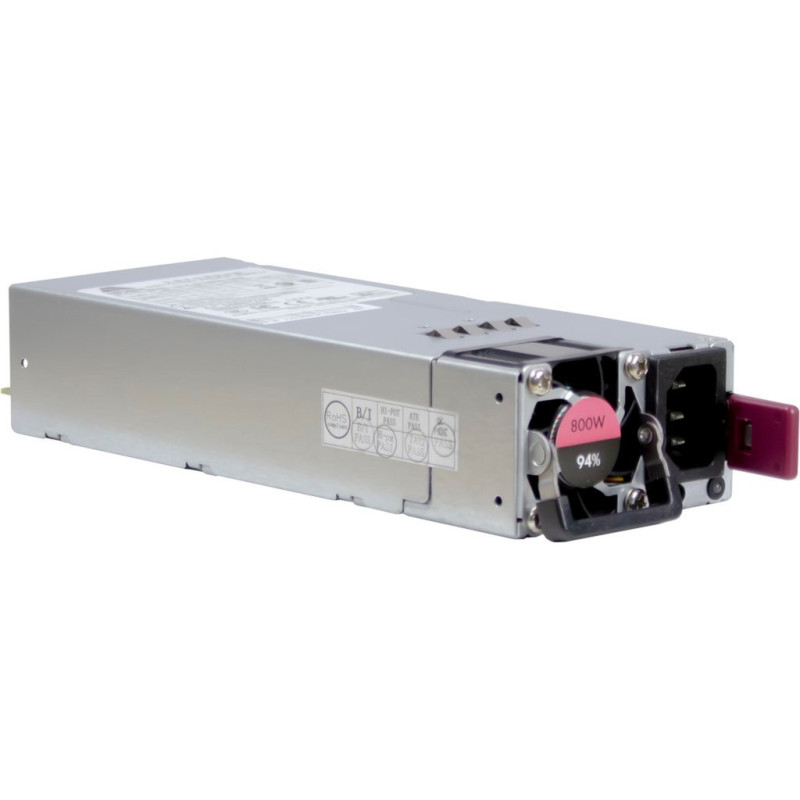

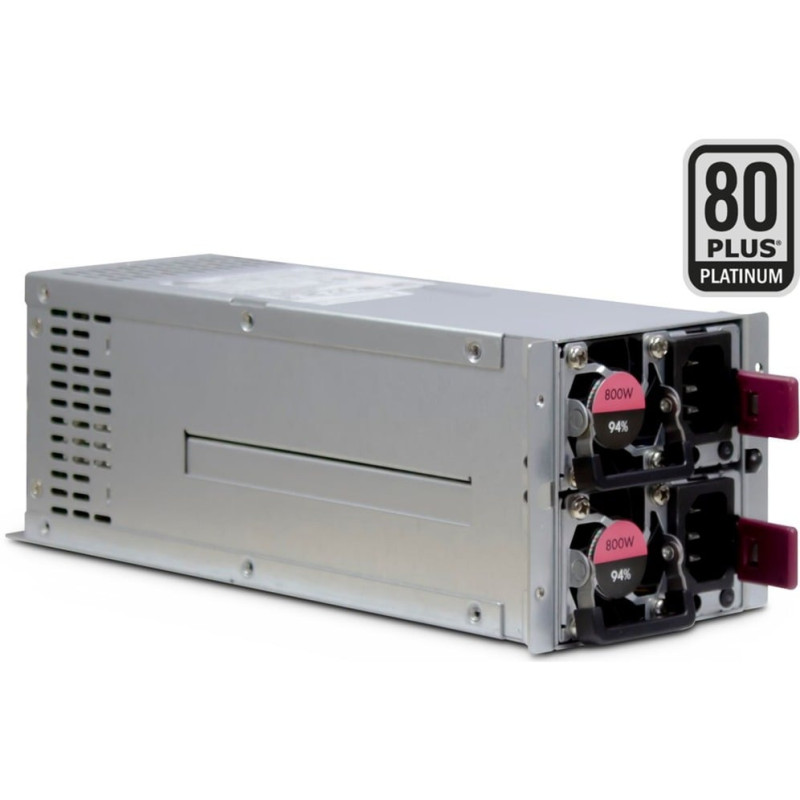

Serverio maitinimo blokas Inter-Tech Inter-Tech ASPOWER R2A DV0800-N, kompiuterio maitinimo blokas (pilkas, atsarginis)

POWER & EFFICIENCY
Output 800Watt
Efficiency

at 20% 230V94.28%
at 50% 230V94.62%
at 100% 230V92.35%

CONNECTORS
Mainboard 20+4Pin 1x
4Pin / 4+4Pin / 8Pin 12V / 2x /
PCI-Express 6+2Pin
PCI-Express 6Pin
IDE 4Pin (Molex) 6x
S-ATA 2x
Floppy 1x
Fan monitoring
OTHER DATA
Fans / -size 2x 40mm
Fan control auto
Full Range Input auto
Redundancy
80PLUS® Certificate 80PLUS® Platinum
Operating Temperatur 0°C to 50°C
Storage Temperatur -40°C to 70°C
Dimension (h/w/d) 84 x 96.5 x 270mm
Guarantee 36 months
Safeties OVP, SCP , OPP, OCP, OTP
MBTF Average 100000h
SCOPE OF DELIVERY & FEATURES
Scope of delivery
Power supply ASPOWER R2A-DV0800-N

Features
Bicoloured LED status display per module

Acoustic and visual alarm for module and fan failure

Button for reset

I˛C bus (PMBus compatible) for error signaling and transmission of voltages and currents to compatible backplanes or motherboards

LOGISTICAL DATA
Shipping Unit 1 Pcs
Packing Unit 4 Pcs
Weight net = 3.10kgs
gross = 3.42kgs
Item number 99997247
EAN-Code 4260455643511


PERFORMANCE DATA
AC INPUT VOLTAGE CURRENT FREQUENCY
100-240V 15A Max. 50/60Hz
DC INPUT 145V-350V 15A Max. /
DC OUTPUT + 5V + 3.3V + 12V - 12V + 5VSB Max. 800W
25A 30A 66.5A 1A 4A
Attention: +5V & +3.3V combined max. 150W
