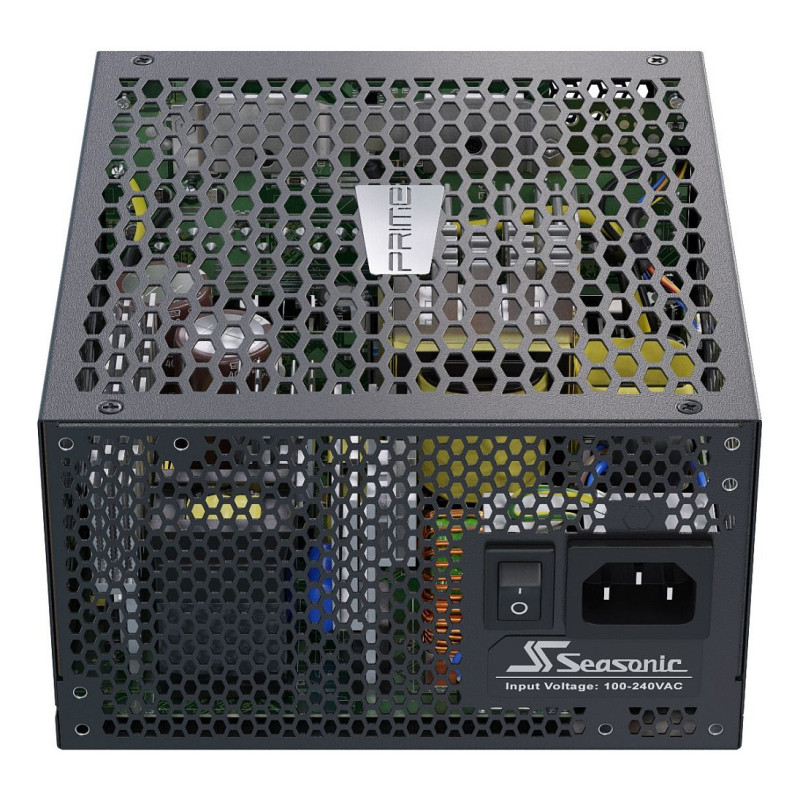

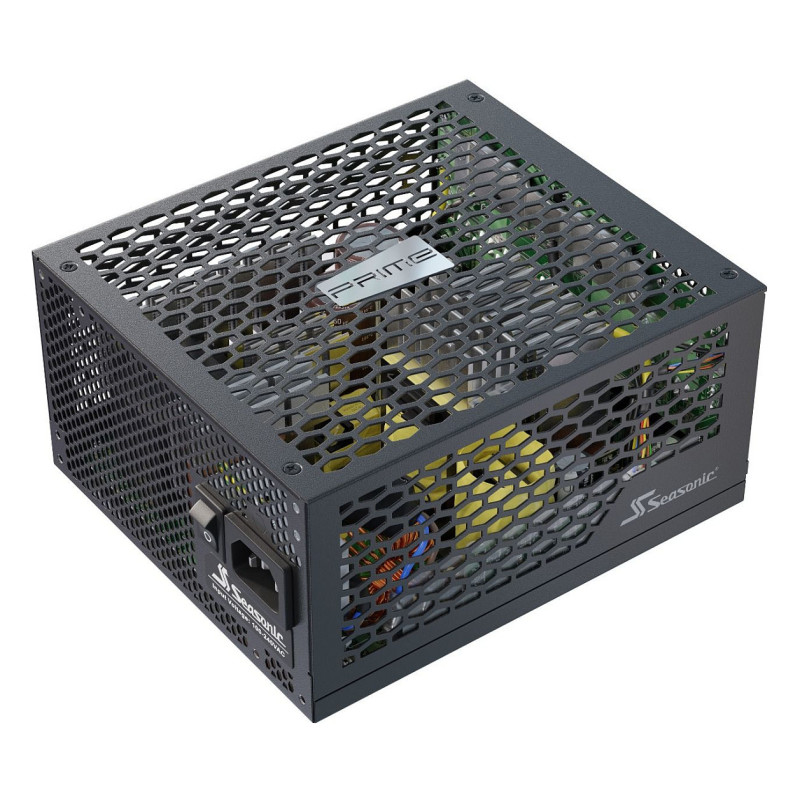

„Seasonic PRIME Fanless TX“ maitinimo blokas

Seasonic PRIME Fanless TX. Total power: 700 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 450,800,810 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Black, Cooling type: Passive. Compliance certificates: RoHS, Certification: cTUVus, TUV, CB, CCC, BSMI, EAC, CE, WEEE, ErP Lot 6, REACH

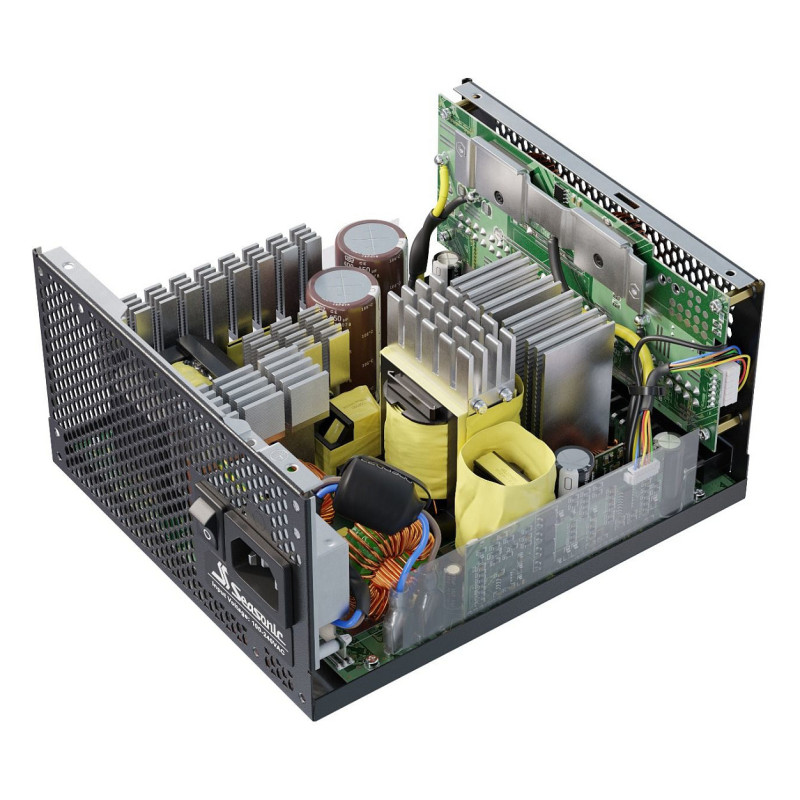

PRIME Fanless TX utilizes the fanless technology, which eliminates the fan noise completely, ensuring truly quiet operation. The unit not only is rated to be 80PLUS Titanium efficient, but it also has the highest power output on the fanless power supply market at the moment. The power supply is ideal any situations that demand silence from the equipment. The high quality components inside and the innovative circuit design result in clean and stable power output. The fully modular cables allow for better cable management in the computer case.

80 PLUS® Titanium
The PRIME Titanium Series achieves the highest level of 80 PLUS® Titanium certification on the market with its 94 % efficiency at 50 % system load.

Micro Tolerance Load Regulation
Seasonic's latest design keeps the output voltage within a very tight range, achieving under 0.5 % load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.

Seasonic Fanless Design
Cooling fans inside the power supply are replaced by passive cooling based on heat dissipation. Silent operation does not only provide a more pleasant working environment but it also results in less power consumption and lower utility bills.

Power

Total power: 700 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 4.5 - 9.5 A
Combined power (+3.3V): 100 W
Combined power (+12V): 696 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 58 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Efficiency: 94%
Power protection features: Over current, Over power, Over voltage, Short circuit, Under voltage

Ports & interfaces

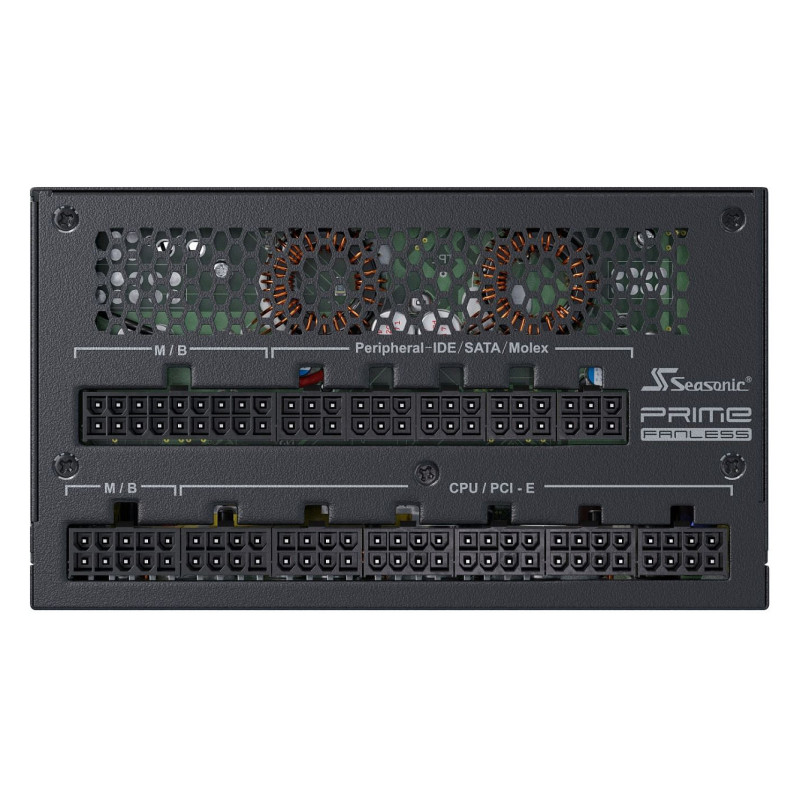

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 61 cm
Number of SATA power connectors: 3
SATA power cable length: 450,800,810 mm
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 300,470,690 mm
PCI Express power connectors (6+2 pin): 4
PCI Express power cable length: 75 cm
CPU power cable length: 65 cm
CPU power connectors (8-pin): 2

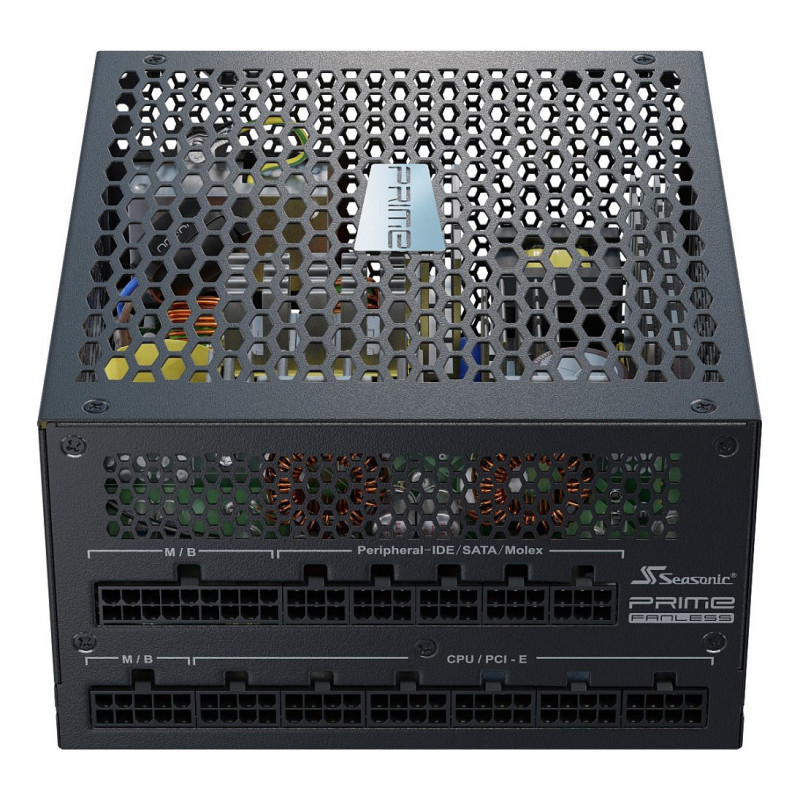

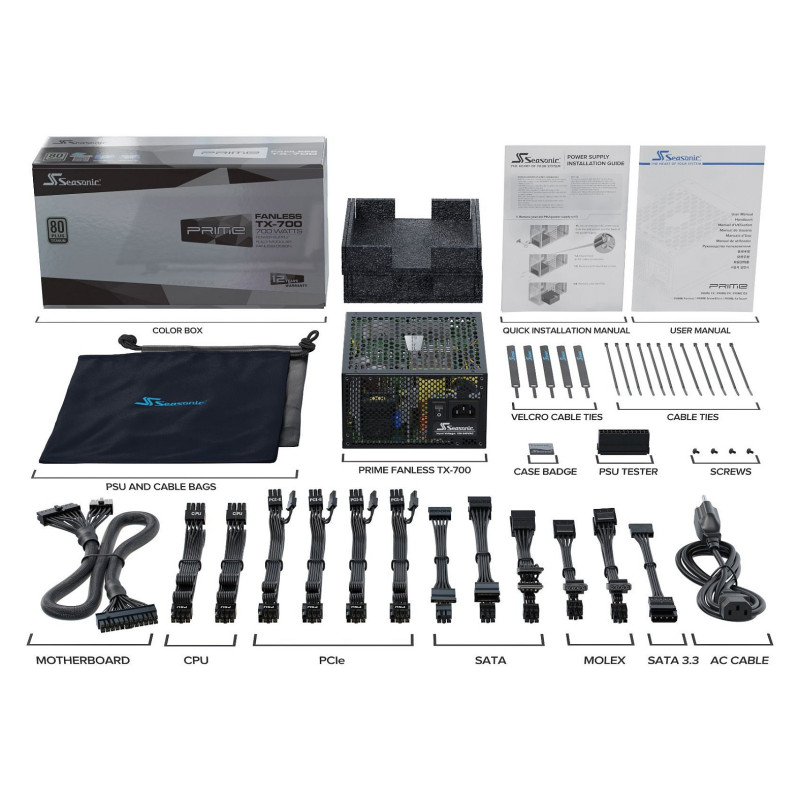

Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Titanium
Supported motherboard form factors: ATX
Purpose: PC
Power supply unit (PSU) form factor: ATX
Mean time between failures (MTBF): 150000 h

Design

Product colour: Black
Cooling type: Passive

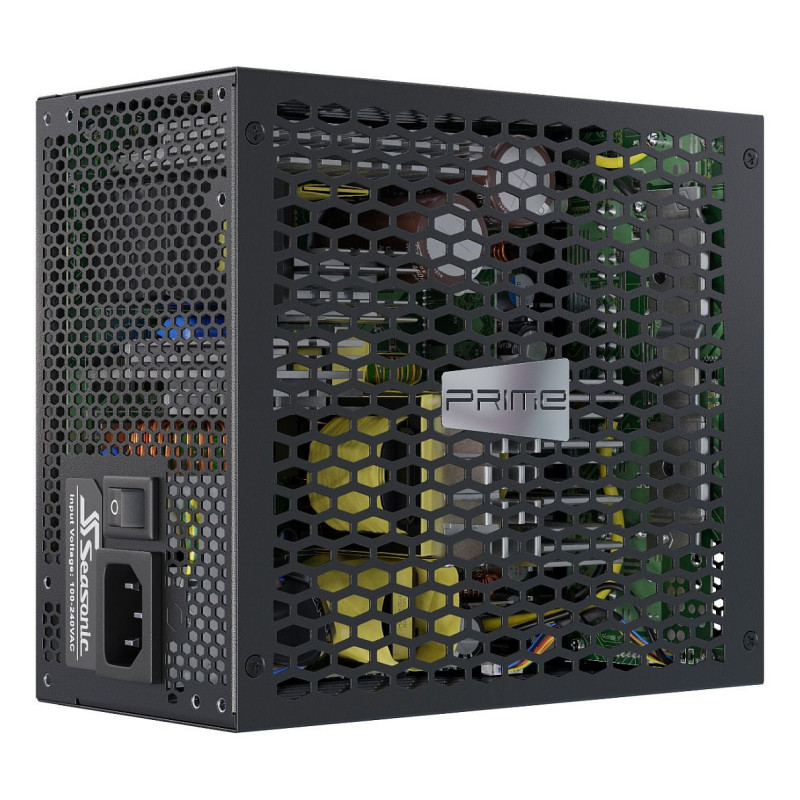

Feature: On/off switch

Operational conditions

Operating temperature (T-T): 0 - 45 °C

Certificates

Compliance certificates: RoHS
Certification: cTUVus, TUV, CB, CCC, BSMI, EAC, CE, WEEE, ErP Lot 6, REACH

Weight & dimensions

Width: 150 mm
Depth: 170 mm
Height: 86 mm

Packaging data

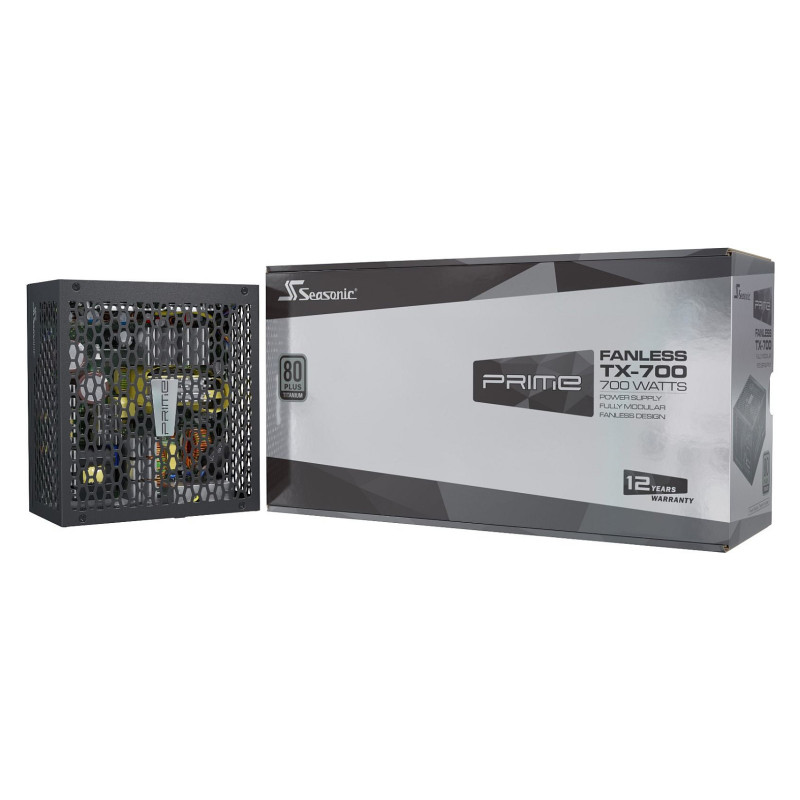

Package type: Box

Technical details

Sustainability certificates: ENERGY STAR

Logistics data

Harmonized System (HS) code: 84733020
