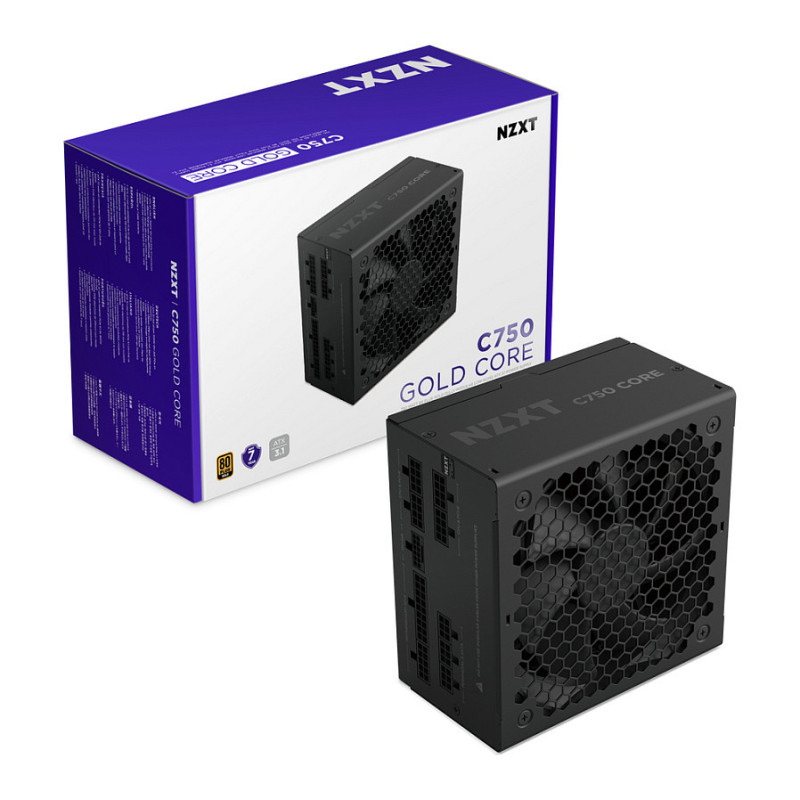

NZXT C750 Gold Core maitinimo blokas

NZXT C750 Gold Core. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 100,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA

The NZXT Gold Core is an ATX 3.1, fully modular PSU with 80 PLUS Gold and Cybenetics Platinum efficiency, A+/A++ noise rating, and a 12V-2x6 PCIe 5.1 connector. Built for modern GPUs, it delivers clean, quiet power with easy cable management for performance PCs.

ATX 3.1 & PCIe 5.1 Compatibility
Supports modern GPUs with a 12V-2x6 connector and dual-color housing that lets you see when it's fully plugged in. Includes up to two 8-pin PCIe cables for legacy support — offering flexibility across a wide range of NVIDIA and AMD builds.

Ready for Any GPU
Supports the latest GPUs from NVIDIA and AMD with a 12V-2x6 connector, plus two 8-pin PCIe cables for legacy cards. Whether you're upgrading or building new, it's ready for your next graphics card.

Quiet When it Counts
135 mm fluid dynamic bearing fan stays silent under light loads with Zero RPM mode—automatically stopping the fan when cooling isn't needed.

Stable Under Pressure
105°C-rated capacitors deliver steady, reliable power—even under heavy loads.

Fully Modular
Embossed cables with included combs help keep your build and cables clean.

Sized for Easy Builds
150 mm length fits easily in most PC cases, helping keep your build clean and straightforward.

Power

Total power: 750 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 10 - 5 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 120 W
Combined power (+12V): 750 W
Combined power (+5V): 120 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 62.5 A
Max output current (+5V): 20 A
Max output current (+5Vsb): 3 A
Efficiency: 89.53%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector: 24-pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 8
SATA power cable length: 100,500 mm
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 100,500 mm
PCI Express power connectors (6+2 pin): 2
PCI Express power connectors (12+4 pin): 1
PCI Express power connectors (12+4 pin) cable length: 650 mm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 70 cm
Feature: ATX Power connector (24-pin)
Feature: PCI Express connector
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Supported motherboard form factors: ATX
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
EPS version: 2.92
Noise level: 40.5 dB
Bearing technology: FDB
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 13.5 cm
Number of fans: 1 fan(s)
Fan speed: 0 - 2300 RPM
Feature: On/off switch

Operational conditions

Operating temperature (T-T): 0 - 50 °C

Packaging content

Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA

Certificates

Certification: CEUKCAFCCICBSMICB (IEC 62368-1 Ed. 3)RCMKC

Weight & dimensions

Width: 150 mm
Depth: 150 mm
Height: 86 mm

Packaging data

Package type: Box
