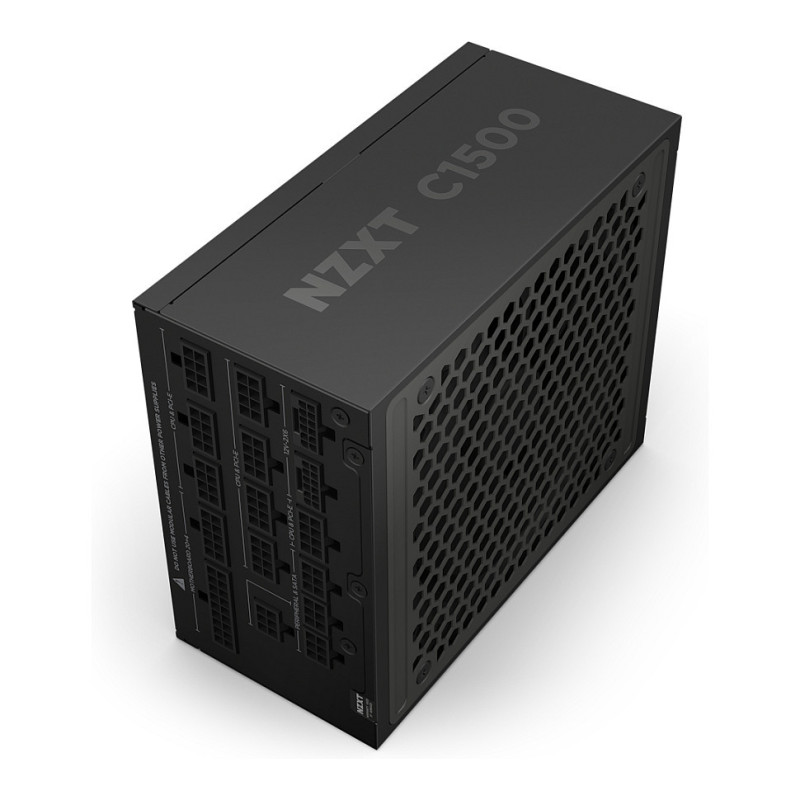

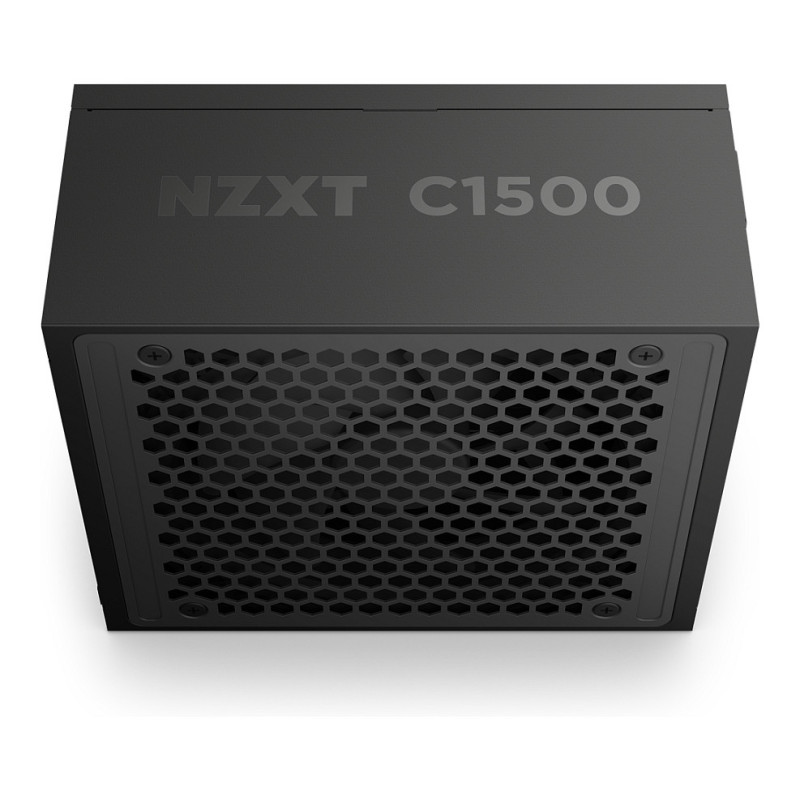

NZXT C1500 Platinum ATX 3.1 maitinimo blokas

NZXT C1500 Platinum ATX 3.1. Total power: 1500 W, AC input voltage: 115 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, WEEE, Certification: CB / CE / FCC / TUV / cTUV-SUDus / China CCC / Taiwan BSMI R33245/ Australia RCM / EAC / UKCA / WEEE

1500 Watt 80 PLUS Platinum Fully Modular ATX 3.1 PSU

The NZXT C1500 Platinum PSU offers highly efficient, digitally-controlled power, ATX 3.1 compliance, and PCIe 5.1 connectivity with a high-performance magnetic levitation fan.

Future-Proof Power
ATX 3.1 and PCIe 5.1 compliance supports current and future high-performance GPUs and CPUs.

Dual PCIe 5.1 Connectors
Equipped with two 16-pin 12V-2x6 cables to power GPUs drawing more than 600 watts.

Digital Power
Enables precise voltage regulation, resulting in higher efficiency and lower ripple noise.

Exceptional Efficiency
Exceeding 80 Plus Platinum standards, the 94% efficiency lowers power usage and ensures quieter, cooler operation.

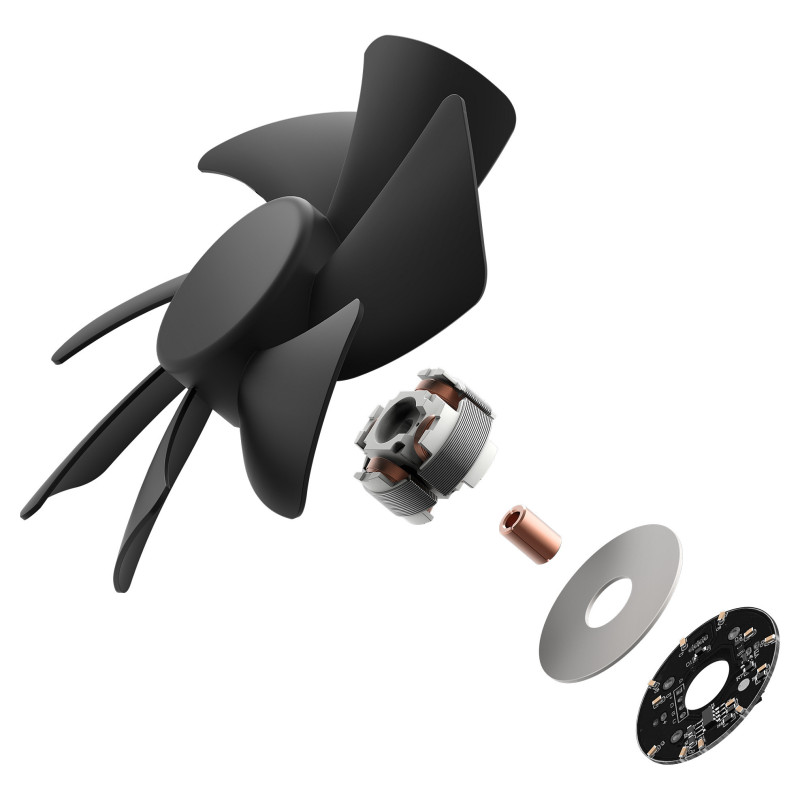

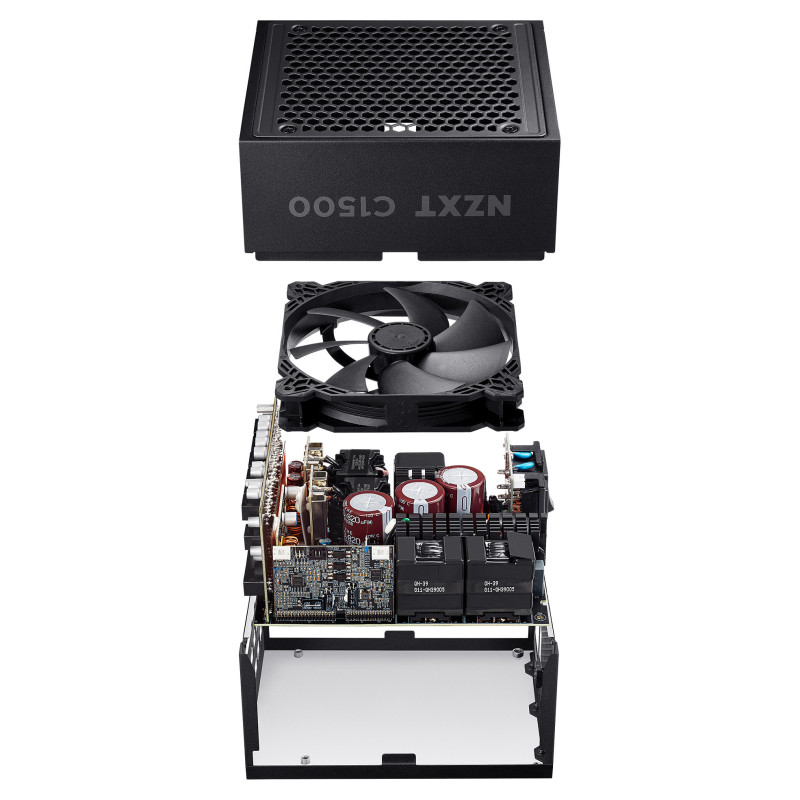

Magnetic Levitation Fan
140mm fan uses air-suspended blades to minimize noise, extend lifespan, and boost airflow.

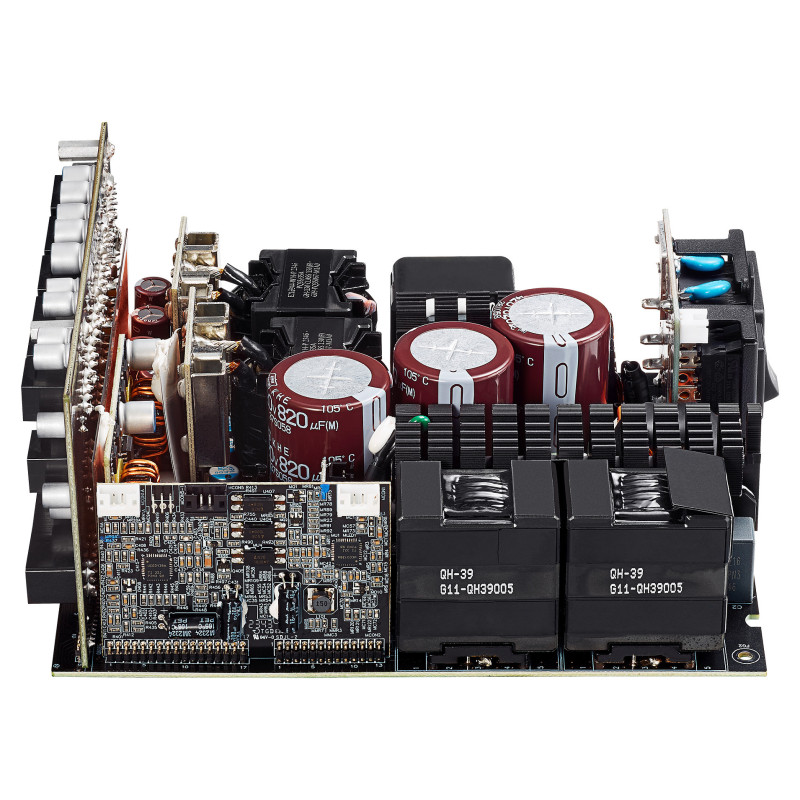

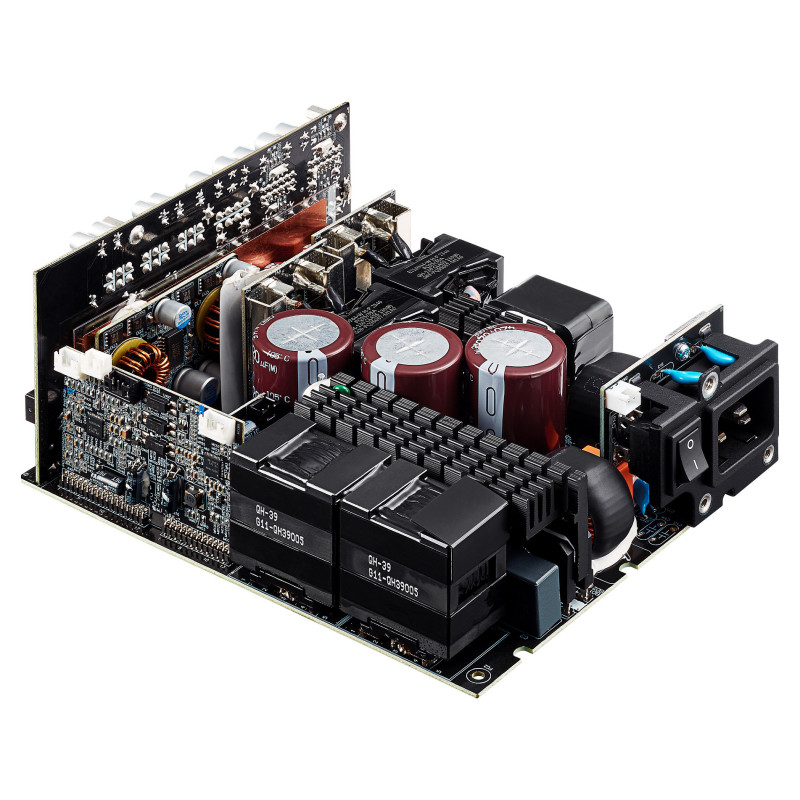

Built with Quality
Constructed using all 105°C Japanese capacitors for unmatched reliability.

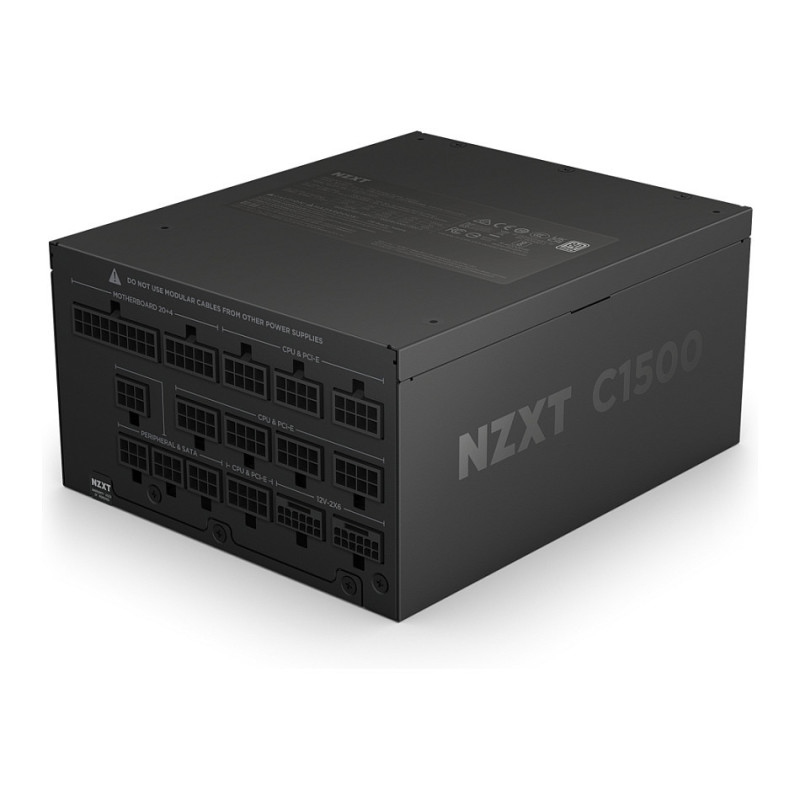

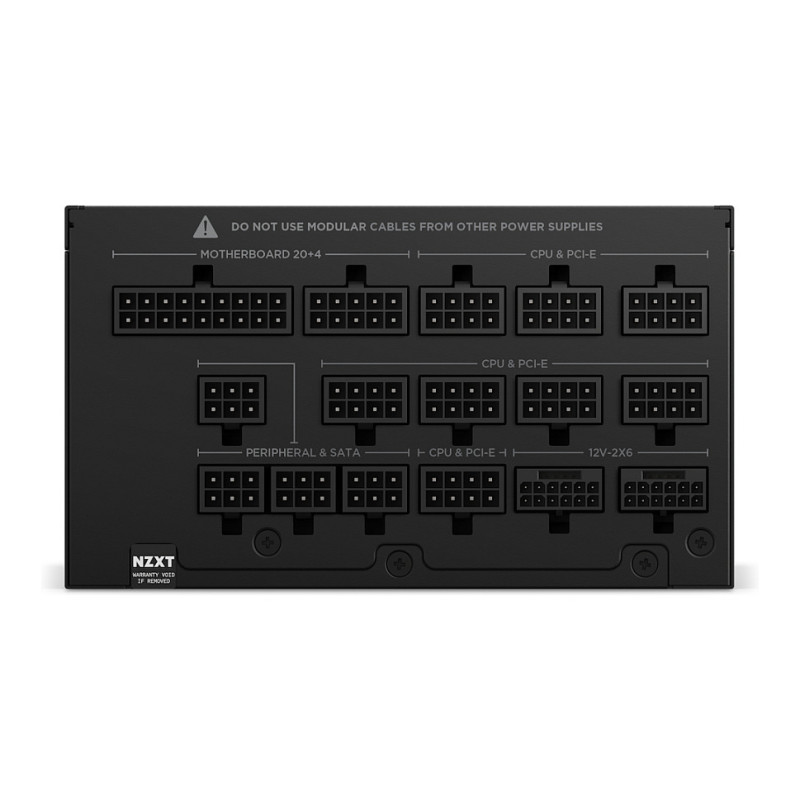

Fully Modular Design
Simplifies cable management by allowing connection of only necessary cables.

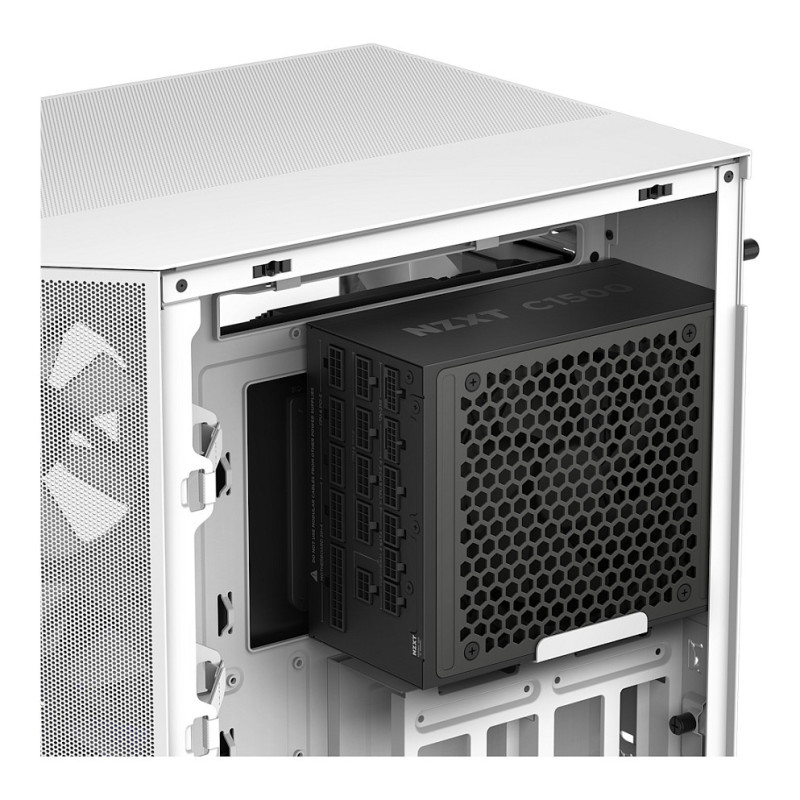

Space-Saving Size
Compact 180mm form factor optimizes case space while promoting improved airflow.

Peace of Mind
Backed by a 10-year warranty and reliable customer support.

Power

Total power: 1500 W
AC input voltage: 115 - 240 V
AC input frequency: 50/60 Hz
Input current: 15 - 9 A
Maximum input current (@110V): 15 A
Maximum input current (@220V): 9 A
Combined power (+3.3V): 120 W
Combined power (+12V): 1500 W
Combined power (+5V): 120 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 22 A
Max output current (+12V): 125 A
Max output current (+5V): 22 A
Max output current (+5Vsb): 3 A
Efficiency: 94%

Ports & interfaces

Motherboard power connector: 24-pin ATX
Motherboard power cable length: 60 cm
SATA power cable length: 150,500 mm
Peripheral (Molex) power connectors (4-pin): 4
Peripheral (Molex) power cable length: 150,500 mm
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (12+4 pin) cable length: 650 mm
Feature: CPU power connector (4+4 pin)
Feature: ATX Power connector (24-pin)
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Platinum
Supported motherboard form factors: ATX
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
EPS version: 2.92
Noise level: 41 dB
Bearing technology: MLB
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan speed: 2160 - 2640 RPM

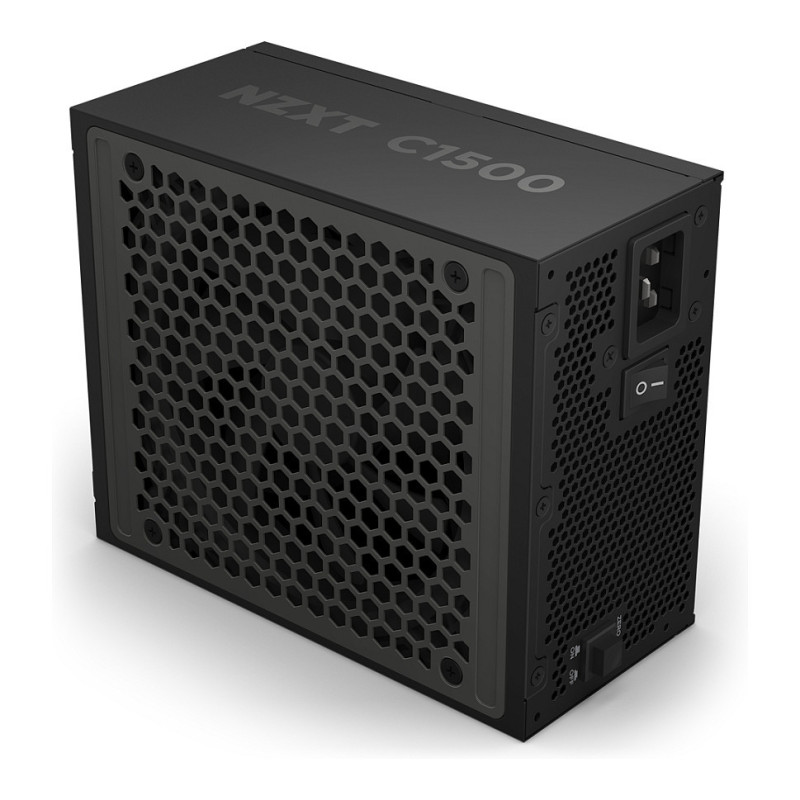

Feature: On/off switch

Operational conditions

Operating temperature (T-T): 0 - 50 °C

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, WEEE
Certification: CB / CE / FCC / TUV / cTUV-SUDus / China CCC / Taiwan BSMI R33245/ Australia RCM / EAC / UKCA / WEEE

Weight & dimensions

Width: 150 mm
Depth: 180 mm
Height: 86 mm

Technical details

Sustainable technologies and materials: Steel, PCB, plastic

Logistics data

Warranty period: 10 year(s)
