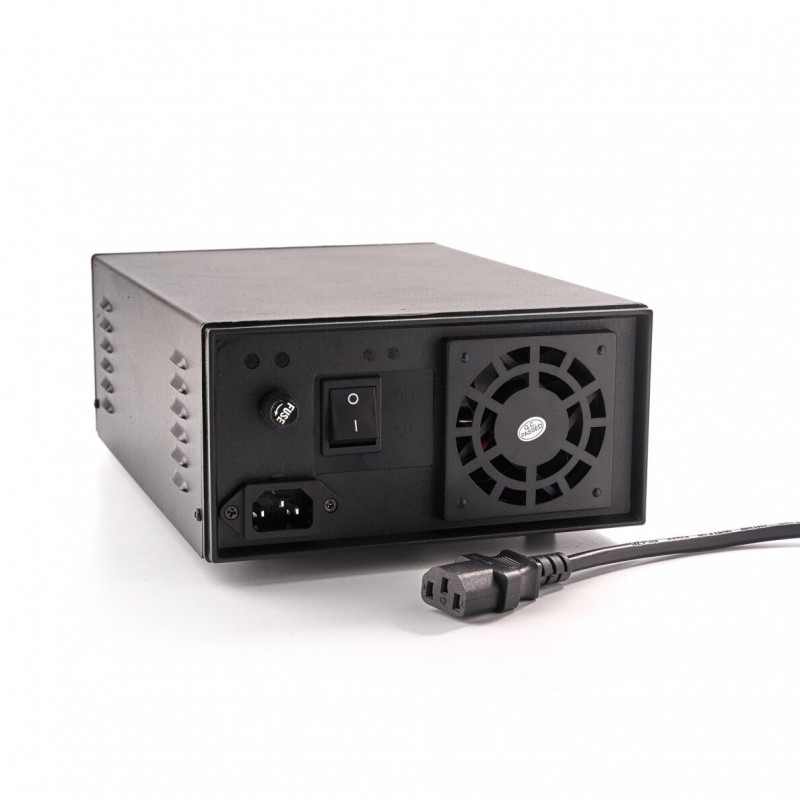

JF-20 maitinimo šaltinis 5-15V 0-20A

Digital switching power supply (PSU)

Characteristics:

• Adjustable output voltage
• Adjustment of supplied current from 0 to 20A
• Screen for displaying the voltage, the current and the consumption.
• Fixed output voltage: 13.8 VCC
• Suitable for powering all types of 12 VCC equipment
• It incorporates a USB connector for charging mobile devices, tablets, etc
• Cooling fan
• Short-circuitable
• User manual in 8 languages: English, Spanish, French, Portuguese, German, Finnish, Polish, Romanian.

Specifications:

• Input voltage: 220-240 V AC / 50Hz
• Output voltage: 5-15 VCC (adjustable), 13.8 VCC (fixed) and 5 VCC (USB connector)
• Adjustable output current: 0-20 A.
• Output connectors:
• Banana plugs of 4 mm diameter
• 12VCC / 10A car cigarette lighter socket
• 5 VCC and 2A USB connector
• Insulation type: class I
• Dimensions: 260 x 190 x 105 mm
• Weight: 2.2 kg
