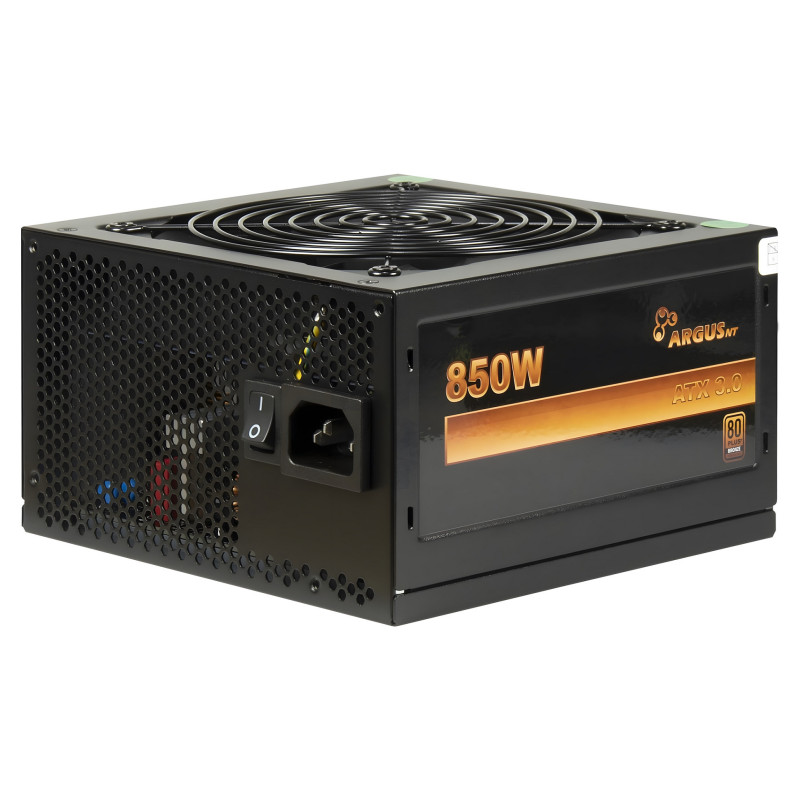

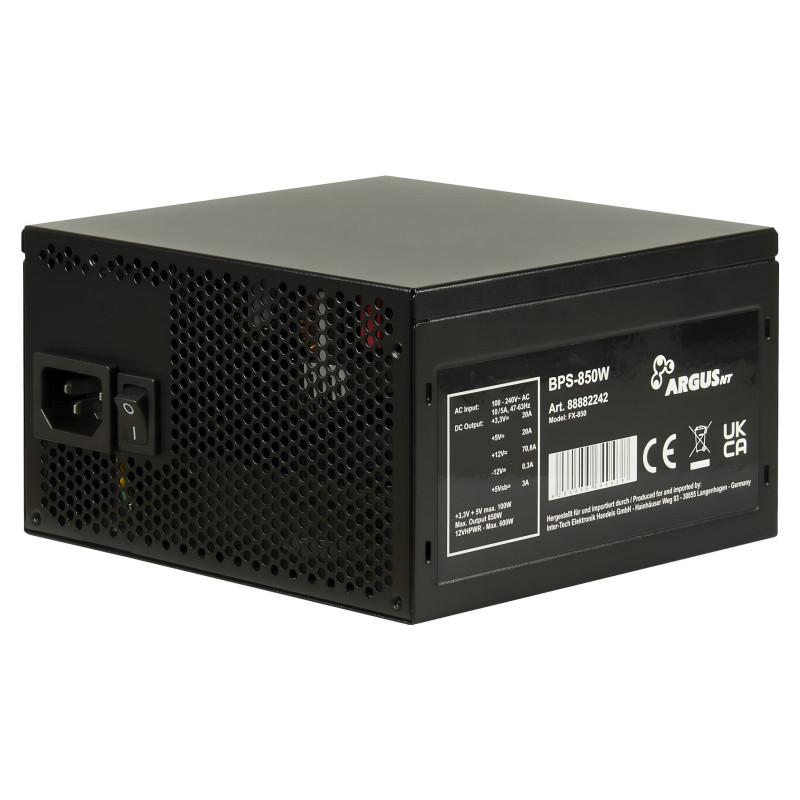

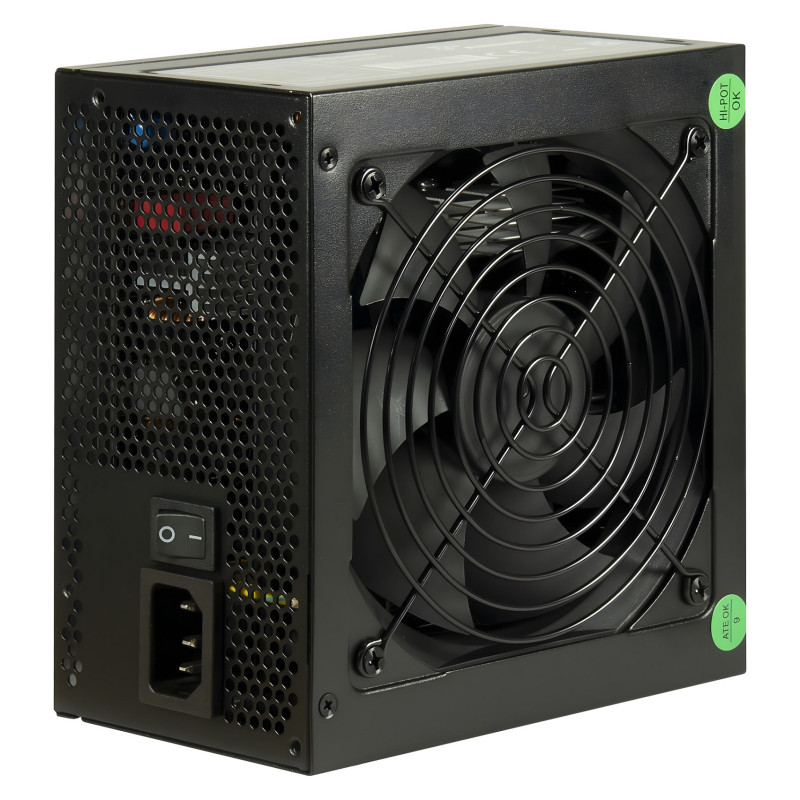

„InterTech BPS-850“ maitinimo blokas

Inter-Tech BPS-850. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Number of fans: 1 fan(s). Width: 150 mm, Depth: 140 mm, Height: 86 mm

The BPS-850 is the perfect choice for demanding users looking for performance, efficiency and compatibility with the latest technologies.
With an output of 850 watts and a 12VHPWR output of up to 600 watts, this power supply provides the optimum basis for modern gaming PCs and workstations with the latest generation of power-hungry graphics cards.

Power

Total power: 850 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 10/5 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+12V): 850 W
Combined power (+5V): 100 W
Combined power (-12V): 4.8 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 70.8 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Power protection features: No load operation, Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 6
Peripheral (Molex) power connectors (4-pin): 3
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 2
Feature: ATX power connector (20+4 pin)
Floppy drive power connector: 1
Feature: Floppy disk drive connector
Number of EPS connectors: 2

Performance

80 PLUS certification: 80 PLUS Bronze
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1

Design

Product colour: Black
Cooling type: Active
Number of fans: 1 fan(s)
Fan location: Top
Feature: On/off switch

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 90 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 150 mm
Depth: 140 mm
Height: 86 mm
Weight: 2.32 kg

Packaging data

Package weight: 2.76 kg
Package type: Box
