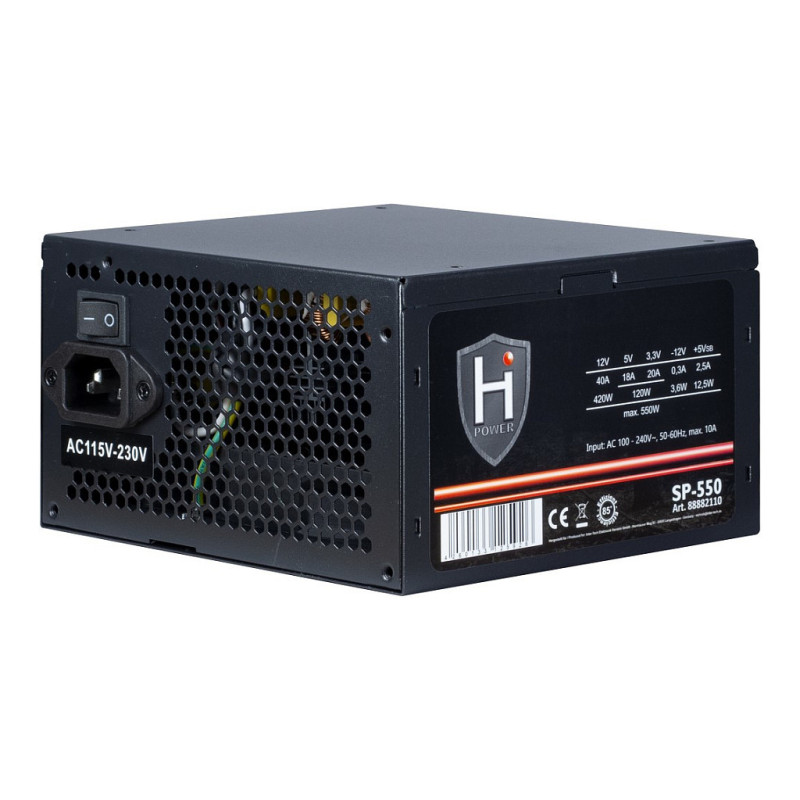

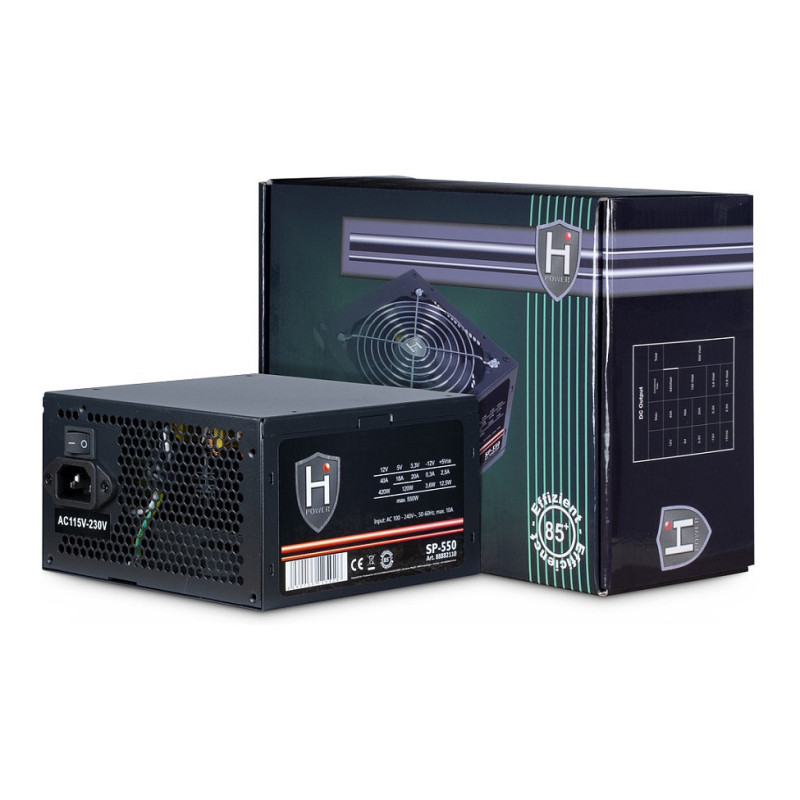

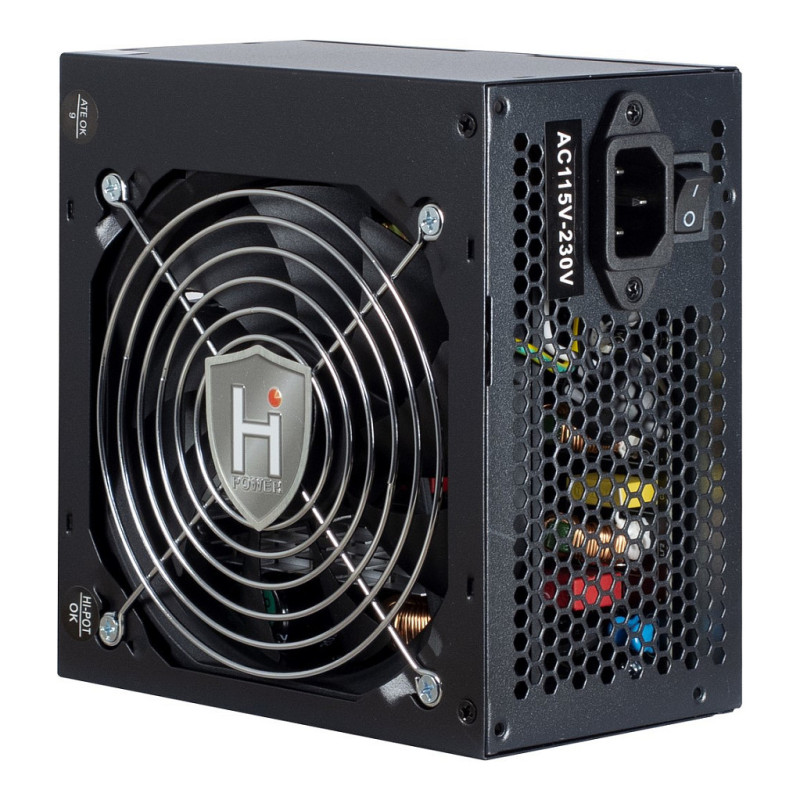

Inter-Tech HIPOWER SP-550 power supply unit

Inter-Tech HIPOWER SP-550. Total power: 550 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, PCI Express power cable length: 50 cm. Purpose: PC, Power supply unit (PSU) form factor: ATX, Noise level: 35 dB. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm

Power

Total power: 550 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 10 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 120 W
Combined power (+12V): 420 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 20 A
Max output current (+12V): 40 A
Max output current (+5V): 18 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.2 A
Efficiency: 85%
Power protection features: Over power, Over voltage, Short circuit

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 50 cm
Number of SATA power connectors: 4
Peripheral (Molex) power connectors (4-pin): 4
PCI Express power connectors (6-pin): 1
PCI Express power cable length: 50 cm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 50 cm
Feature: ATX power connector (20+4 pin)
Floppy drive power connector: 1
Feature: Floppy disk drive connector
Feature: PCI Express connector

Performance

Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.4
Noise level: 35 dB

Design

Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top
Feature: On/off switch

Weight & dimensions

Width: 150 mm
Depth: 140 mm
Height: 86 mm
Weight: 1.14 kg

Packaging data

Package width: 230 mm
Package depth: 95 mm
Package height: 175 mm
Package weight: 1.49 kg
Package type: Box

Logistics data

Harmonized System (HS) code: 84733020
