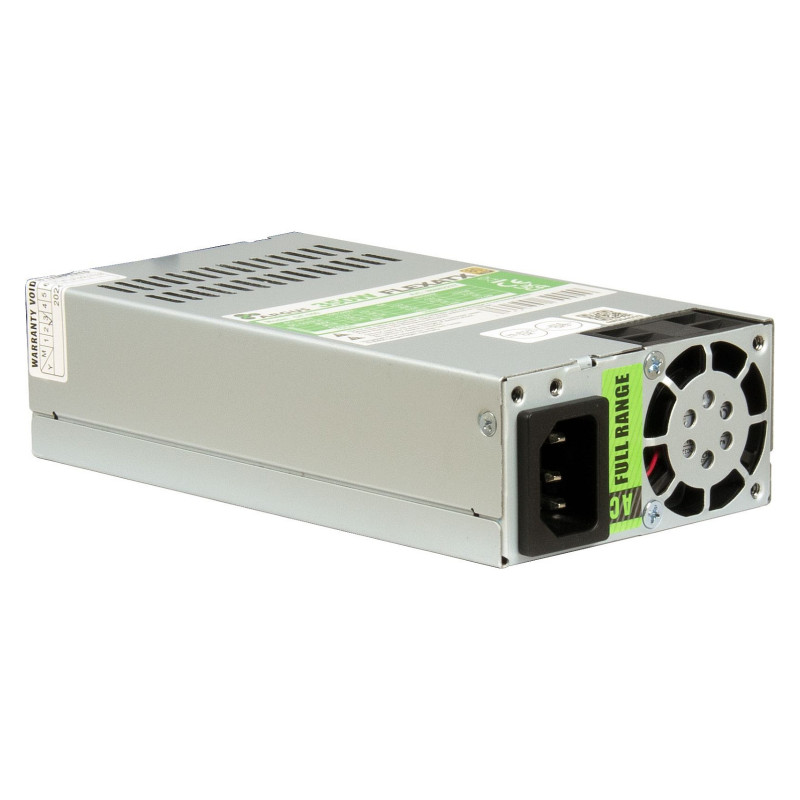

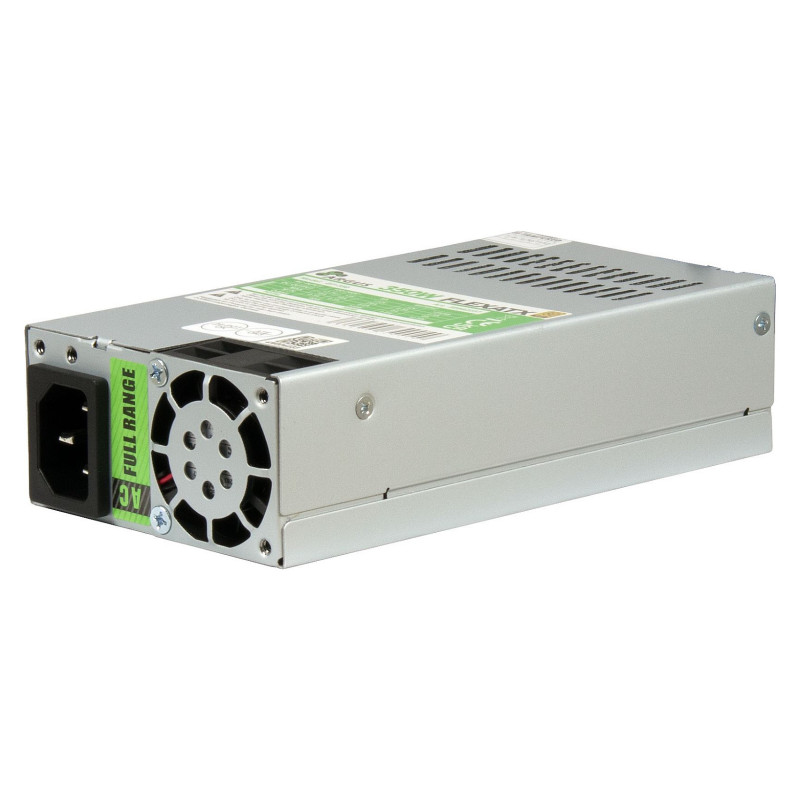

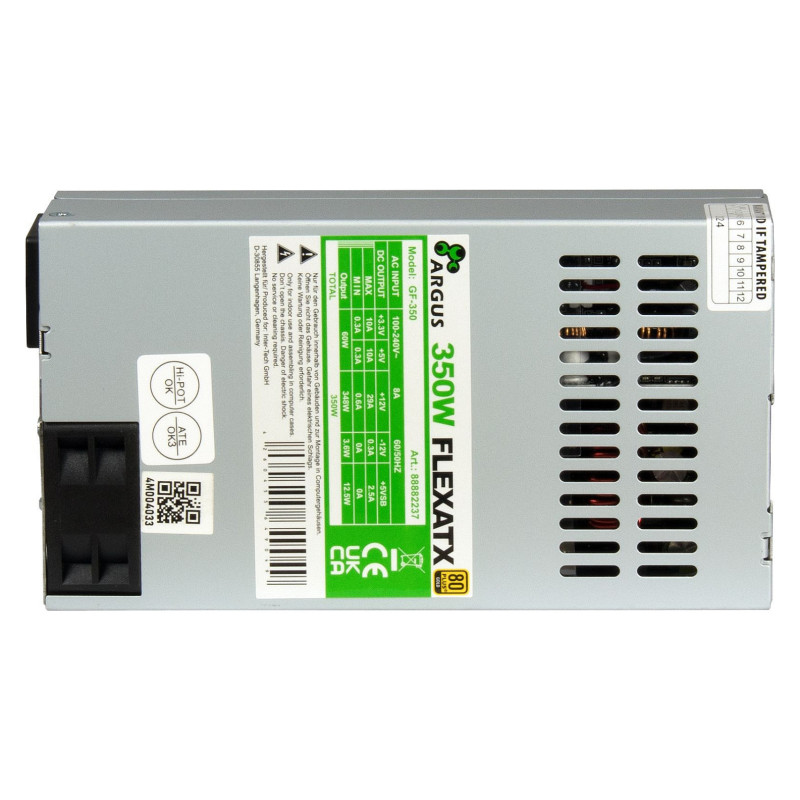

„Inter-Tech GF-350 BULK“ maitinimo blokas

Inter-Tech GF-350 BULK. Total power: 350 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX. Purpose: Server, Power supply unit (PSU) form factor: Flex ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Silver, Cooling type: Active, Number of fans: 1 fan(s). Width: 150 mm, Depth: 81.5 mm, Height: 40.5 mm

Compact Flex ATX power supply with strong 350W output and 80plus Gold certificate.

Power

Total power: 350 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 8 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 60 W
Combined power (+12V): 348 W
Combined power (+5V): 60 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 10 A
Max output current (+12V): 29 A
Max output current (+5V): 10 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Efficiency: 91.9%
Power protection features: Over current, Over voltage, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 3
Peripheral (Molex) power connectors (4-pin): 3
Feature: EPS power connector (4+4 pin)
Feature: ATX power connector (20+4 pin)

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: Server
Power supply unit (PSU) form factor: Flex ATX
Mean time between failures (MTBF): 50000 h

Design

Product colour: Silver
Cooling type: Active
Number of fans: 1 fan(s)

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 80 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 50%

Weight & dimensions

Width: 150 mm
Depth: 81.5 mm
Height: 40.5 mm
Weight: 850 g

Packaging data

Package weight: 910 g
