Green Cell INVSOL04 solar inverter

Green Cell INVSOL04. Product type: Grid-tie inverter, Output power capacity (max): 3 kVA, Input operation voltage (min): 48 V. Product colour: Black, Power protection features: Over voltage, Overdischarge, Overheating, Reverse polarity, Short circuit, Under voltage, Control type: Buttons. Display technology: LCD. Width: 297 mm, Depth: 125 mm, Height: 468 mm. Charger type: MPPT, PV rating (max): 4000 W, PV array MPPT voltage range: 130 V

MPPT solar inverter

What is MPPT solar inverter?

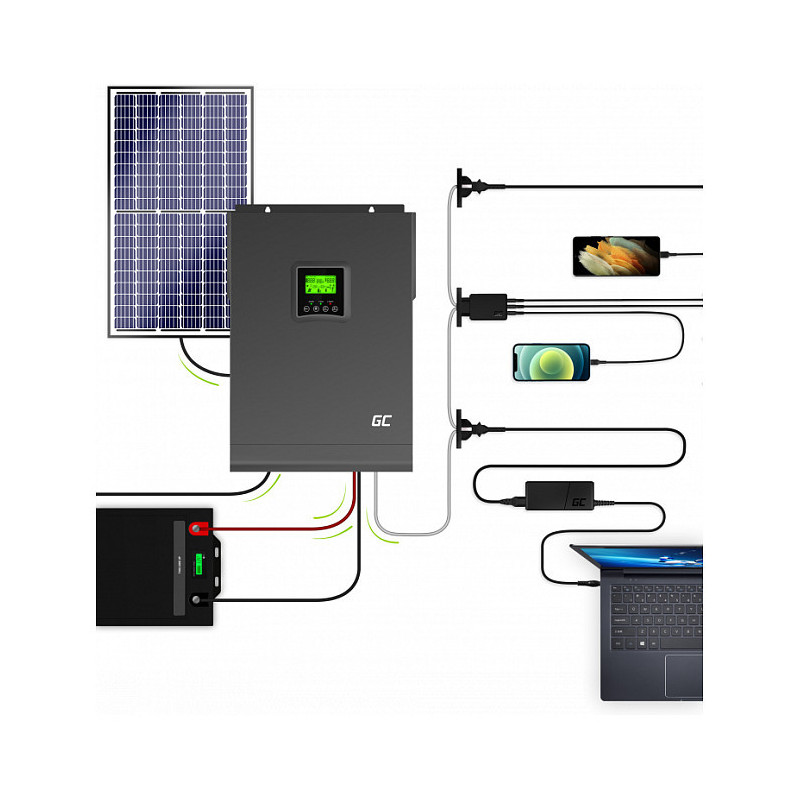

The Green Cell solar inverter or inverter is a multifunctional product that combines three different devices: MPPT controller, maximises the output of solar modules, An inverter that converts solar energy into 230V alternating current, Charger for energy storage The main purpose of a solar inverter is to ensure a continuous power supply even in the event of a power failure or lack of access to the public grid.

What is MPPT charge controller?
The MPPT (Maximum Power Point Tracking) charge controller inside the inverter allows you to maximise the power obtained from the solar panels. Its main task is to convert the energy obtained from the sun into electricity with appropriate parameters needed to charge the batteries and operate the appliances. Thanks to the highest quality electronics, it is able to work with even the most extensive off-grid photovoltaic systems, ensuring full safety and maximum efficiency.

Intuitive operation

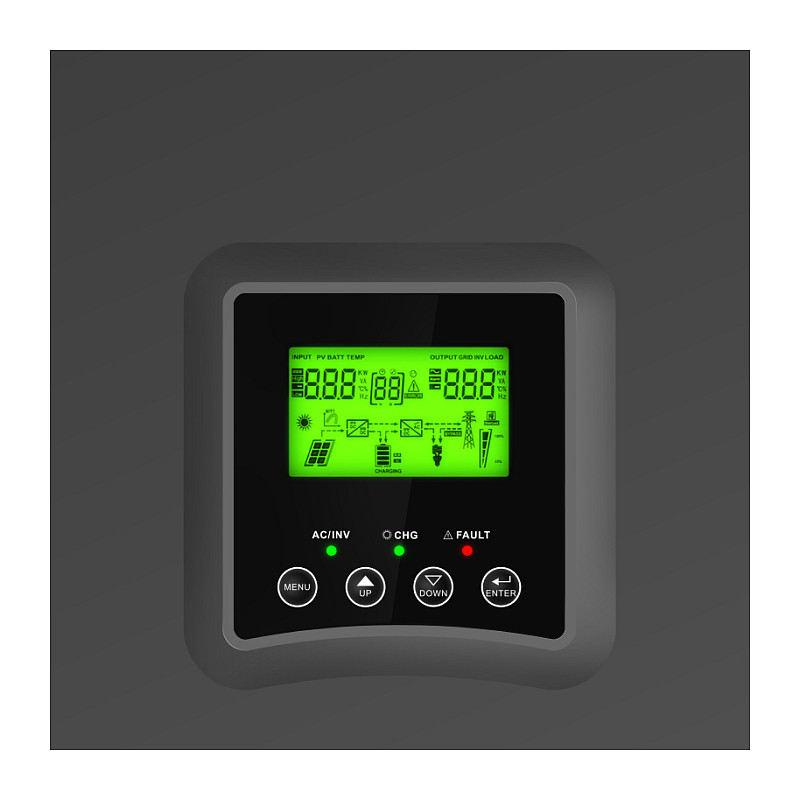

The Green Cell solar inverter is equipped with a readable, multifunctional LCD display that provides information about the inverter's most important parameters and allows you to adjust the settings to both the needs of the energy system and the individual needs of the user.

Always under control
In order to be able to use all the functions of the Green Cell solar inverter, special software has been developed that enables advanced device management. The application guarantees simple and intuitive operation so that use does not pose any problems. The programme offers a real-time preview of the measured data. You can get to know all the functions by downloading the software HERE.

Savings
The Green Cell solar inverter is the perfect solution if you want to protect the environment and additionally save money by using renewable energy as a power source for your appliances. As the brain of solar installations, it allows you to maximise the power generated from it and manage it optimally in all conditions - both during a power outage and without access to the grid.

Choose a kit that allows you to increase the profitability of your photovoltaic system and become independent of the electricity grid

Security
The inverter has all the necessary safety precautions to enable you to handle the unit safely. High-quality electronics guarantee safe and long-lasting operation of the unit. This is especially important for people who choose to install photovoltaic systems in garden sheds and properties.

Features

Output power capacity (max): 3 kVA
Input operation voltage (min): 48 V
Input operation voltage (max): 145 V
Maximum power per channel: 4000 W
Output operation voltage (min): 220 V
Output operation voltage (max): 240 V
Output frequency: 50/60 Hz
MPP voltage range: 60 - 130 V
Maximum power: 6000 W
Output current: 80 A
Product type: Grid-tie inverter
Efficiency: 98%
Feature: Photovoltaic (PV) charging supported

Design

Product colour: Black
Power protection features: Over voltage, Overdischarge, Overheating, Reverse polarity, Short circuit, Under voltage
Feature: Wall mountable
Control type: Buttons
Placement supported: Vertical

Display

Feature: Built-in display
Display technology: LCD

Weight & dimensions

Width: 297 mm
Depth: 125 mm
Height: 468 mm
Weight: 13.3 kg

Charger

Charger type: MPPT
PV rating (max): 4000 W
PV array MPPT voltage range: 130 V
Solar charger current (max): 140 A
