go-e Gemini 2.0

go-e Gemini 2.0. Product colour: Black, White, Mounting type: Wall, Cable colour: Black. Socket type: Type 2, SIM card type: eSIM, Grounding system supported: IT, TN, TT. Power source type: AC, Maximum charging power: 22000 W, Single-phase output voltage supported: 230,240 V. Charging cable length: 1.8 m, Width: 155 mm, Depth: 110 mm

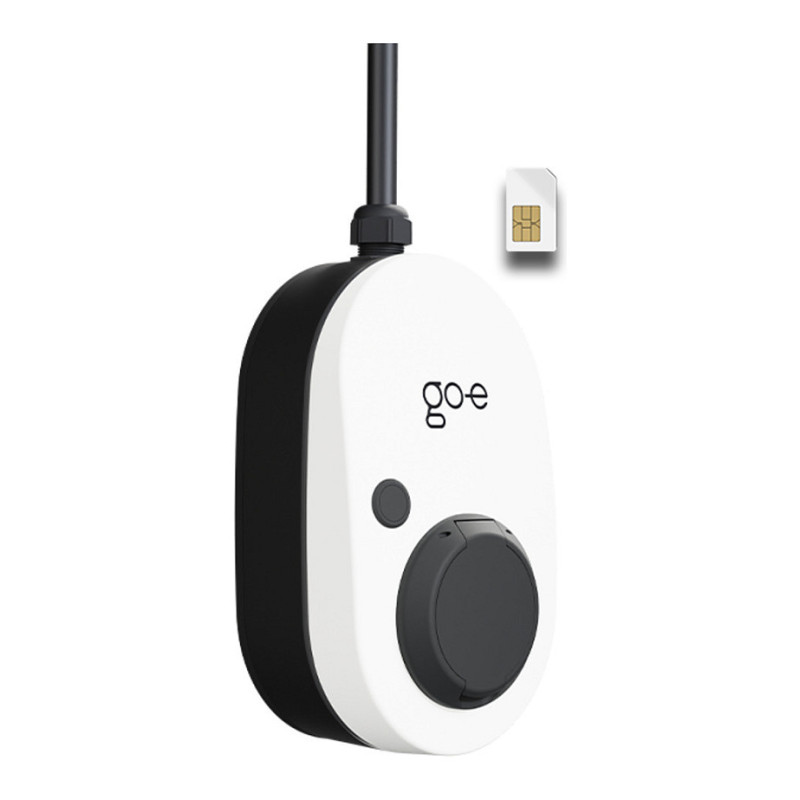

go-e Charger Gemini 2.0 22 kW

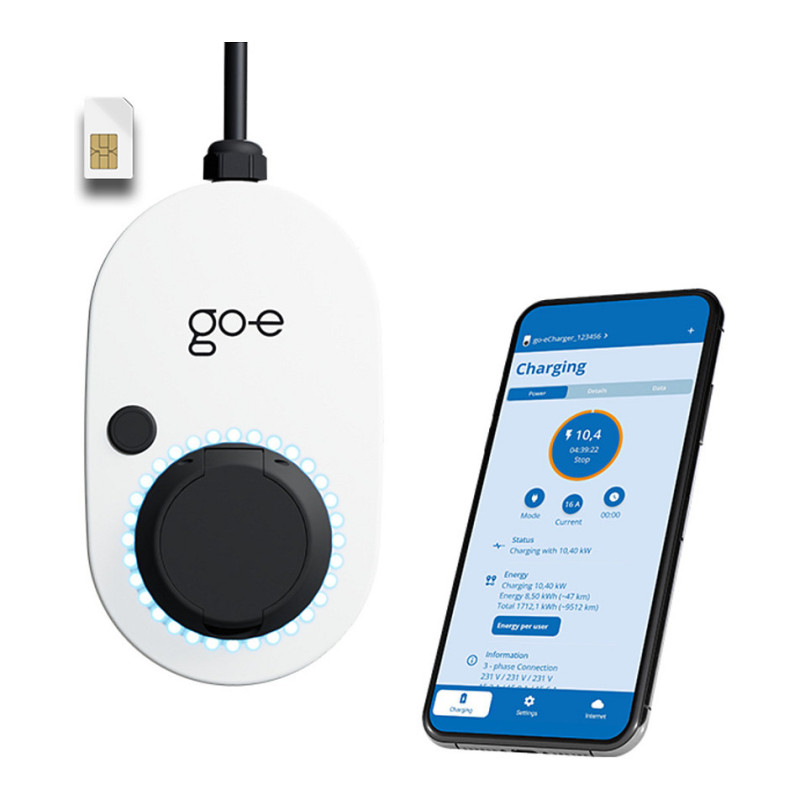

The go-e Charger Gemini 2.0 with cellular connectivity and 22 kW charging power is a smart wallbox for installation at home or in a company car park. It charges battery electric vehicles and plug-in hybrids easily, quickly and safely. The wallbox offers numerous additional convenient functions via the go-e app or API. Thanks to the integrated SIM card, the go-e Charger Gemini 2.0 22 kW has all the intelligent functions of the previous Gemini series, but now these also operate without WiFi.

go-e Charger Gemini 2.0 22 kW
The go-e Charger Gemini 2.0 22 kW is intended to be used by private households and small businesses (if no billing of electricity is planned). It enables the affordable and sustainable charging of electric cars. Apart from the charger's mobility, the go-e Charger Gemini 2.0 22 kW offers the same range of functions as the mobile wallbox, the go-e Charger Gemini flex 2.0 22 kW.

No WiFi? No problem
Now smart charging is also possible for anyone who has no WiFi or a poor WiFi connection at the place of installation. The SIM card integrated in the go-e Charger Gemini 2.0 offers you free cellular connectivity (4G LTE Cat-1 or in fallback via 2G / Edge) for at least 5 years. An extension beyond this is possible for 12 euros per year.

Mobile phone connection including roaming
The go-e Charger Gemini 2.0 22 kW comes with a non-exchangeable eSIM from go-e. For larger B2B projects, it is possible to install a customer's own SIM card (nano-SIM). The LTE connection can be activated and deactivated in the app or via the API. The mobile connection with the go-e tariff works in all EU countries as well as in the UK, Switzerland, Norway and Liechtenstein, including free roaming.

We keep your go-e Charger young
You can now receive updates not only via WiFi, but also via the mobile network. Thanks to over-the-air updates, which are made possible by the SIM card integrated in the go-e Charger, you now have access to new functions and optimisations even if you cannot integrate your wallbox into a WiFi network. We keep your go-e Charger up to date so that it remains a long-lasting companion.

Installation of the go-e Charger Gemini 2.0 22 kW
The go-e Charger Gemini 2.0 can be quickly and easily connected to any existing junction box by an electrician. This saves time and money. Immediately after installation, the wallbox is ready for the first charging process. It is not necessary to open the go-e Charger as part of the installation process. The go-e Charger must not and does not need to be opened, even during the installation process.

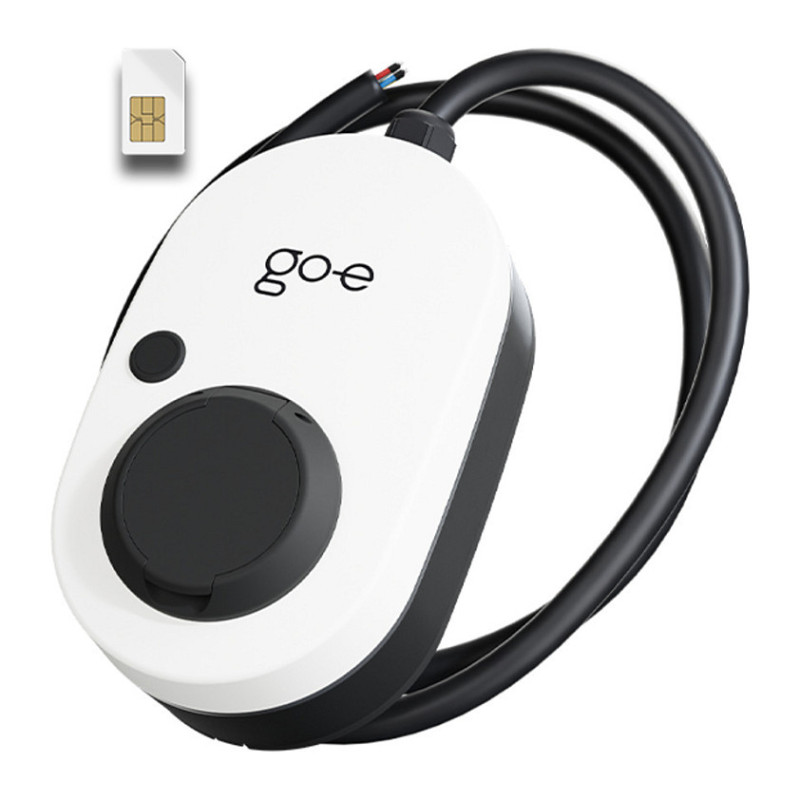

The stationary wallbox has a 1.8 metre long connection cable for permanent connection to a power distribution box. In contrast to the go-e Charger Gemini flex 2.0 22 kW, the go-e Charger Gemini 2.0 22 kW therefore has no plug and is not portable. The clever solution for anyone who needs a smart home charging station for wall installation only.

Country of origin: Austria

Important note: Due to legal regulations, the go-e Charger Gemini 2.0 22 kW may not be used in the following countries: Netherlands, France, Italy, Spain (11 kW version is permitted).

Design

Product colour: Black, White
Mounting type: Wall
Built-in display: No
Cable colour: Black
LED indicators: Yes

Features

Wi-Fi: Yes
Sockets quantity: 1
Socket type: Type 2
SIM card support: Yes
SIM card type: eSIM
RFID reader: Yes
Grounding system supported: IT, TN, TT
Mechanical impact protection code: IK08
International Protection (IP) code: IP65
IEC protection class: I
Cross-section connection: 5 x 6 mm²
Quantity per pack: 1 pc(s)

Power

Power source type: AC
Maximum charging power: 22000 W
Single-phase output voltage supported: 230,240 V
Three-phase output voltage supported: 400,415 V
Nominal frequency: 50 Hz
Minimum operating power (single-phase): 1.4 kW
Maximum operating power (single-phase): 7.4 kW
Maximum operating power (three-phase): 22 kW
Number of phases: 3
Maximum operating current (three-phase): 32 A
Power consumption (standby): 3.1 W

Operational conditions

Operating temperature (T-T): -25 - 40 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 2000 m

Technical details

Warranty period: 3 year(s)

Weight & dimensions

Charging cable length: 1.8 m
Width: 155 mm
Depth: 110 mm
Height: 260 mm
Weight: 2.34 kg
