go-e Dvyniai flex

go-e Gemini flex. Product colour: White, Mounting type: Wall, Cable colour: Black. Socket type: Type 2, Grounding system supported: IT, TN, TT, International Protection (IP) code: IP55. Power source type: AC, Maximum charging power: 11000 W, Single-phase output voltage supported: 240,230 V. Width: 155 mm, Depth: 110 mm, Height: 260 mm

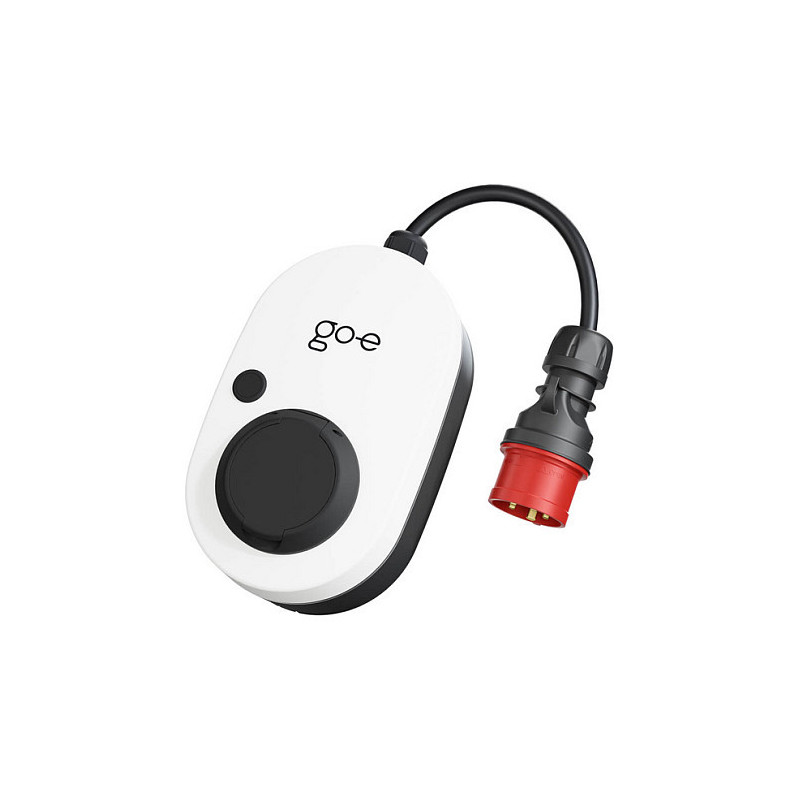

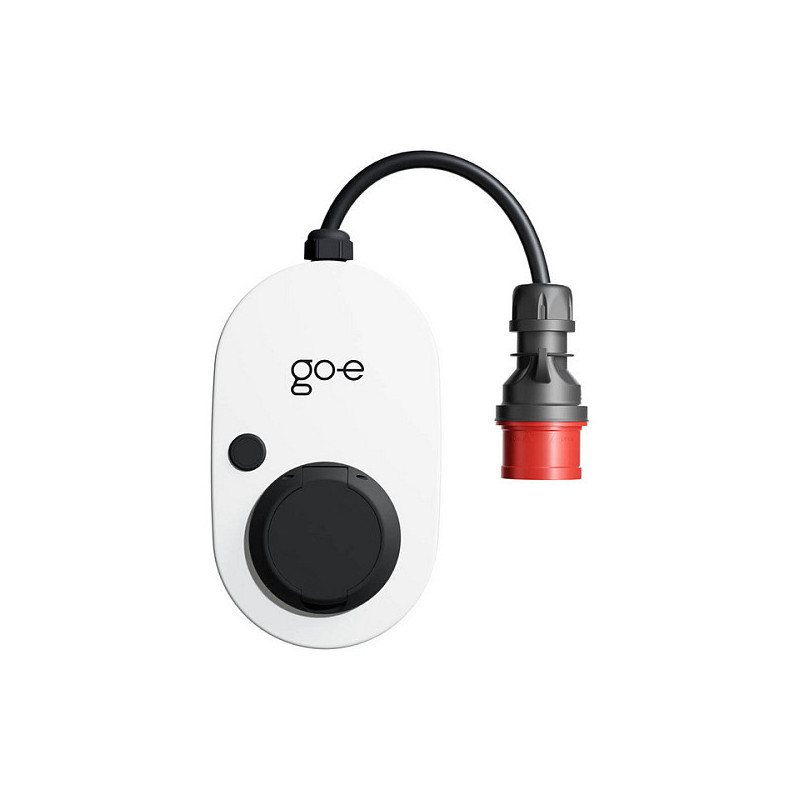

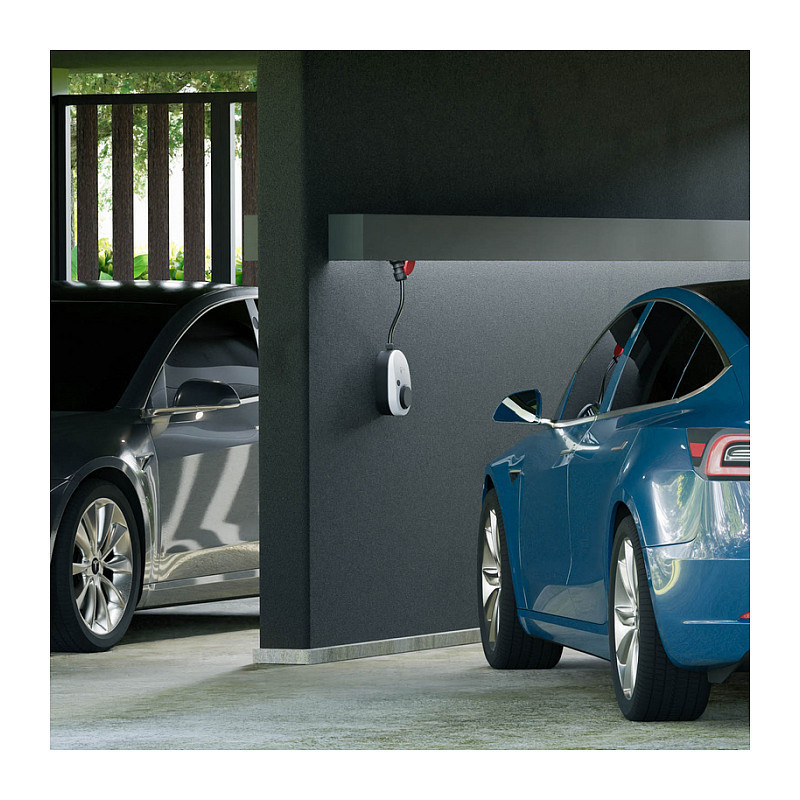

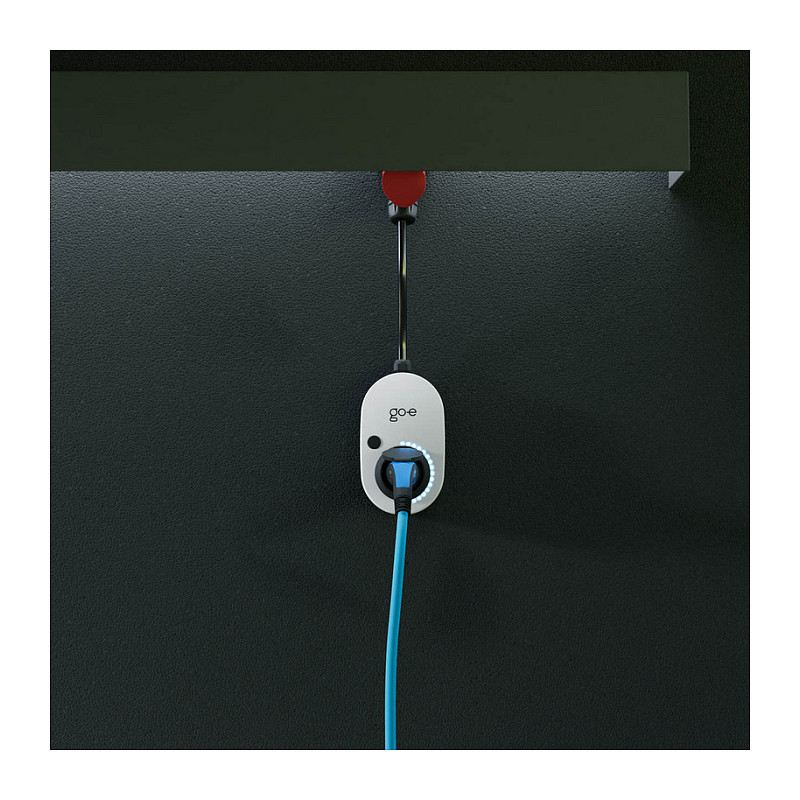

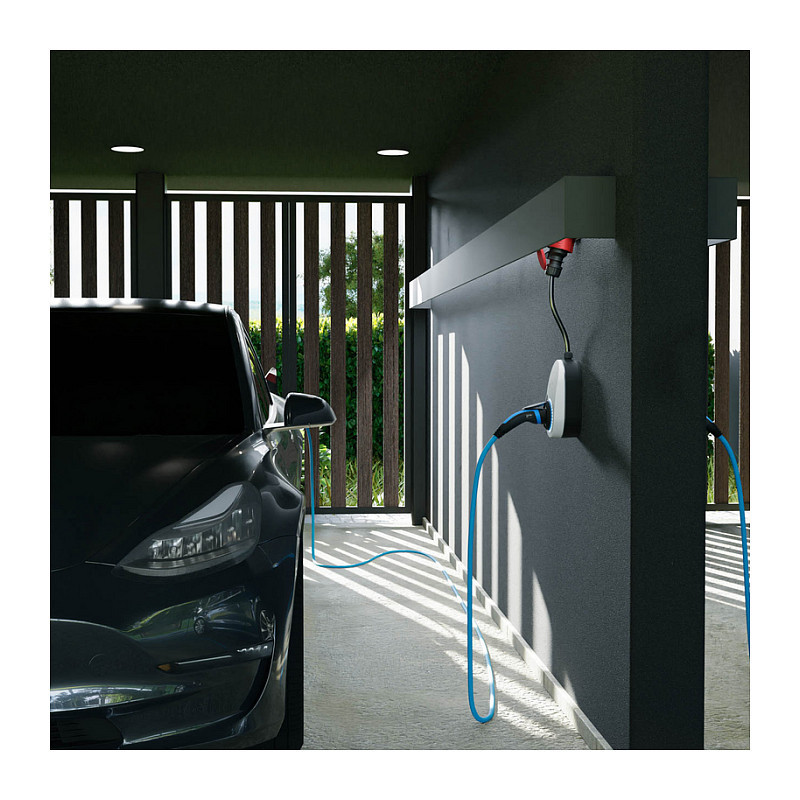

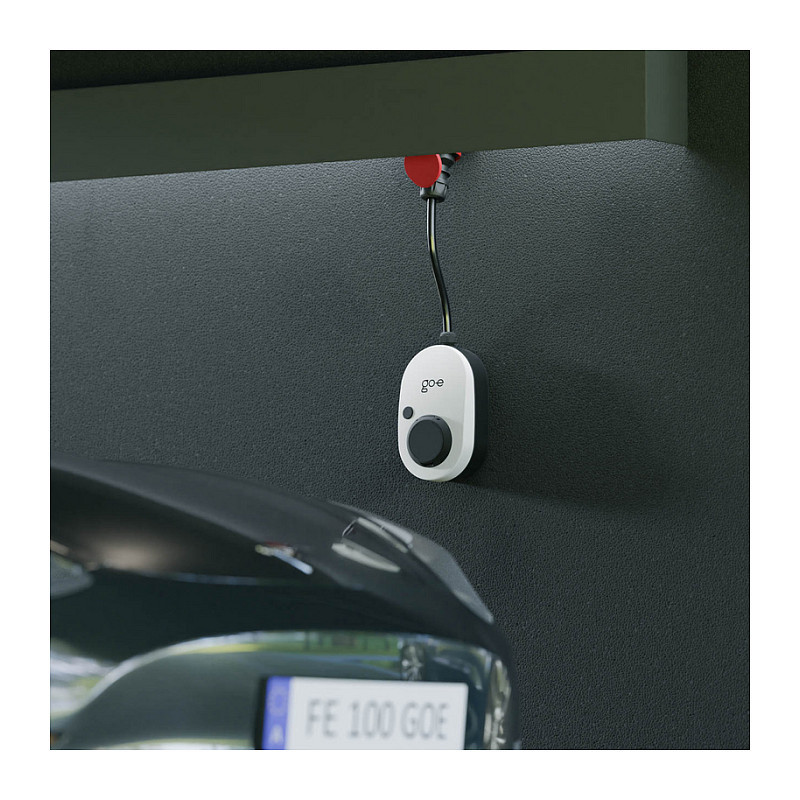

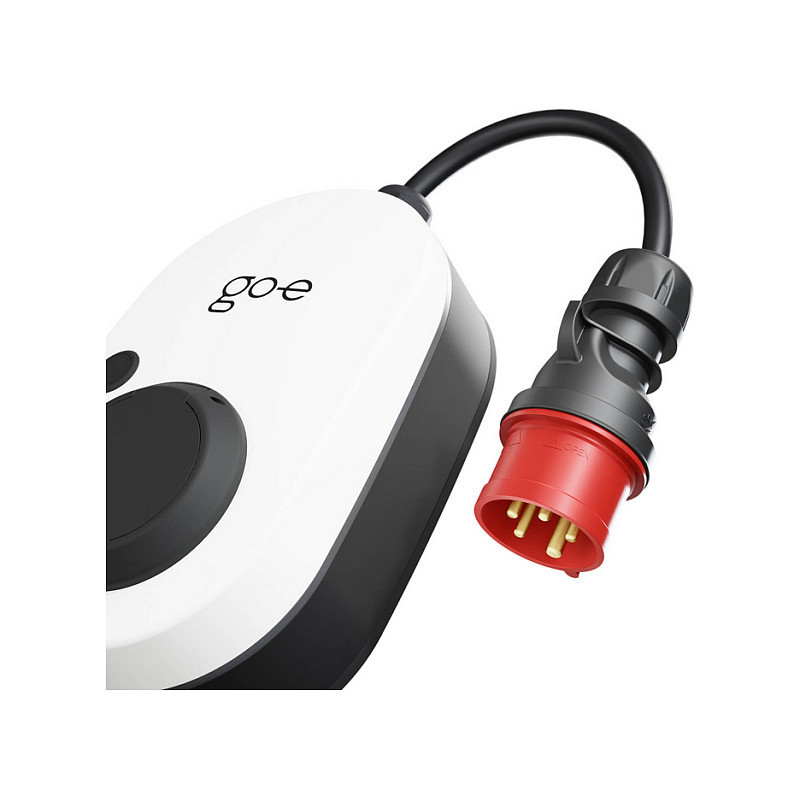

The go-e Charger Gemini flex 11 kW is a wallbox for charging electric cars that can also be converted into a mobile charging station in just a few seconds. The Charger is suitable for indoor and outdoor installation and can be connected directly to an existing red CEE 16 A three-phase socket. Immediately after connection, it is ready for the first charging process (Plug&Play).

The mobile charging station can be used absolutely safely. For example, the RCD protection module completely switches off the charger in the event of DC fault currents. The charging station can be used with or without an app. With the free go-eCharger app, comfort and basic settings can be changed, allowing you to adapt the device to your personal charging behaviour. For example, you can plan the charging process to make it more sustainable and reduce the load on the power grid.

Design

Product colour: White
Mounting type: Wall
Cable colour: Black
LED indicators: Yes

Features

Sockets quantity: 1
Socket type: Type 2
Feature: RFID reader
Grounding system supported: IT, TN, TT
International Protection (IP) code: IP55
IEC protection class: I
Cross-section connection: 5 x 2.5 mm²
Quantity per pack: 1 pc(s)

Power

Power source type: AC
Maximum charging power: 11000 W
Single-phase output voltage supported: 240,230 V
Three-phase output voltage supported: 415,400 V
Nominal frequency: 50 Hz
Maximum operating power (three-phase): 11 kW
Number of phases: 3
Maximum operating current (three-phase): 16 A
Power consumption (standby): 3.1 W
Power plug type: CEE

Ports & interfaces

Feature: Wi-Fi

Operational conditions

Operating temperature (T-T): -25 - 40 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 2000 m

Weight & dimensions

Width: 155 mm
Depth: 110 mm
Height: 260 mm
Weight: 1.63 kg
Package weight: 2.82 kg
