GIGABYTE GP-AP850GM maitinimo blokas

GIGABYTE GP-AP850GM. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 450,550,650,750 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 13.5 cm, Number of fans: 1 fan(s). Width: 150 mm, Depth: 160 mm, Height: 86 mm

High Quality 100% Japanese Capacitors
All capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.

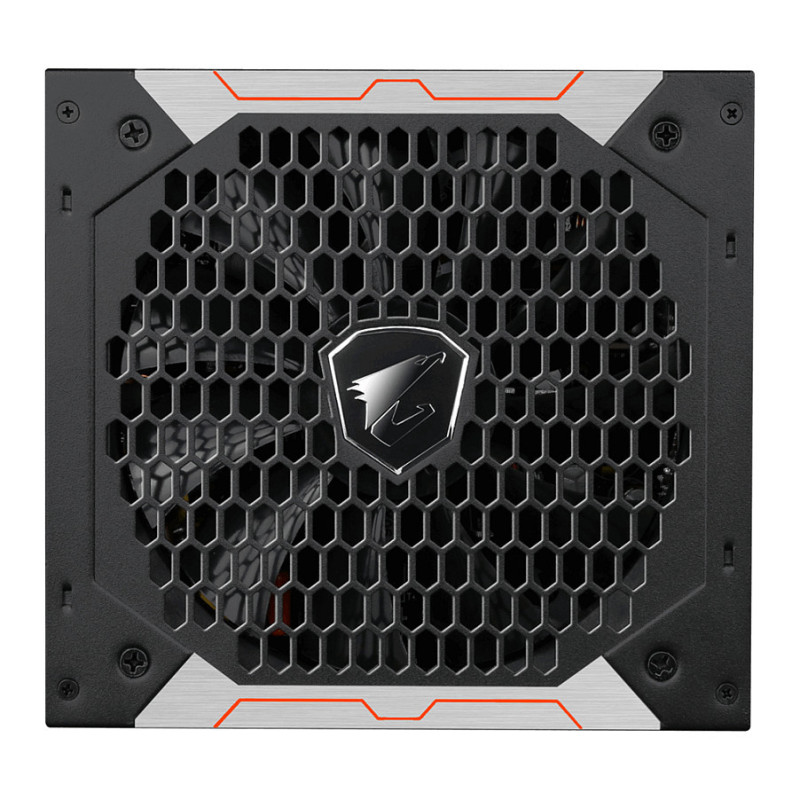

135mm Smart Fan
Fan speed will be adjusted according to the system load. And the fan will stop when the system is idle or under low load (less than 20% load). The 2 ball bearing structure provides longer life time.

2 ball bearing is the most durable fan construction with a durability of over 50,000 hours. The life of the 2 ball bearing is more than 5 years.

80 Plus Gold Certified
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.

Single +12V Rail
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.

Protection
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.

Power

Total power: 850 W
AC input voltage: 100 - 240 V
AC input frequency: 47 - 63 Hz
Input current: 10 A
Power factor: 0.9
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 120 W
Combined power (+12V): 846 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 70.5 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 16 ms
Efficiency: 90%
Power Good signal delay range: 100 - 150 ms
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

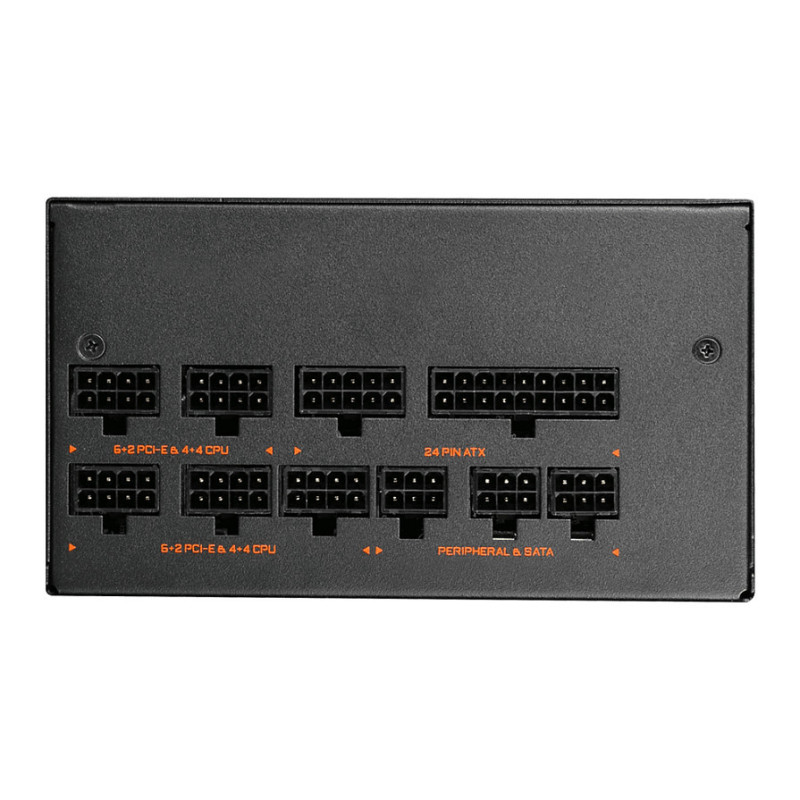

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 65 cm
Number of SATA power connectors: 6
SATA power cable length: 450,550,650,750 mm
Peripheral (Molex) power connectors (4-pin): 6
Feature: EPS power connector (8-pin)
PCI Express power connectors (6+2 pin): 6
Feature: CPU power connector (4+4 pin)
Feature: ATX power connector (20+4 pin)
Floppy drive power connector: 2
Feature: Floppy disk drive connector
Feature: PCI Express connector
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.31
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Fan diameter: 13.5 cm
Number of fans: 1 fan(s)
Fan location: Top
Feature: On/off switch

Weight & dimensions

Width: 150 mm
Depth: 160 mm
Height: 86 mm

Packaging data

Package type: Box

Logistics data

Harmonized System (HS) code: 84733020
