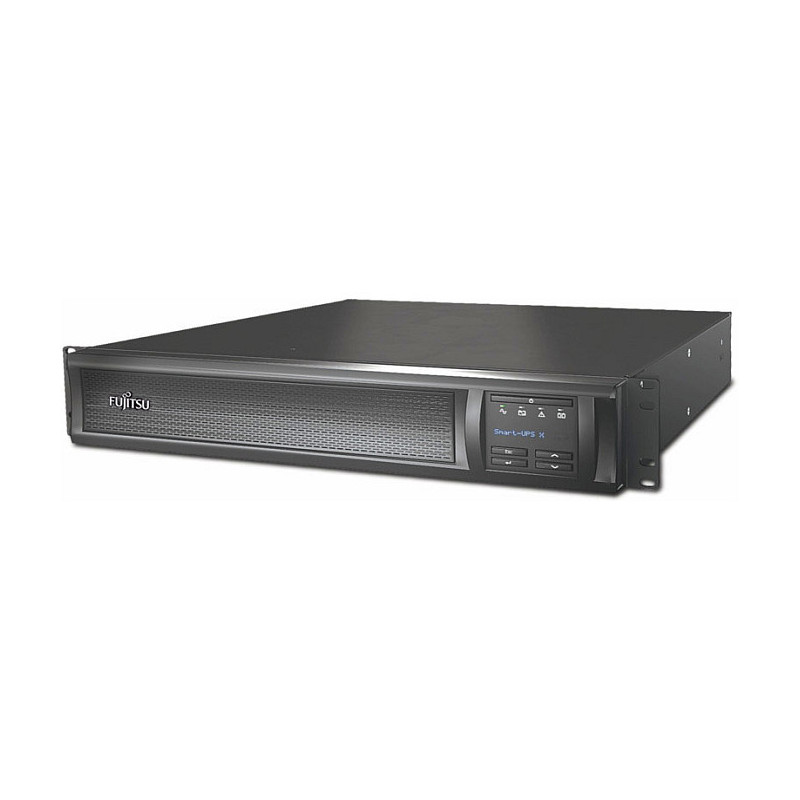

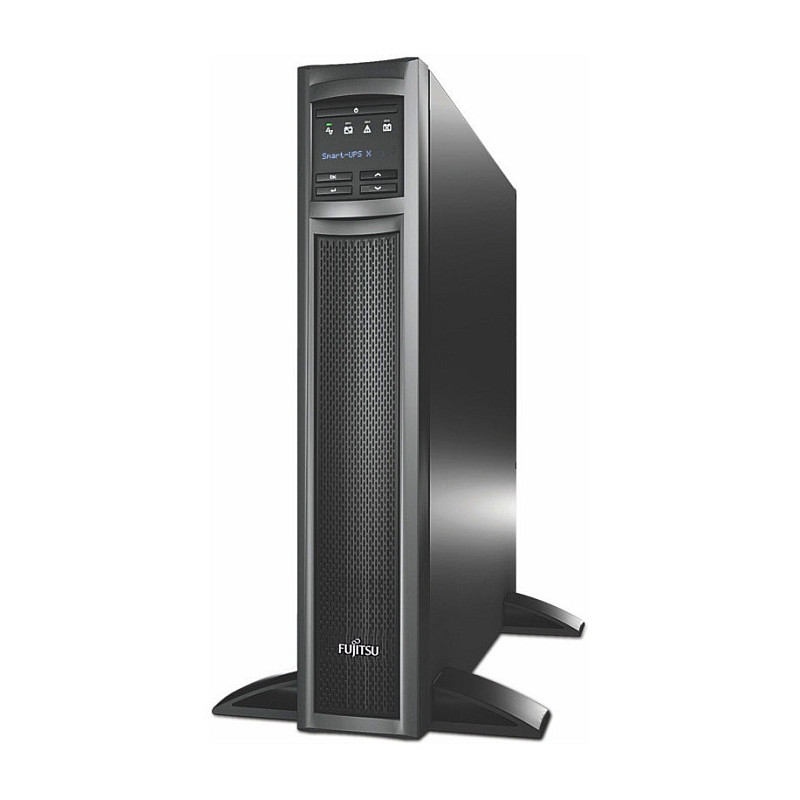

Fujitsu Smart-UPS uninterruptible power supply (UPS)

Fujitsu Smart-UPS. UPS topology: Line-Interactive, Output power capacity: 3 kVA, Output power: 2700 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 9 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 6.3 min, Typical backup time at half load: 18 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Compliance certificates: RoHS

Fujitsu UPS devices ensure high-performance power supply protection for systems and data, and thus provide reliable protection against power failure, current fluctuations and electrical interference. Fujitsu offers both line interactive (VI) and online (VFI) devices with double conversion technology in line with the UPS classification according to IEC 62040-3. Capacities of up to 3000VA provide the right power supply and technology for all individual requirements.
The use of uninterruptible power supplies can particularly benefit your company from a financial viewpoint: Having to search for and restore lost or damaged data after a power failure can cost a great deal of time and money. In such incidents UPS helps to protect your data.

Features

UPS topology: Line-Interactive
Output power capacity: 3 kVA
Output power: 2700 W
Waveform: Sine
Input frequency: 50/60 Hz
Output operation voltage (min): 208 V
Output operation voltage (max): 240 V
Output frequency regulation: 50/60 Hz
Feature: Automatic Voltage Regulation (AVR)
Surge energy rating: 645 J
Efficiency: 98.5%
Feature: Emergency Power Off (EPO)
Noise level: 55 dB
Feature: Surge protection
Feature: Audible alarm(s)
Feature: Auto-restart

Ports & interfaces

AC outlet types: C13 coupler, C19 coupler
Power plug: C20 coupler
AC outlets quantity: 9 AC outlet(s)
Number of output IEC jumpers: 2
Feature: SmartSlot

Battery

Battery technology: Sealed Lead Acid (VRLA)
Typical backup time at full load: 6.3 min
Typical backup time at half load: 18 min
Battery life (max): 5 year(s)
Battery recharge time: 3 h
Feature: Hot-swap battery
Feature: Automatic battery test

Design

Form factor: Rackmount/Tower
Rack capacity: 2U
Cable length: 2.44 m
Product colour: Black
LED indicators: Battery replacement

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -15 - 45 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 15000 m

Certificates

Compliance certificates: RoHS

Packaging content

Feature: Rack mount kit
Cables included: RS-232
Feature: Manual

Weight & dimensions

Width: 432 mm
Depth: 667 mm
Height: 85 mm
Weight: 37.3 kg

Packaging data

Package width: 596 mm
Package depth: 869 mm
Package height: 85 mm
Package weight: 45.4 kg
