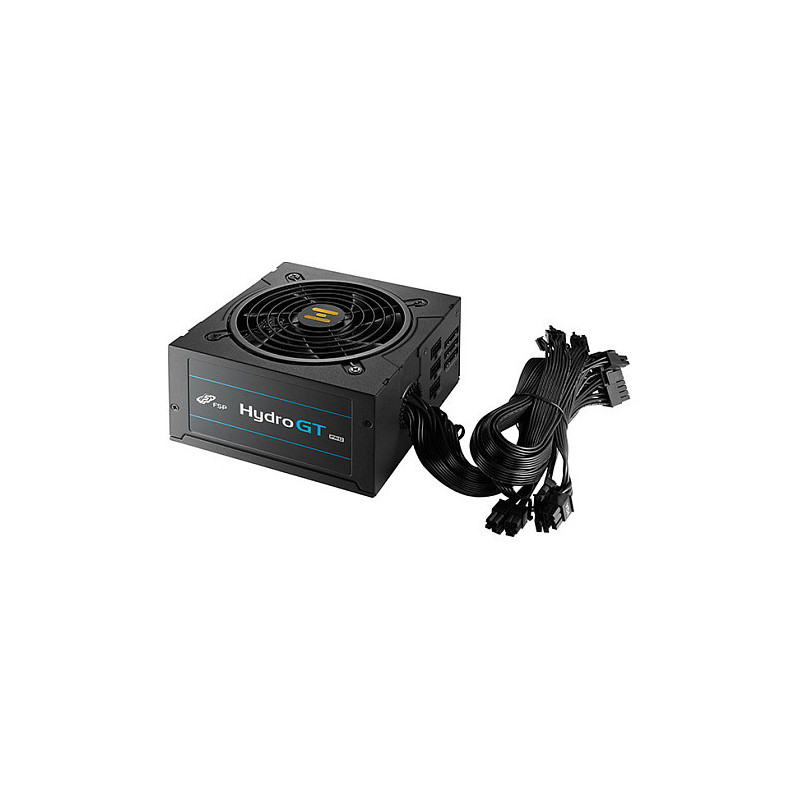

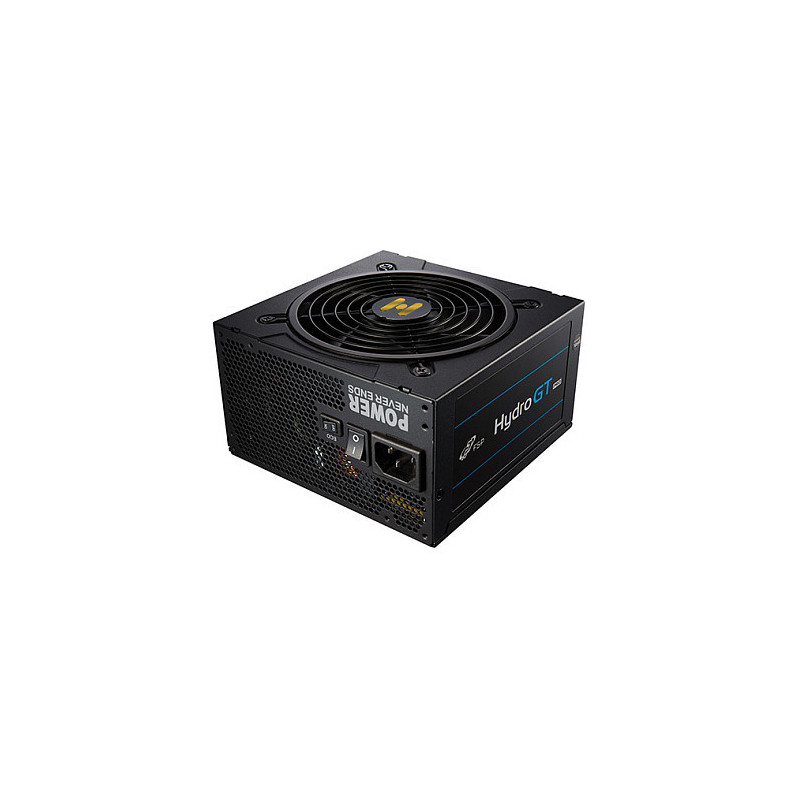

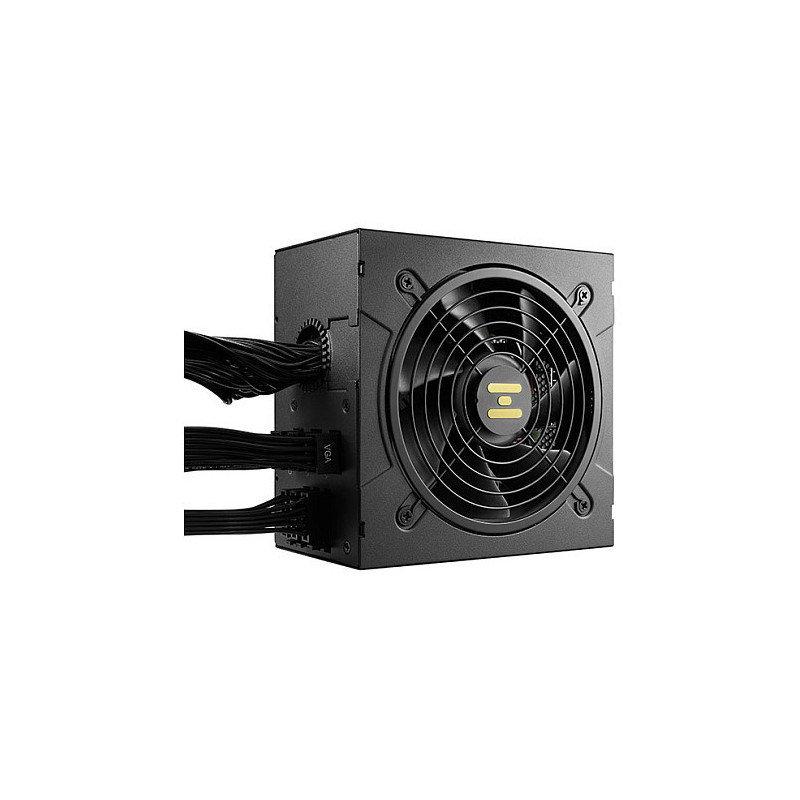

FSP Hydro GT PRO ATX3.0 (PCIe5.0) 850W maitinimo blokas

FSP Hydro GT PRO ATX3.0(PCIe5.0) 850W. Total power: 850 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, Peripheral (Molex) power cable length: 500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATA

Power

Total power: 850 W
AC input voltage: 100 - 240 V
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 120 W
Combined power (+12V): 850 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 20 A
Max output current (+12V): 70.83 A
Max output current (+5V): 20 A
Max output current (+5Vsb): 2.5 A
Hold time: 17 ms
Efficiency: 90%
Power protection features: Over current, Over power, Over voltage, Short circuit

Ports & interfaces

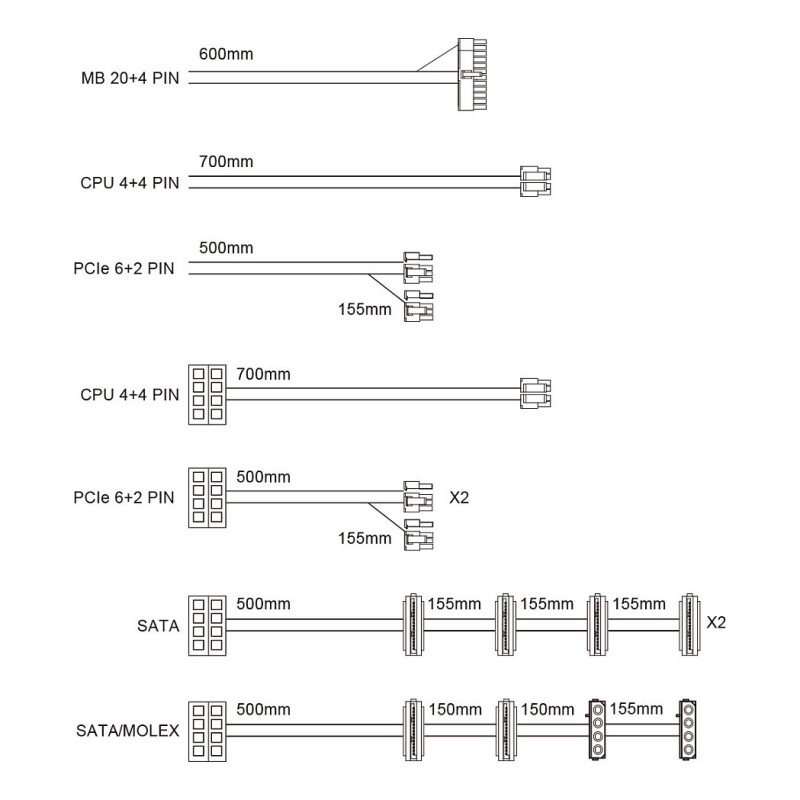

Motherboard power connector: 24-pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 10
Peripheral (Molex) power connectors (4-pin): 2
Peripheral (Molex) power cable length: 500 mm
PCI Express power connectors (6+2 pin): 6
PCI Express power cable length: 50 cm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 70 cm

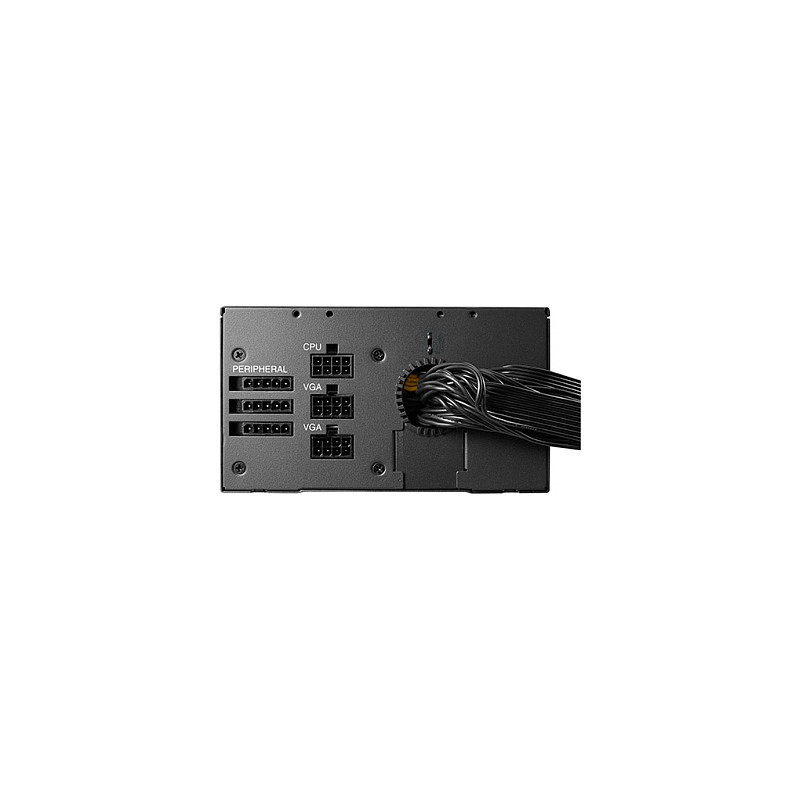

Cabling type: Semi-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.5
EPS version: 2.92
Bearing technology: FDB
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Cooling type: Active

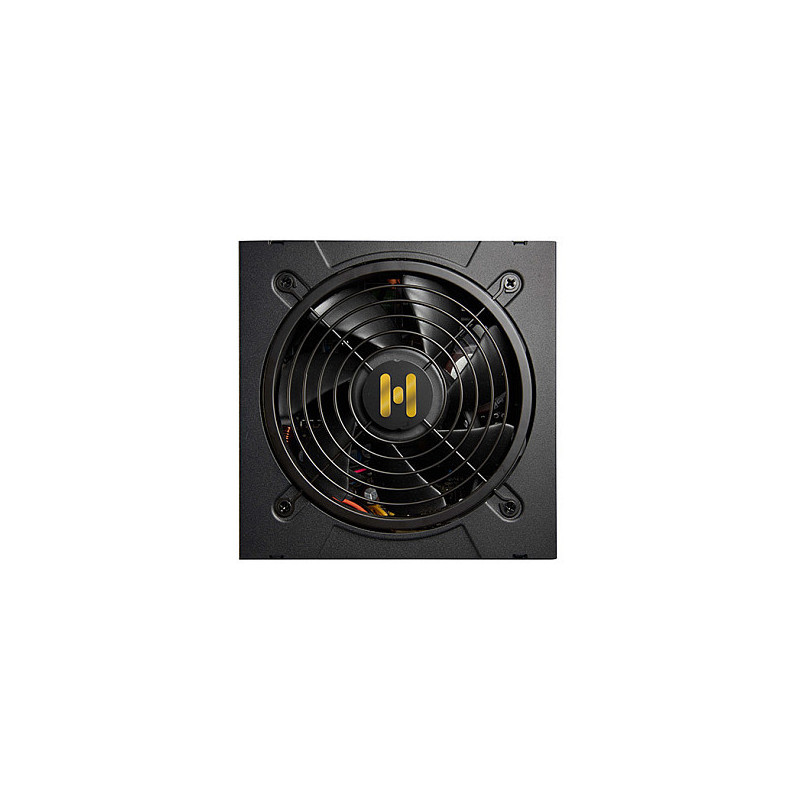

Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top
Feature: On/off switch

Packaging content

Cables included: CPU, PCIe, Peripheral (Molex), SATA

Weight & dimensions

Width: 150 mm
Depth: 150 mm
Height: 86 mm
