„Enermax EPS1200P-NPX-W“ maitinimo blokas

Enermax EPS1200P-NPX-W. Total power: 1200 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 900 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Fan diameter: 13.5 cm. Compliance certificates: CE, Federal Communications Commission (FCC), EAC

ATX 3.1 & PCIe 5.1 Ready

Fully compliant with Intel ATX 3.1 and PCIe 5.1 standards, featuring a native 600W 12V-2x6 connector for next-gen GPUs.

Efficiency

Achieves up to 92% efficiency at 50% load, and ≥70% efficiency at 2% low load.

Extreme Power Excursion Support

Handles up to 235% power excursion (0.1ms), ideal for high-performance GPU spikes.

Silent and Durable Cooling

Equipped with a 135mm D.F. fan and 100% Japanese capacitors for over 100,000 hours MTBF at 25°C full load.

Fully Modular with Comprehensive Protections

Fully modular cable design with built-in protections: OVP, OPP, OCP, SCP, OTP, UVP; certified for operation up to 5000m altitude.

Power

Total power: 1200 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 8 - 15 A
Combined power (+3.3V): 100 W
Combined power (+12V): 1200 W
Combined power (+5V): 100 W
Combined power (-12V): 4.8 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 100 A
Max output current (+5V): 10 A
Max output current (-12V): 0.4 A
Max output current (+5Vsb): 3 A
Efficiency: 92%
Power protection features: Over power, Overload, Over current, Short circuit, Overheating, Under voltage

Ports & interfaces

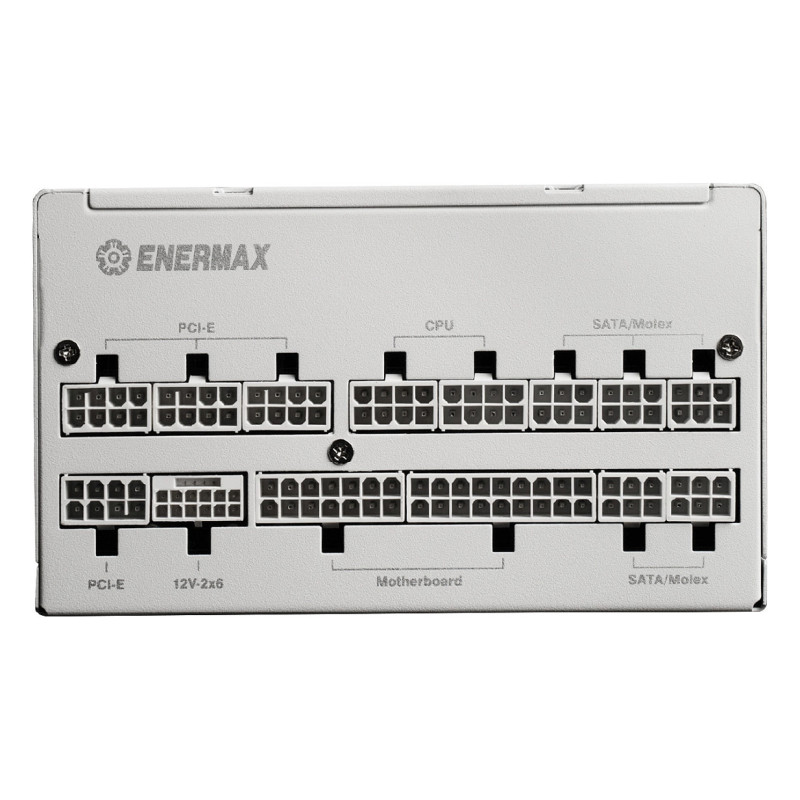

Motherboard power connector: 24-pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 8
SATA power cable length: 900 mm
Number of SATA power cables: 2
Peripheral (Molex) power connectors (4-pin): 4
Peripheral (Molex) power cable length: 900 mm
PCI Express power connectors (6+2 pin): 3
PCI Express power connectors (12+4 pin): 1
PCI Express power connectors (12+4 pin) cable length: 600 mm
PCI Express power cable length: 60 cm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 70 cm
Feature: ATX power connector (12+4 pin)
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Cybenetics certification: Platinum
Purpose: PC
Power supply unit (PSU) form factor: ATX
Mean time between failures (MTBF): 100000 h

Design

Product colour: White
Fan diameter: 13.5 cm
Feature: On/off switch

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), EAC

Weight & dimensions

Width: 150 mm
Depth: 86 mm
Height: 150 mm

Packaging data

Package width: 330 mm
Package depth: 195 mm
Package height: 130 mm
Package weight: 3.19 kg

Logistics data

Master (outer) case width: 605 mm
Master (outer) case length: 345 mm
Master (outer) case height: 290 mm
Master (outer) case net weight: 20.7 kg
