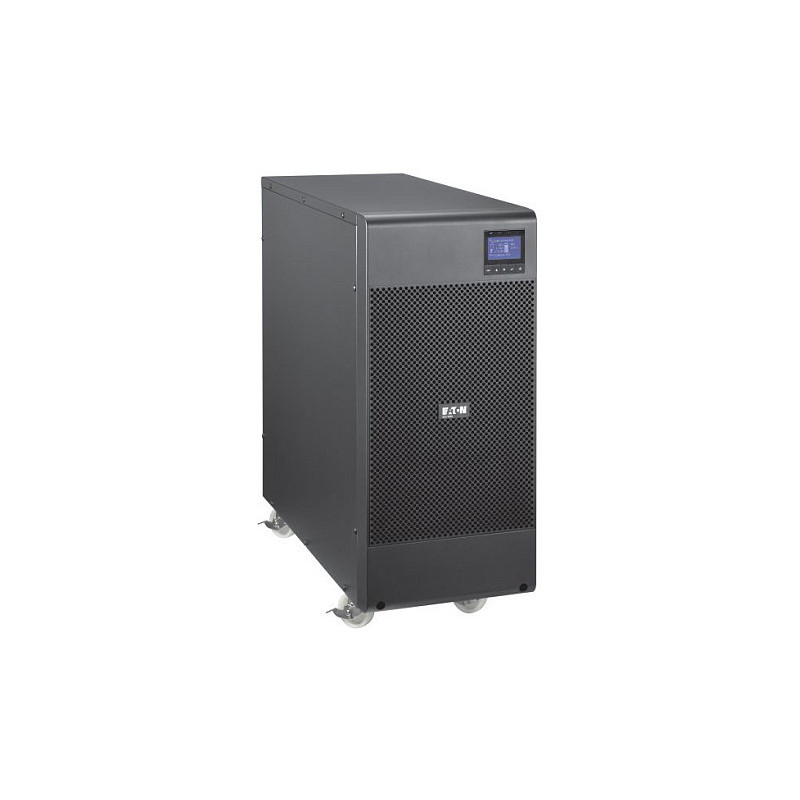

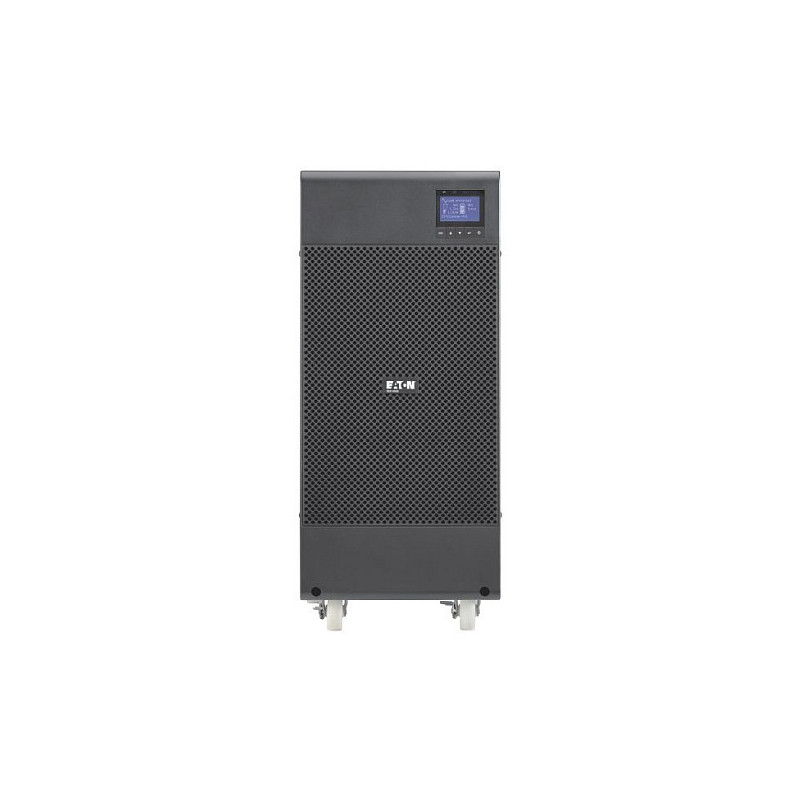

Eaton 9SX5KI nepertraukiamo maitinimo šaltinis (UPS)

Eaton 9SX5KI. UPS topology: Double-conversion (Online), Output power capacity: 5 kVA, Output power: 4500 W. Serial interface type: RS-232. Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah, Battery voltage: 12 V. Form factor: Tower, Product colour: Black, Display type: LCD. Compliance certificates: CE, Certification: IEC/EN 62040-1, IEC/EN 62040-2, CE, EAC

Eaton 9SX UPS, 5000 VA, 4500 W, Input: Hardwired, Tower.

Features

UPS topology: Double-conversion (Online)
Output power capacity: 5 kVA
Output power: 4500 W
Waveform: Sine
Input operation voltage (min): 176 V
Input operation voltage (max): 276 V
Input frequency: 40 - 70 Hz
Output operation voltage (min): 200 V
Output operation voltage (max): 240 V
Output frequency: 50/60 Hz
Number of input phases: 1
Number of output phases: 1
Efficiency: 94.2%
Input power factor: 99
Output power factor: 0.9
Output voltage Total Harmonic Distortion (THD): 3%
Noise level: 46 dB
Feature: Auto power off

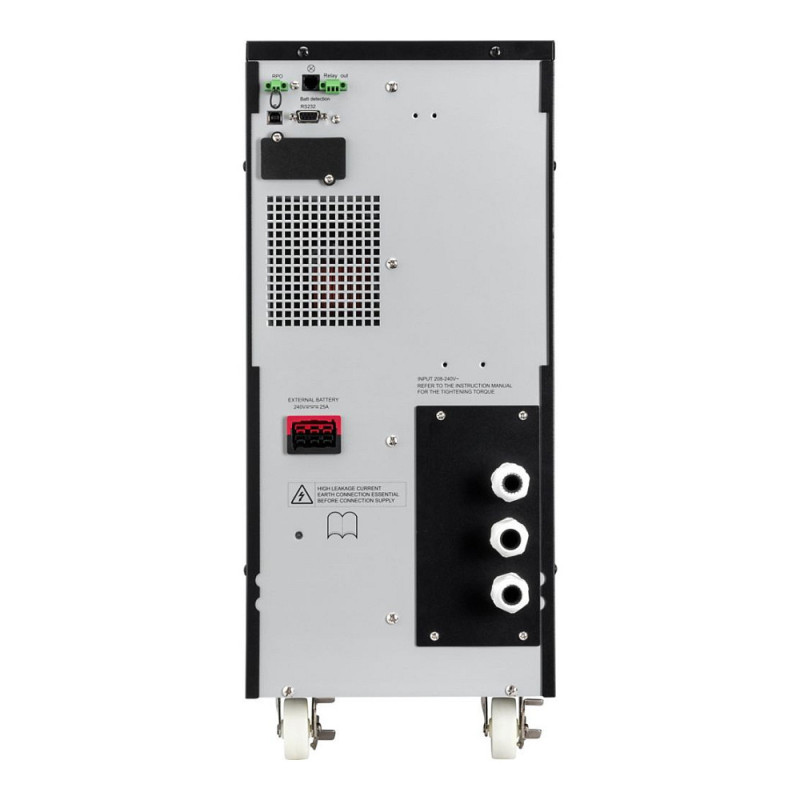

Ports & interfaces

Feature: USB port
Feature: Serial interface
Serial interface type: RS-232
Feature: Remote Power Off (RPO)/Remote On-Off (ROO) connector

Battery

Battery technology: Sealed Lead Acid (VRLA)
Battery capacity: 7 Ah
Battery voltage: 12 V
Feature: Hot-swap battery

Design

Form factor: Tower
Product colour: Black
Display type: LCD

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 96%
Operating altitude: 0 - 3000 m

Certificates

Compliance certificates: CE
Certification: IEC/EN 62040-1, IEC/EN 62040-2, CE, EAC

Packaging content

Cables included: Serial, USB cable
Feature: Quick installation guide

Weight & dimensions

Width: 244 mm
Depth: 542 mm
Height: 575 mm
Weight: 65.5 kg

Logistics data

Quantity per pack: 1 pc(s)

Other features

Nominal output voltage: 230 V
Nominal input voltage: 230 V
