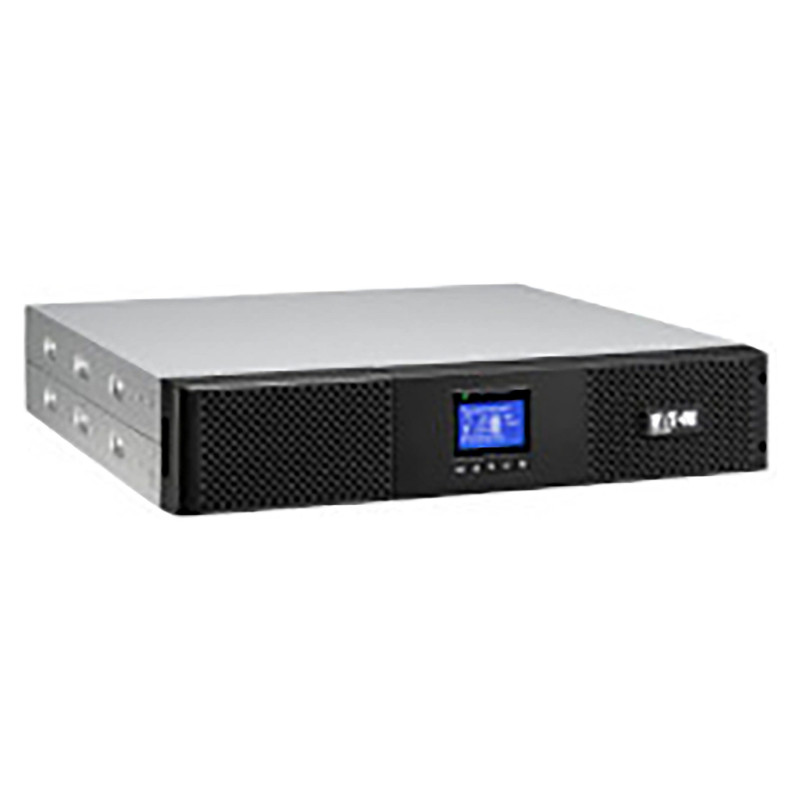

„Eaton 9SX“ nepertraukiamo maitinimo šaltinis (UPS)

Eaton 9SX. UPS topology: Double-conversion (Online), Output power capacity: 1.5 kVA, Output power: 1350 W. AC outlet types: C13 coupler, C14 coupler, Power plug: C14 coupler, AC outlets quantity: 7 AC outlet(s). Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Certification: IEC/EN 62040 -2 , FCC B, CISPR22 B, CE /CB report (TUV) / cULus / EAC / RCM / BIS / KCC. Safety: IEC/EN 62040-1, UL 1778, CSA 22.2

Features

UPS topology: Double-conversion (Online)
Output power capacity: 1.5 kVA
Output power: 1350 W
Input operation voltage (min): 190 V
Input operation voltage (max): 276 V
Input frequency: 40 - 70 Hz
Output frequency: 50/60 Hz
Maximum current: 10 A
Noise level: 43 dB

Ports & interfaces

AC outlet types: C13 coupler, C14 coupler
Power plug: C14 coupler
AC outlets quantity: 7 AC outlet(s)
Feature: USB port
Feature: Serial interface
Serial interface type: RS-232

Design

Form factor: Rackmount
Rack capacity: 2U
Product colour: Black
Display type: LCD

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Certificates

Certification: IEC/EN 62040 -2 , FCC B, CISPR22 B, CE /CB report (TUV) / cULus / EAC / RCM / BIS / KCC

Safety regulation & standards

Safety: IEC/EN 62040-1, UL 1778, CSA 22.2

Weight & dimensions

Width: 438 mm
Depth: 438 mm
Height: 86.5 mm
Weight: 18.4 kg
