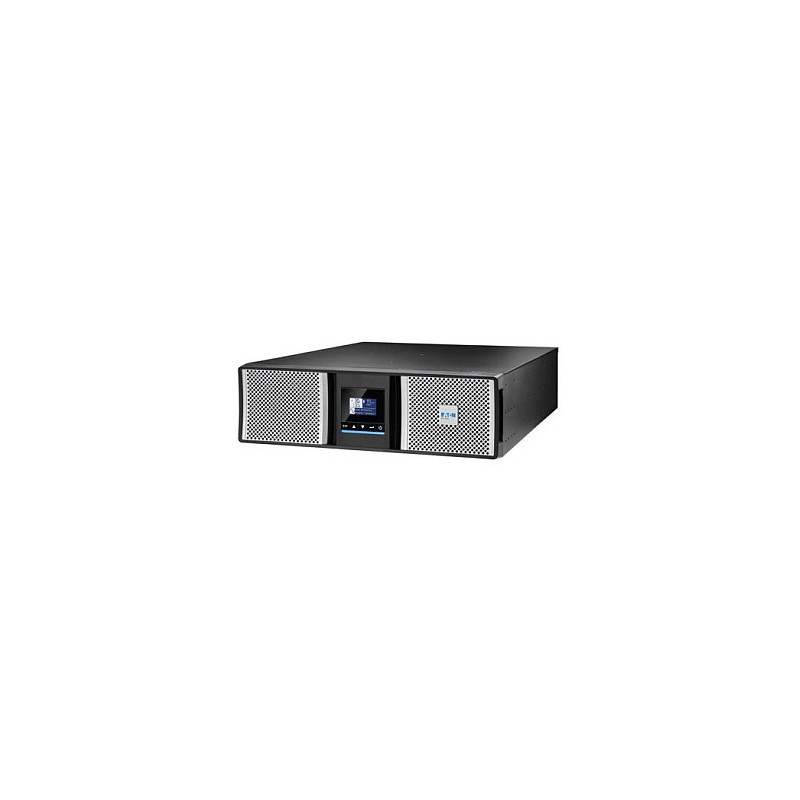

Eaton 9PX 5000i RT3U Netpack G2 nepertraukiamo maitinimo šaltinis (UPS)

Eaton 9PX 5000i RT3U Netpack G2. UPS topology: Double-conversion (Online), Output power capacity: 5 kVA, Output power: 5000 W. AC outlet types: C13 coupler, Hardwire, C39 coupler. Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 5 Ah, Battery voltage: 12 V. Form factor: Rackmount/Tower, Product colour: Black, Silver, Rack capacity: 3U. Compliance certificates: CB, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), RCM, REACH, RoHS, UKCA,..., Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3

Eaton 9PX Gen2 UPS Netpack, 5000 VA, 5000 W, Input: Hardwired, Outputs: (6) C13, (6) C39, Hardwired, Rack/tower, 3U, Gigabit Network card included, Rack-mounting kit included

Features

UPS topology: Double-conversion (Online)
Output power capacity: 5 kVA
Output power: 5000 W
Waveform: Sine
Input operation voltage (min): 100 V
Input operation voltage (max): 276 V
Input frequency: 40/70 Hz
Output operation voltage (min): 200 V
Output operation voltage (max): 240 V
Output frequency: 50/60 Hz
Power consumption (average operating): 165 W
Heat dissipation: 563 BTU/h
Number of input phases: 1
Number of output phases: 1
Efficiency: 96.7%
Efficiency (ECO mode): 99%
Input power factor: 0.99
Noise level: 40 dB

Ports & interfaces

AC outlet types: C13 coupler, Hardwire, C39 coupler
Feature: USB port
RS-232 ports: 1
Feature: Network card slot

Battery

Battery technology: Sealed Lead Acid (VRLA)
Battery capacity: 5 Ah
Battery voltage: 12 V
Typical backup time at half load: 9.4 min
Feature: Automatic battery test

Design

Form factor: Rackmount/Tower
Rack capacity: 3U
Cable length: 1.8 m
Product colour: Black, Silver
Display type: LCD
LED indicators: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m

Certificates

Compliance certificates: CB, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), RCM, REACH, RoHS, UKCA, WEEE, cULus
Certification: IEC/EN 62040-1IEC/EN 62040-2IEC/EN 62040-3

Packaging content

Cables included: USB cable
Feature: Quick installation guide

Sustainability

Sustainability certificates: ENERGY STAR

Weight & dimensions

Width: 440 mm
Depth: 684 mm
Height: 130 mm
Weight: 43.1 kg
