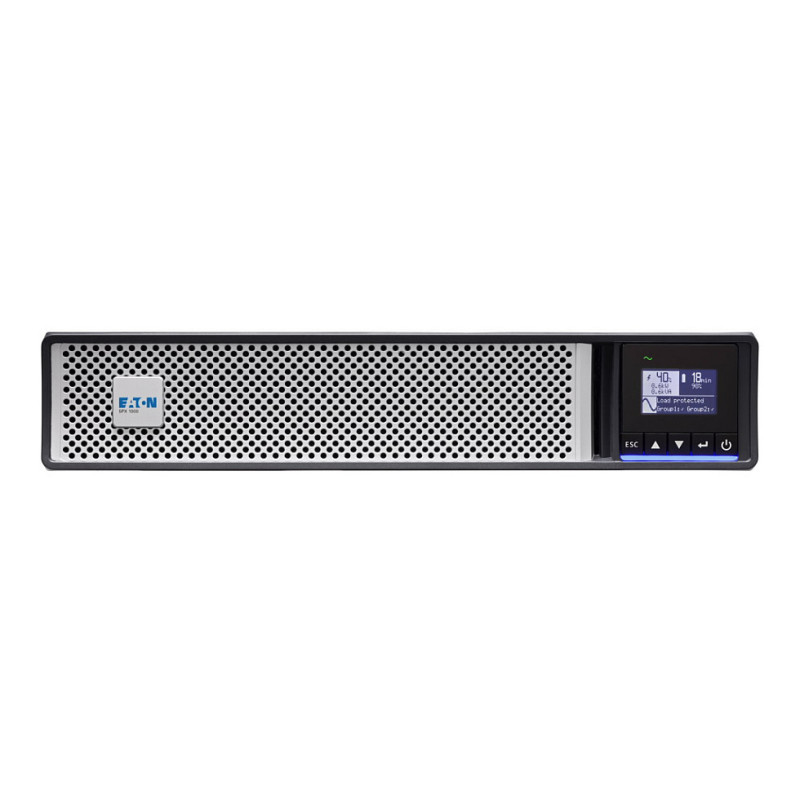

„Eaton 5PX Gen2“ nepertraukiamo maitinimo šaltinis (UPS)

Eaton 5PX Gen2. UPS topology: Line-Interactive, Output power capacity: 1 kVA, Output power: 1000 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Typical backup time at half load: 17 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Compliance certificates: CE, Certification: IEC/EN 62040-2, FCC B, CISPR22 B CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm

Exceptional efficiency, manageability and energy metering capabilities for IT managers

Performance and efficiency

- Eaton 5PX Gen 2 provides Unity power factor (W=VA) capability. With 11% more power than other UPS it can protect more servers.
- Energy Star 2.0 certified, 5PX Gen2 offers best-in-class efficiency performance to reduceenergy consumption and cooling costs.
- When operating in battery mode the 5PX provides a high-quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers.
- Each 5PX Gen2 battery configuration provides the best size /runtime ratio.

Management and Cybersecurity

- Innovative graphical LCD display brings all operating information at first sight. It also enhances commissioning and configuration capabilities.
- 5PX Gen2 Netpack models are delivered with Eaton Gigabit network management card, which provides Dual cybersecurity certifications (UL 2900-1 & IEC 62443-4-2) and enables connection to Eaton Cyber Secured Monitoring solutions.
- Together with 5PX Gen2, Eaton Gigabit network management card allows both remote UPS settings and remote firmware upgrade to ensure easy deployment (fleet management) and reduced maintenance cost.
- 5PX Gen2 meters energy consumption right down to the managed outlet groups. kWh values can be monitored using the LCD or Eaton's Intelligent Power Software.
- Eaton's Intelligent Power Software seamlessly integrates with leading virtualization environments and cloud orchestration tools.

Availability and flexibility

- 5PX Gen2 2200VA & 3000VA are available in RT2U format (optimized for rack mounting) or RT3U (for tower installation or short-depth racks). Pedestals and rail kits are included with all models.
- 5PX Gen2 load segment control enables prioritized shutdowns of non-essential equipment to maximize battery runtime for critical devices (2 groups).
- Eaton ABM® battery management technology uses a three stage charging technique that optimizes battery health and extends lifetime by up to 50%.
- Up to 4 external hot-swappable battery modules can be added for longer power availability.

Features

UPS topology: Line-Interactive
Output power capacity: 1 kVA
Output power: 1000 W
Waveform: Pure sine
Input operation voltage (min): 160 V
Input operation voltage (max): 294 V
Input frequency: 47/70 Hz
Noise level: 40 dB
Power protection features: Overdischarge

Ports & interfaces

AC outlet types: C13 coupler
Power plug: C14 coupler
AC outlets quantity: 8 AC outlet(s)
Feature: USB port
Feature: Serial interface
Serial interface type: RS-232
Serial ports quantity: 1
Cabling technology: 10/100/1000Base-T(X)

Battery

Typical backup time at half load: 17 min
Feature: Hot-swap battery
Feature: Automatic battery test

Design

Form factor: Rackmount/Tower
Rack capacity: 2U
Product colour: Black
Display type: LCD
LED indicators: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Certificates

Compliance certificates: CE
Certification: IEC/EN 62040-2, FCC B, CISPR22 BCB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm

Packaging content

Feature: Management card included

Safety regulation & standards

Safety: IEC/EN 62040-1, UL1778, CSA22.2

Sustainability

Feature: Sustainability compliance
Sustainability certificates: ENERGY STAR

Weight & dimensions

Width: 438 mm
Depth: 448 mm
Height: 85.5 mm
Weight: 19.6 kg

Logistics data

Harmonized System (HS) code: 85078000

Other features

Nominal output voltage: 230 V
