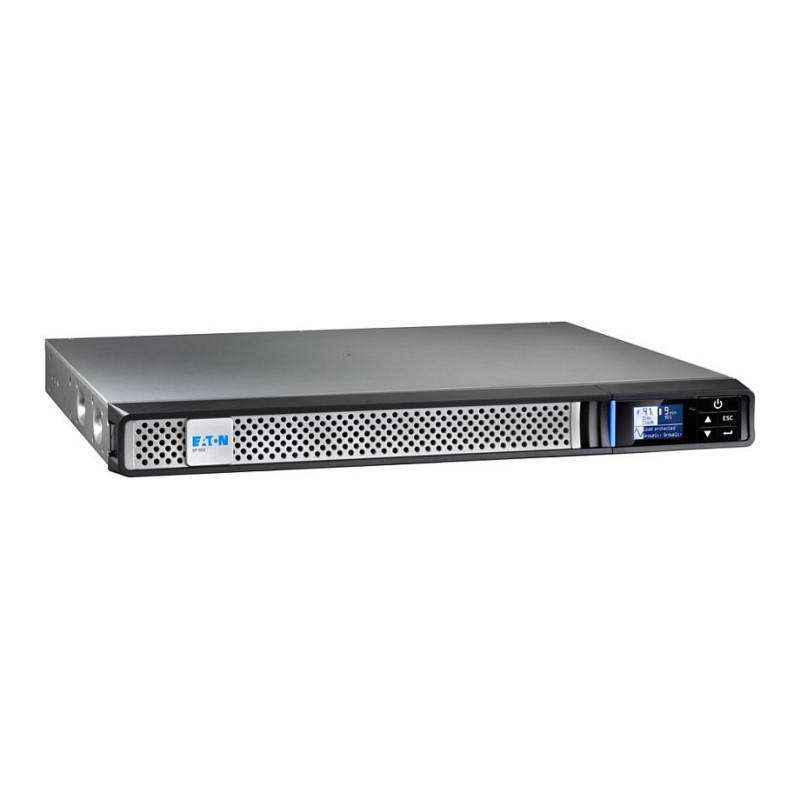

Eaton 5P650IRNG2 nepertraukiamo maitinimo šaltinis (UPS)

Eaton 5P650IRNG2. UPS topology: Line-Interactive, Output power capacity: 0.65 kVA, Output power: 520 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery voltage: 6 V. Form factor: Rackmount, Product colour: Black, Silver, Display type: LCD. Compliance certificates: Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), RoHS, Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS

Features

UPS topology: Line-Interactive
Output power capacity: 0.65 kVA
Output power: 520 W
Waveform: Sine
Input operation voltage (min): 150 V
Input operation voltage (max): 294 V
Input frequency: 47/70 Hz
Output operation voltage (min): 200 V
Output operation voltage (max): 240 V
Output frequency: 50/60 Hz
Feature: Automatic Voltage Regulation (AVR)
Heat dissipation: 461 BTU/h
Number of input phases: 1
Number of output phases: 1
Efficiency: 97%
Power factor: 0.8
Noise level: 35 dB

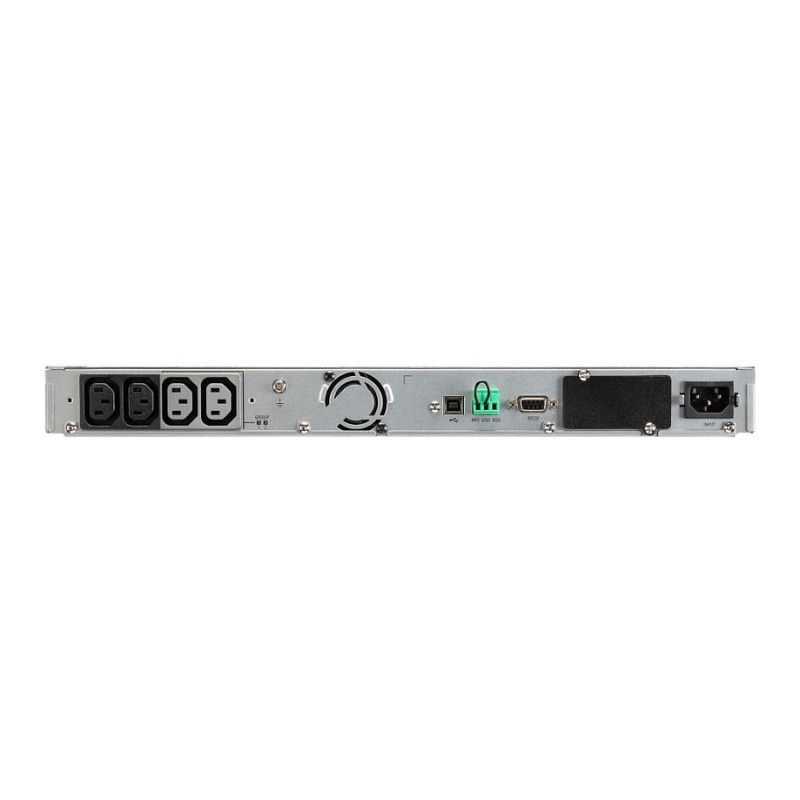

Ports & interfaces

AC outlet types: C13 coupler
Power plug: C14 coupler
AC outlets quantity: 4 AC outlet(s)
Feature: USB port
USB port type: USB Type-B
Feature: Serial interface
Serial interface type: RS-232
Serial ports quantity: 1
RS-232 ports: 1

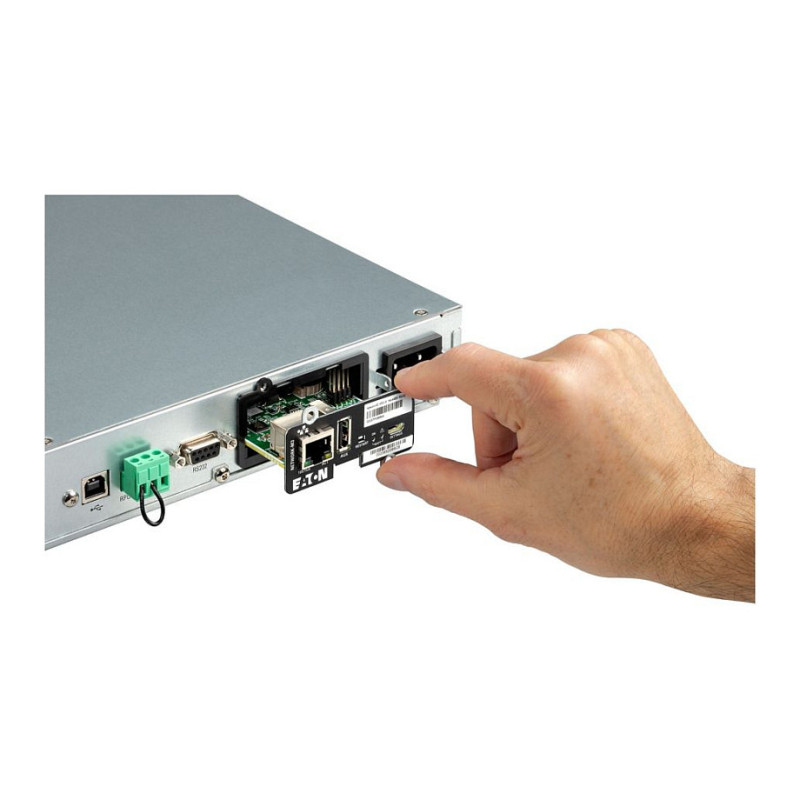

Feature: Network card slot

Battery

Battery technology: Sealed Lead Acid (VRLA)
Battery capacity: 9 Ah
Battery voltage: 6 V
Number of battery cells: 2
Typical backup time at half load: 7 min
Feature: Hot-swap battery

Design

Form factor: Rackmount
Product colour: Black, Silver

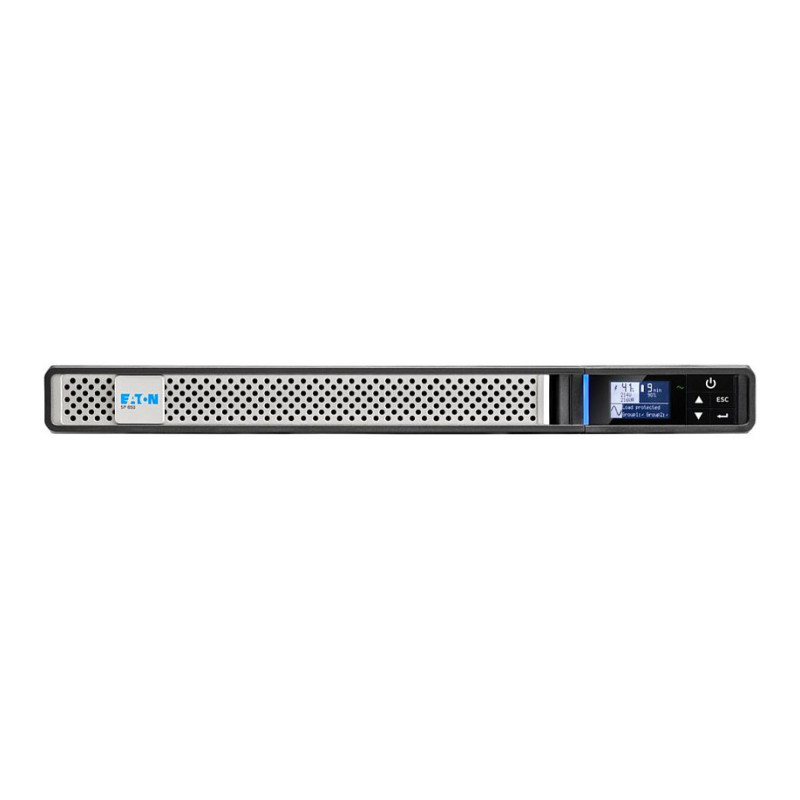

Display type: LCD

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 90%
Operating altitude: 0 - 3000 m

Certificates

Feature: Waste Electrical and Electronic Equipment (WEEE) compliance
Compliance certificates: Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), RoHS
Certification: IEC/EN 62040-1IEC/EN 62040-2IEC/EN 62040-3UL 1778CSA-C22.2CEUKCACmUkrKCCcTUVusBIS

Packaging content

Feature: Rack mount kit
Cables included: USB cable
Feature: Quick installation guide

Weight & dimensions

Width: 438 mm
Depth: 361 mm
Height: 43.2 mm
Weight: 8.68 kg
