„Eaton 5P Gen2“ nepertraukiamo maitinimo šaltinis (UPS)

Eaton 5P Gen2. UPS topology: Line-Interactive, Output power: 520 W, Waveform: Sine. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Lead-Acid, Battery capacity: 9 Ah, Battery voltage: 12 V. Form factor: Tower, Product colour: Black, Silver, Display type: LCD. Compliance certificates: Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), RoHS, WEEE, Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS

Features

UPS topology: Line-Interactive
Output power: 520 W
Waveform: Sine
Input operation voltage (min): 160 V
Input operation voltage (max): 294 V
Input frequency: 47/70 Hz
Output operation voltage (max): 230 V
Output frequency: 50/60 Hz
Number of input phases: 1
Number of output phases: 1
Efficiency: 98.2%
Noise level: 35 dB
Feature: Auto shut-off

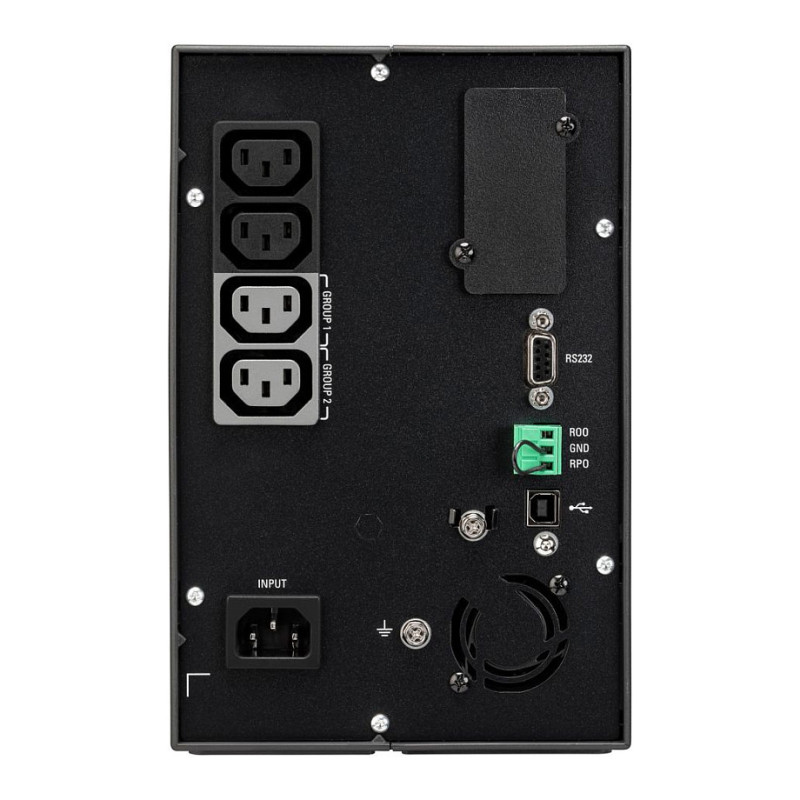

Ports & interfaces

AC outlet types: C13 coupler
Power plug: C14 coupler
AC outlets quantity: 8 AC outlet(s)
Feature: USB port
Feature: Serial interface
Serial interface type: RS-232
Serial ports quantity: 1

Battery

Battery technology: Lead-Acid
Battery capacity: 9 Ah
Battery voltage: 12 V
Number of batteries supported: 1

Design

Form factor: Tower
Product colour: Black, Silver
Display type: LCD

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 90%
Operating altitude: 0 - 3000 m

Certificates

Compliance certificates: Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), RoHS, WEEE
Certification: IEC/EN 62040-1IEC/EN 62040-2IEC/EN 62040-3UL 1778CSA-C22.2CEUKCACmUkrKCCcTUVusBIS

Packaging content

Cables included: USB cable
Feature: Quick installation guide

Weight & dimensions

Width: 150 mm
Depth: 345 mm
Height: 233 mm
Weight: 7.9 kg
