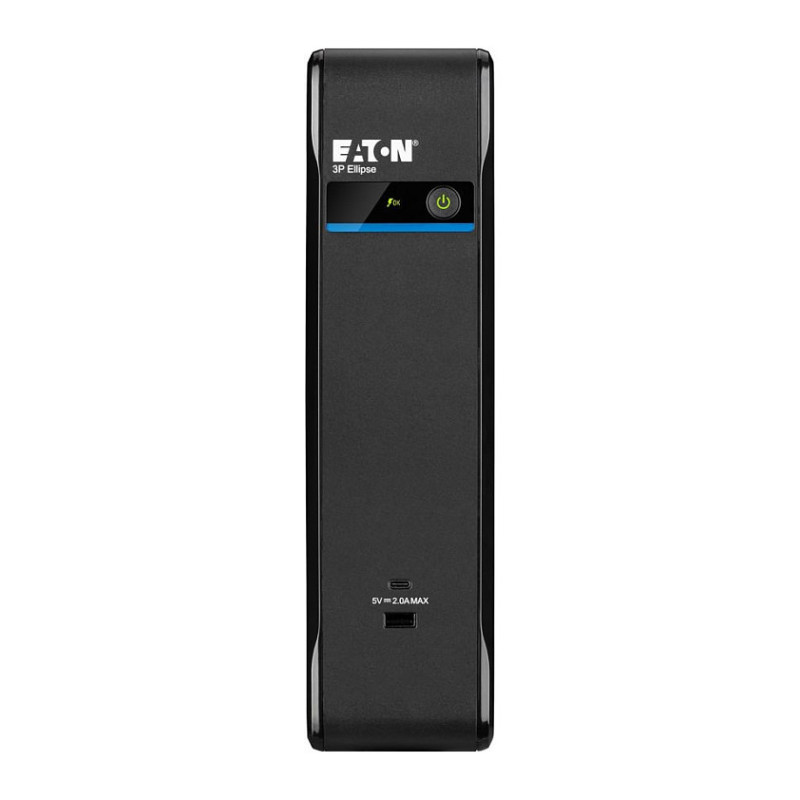

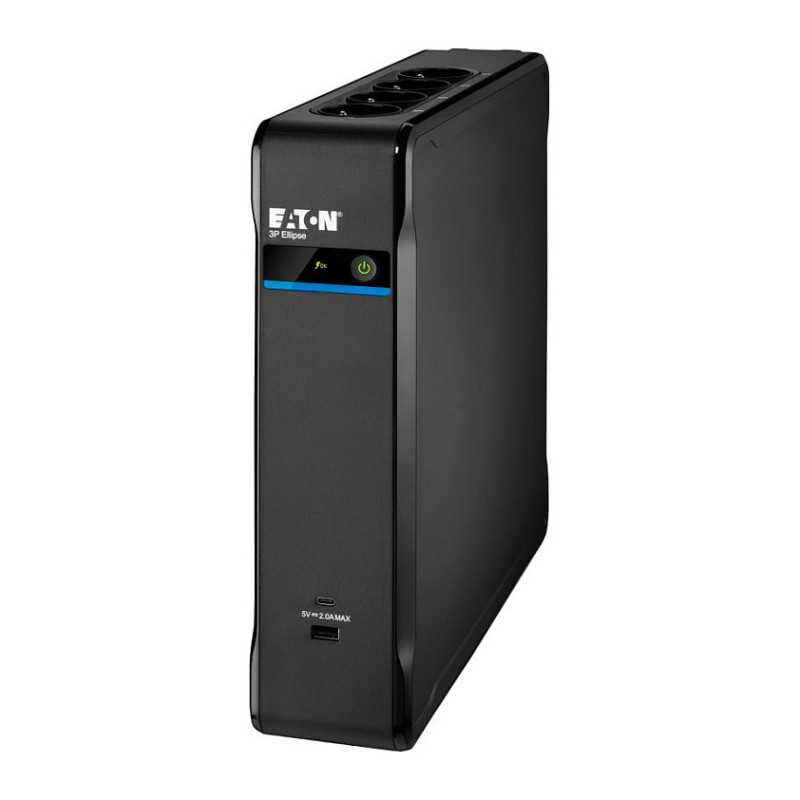

Eaton 3P Ellipse UPS uninterruptible power supply (UPS)

Eaton 3P Ellipse UPS. UPS topology: Standby (Offline), Output power capacity: 1.7 kVA, Output power: 1040 W. AC outlet types: C13 coupler, AC outlets quantity: 8 AC outlet(s). Battery capacity: 9 Ah, Battery voltage: 12 V. Form factor: Tower, Product colour: Black, Control type: Buttons. Compliance certificates: CB, CE, RoHS, WEEE, Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CE UKCA Ukr Cm

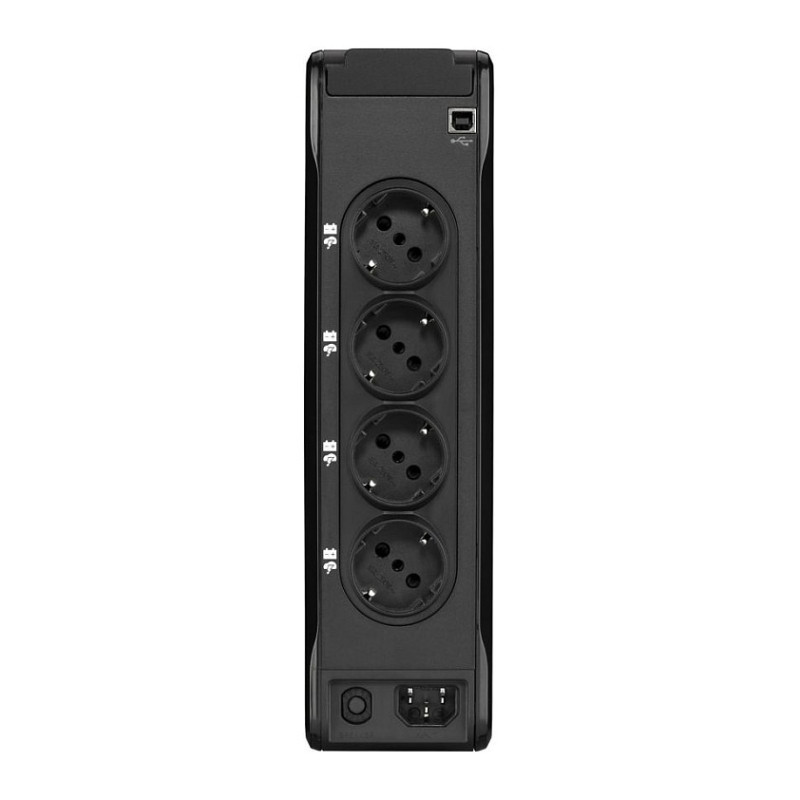

Eaton 3P Ellipse UPS USB DIN, 1700 VA, 1040 W, Input: C14, Outputs: (4) Schuko, (4) Schuko surge only, USB charge, Tower

Features

UPS topology: Standby (Offline)
Output power capacity: 1.7 kVA
Output power: 1040 W
Waveform: Stepwise
Input operation voltage (min): 161 V
Input operation voltage (max): 284 V
Input frequency: 46/70 Hz
Output operation voltage (min): 161 V
Output operation voltage (max): 284 V
Output frequency: 50/60 Hz
Power consumption (average operating): 32.2 W
Number of input phases: 1
Number of output phases: 1
Efficiency: 97%
Efficiency (ECO mode): 97%
Output power factor: 0.6
Noise level: 25 dB
Feature: Surge protection
Feature: Auto shut-off

Ports & interfaces

AC outlet types: C13 coupler
AC outlets quantity: 8 AC outlet(s)
Feature: USB port
USB 2.0 ports quantity: 2
Ethernet LAN (RJ-45) ports: 1

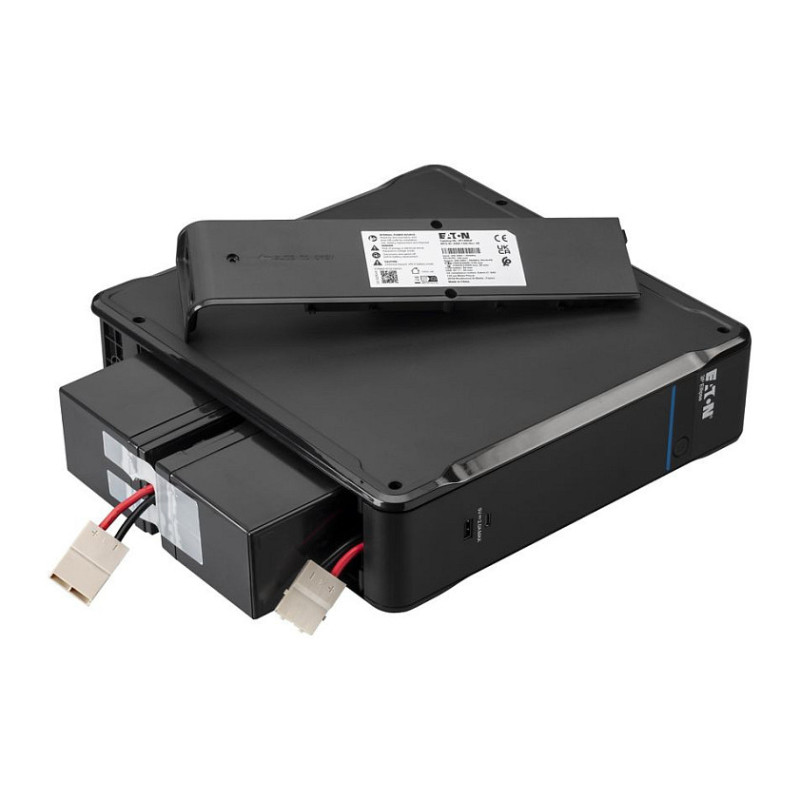

Battery

Battery capacity: 9 Ah
Battery voltage: 12 V
Number of batteries supported: 2

Design

Form factor: Tower
Product colour: Black
Control type: Buttons

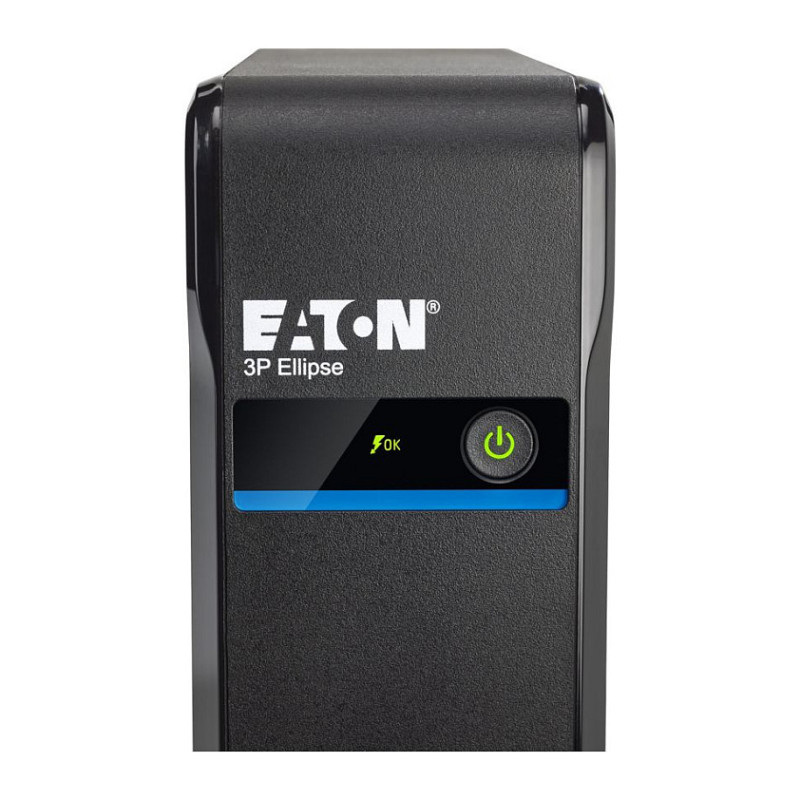

Display type: LED

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Certificates

Feature: Waste Electrical and Electronic Equipment (WEEE) compliance
Compliance certificates: CB, CE, RoHS, WEEE
Certification: IEC/EN 62040-1IEC/EN 62040-2IEC/EN 62040-3CEUKCAUkrCm

Packaging content

Cables included: USB cable
Feature: Quick installation guide

Weight & dimensions

Width: 81 mm
Depth: 312 mm
Height: 305 mm
Weight: 7.8 kg

Packaging data

Package type: Box

Other features

Input connection type: C14
Nominal input voltage: 220-240 V
Relative humidity: 0 - 95%
