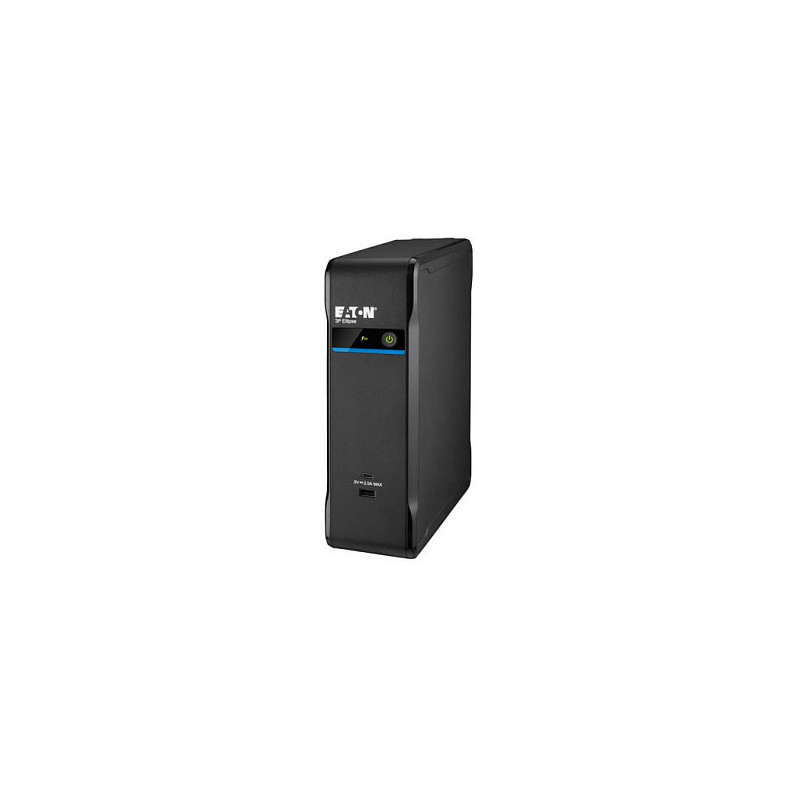

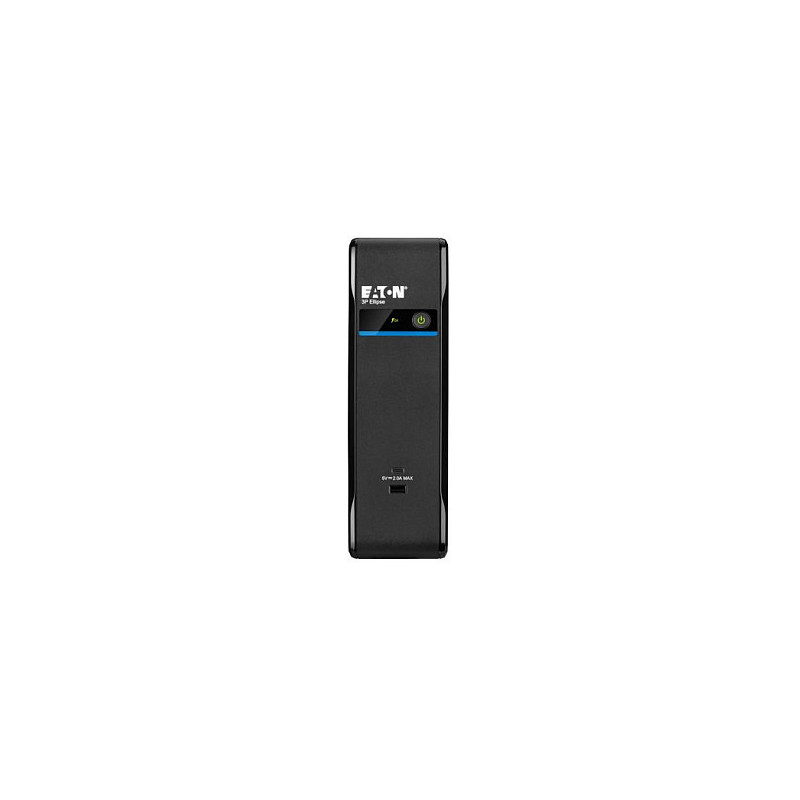

„Eaton 3P Ellipse UPS“ nepertraukiamo maitinimo šaltinis (UPS)

Eaton 3P Ellipse UPS. UPS topology: Standby (Offline), Output power capacity: 0.7 kVA, Output power: 420 W. AC outlet types: C1 coupler, C3 coupler, AC outlets quantity: 4 AC outlet(s), USB port type: USB Type A/USB Type-C. Battery technology: Lead-Acid, Battery capacity: 7 Ah, Battery voltage: 12 V. Form factor: Tower, Product colour: Black, Cable length: 1.5 m. Compliance certificates: CB, CE, RoHS, WEEE, Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CE UKCA Ukr Cm

The 3P Ellipse UPS is Eaton's latest addition to its power protection solution portfolio. Sleek, attractively designed and silent in operation, this compact UPS offers an exceptional user experience for backup power in both residential and small business settings.

Power up with confidence
Enjoy up to 12% more power than the previous Ellipse ECO models and a typical runtime of 15 to 20 minutes, ensuring you can handle disruptions smoothly.

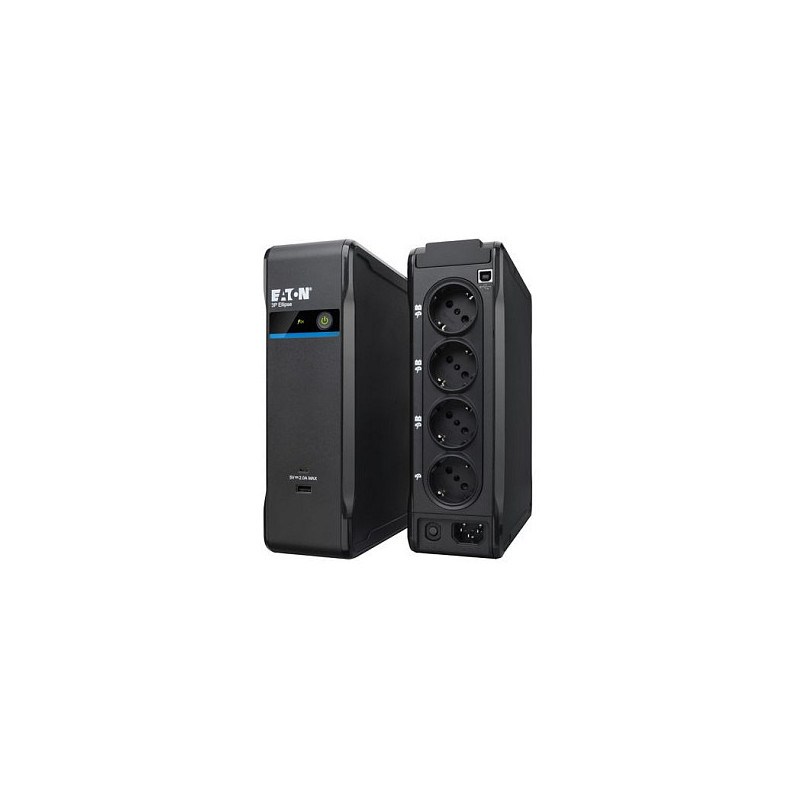

Save yourself the hassle and the need for additional adapters, by plugging your equipment directly into the UPS using FR, DIN/IT, and IEC outlet options. This unique feature in a predominantly IEC-only market ensures convenience.

Operate any device with confidence, thanks to the built-in surge protection that meets the high-level IEC 61643-11 standards.

Designed for your space

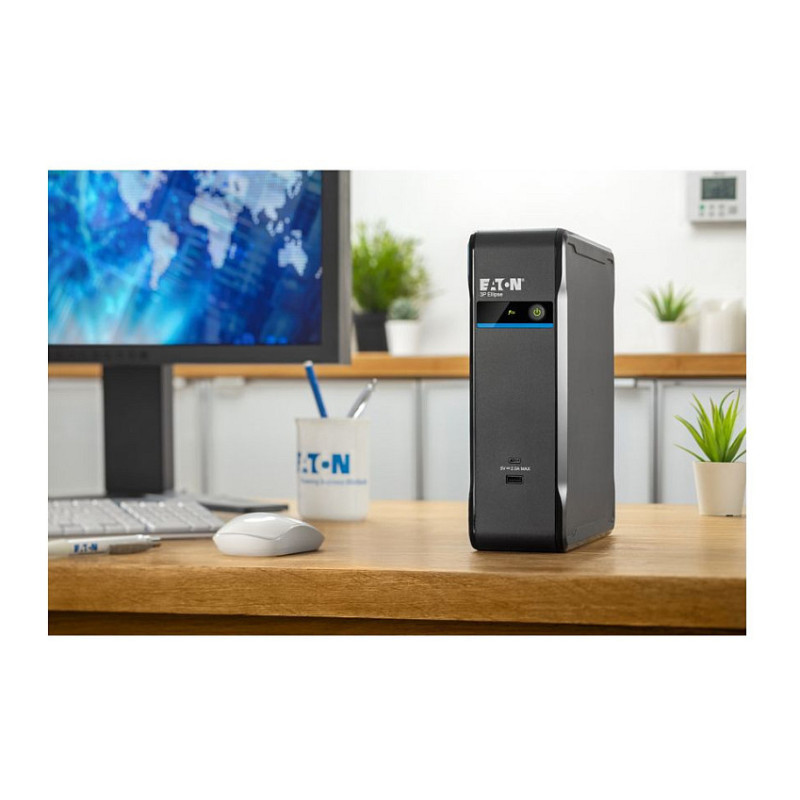

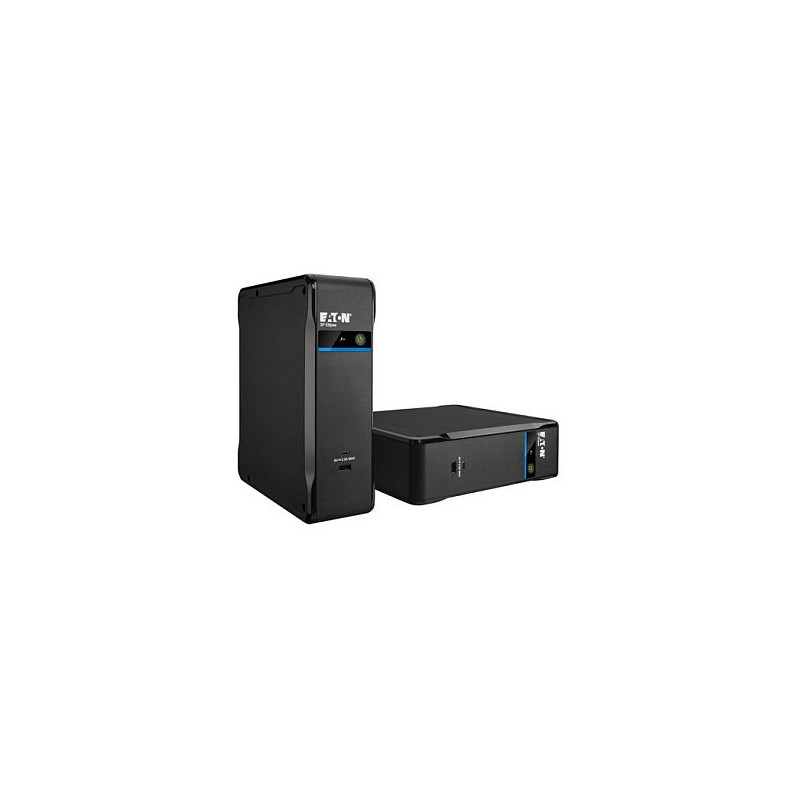

Complement any interior with 3P's contemporary good looks that also come with versatile usability. Flexible,

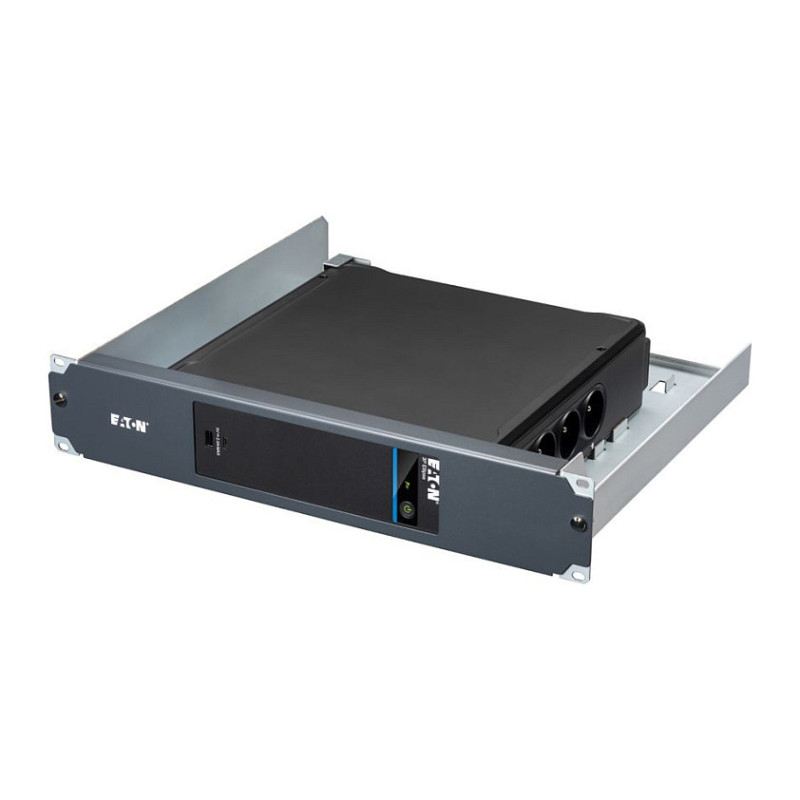

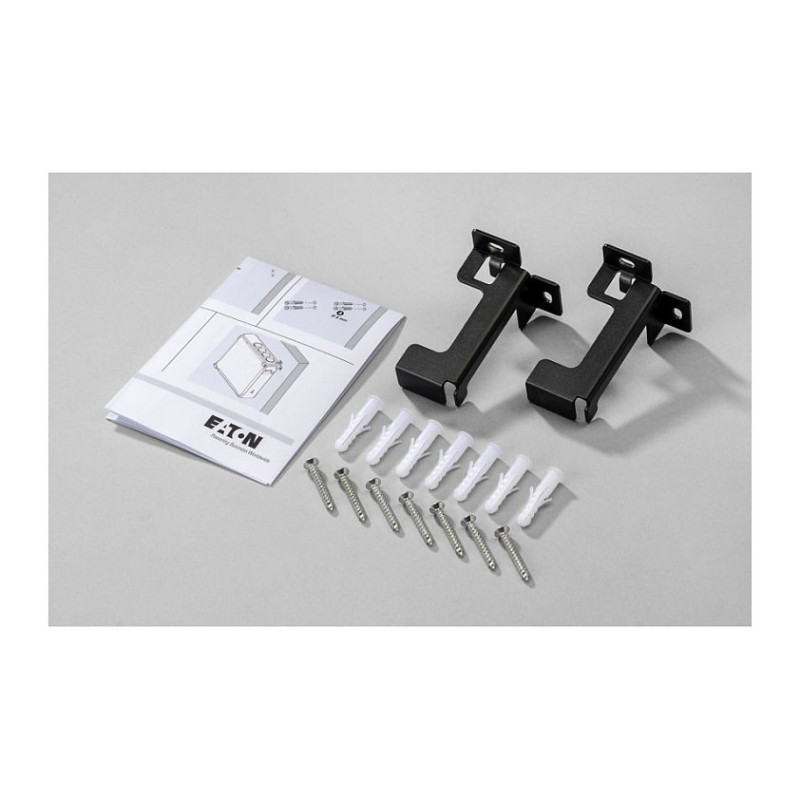

multi-position design allows the UPS to fit seamlessly into any environment horizontally, vertically, as well as rack or wall-mounted (with optional kits).

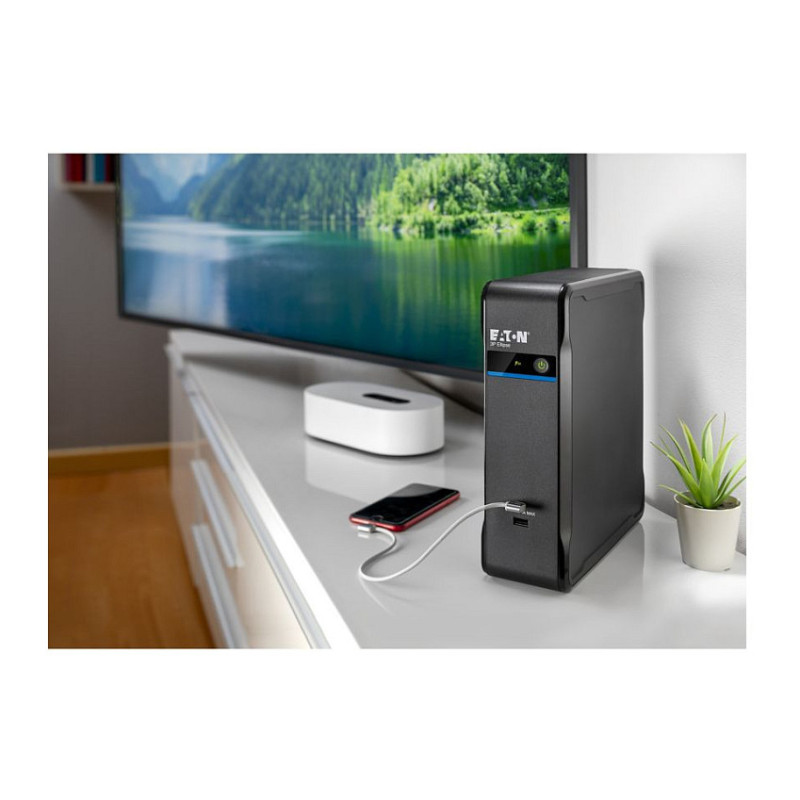

Charge mobile devices whenever you need to using 3P's choice of USB-A and USB-C charging ports. Watch, listen or work without distraction. Enjoy a silent user experience in both residential and business settings thanks to 3P's discreet, no-fan engineering.

Control at your fingertips
Access status and notifications in real time via mobile app or web browser with an optional CLOUDPS card. With remote now the 'new normal' for many small businesses, cloud connectivity brings added control and peace of mind from any location.

Features

UPS topology: Standby (Offline)
Output power capacity: 0.7 kVA
Output power: 420 W
Waveform: Stepwise
Input operation voltage (min): 184 V
Input operation voltage (max): 264 V
Input frequency: 46/70 Hz
Output operation voltage (min): 184 V
Output operation voltage (max): 264 V
Number of input phases: 1
Number of output phases: 1
Efficiency: 97%
Output power factor: 0.6
Noise level: 25 dB
Feature: Surge protection
Feature: Auto shut-off

Ports & interfaces

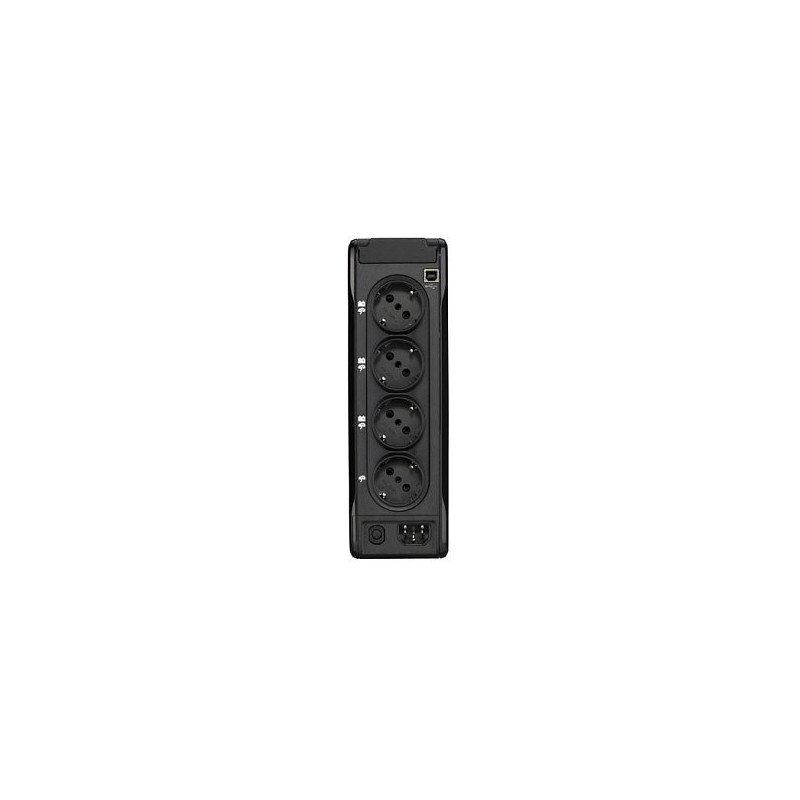

AC outlet types: C1 coupler, C3 coupler
AC outlets quantity: 4 AC outlet(s)
Feature: USB port
USB port type: USB Type A/USB Type-C
Ethernet LAN (RJ-45) ports: 1

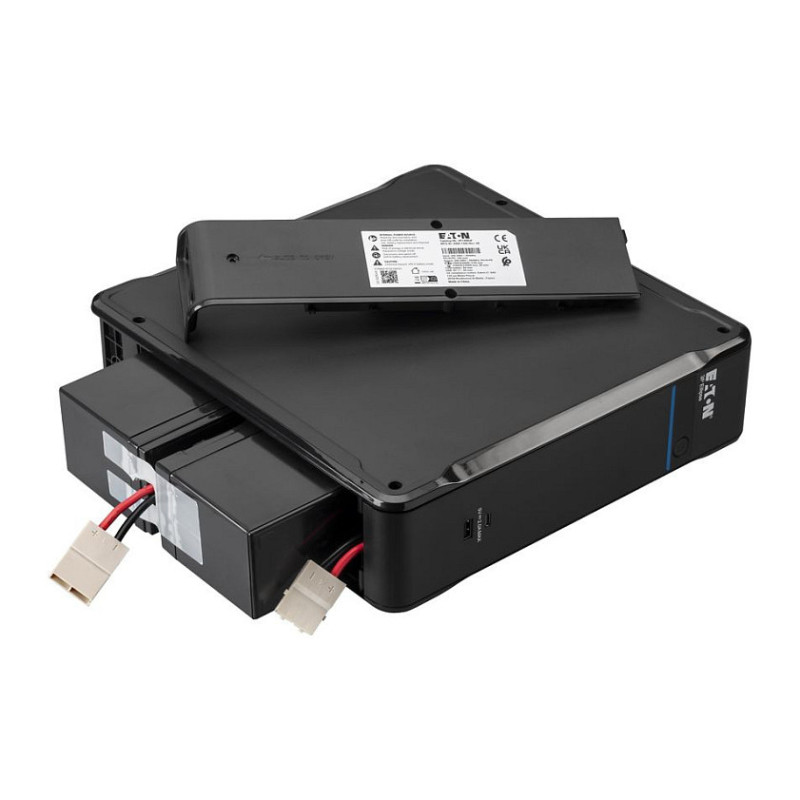

Battery

Battery technology: Lead-Acid
Battery capacity: 7 Ah
Battery voltage: 12 V
Number of batteries supported: 1
Feature: Automatic battery test
Feature: Cold start

Design

Form factor: Tower
Cable length: 1.5 m
Product colour: Black

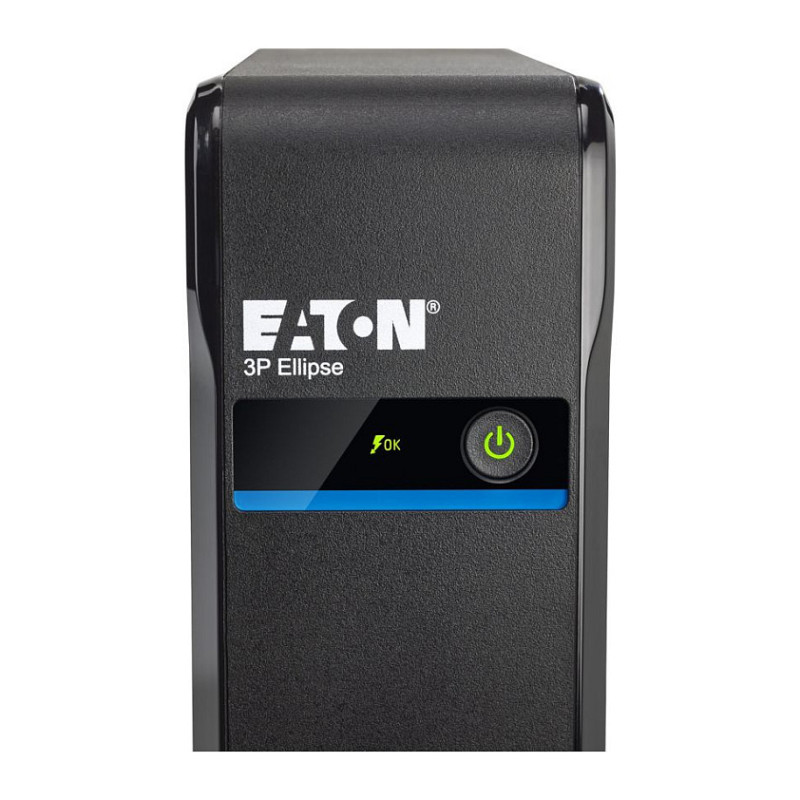

Display type: LED

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Certificates

Feature: Waste Electrical and Electronic Equipment (WEEE) compliance
Compliance certificates: CB, CE, RoHS, WEEE
Certification: IEC/EN 62040-1IEC/EN 62040-2IEC/EN 62040-3CEUKCAUkrCm

Packaging content

Cables included: USB cable
Feature: Quick installation guide

Weight & dimensions

Width: 81 mm
Depth: 235 mm
Height: 263 mm
Weight: 3.9 kg

Packaging data

Package type: Box

Other features

Input connection type: C14
Nominal input voltage: 220-240 V
Relative humidity: 0 - 95%
