„Digitus DN-170093“ nepertraukiamo maitinimo šaltinis (UPS)

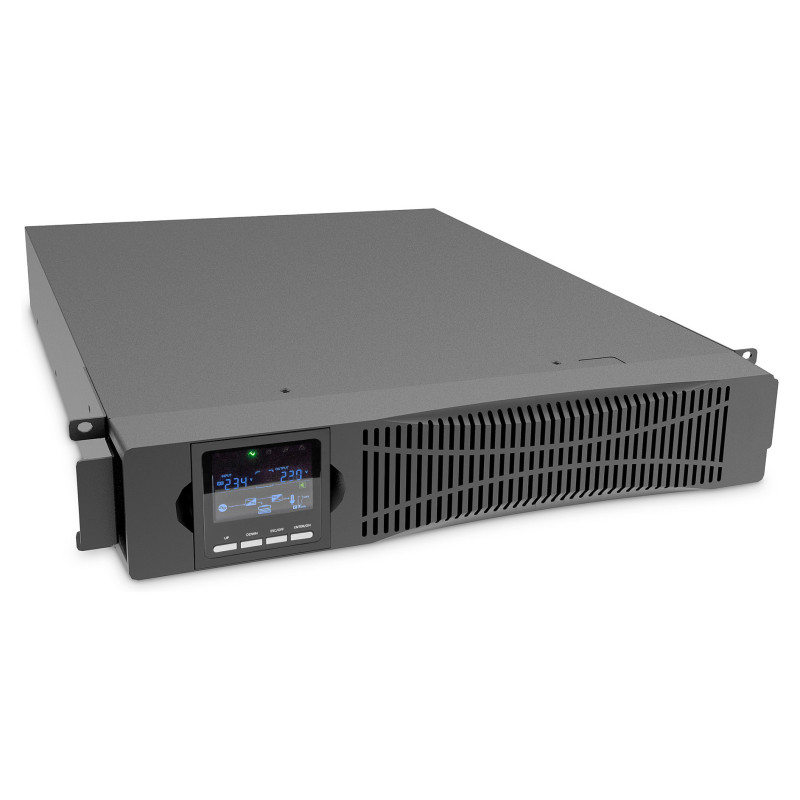

Digitus OnLine UPS system, 1000 VA/ 1000 W. UPS topology: Double-conversion (Online), Output power capacity: 1.5 kVA, Output power: 1000 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery voltage: 12 V. Form factor: Rackmount/Tower, Product colour: Black, Display type: LCD. Cables included: RS-232, USB cable

The OnLine UPS is an ideal backup solution for your demanding power requirements and offers high reliability in various industrial applications.

- High power factor (1.0), a higher active power enables more connected loads, which saves space and reduces costs.
- High efficiency in online mode, higher efficiency means optimized energy management and lower heat dissipation, resulting in energy savings and improved reliability.
- User-friendly LCD screen provides insight into the UPS status for easy installation, configuration and operation.

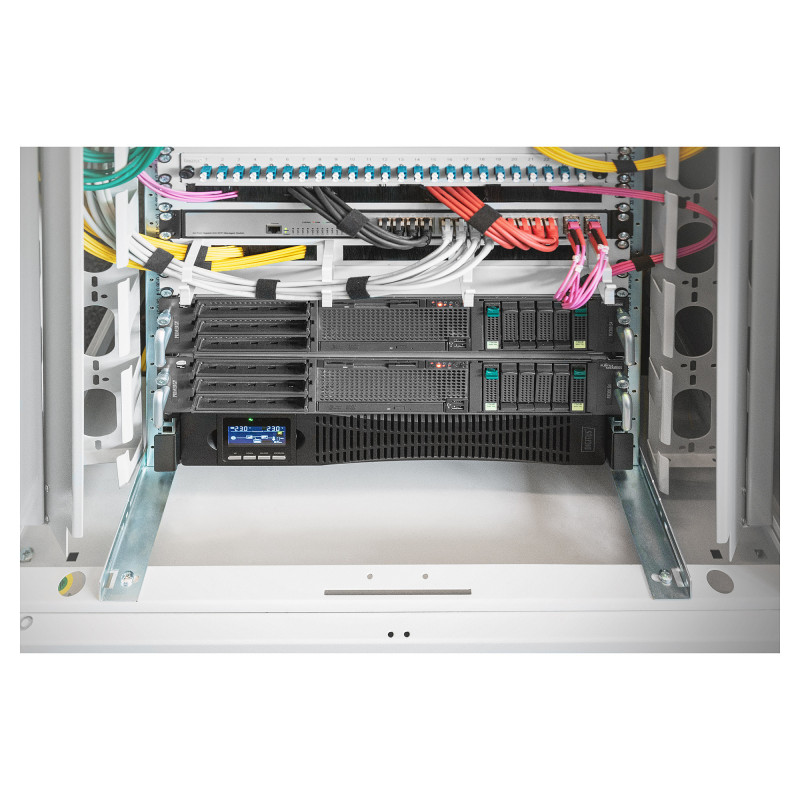

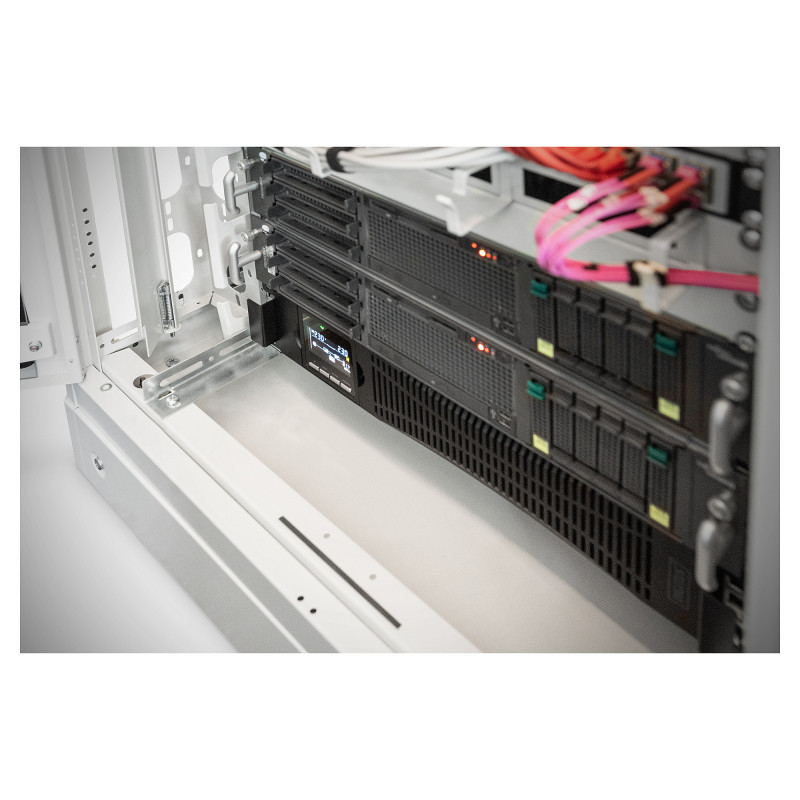

- Compact rack/tower design optimizes installation space in the rack and enables flexible installation.
- Minimize device downtime with hot-swappable, user-replaceable battery modules that can be replaced during operation.
- External battery modules allow the runtime to be extended.

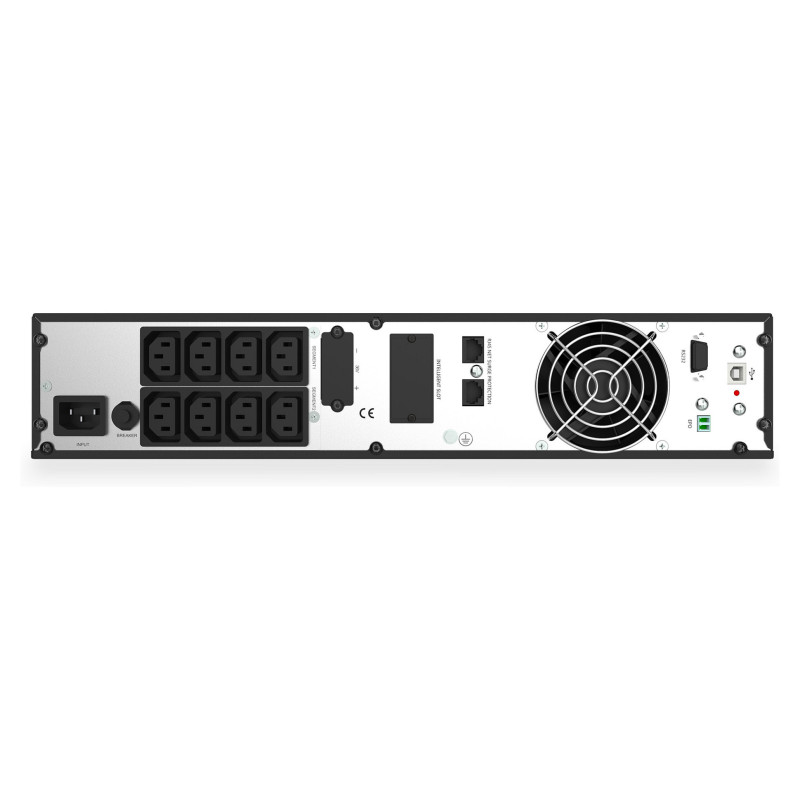

- High number of outlets (8 x C13) for optimum power distribution to the consumers.
- Various communication interfaces (RS232/USB, parallel port, SNMP slot) enable remote monitoring of the system.
- Automatic battery self-test and fan speed control increase the service life of the components.
- The REPO function (Remote Emergency Power Off) switches the UPS off in the event of an emergency. If an emergency occurs, the REPO switch turns off the rectifier and the inverter and immediately stops the power supply to the load. The UPS stops charging.

The DIGITUS® OnLine UPS is a double-conversion UPS solution that offers first-class power failure protection and continuous power generation in a compact and flexible system. The single-phase UPS operates with high energy efficiency and is ideal for protecting critical infrastructure in both centralized and edge network applications. Scalable runtime options with matching external battery cabinets provide additional flexibility when a longer uninterruptible power supply is required. The user-friendly LCD display and network management capability, including configuration, make this system easy to install and maintain. With market-leading efficiency and unity power factor, the UPS meets your critical application requirements.

Features

UPS topology: Double-conversion (Online)
Output power capacity: 1.5 kVA
Output power: 1000 W
Input operation voltage (min): 208 V
Input operation voltage (max): 240 V
Maximum current: 10 A
Efficiency: 93%
Efficiency (ECO mode): 98%
Power factor: 1
Feature: ECO mode

Ports & interfaces

AC outlet types: C13 coupler
Power plug: C14 coupler
AC outlets quantity: 8 AC outlet(s)
Feature: USB port
USB 2.0 ports quantity: 1
Feature: Serial interface
Serial interface type: RS-232
RS-232 ports: 1
Ethernet LAN (RJ-45) ports: 2
Feature: Emergency Power Off (EPO) connector

Battery

Battery technology: Sealed Lead Acid (VRLA)
Battery capacity: 9 Ah
Battery voltage: 12 V
Number of batteries supported: 2
Battery recharge time(90%): 4 h

Design

Form factor: Rackmount/Tower
Product colour: Black
Display type: LCD

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -25 - 55 °C
Operating relative humidity (H-H): 20 - 90%
Operating altitude: 0 - 1500 m

Packaging content

Feature: Rack mount kit
Cables included: RS-232, USB cable
Feature: Manual

Weight & dimensions

Width: 440 mm
Depth: 325 mm
Height: 86.5 mm
Weight: 11.3 kg

Packaging data

Package width: 467 mm
Package depth: 555 mm
Package height: 200 mm
Package weight: 14.3 kg
Package volume: 52355.4 cm³

Logistics data

UK Trade Tariff code: 85044085
Country of origin: China

Other features

Size (imperial): 48.3 cm (19")
