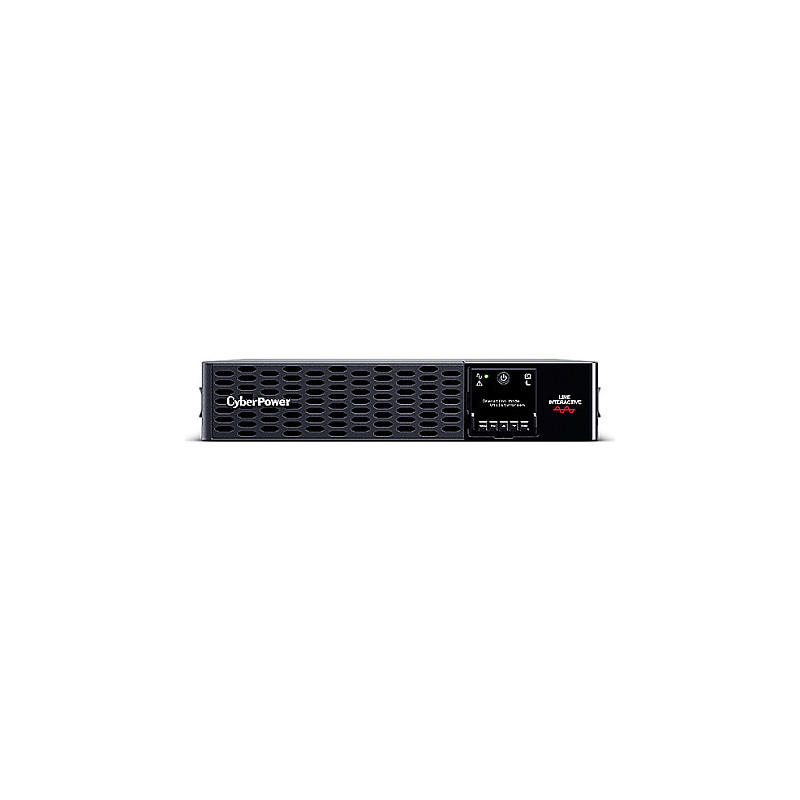

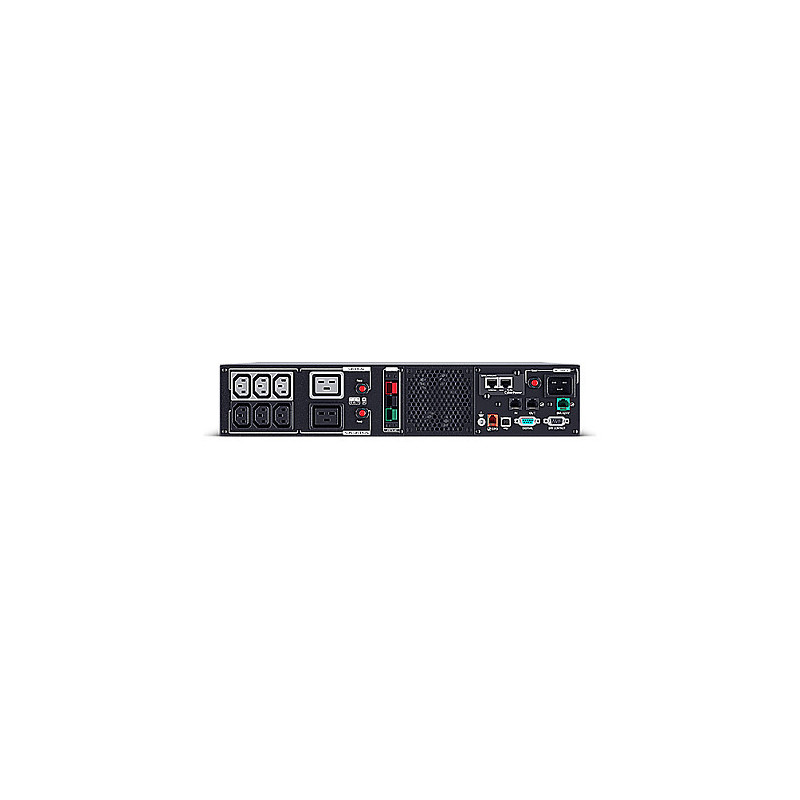

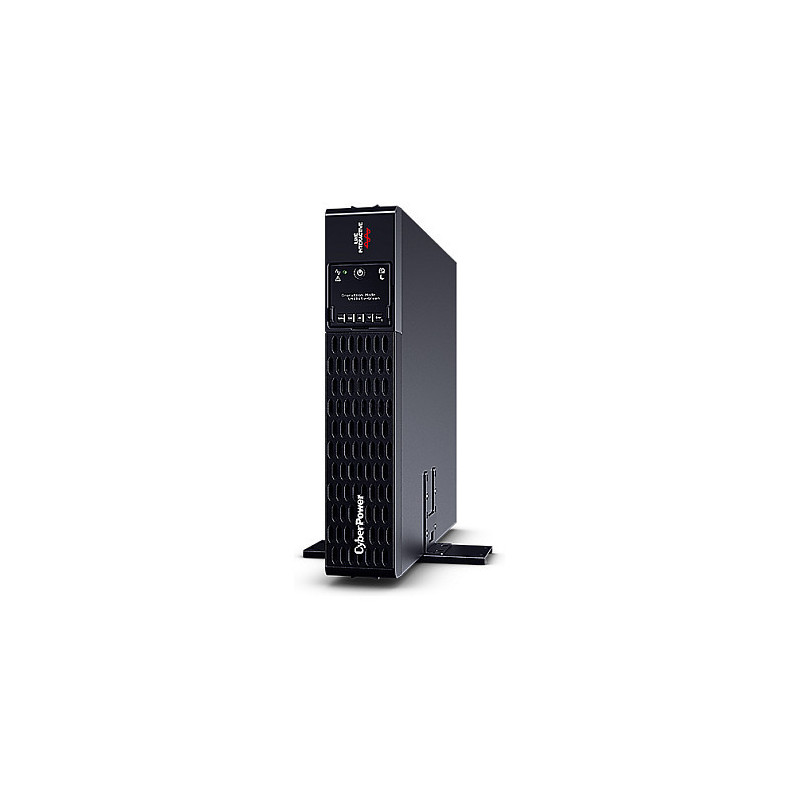

„CyberPower PR3000ERTXL2UAN“ nepertraukiamo maitinimo šaltinis (UPS)

CyberPower PR3000ERTXL2UAN. UPS topology: Line-Interactive, Output power capacity: 3 kVA, Output power: 3000 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 3.8 min, Typical backup time at half load: 11.2 min. Form factor: Rackmount/Tower, Product colour: Black, Housing material: Metal. Compliance certificates: CE, Federal Communications Commission (FCC), RoHS, UL, VCCI

Features

UPS topology: Line-Interactive
Output power capacity: 3 kVA
Output power: 3000 W
Waveform: Pure sine
Input operation voltage (min): 159 V
Input operation voltage (max): 288 V
Input frequency: 50/60 Hz
Output operation voltage (min): 220 V
Output operation voltage (max): 240 V
Output frequency: 50/60 Hz
Feature: Automatic Voltage Regulation (AVR)
Maximum current: 16 A
Surge energy rating: 2430 J
Response time: 4 ms
Heat dissipation: 120.8 BTU/h
Number of input phases: 1
Number of output phases: 1
Power factor: 1
Feature: Emergency Power Off (EPO)
Feature: EMI/RFI noise filtering
Feature: Surge protection
Power protection features: Overload
Feature: Audible alarm(s)
Management protocols: SNMP/HTTP
Audible alarm modes: Alarm when on battery, Low battery alarm, Overload alarm

Ports & interfaces

AC outlet types: C13 coupler, C19 coupler
Power plug: C20 coupler
AC outlets quantity: 8 AC outlet(s)
Feature: USB port
USB 2.0 ports quantity: 1
USB port type: USB Type-B
Feature: Serial interface
Serial interface type: RS-232
Serial ports quantity: 1
RS-232 ports: 1
Ethernet LAN (RJ-45) ports: 2
Feature: Emergency Power Off (EPO) connector

Battery

Battery technology: Sealed Lead Acid (VRLA)
Number of batteries supported: 1
Typical backup time at full load: 3.8 min
Typical backup time at half load: 11.2 min
Battery recharge time: 3 h
Feature: Hot-swap battery

Design

Form factor: Rackmount/Tower
Housing material: Metal
Rack capacity: 2U
Cable length: 2.4 m
Cooling type: Active
Feature: Built-in fan
Product colour: Black
Control type: Buttons
Display type: LCD
LED indicators: Error, Operation

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -15 - 45 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 15000 m

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS, UL, VCCI

Packaging content

Feature: Rack mount kit
Cables included: Serial, USB cable
Feature: Manual

Sustainability

Feature: Sustainability compliance
Sustainability certificates: ENERGY STAR

Weight & dimensions

Width: 433 mm
Depth: 630 mm
Height: 86.5 mm
Weight: 38.9 kg

Packaging data

Package width: 560 mm
Package depth: 770 mm
Package height: 275 mm
Package weight: 50.5 kg

Logistics data

Harmonized System (HS) code: 8504408590
Warranty period: 3 year(s)
Country of origin: China

Other features

Battery type: RBP0130
