„CyberPower PR1000ERT2UC“ nepertraukiamo maitinimo šaltinis (UPS)

CyberPower PR1000ERT2UC. UPS topology: Line-Interactive, Output power capacity: 1 kVA, Output power: 1000 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 6.5 min, Typical backup time at half load: 19.3 min. Form factor: Rackmount/Tower, Product colour: Black, Housing material: Metal. Compliance certificates: CE, Federal Communications Commission (FCC), RCM, RoHS, UL, VCCI

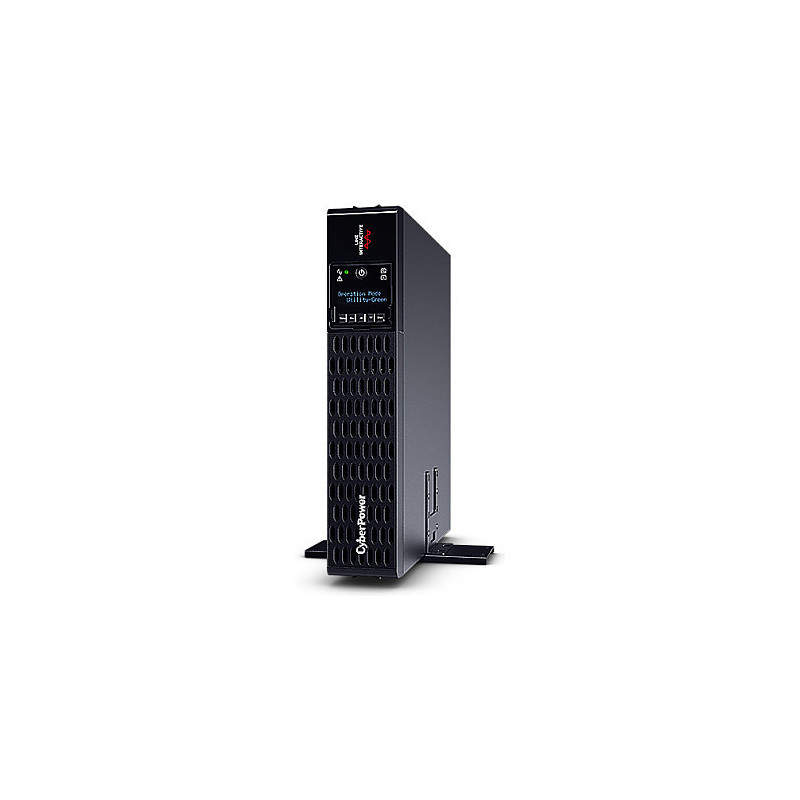

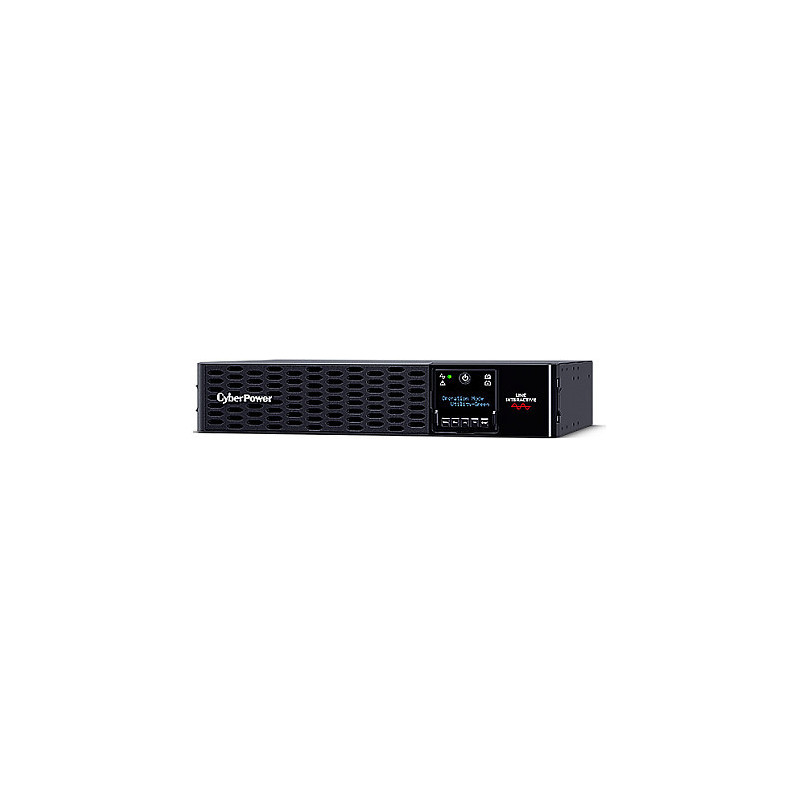

CyberPower PR1000ERT2UC with rackmount design guarantees power backup protection for home theater systems, multimedia devices, IT equipment, computers, workstations, NAS/Storage devices, telecom devices, networking devices, and surveillance systems. The UPS adopts line-interactive topology with Automatic Voltage Regulation (AVR) function, and offers stabilized Pure Sine Wave output to ensure high power quality.

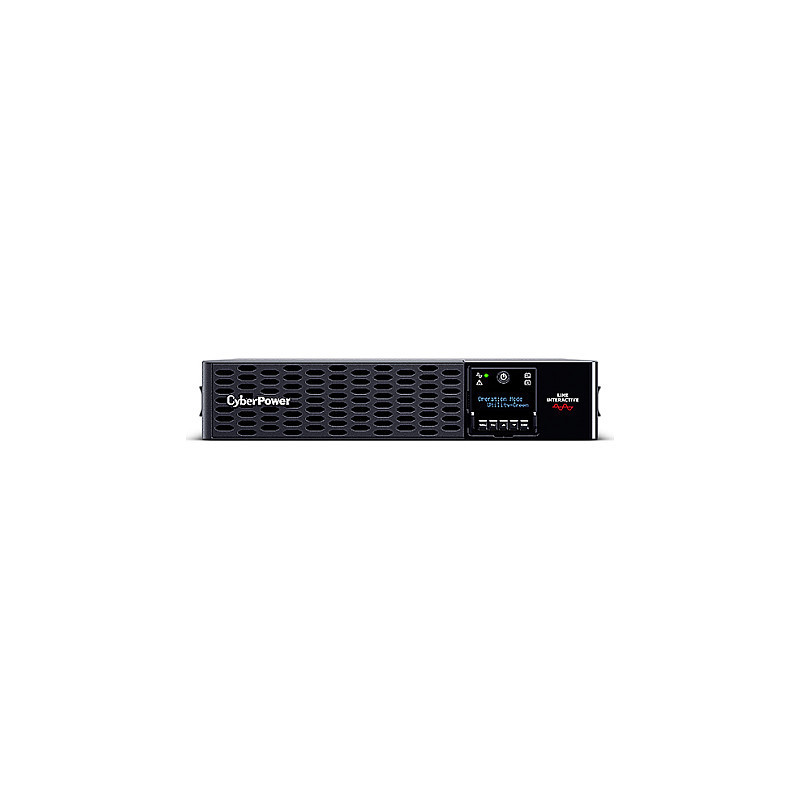

The UPS's output power factor is 1, which means it is capable of connecting to more critical loads than conventional UPS. It also features Battery Management Technology to help batteries obtain optimal life span by balancing battery string voltage. Two-phase battery charging can charge the battery quickly and safely. The hot-swappable battery packs allow for easy maintenance without power interruption. Its multi-functional matrix LCD supports intuitive operation and quick configuration. The LCD panel is also rotatable to meet installation requirements.

Features

UPS topology: Line-Interactive
Output power capacity: 1 kVA
Output power: 1000 W
Waveform: Pure sine
Input operation voltage (min): 200 V
Input operation voltage (max): 240 V
Input frequency: 50/60 Hz
Output operation voltage (min): 220 V
Output operation voltage (max): 240 V
Output frequency: 50/60 Hz
Feature: Automatic Voltage Regulation (AVR)
Maximum current: 16 A
Surge energy rating: 2430 J
Response time: 6 ms
Heat dissipation: 96.7 BTU/h
Number of input phases: 1
Number of output phases: 1
Output power factor: 1
Power Factor Correction (PFC) type: Active
Feature: Emergency Power Off (EPO)
Feature: EMI/RFI noise filtering
Feature: Surge protection
Power protection features: Overload
Audible alarm modes: Alarm when on battery, Fault, Low battery alarm, Overload alarm
Power source type: AC
Feature: Detachable power cord

Ports & interfaces

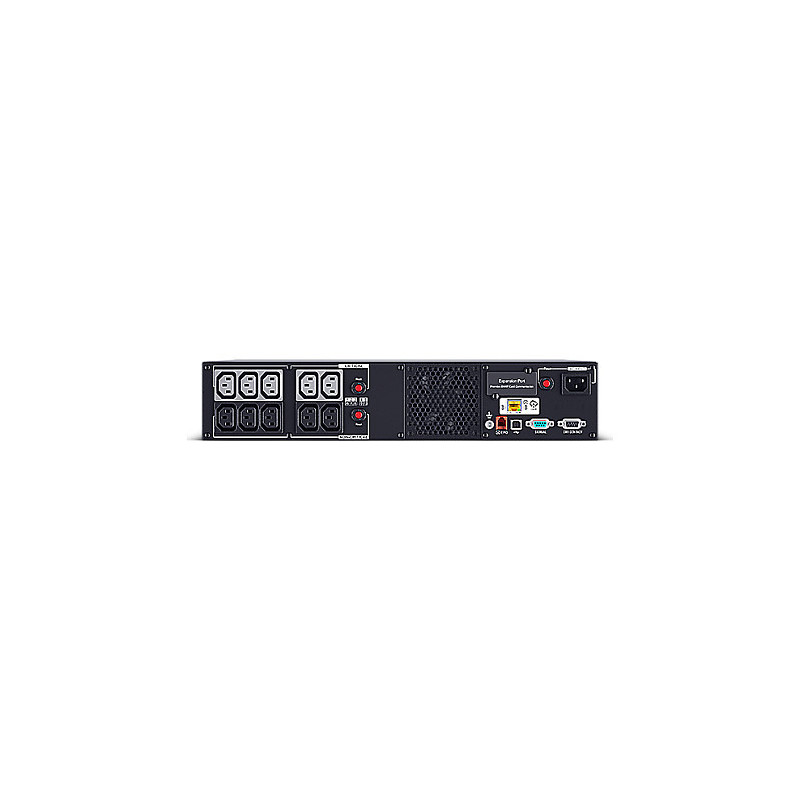

AC outlet types: C13 coupler
Power plug: C14 coupler
AC outlets quantity: 10 AC outlet(s)
Feature: USB port
USB 2.0 ports quantity: 1
USB port type: USB Type-B
Feature: Serial interface
Serial interface type: RS-232
Serial ports quantity: 2
RS-232 ports: 2
Ethernet LAN (RJ-45) ports: 2
Feature: Emergency Power Off (EPO) connector

Battery

Battery technology: Sealed Lead Acid (VRLA)
Number of batteries supported: 1
Typical backup time at full load: 6.5 min
Typical backup time at half load: 19.3 min
Battery recharge time: 3 h
Feature: Hot-swap battery

Design

Form factor: Rackmount/Tower
Housing material: Metal
Rack capacity: 2U
Extended battery module rack capacity: 2U
Cable length: 3.05 m
Cooling type: Active
Feature: Built-in fan
Product colour: Black
Control type: Buttons
Display type: LCD
LED indicators: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -15 - 45 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 15000 m

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), RCM, RoHS, UL, VCCI

Packaging content

Feature: Batteries included
Feature: Rack mount kit
Cables included: Serial
Feature: Manual

Sustainability

Feature: Sustainability compliance

Weight & dimensions

Width: 433 mm
Depth: 500 mm
Height: 86.5 mm
Weight: 32 kg

Packaging data

Package width: 560 mm
Package depth: 620 mm
Package height: 275 mm
Package weight: 38.8 kg
Package type: Box

Logistics data

Country of origin: China

Other features

Battery type: RBP0128
