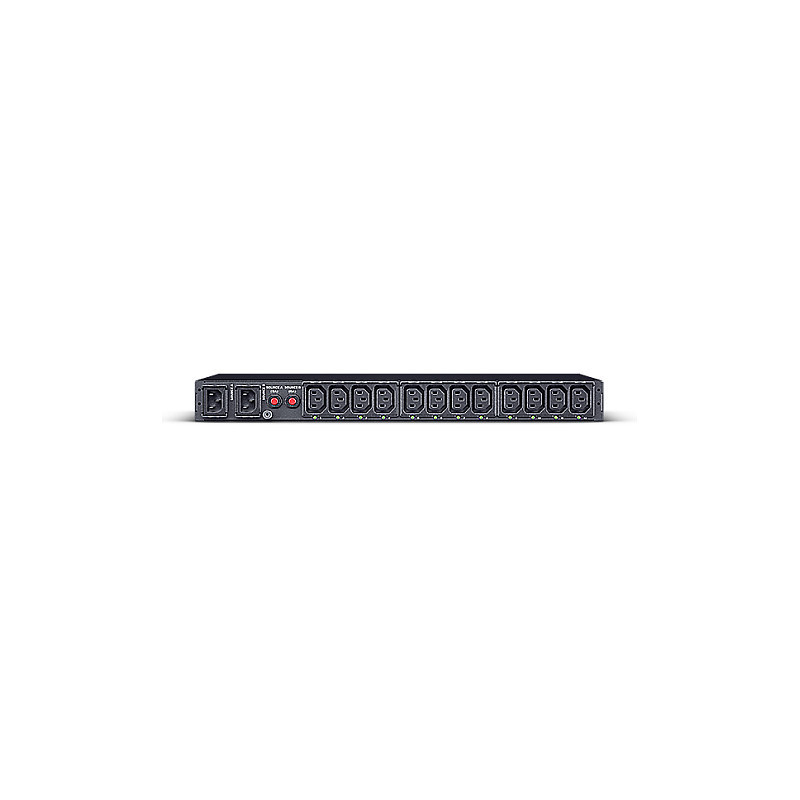

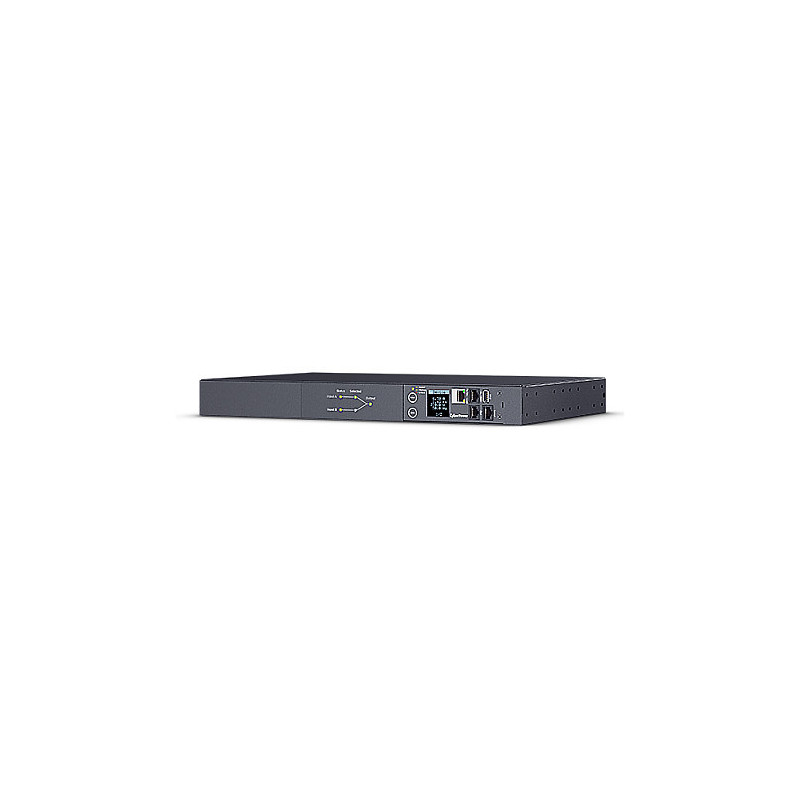

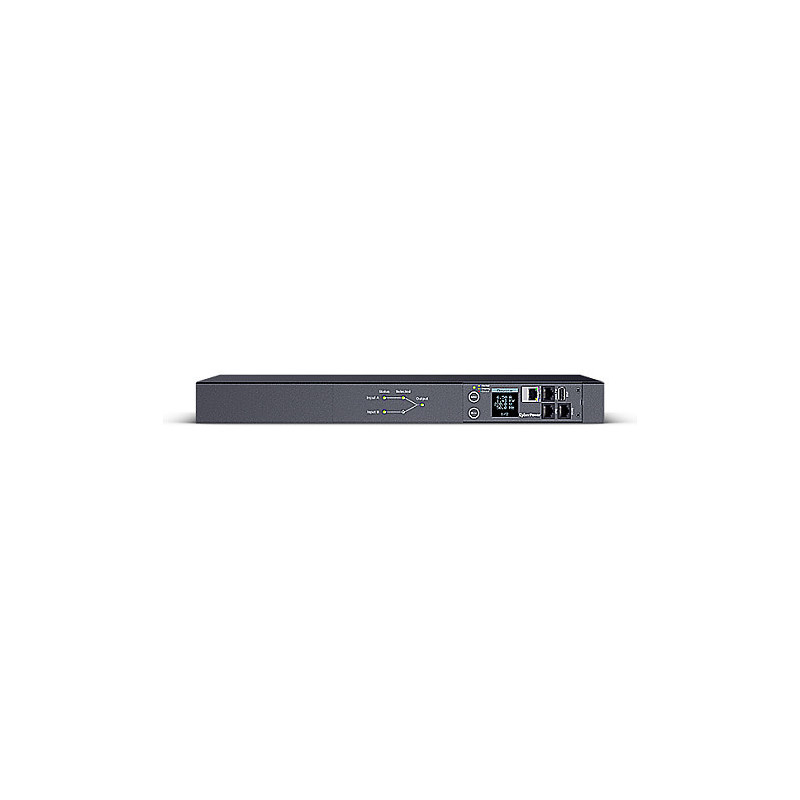

„CyberPower PDU44004“ maitinimo paskirstymo blokas (PDU)

CyberPower PDU44004. PDU types: Managed, Switched, Rack capacity: 1U, Type: Single-phase. AC outlets quantity: 12 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 60309. Cable length: 3.05 m. Monitoring: Current, Power, Voltage, Supported network protocols: IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, and..., Firmware upgradeable via: USB. Nominal input voltage: 200 - 240 V, Maximum current: 12 A, AC input frequency: 50 - 60 Hz

CyberPower PDU44004 provides output from a UPS unit, generator, or utility power to multiple connected devices in IT environments. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If the selected power source exceeds the desired thresholds or fails, the ATS PDU will automatically switch to the other power source to ensure continuous operation. The unit supports remote individual outlet control over the network, allowing administrators to turn on/off connected devices from any location.

The product is built-in with hot-swappable Ethernet module, which can work with PowerPanel® Power Management Software and power management web interface for real-time remote monitoring and configuration. The digital LCD display is also color configurable, allowing users to easily maintain and monitor the ATS PDU. Users can change LCD's colors to easily categorize devices between multiple machines in server room and IT environments. Event logging via a web browser or network connection allows users to review the history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The USB port also supports easy firmware upgrade. Moreover, the featured RJ45 port enables the connection of the optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in an IT center.

Design

PDU types: Managed, Switched
Type: Single-phase
Rack capacity: 1U
Mounting: Horizontal
Housing material: Steel
Product colour: Black
Display: LCD

Ports & interfaces

AC outlets quantity: 12 AC outlet(s)
Power plug: IEC 60309
AC outlet types: C13 coupler, C19 coupler
Ethernet LAN (RJ-45) ports: 4
USB ports quantity: 1

Features

Feature: Daisy chain
Cable length: 3.05 m

Management features

Monitoring: Current, Power, Voltage
Supported network protocols: IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, and Syslog
Feature: Firmware upgradeable
Firmware upgradeable via: USB

Power

Nominal input voltage: 200 - 240 V
AC input frequency: 50 - 60 Hz
Maximum current: 12 A

Certificates

Compliance certificates: CE, RoHS
Certification: CE, FCC Class A, UL62368, EN 55032 Class A, IEC 62368

Sustainability

Feature: Sustainability compliance

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -15 - 55 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 4000 m
Non-operating altitude: 0 - 15000 m

Weight & dimensions

Width: 433 mm
Depth: 215 mm
Height: 44 mm
Weight: 3.7 kg

Packaging content

Cables included: Serial
Feature: Manual
Feature: Rack mount kit

Packaging data

Package weight: 6 kg
Package width: 550 mm
Package depth: 398 mm
Package height: 125 mm

Logistics data

Country of origin: China
