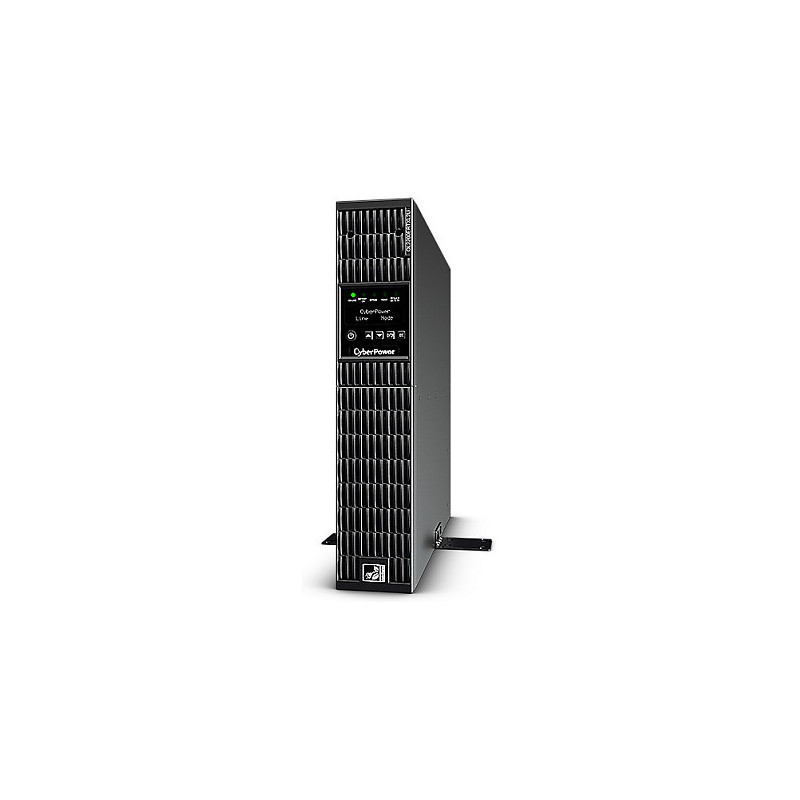

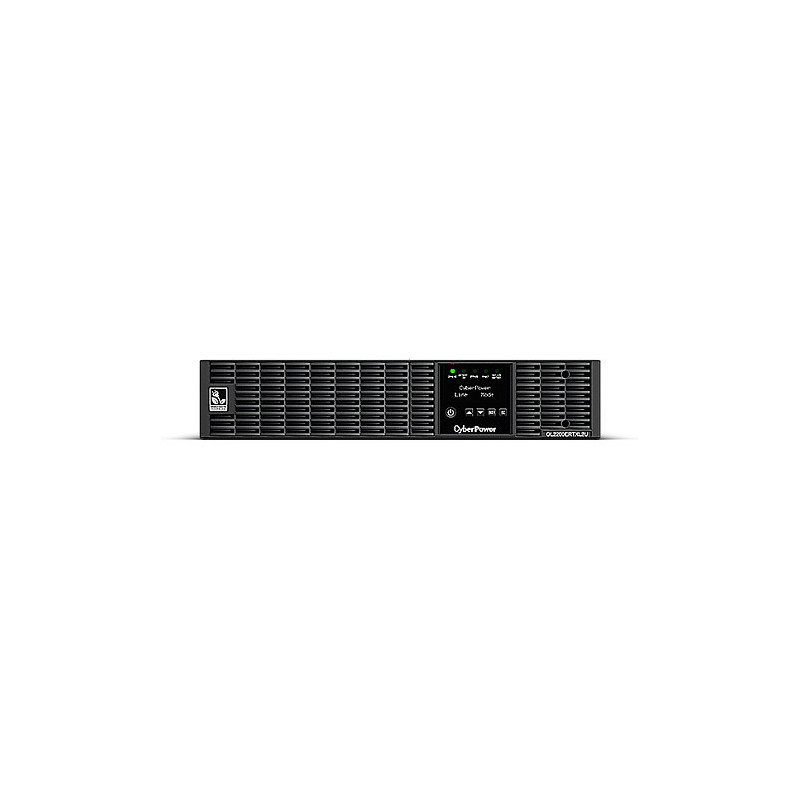

„CyberPower OL2200ERTXL2U“ nepertraukiamo maitinimo šaltinis (UPS)

CyberPower OL2200ERTXL2U. UPS topology: Double-conversion (Online), Output power capacity: 2.2 kVA, Output power: 2000 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 9 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 72 V, Typical backup time at full load: 6.5 min. Form factor: Rackmount/Tower, Product colour: Black, Housing material: Metal. Compliance certificates: CE, RoHS

CyberPower OL2200ERTXL2U guarantees power backup protection for IT equipment, servers, workstations, NAS/Storage devices, telecom devices, networking devices, security/emergency systems, and surveillance systems. The UPS adopts double-conversion topology to provide high-quality power output with additional ECO Mode to conserve power and save on energy costs. This generator-compatible UPS features hot-swappable battery packs for maintenance without power interruption, and Emergency Power Off (EPO) switch to allow users to shut off UPS immediately during emergency.

To extend battery lifetime, the UPS adopts Smart Battery Management (SBM) to enhance battery charging process and achieve a lower total cost of ownership. This model also features detachable LCD display panel to relocate the panel for convenient monitoring, and RJ11/RJ45 port to provide data line protection against surges and spikes. The PowerPanel Power Management Software allows user to perform real-time monitoring and remote management of the UPS.

Features

UPS topology: Double-conversion (Online)
Output power capacity: 2.2 kVA
Output power: 2000 W
Waveform: Pure sine
Input operation voltage (min): 190 V
Input operation voltage (max): 300 V
Input frequency: 40/70 Hz
Output operation voltage (min): 200 V
Output operation voltage (max): 240 V
Output frequency: 50/60 Hz
Maximum current: 11 A
Surge energy rating: 1335 J
Response time: 0 ms
Heat dissipation: 1139 BTU/h
Output power factor: 0.9
Feature: Emergency Power Off (EPO)
Total Harmonic Distortion (THD) (linear load): 3%
Total Harmonic Distortion (THD) (non-linear load): 5%
Feature: Surge protection
Surge protection features: Fax, Modem, Network, Telephone
Power protection features: Overload

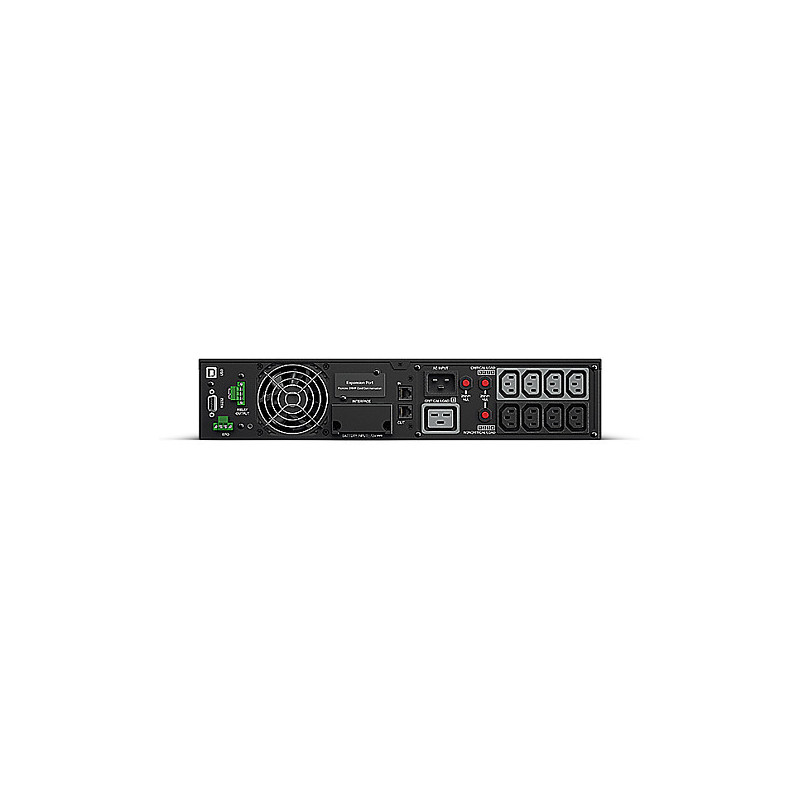

Ports & interfaces

AC outlet types: C13 coupler, C19 coupler
Power plug: C20 coupler
AC outlets quantity: 9 AC outlet(s)
USB 2.0 ports quantity: 1
Feature: Serial interface
Serial interface type: RS-232
Serial ports quantity: 1
RS-232 ports: 1
Ethernet LAN (RJ-45) ports: 2
Feature: Emergency Power Off (EPO) connector

Battery

Battery technology: Sealed Lead Acid (VRLA)
Battery voltage: 72 V
Typical backup time at full load: 6.5 min
Typical backup time at half load: 20 min
Battery recharge time: 5 h
Charging current: 1 A
Feature: Hot-swap battery
Feature: Cold start

Design

Form factor: Rackmount/Tower
Housing material: Metal
Rack capacity: 2U
Cable length: 3 m
Cooling type: Active
Feature: Built-in fan
Product colour: Black
Control type: Buttons
Display type: LCD
LED indicators: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 45 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 15000 m

Certificates

Compliance certificates: CE, RoHS

Packaging content

Feature: Rack mount kit
Cables included: Serial, USB cable
Feature: Manual

Sustainability

Feature: Sustainability compliance

Weight & dimensions

Width: 433 mm
Depth: 600 mm
Height: 88 mm
Weight: 31 kg

Packaging data

Package width: 565 mm
Package depth: 880 mm
Package height: 240 mm
Package weight: 39.5 kg

Logistics data

Harmonized System (HS) code: 8504408590
Country of origin: China

Other features

Battery type: RBP0076
